Amana
Bottom-Mount Refrigerator

Model # ABB2223DEQ1 Official Amana refrigerator

Here are the diagrams and repair parts for Official Amana ABB2223DEQ1 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

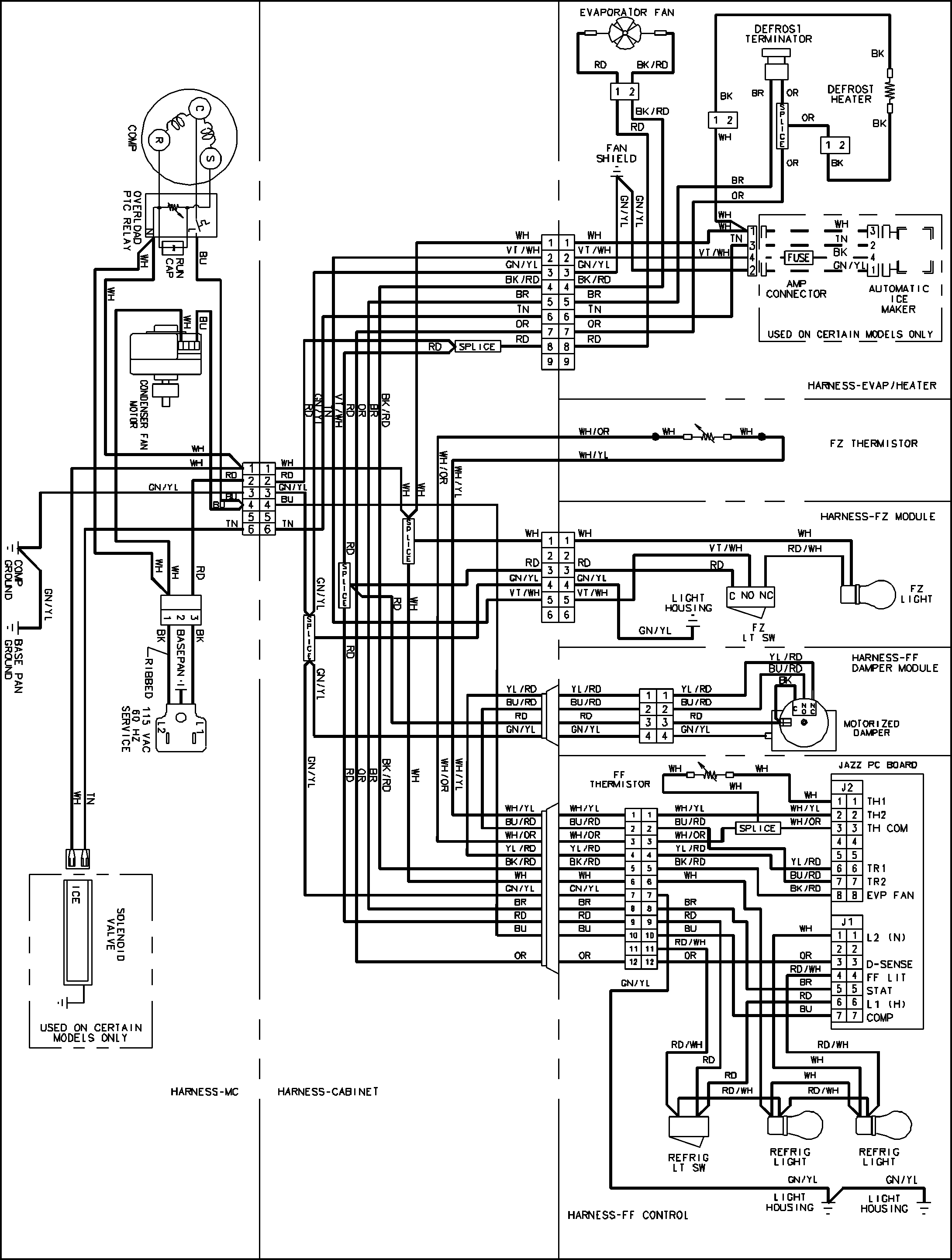

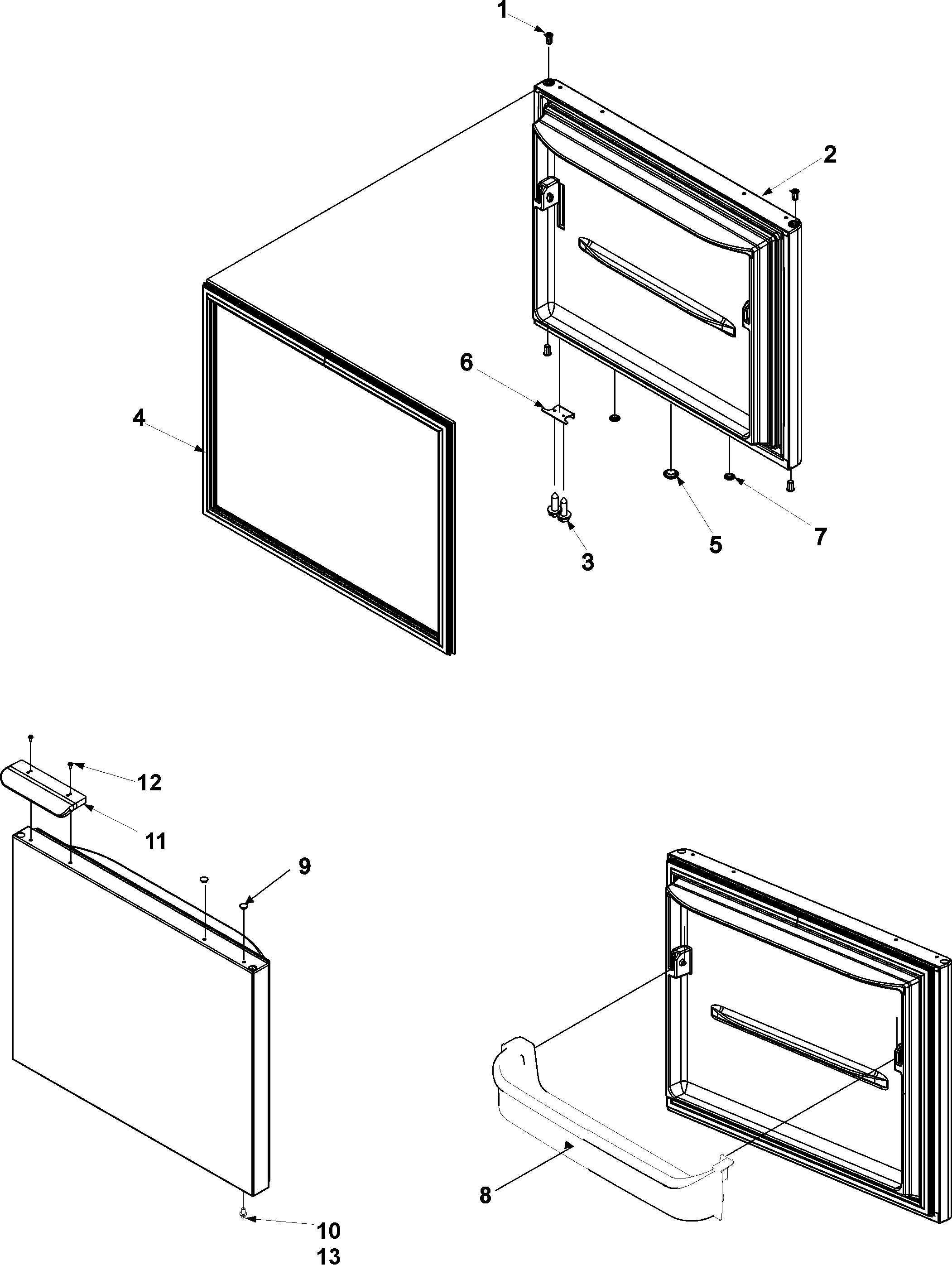

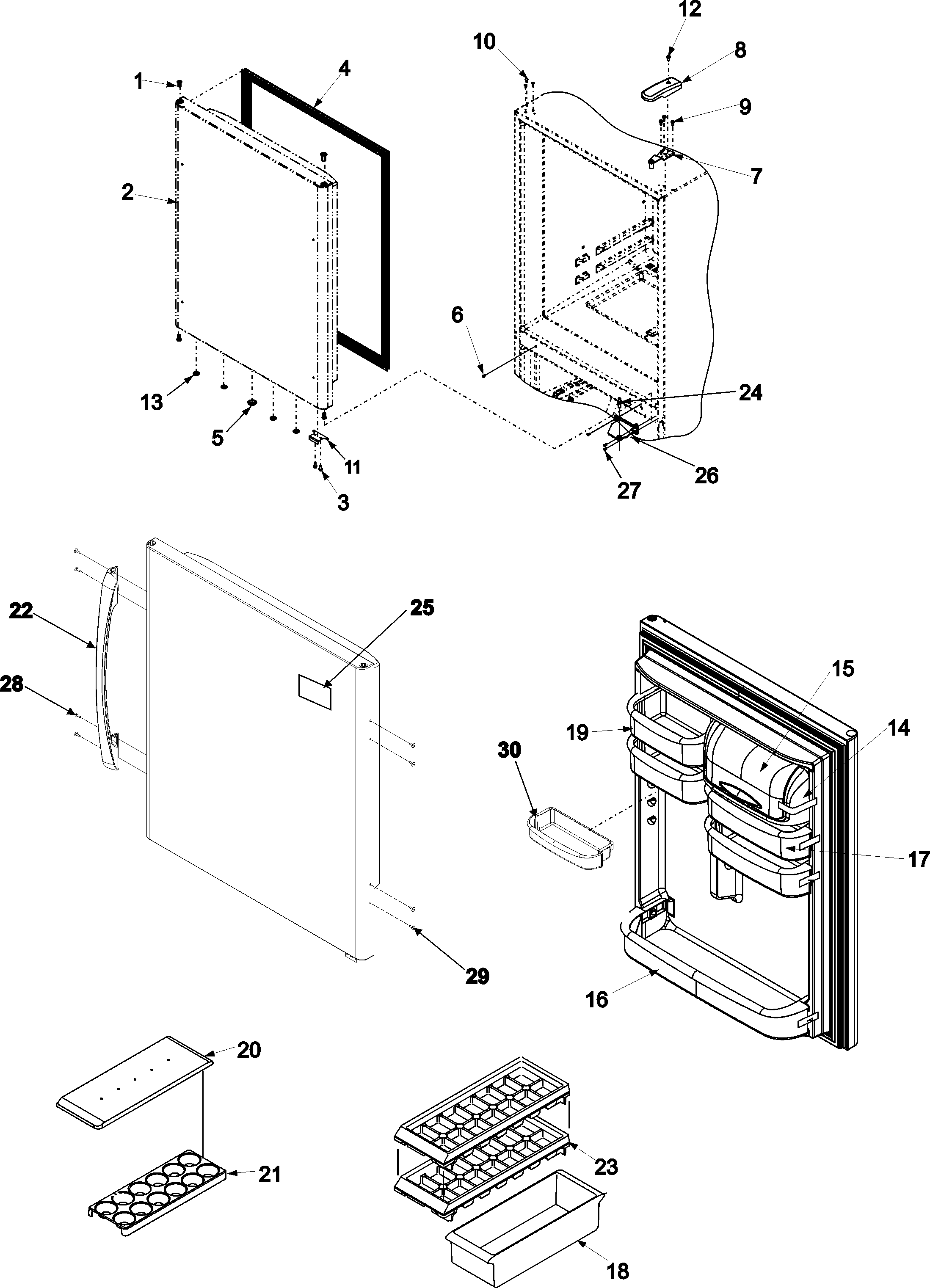

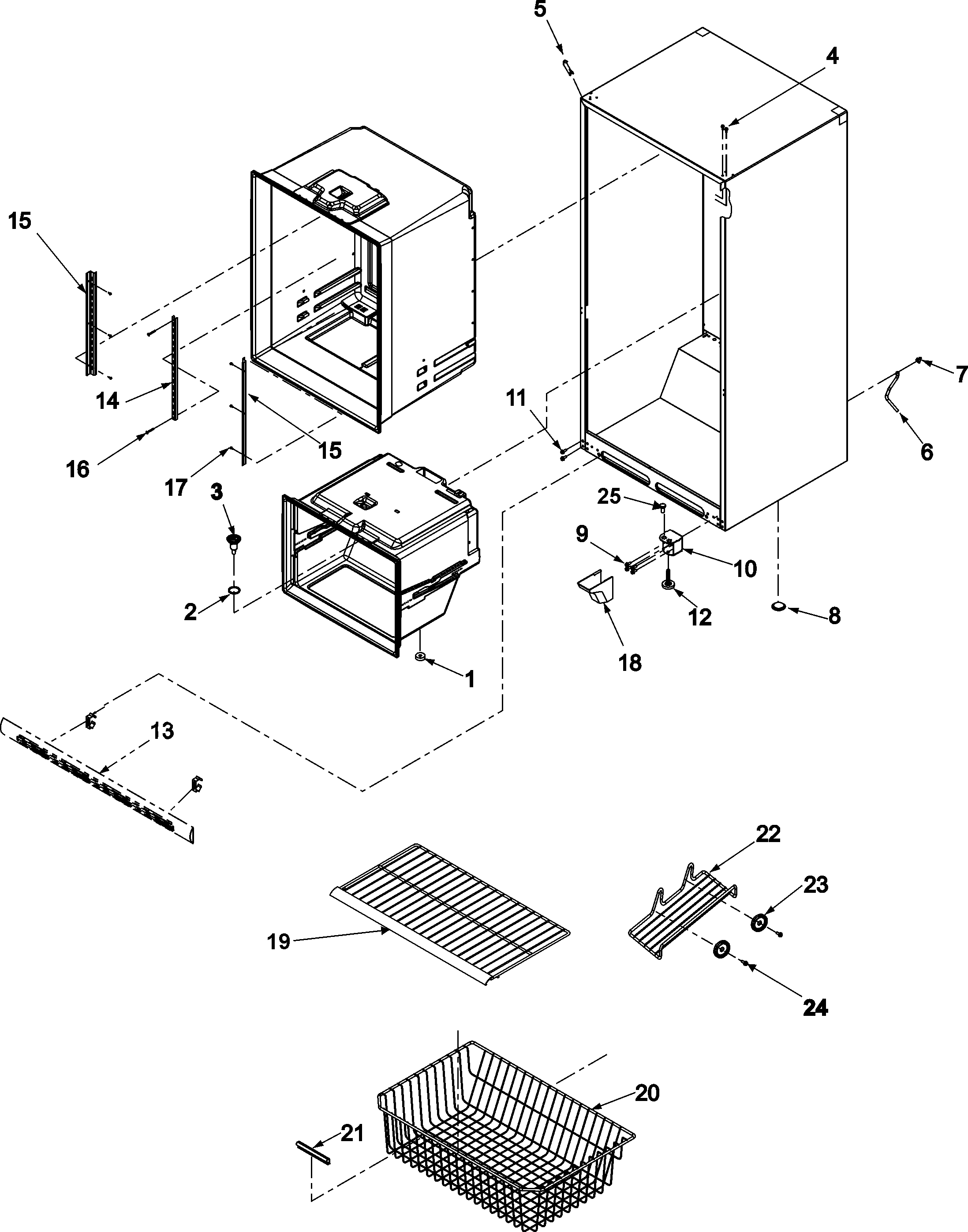

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 229 parts  |
Refrigerator Ice Maker D7824706
#14

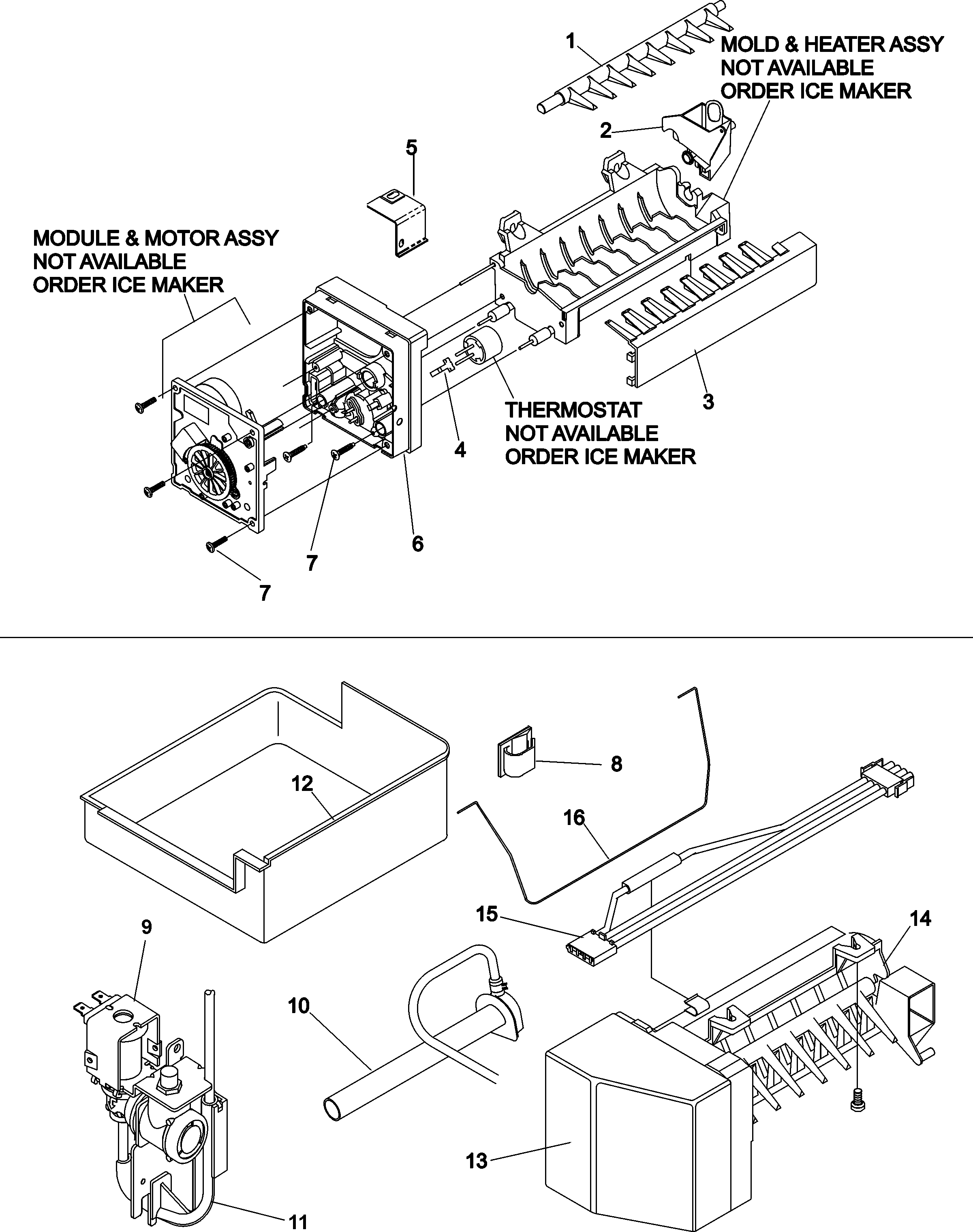

Optional ice maker kit ic11b p1328003w diagram

Refrigerator ice maker

Part #D7824706

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824706. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Light Bulb 67003883
Refrigerator light bulb

Part #67003883

Replaced by #40A15

?
Manufacturer substitution
This part replaces 67003883. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Control Board 12002339
#5

Controls diagram

Refrigerator control board

Part #12002339

Replaced by #WPW10503278

?
Manufacturer substitution
This part replaces 12002339. Substitute parts can look different from the original.
BEST SELLER
$159.52 |
7% OFF Phone Price : $171.52
In Stock
Refrigerator Light Switch C3680310
#1

Controls diagram

Refrigerator light switch

Part #C3680310

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Tube B5705323
#11

Optional ice maker kit ic11b p1328003w diagram

Refrigerator tube

Part #B5705323

Replaced by #W10823511

?
Manufacturer substitution
This part replaces B5705323. Substitute parts can look different from the original.
BEST SELLER
$33.27 |
15% OFF Phone Price : $39.27
In Stock
Refrigerator Compressor 67003762
#8

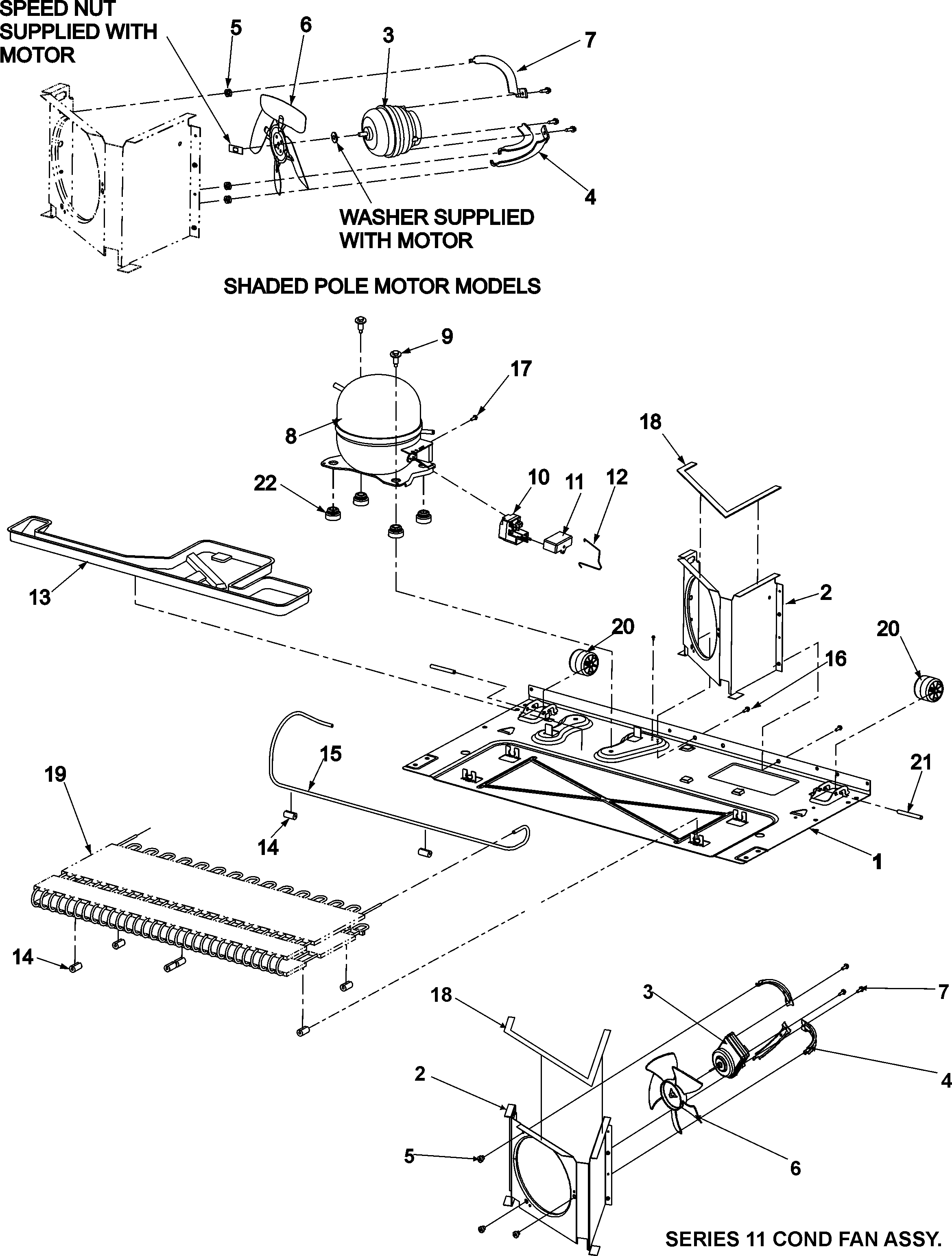

Compressor diagram

Refrigerator compressor

Part #67003762

Replaced by #W10309989

?
Manufacturer substitution
This part replaces 67003762. Substitute parts can look different from the original.
BEST SELLER
$502.83 |
$12.00 OFF Phone Price : $514.83
In Stock
Refrigerator Overload Release 67003764
#10

Compressor diagram

Refrigerator overload release

Part #67003764

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67003764. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Crisper Drawer Support Rail, Center 67001057
#7

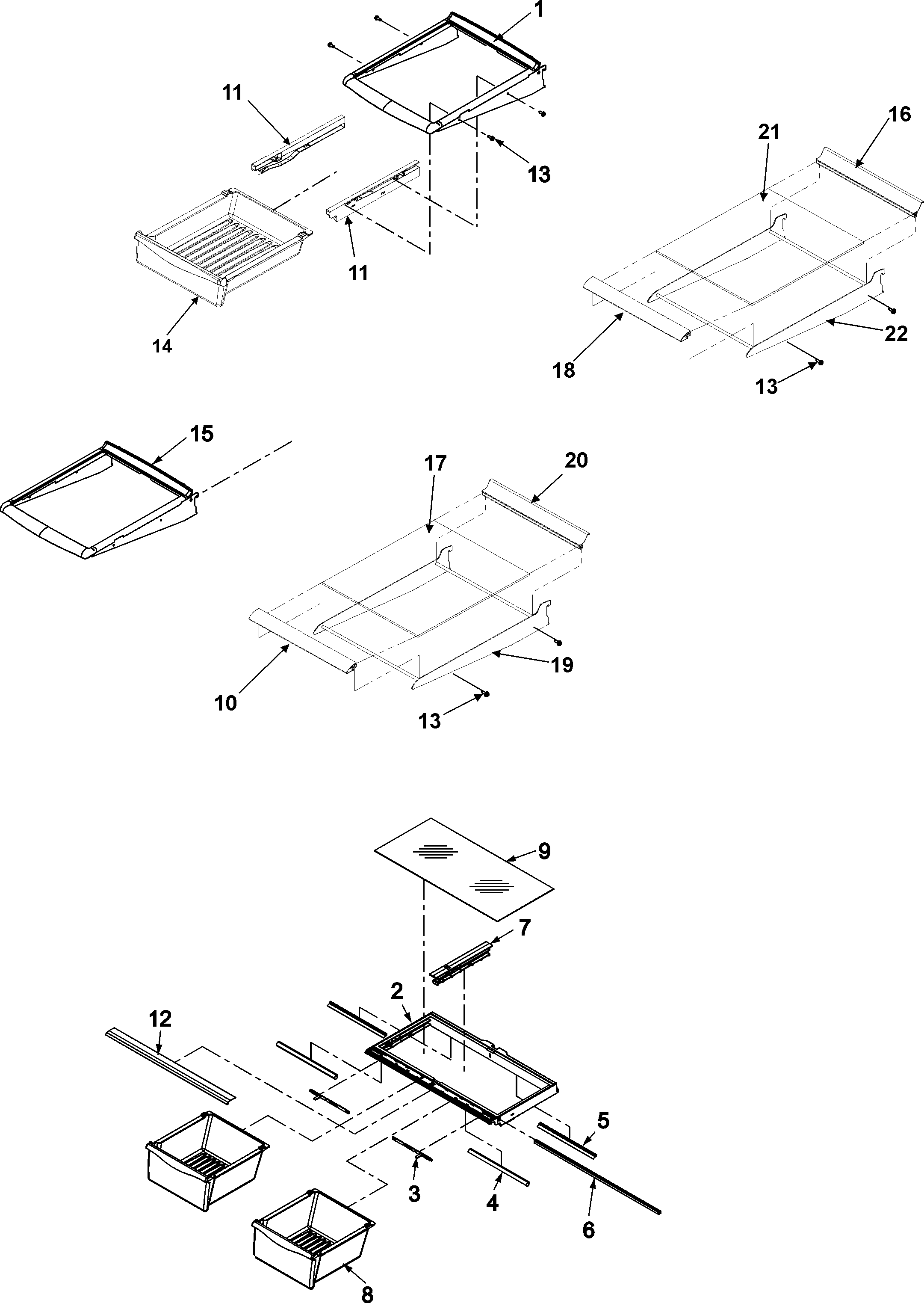

Refrigerator shelving diagram

Refrigerator crisper drawer support rail, center

Part #67001057

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces 67001057. Substitute parts can look different from the original.
BEST SELLER
$47.26 |
11% OFF Phone Price : $53.26
In Stock
Evaporator Motor 67003636
#18

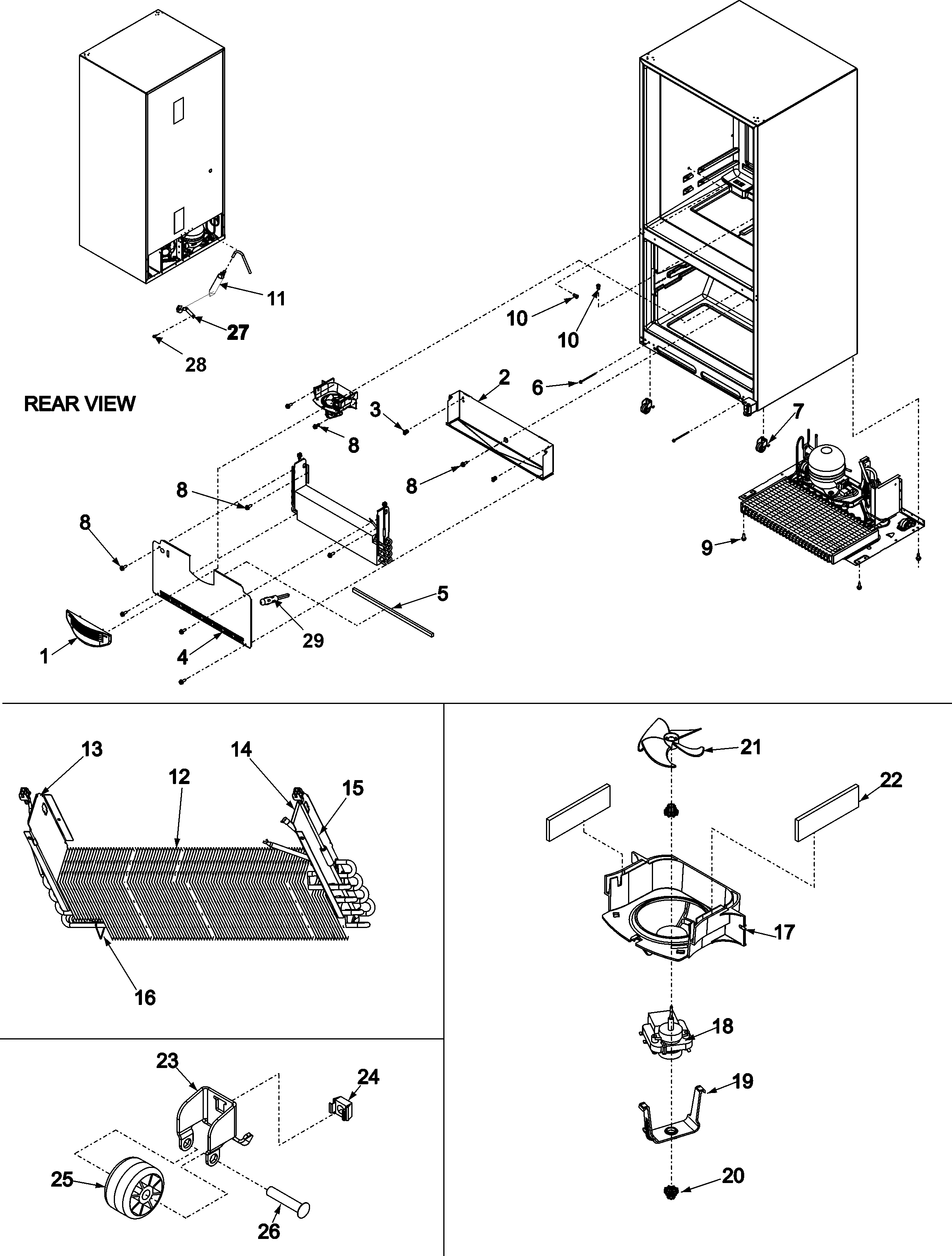

Evaporator area & rollers diagram

Evaporator motor

Part #67003636

Replaced by #WPW10128551

?
Manufacturer substitution
This part replaces 67003636. Substitute parts can look different from the original.
BEST SELLER
$65.76 |
8% OFF Phone Price : $71.76
In Stock
Drier B2150504
#11

Evaporator area & rollers diagram

Drier

Part #B2150504

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150504. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
