Model # 58075124700 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58075124700 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

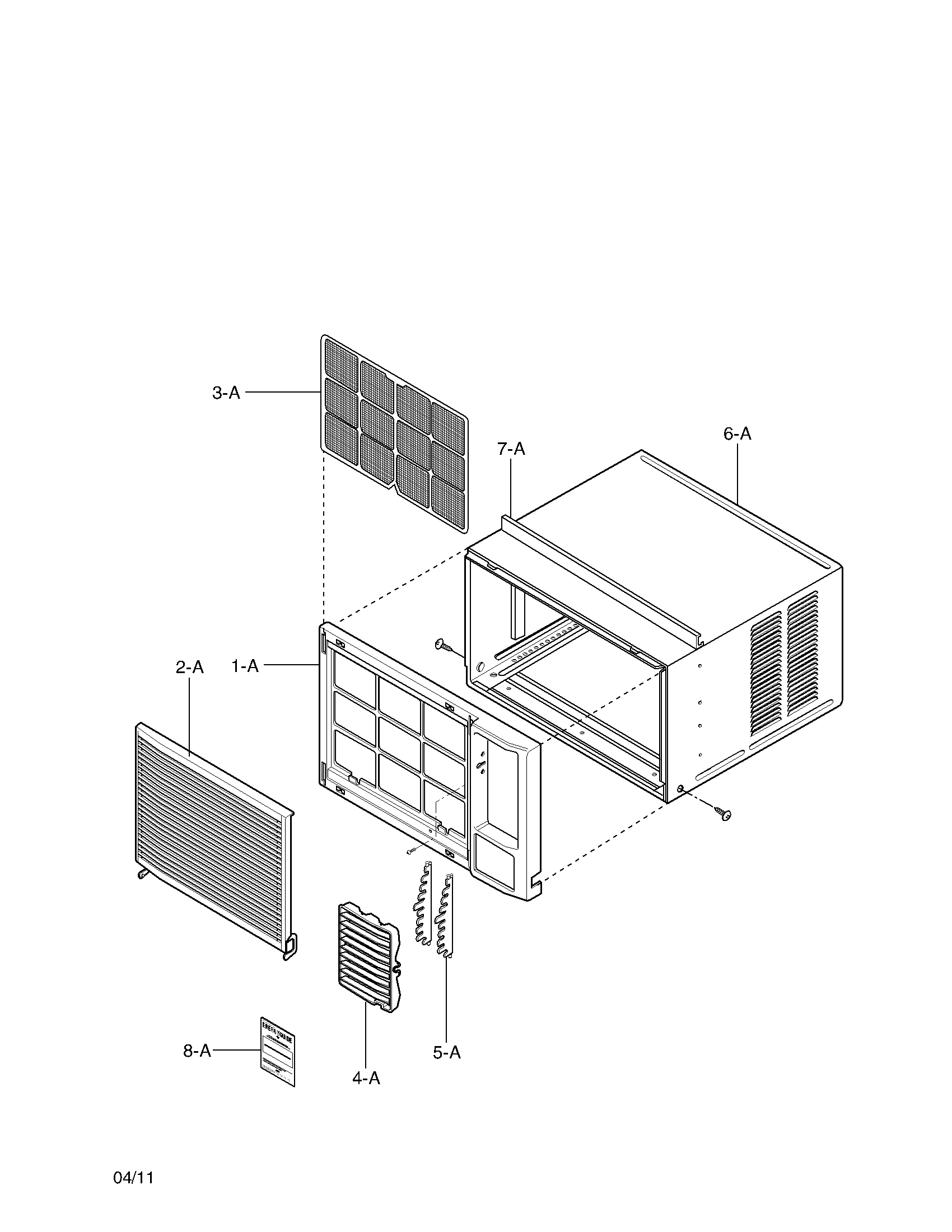

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Room Air Conditioner Accordion Filler, Right 4959AR3402D
#2-E

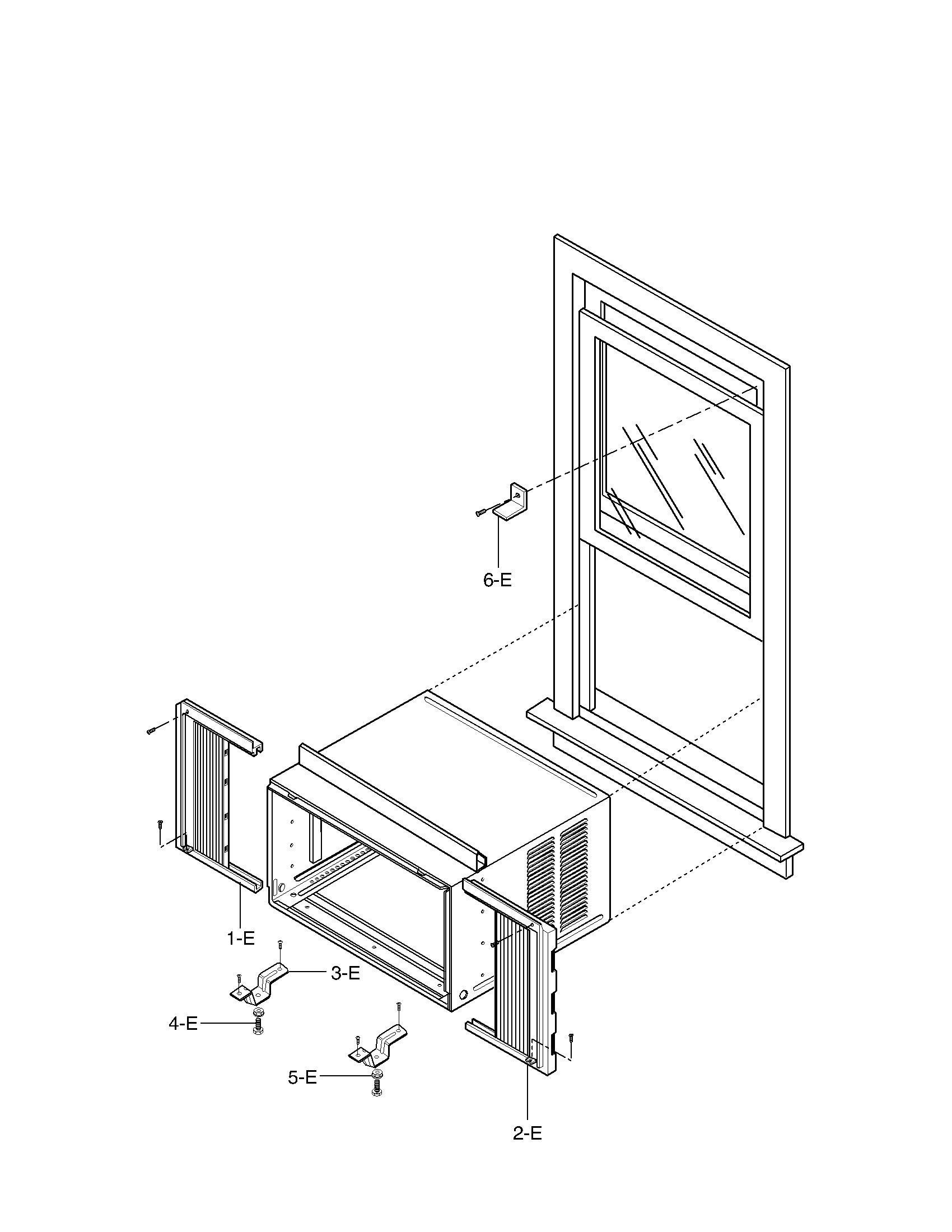

Installation kit parts diagram

Room air conditioner accordion filler, right

Part #4959AR3402D

Replaced by #3127A20074Y

?
Manufacturer substitution
This part replaces 4959AR3402D. Substitute parts can look different from the original.
$45.19 |
12% OFF Phone Price : $51.19
In Stock
Room Air Conditioner Accordion Filler, Left 4959AR3402C
#1-E

Installation kit parts diagram

Room air conditioner accordion filler, left

Part #4959AR3402C

Replaced by #3127A20074Y

?
Manufacturer substitution
This part replaces 4959AR3402C. Substitute parts can look different from the original.
$45.19 |
12% OFF Phone Price : $51.19
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932B
#10-C

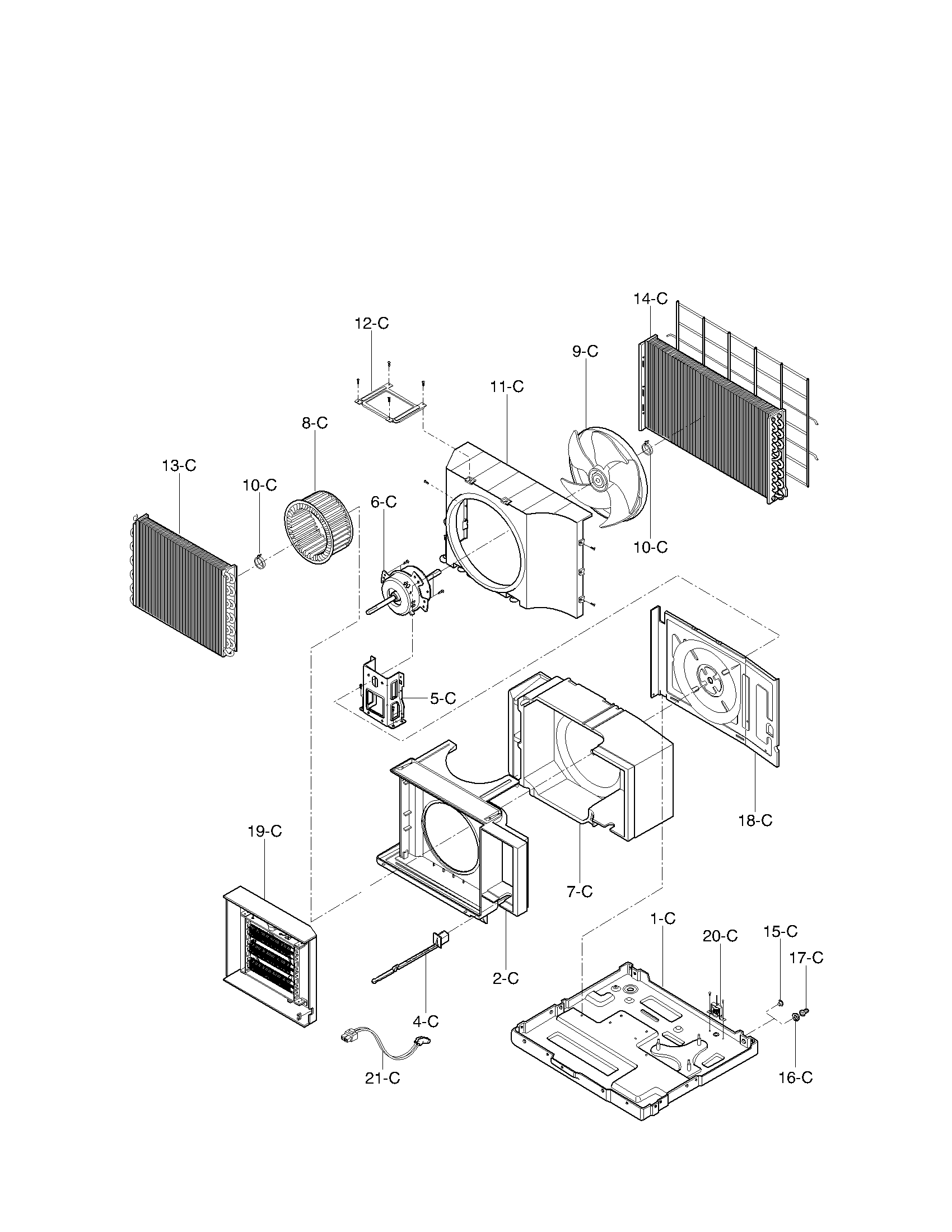

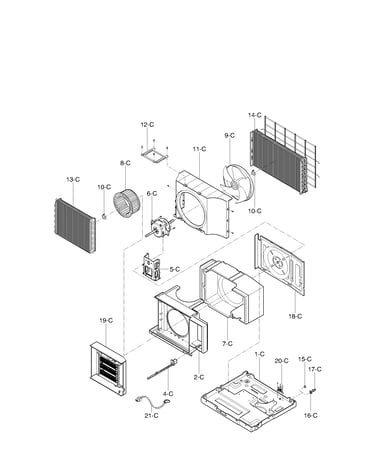

Air handling and cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Drain Pipe 3H02773A
#17-C

Air handling and cycle parts diagram

Room air conditioner drain pipe

Part #3H02773A

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Control Knob Assembly (replaces 4941ar7134b) 4941AR7134E
#11-B

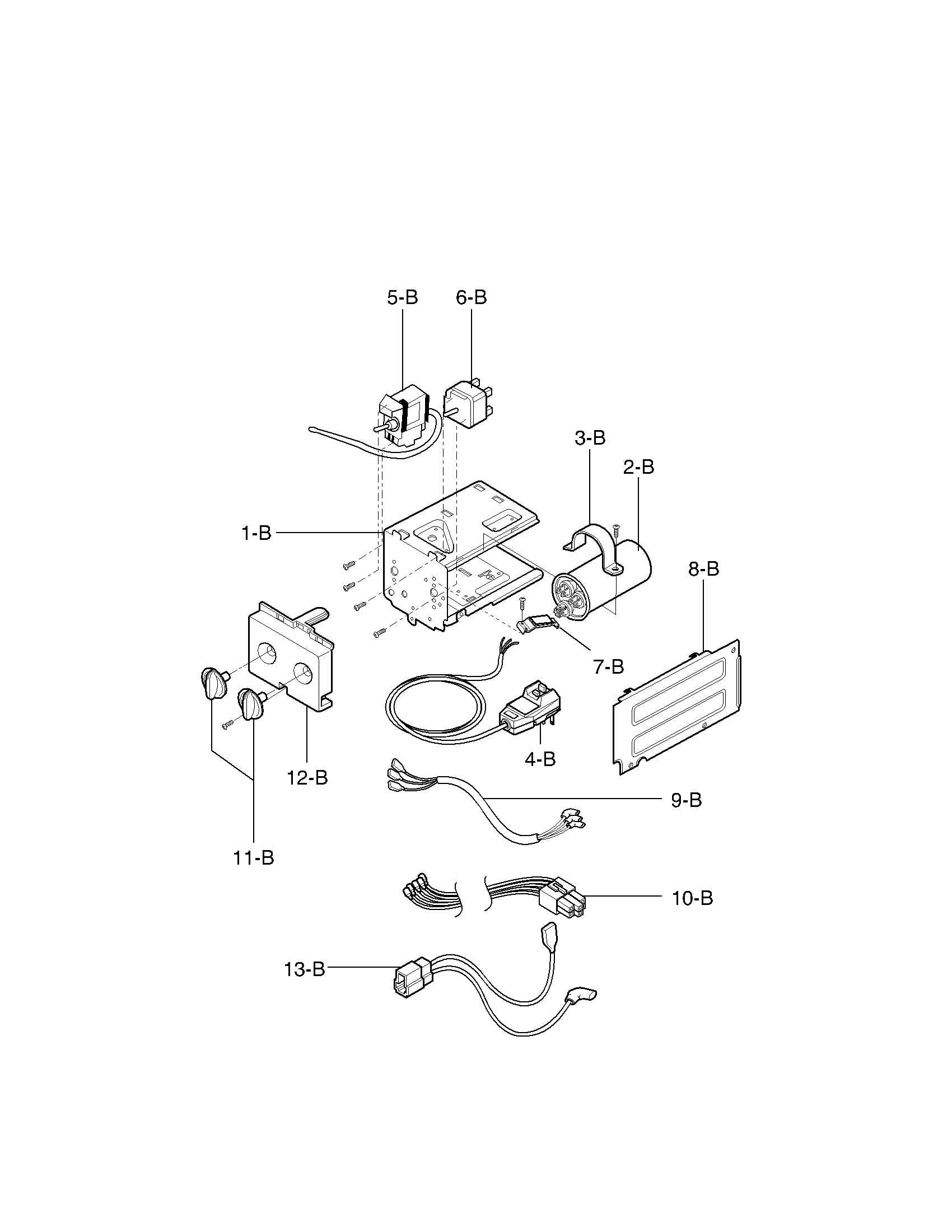

Control box parts diagram

Room air conditioner control knob assembly (replaces 4941ar7134b)

Part #4941AR7134E

This item is not returnable
$4.51
In Stock
Bushing 4830AR4335A
#1-D

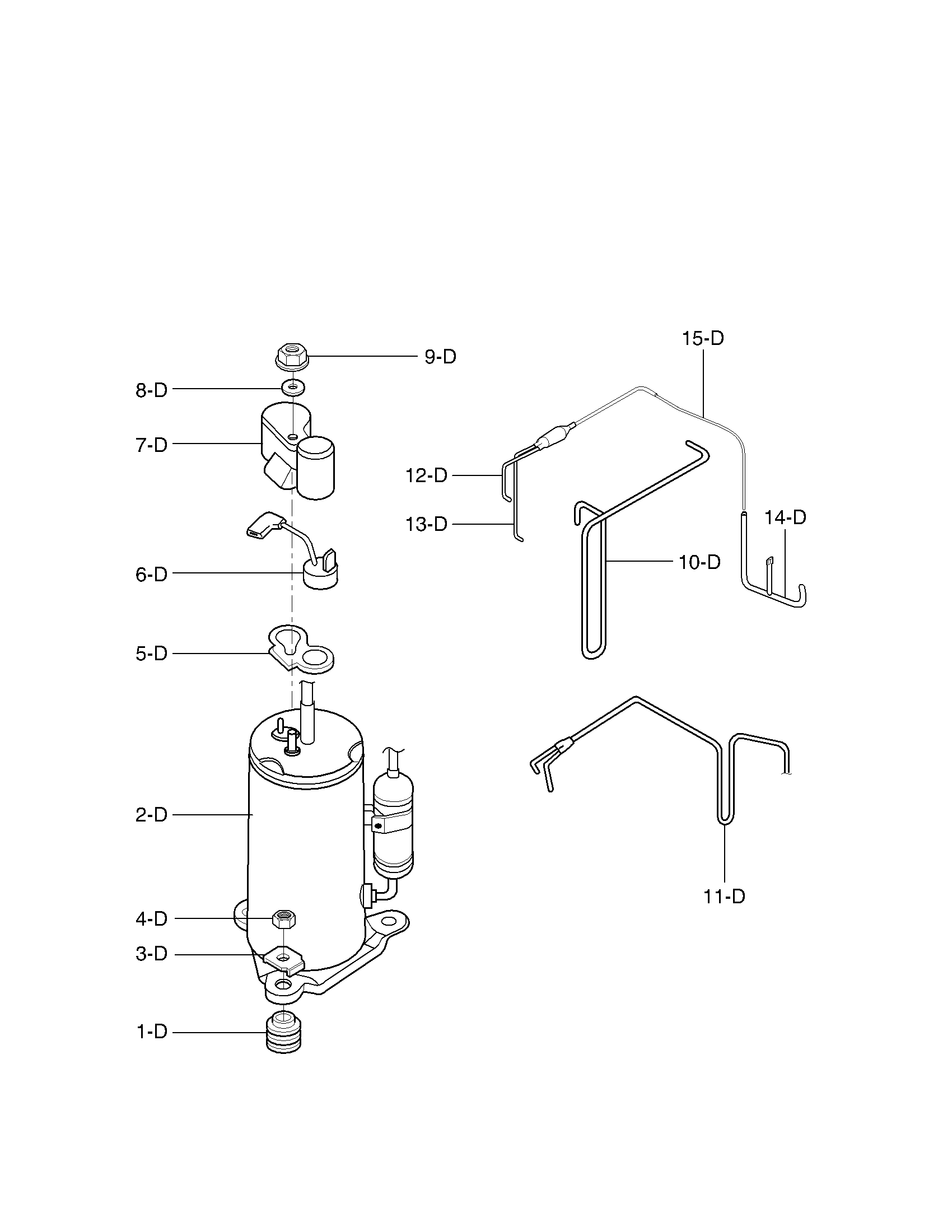

Compressor parts diagram

Bushing

Part #4830AR4335A

This item is not returnable
$4.51
In Stock
Room Air Conditioner Power Cord 6411A20056Q
#4-B

Control box parts diagram

Room air conditioner power cord

Part #6411A20056Q

Replaced by #EAD63469507

?
Manufacturer substitution
This part replaces 6411A20056Q. Substitute parts can look different from the original.
$91.03 |
6% OFF Phone Price : $97.03
In Stock
Bracket 4H01811C
#3-D

Compressor parts diagram

Bracket

Part #4H01811C

This item is not returnable
$4.51
In Stock
Comfort-aire Room Air Conditioner Evaporator Inlet Tube, Upper 5210AR4373B
#12-D

Compressor parts diagram

Comfort-aire room air conditioner evaporator inlet tube, upper

Part #5210AR4373B

$10.49 |
16% OFF Phone Price : $12.49
In Stock
Barrier 4790AR1493A
#18-C

Air handling and cycle parts diagram

Barrier

Part #4790AR1493A

$27.47
In Stock
