Model # JES8750AAB Official Jenn-Air electric slide-in range

Here are the diagrams and repair parts for Official Jenn-Air JES8750AAB electric slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

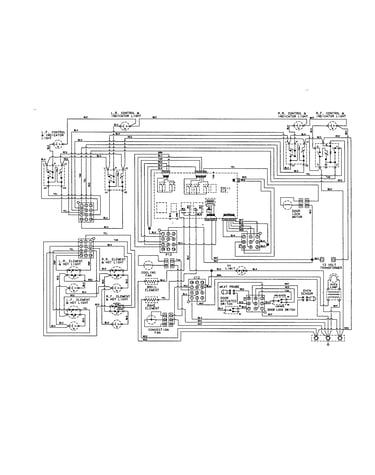

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
Oven Sensor 74004943
#5

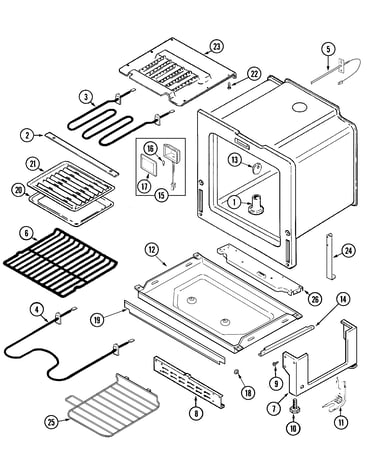

Oven/base diagram

Oven sensor

Part #74004943

Replaced by #12001656

?
Manufacturer substitution
This part replaces 74004943. Substitute parts can look different from the original.
BEST SELLER
$36.94 |
14% OFF Phone Price : $42.94
In Stock
Cooktop Clea 20001099
#5

Supplemental information diagram

Cooktop clea

Part #20001099

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 20001099. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Element (120 74008568
#9A

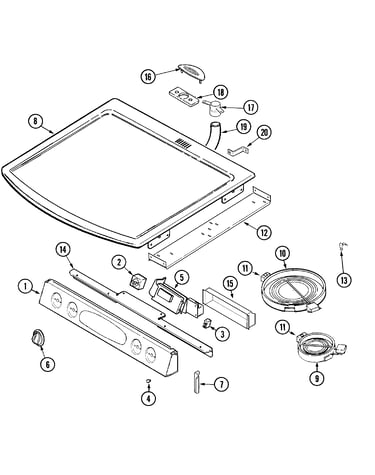

Top assembly diagram

Element (120

Part #74008568

Replaced by #W10823711

?
Manufacturer substitution
This part replaces 74008568. Substitute parts can look different from the original.
BEST SELLER
$148.63 |
7% OFF Phone Price : $160.63
In Stock
Bake Element 74003039
#4

Oven/base diagram

Bake element

Part #74003039

Replaced by #WP74010750

?
Manufacturer substitution
This part replaces 74003039. Substitute parts can look different from the original.
BEST SELLER
$36.89 |
14% OFF Phone Price : $42.89
In Stock
Range Surface Element Control Switch 703650
#2A

Top assembly diagram

Range surface element control switch

Part #703650

Replaced by #W11120791

?
Manufacturer substitution
This part replaces 703650. Substitute parts can look different from the original.
BEST SELLER
$55.40 |
10% OFF Phone Price : $61.40
In Stock
Element W/li 74005476
#9

Top assembly diagram

Element w/li

Part #74005476

Replaced by #W10823704

?
Manufacturer substitution
This part replaces 74005476. Substitute parts can look different from the original.
BEST SELLER
$150.34 |
8% OFF Was : $163.41
In Stock
Door Gasket 7201P046-60
#4

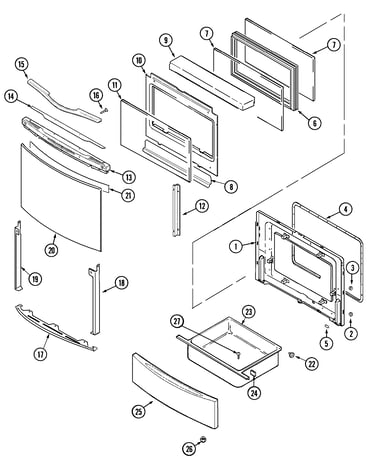

Door/drawer diagram

Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
BEST SELLER
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Range Oven Door Inner Glass (replaces 7902p436-60) 74003645
#7

Door/drawer diagram

Range oven door inner glass (replaces 7902p436-60)

Part #74003645

$104.75 |
10% OFF Phone Price : $116.75
In Stock
Oven Screw 74003004
#8

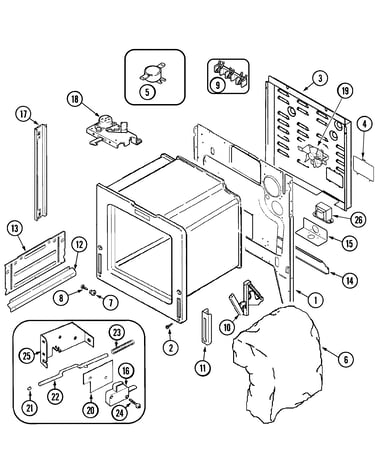

Body diagram

Oven screw

Part #74003004

Replaced by #W11693756

?
Manufacturer substitution
This part replaces 74003004. Substitute parts can look different from the original.
$13.06
In Stock
Bracket Screw 7101P040-60
#19B

Door/drawer diagram

Bracket screw

Part #7101P040-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P040-60. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
