Hotpoint
Gas Range

Model # RGB506PY2WH Official Hotpoint gas range

Here are the diagrams and repair parts for Official Hotpoint RGB506PY2WH gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Inner Panel WB56X10020
#2

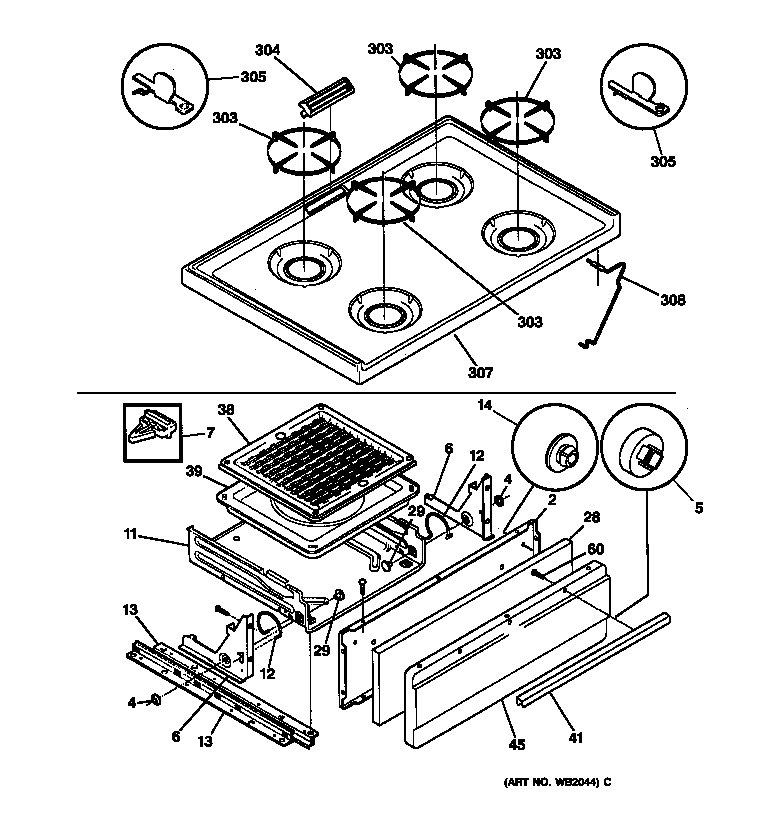

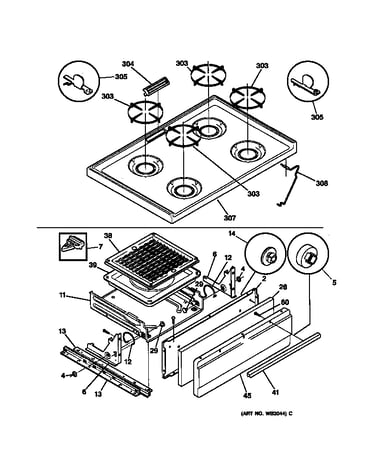

Cooktop & drawer diagram

Inner panel

Part #WB56X10020

$31.99
In Stock
Flue WB38X10019
#19

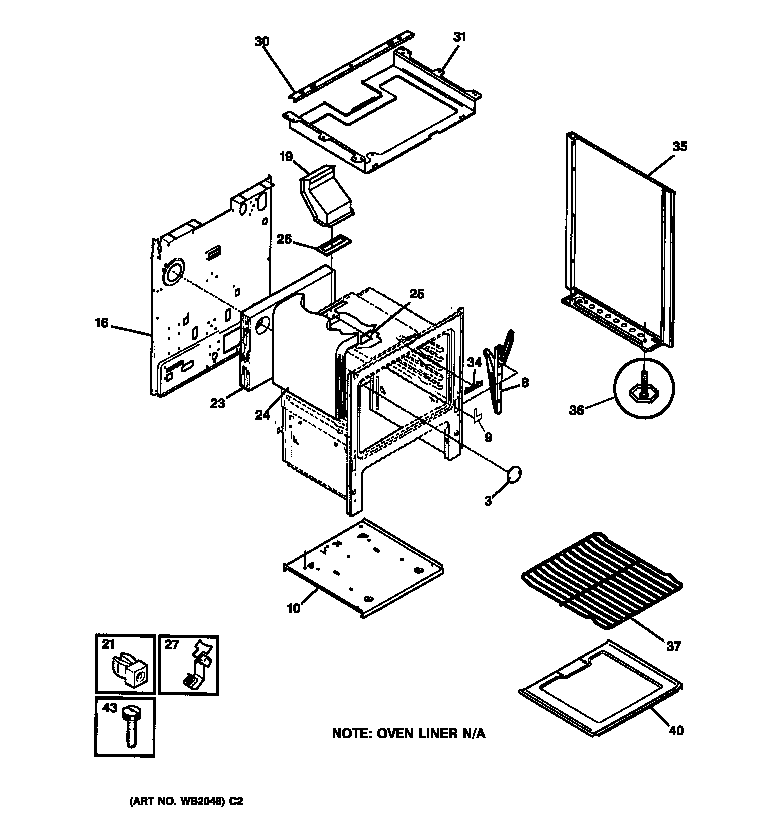

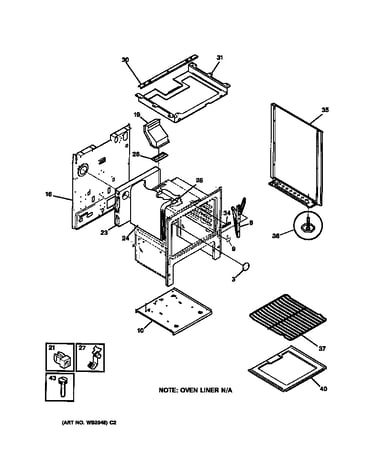

Body parts diagram

Flue

Part #WB38X10019

$42.99
In Stock
Uc/install R 39-4764
#999B

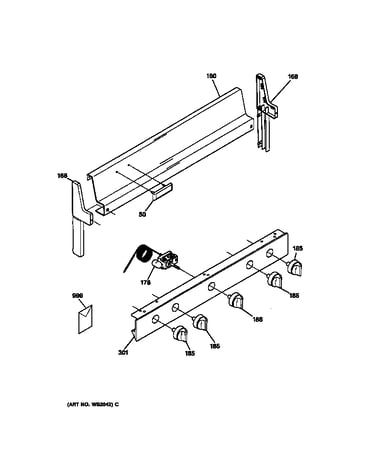

Control panel diagram

Uc/install r

Part #39-4764

$8.49
In Stock
Drawer Body WB55X5349
#11

Cooktop & drawer diagram

Drawer body

Part #WB55X5349

$45.49
In Stock
Screw WB1X10011
#45

Cooktop & drawer diagram

Screw

Part #WB1X10011

Replaced by #WB01X10011

?
Manufacturer substitution
This part replaces WB1X10011. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Insulation WB2X10314
#24

Body parts diagram

Insulation

Part #WB2X10314

Replaced by #WB02X10314

?
Manufacturer substitution
This part replaces WB2X10314. Substitute parts can look different from the original.
$56.99
In Stock
Bracket WB2X10315
#733

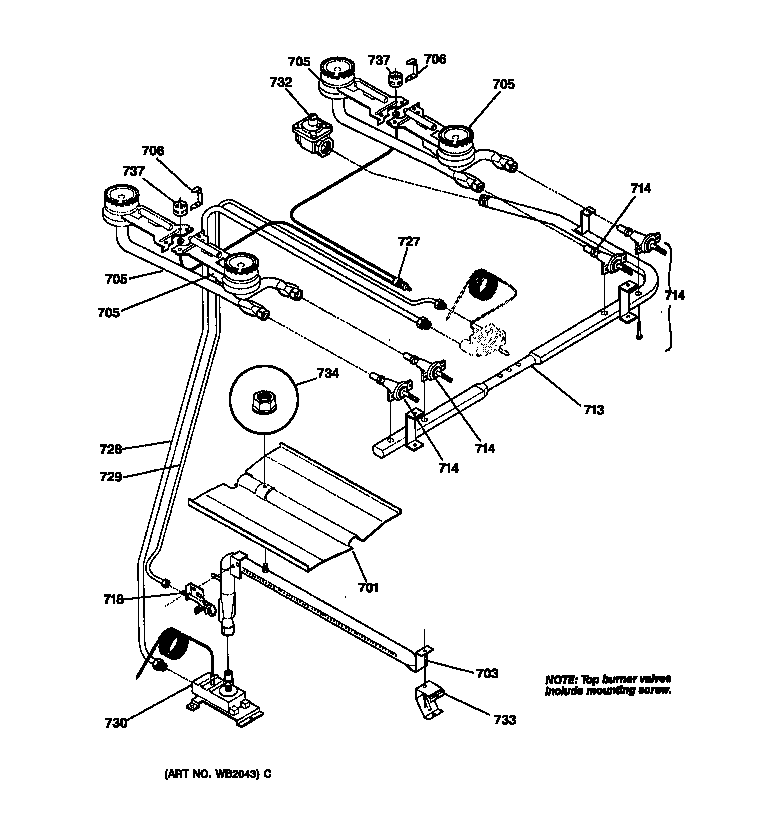

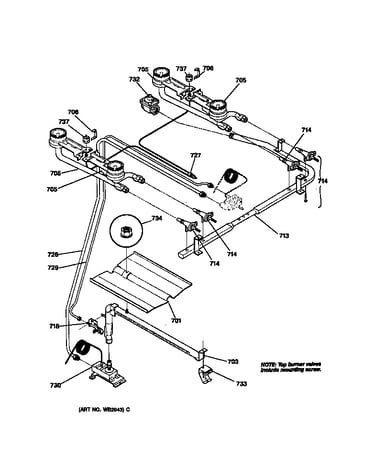

Burner parts diagram

Bracket

Part #WB2X10315

Replaced by #WB02X10315

?
Manufacturer substitution
This part replaces WB2X10315. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Vent Cover WB2X10331
#304

Cooktop & drawer diagram

Vent cover

Part #WB2X10331

Replaced by #WB02X10331

?
Manufacturer substitution
This part replaces WB2X10331. Substitute parts can look different from the original.
$75.99
In Stock
Hinge-rh WB2X10333
#6A

Cooktop & drawer diagram

Hinge-rh

Part #WB2X10333

Replaced by #WB02X10333

?
Manufacturer substitution
This part replaces WB2X10333. Substitute parts can look different from the original.
$18.49
In Stock
Oven Panel WB53X10001
#40

Body parts diagram

Oven panel

Part #WB53X10001

The manufacturer no longer makes this part, and there's no substitute part
