Kenmore
Air Purifier

Model # 635832600 Official Kenmore air cleaner

Here are the diagrams and repair parts for Official Kenmore 635832600 air cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |

Motor 240437-001
#15

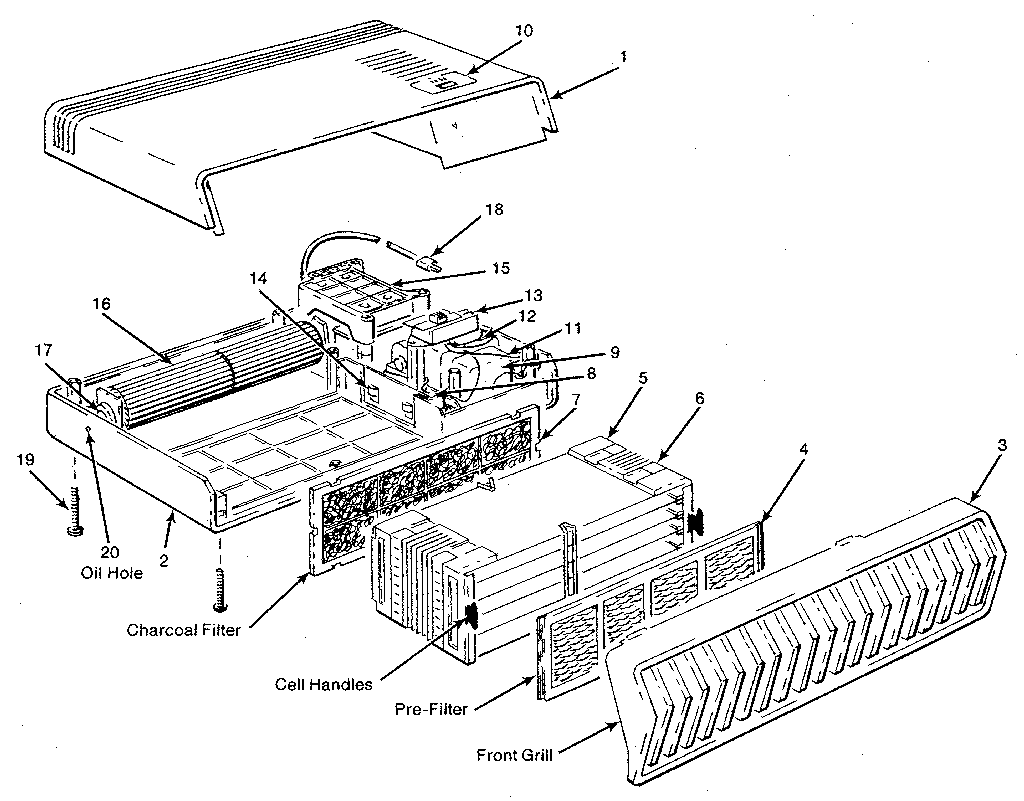

Unit parts diagram

Motor

Part #240437-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 137481-002
#19

Unit parts diagram

Screw

Part #137481-002

The manufacturer no longer makes this part, and there's no substitute part

Filter 237470-002
#7

Unit parts diagram

Filter

Part #237470-002

The manufacturer no longer makes this part, and there's no substitute part

Led Assembly 140435-001
#11

Unit parts diagram

Led assembly

Part #140435-001

The manufacturer no longer makes this part, and there's no substitute part

Switch Cover 240433-001
#10

Unit parts diagram

Switch cover

Part #240433-001

The manufacturer no longer makes this part, and there's no substitute part

Ionizer 437086-001
#5

Unit parts diagram

Ionizer

Part #437086-001

The manufacturer no longer makes this part, and there's no substitute part

Transformer 237087-001
#12

Unit parts diagram

Transformer

Part #237087-001

The manufacturer no longer makes this part, and there's no substitute part

Circuit Board 440436-001
#13

Unit parts diagram

Circuit board

Part #440436-001

The manufacturer no longer makes this part, and there's no substitute part

Speed Switch 137473-001
#9

Unit parts diagram

Speed switch

Part #137473-001

The manufacturer no longer makes this part, and there's no substitute part

Dirt Holding Pad (disposable) N/P
#20

Unit parts diagram

Dirt holding pad (disposable)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part
