Model # 315ID2025 Official Craftsman impact driver

Here are the diagrams and repair parts for Official Craftsman 315ID2025 impact driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

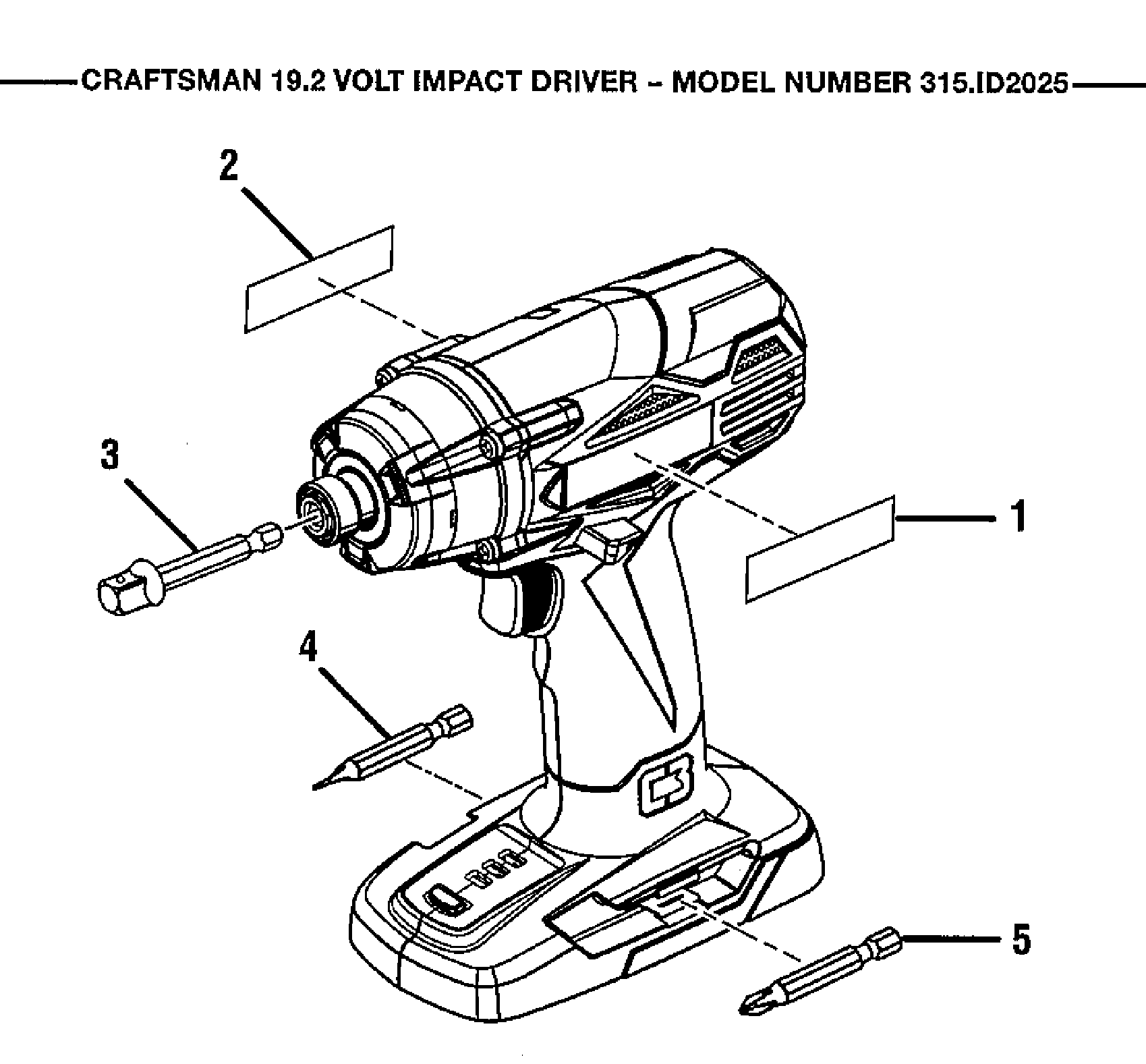

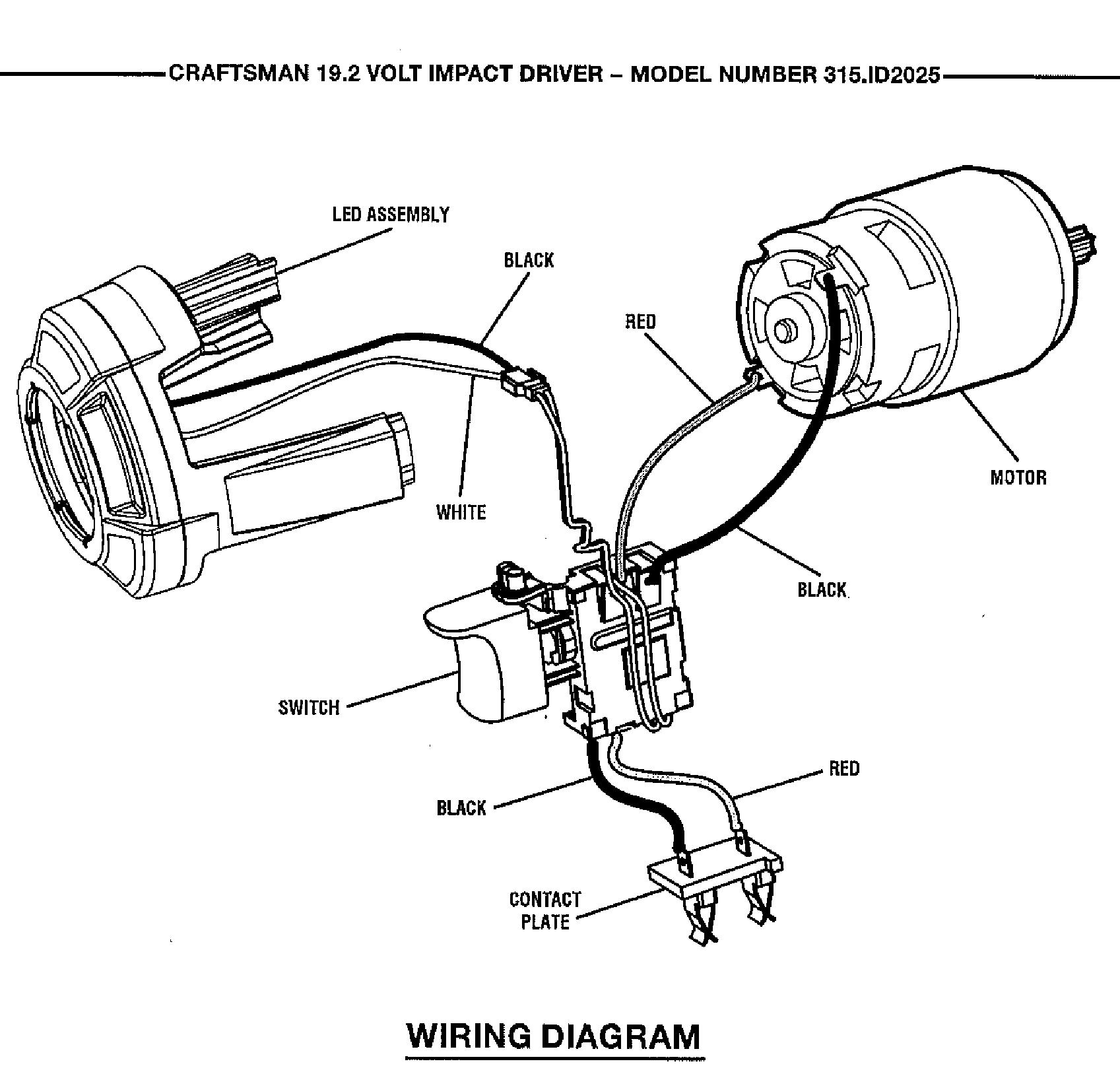

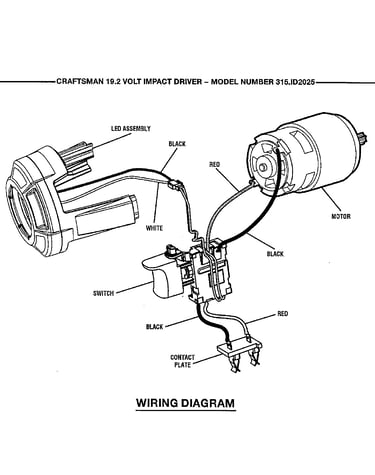

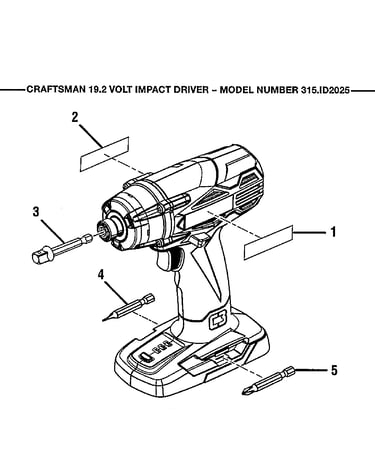

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Cam Shaft And Hammer Assy 202654001
#15

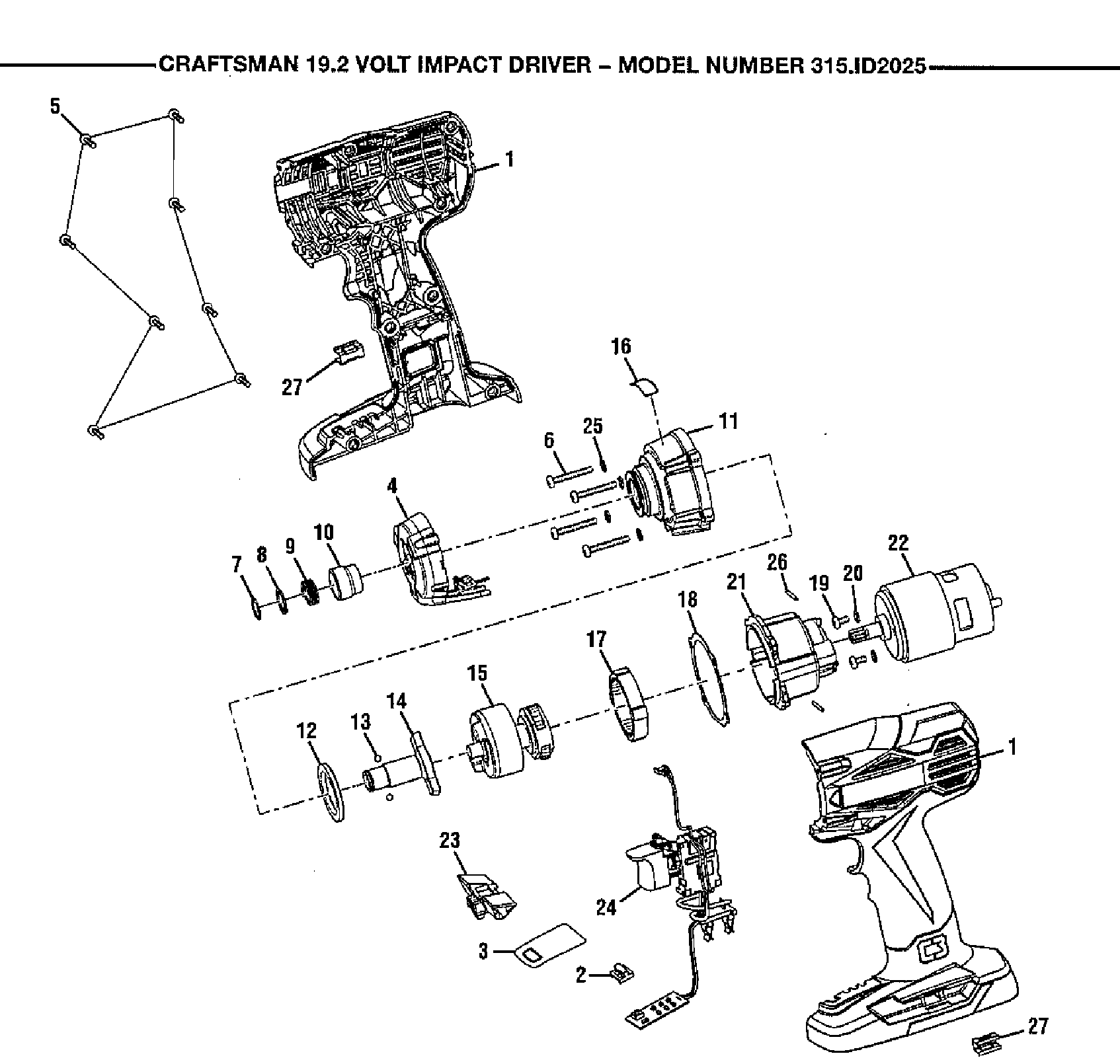

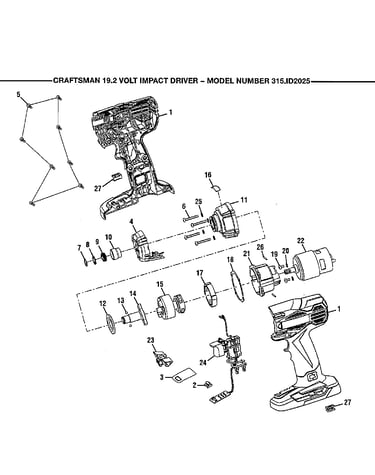

Main asy diagram

Cam shaft and hammer assy

Part #202654001

The manufacturer no longer makes this part, and there's no substitute part

Pin 680334036
#26

Main asy diagram

Pin

Part #680334036

The manufacturer no longer makes this part, and there's no substitute part

Plate 902807001
#18

Main asy diagram

Plate

Part #902807001

The manufacturer no longer makes this part, and there's no substitute part

Bit Holder 692822003
#14

Main asy diagram

Bit holder

Part #692822003

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 690260026
#10

Main asy diagram

Sleeve

Part #690260026

The manufacturer no longer makes this part, and there's no substitute part

Bit Clip (2) 630206007
#27

Main asy diagram

Bit clip (2)

Part #630206007

The manufacturer no longer makes this part, and there's no substitute part

Internal Gear 610449039
#17

Main asy diagram

Internal gear

Part #610449039

The manufacturer no longer makes this part, and there's no substitute part

Washer 634680001
#12

Main asy diagram

Washer

Part #634680001

The manufacturer no longer makes this part, and there's no substitute part

Motor And Pinion Assy 230377002
#22

Main asy diagram

Motor and pinion assy

Part #230377002

The manufacturer no longer makes this part, and there's no substitute part

Screw (m4 X 8mm) 660212046
#19

Main asy diagram

Screw (m4 x 8mm)

Part #660212046

The manufacturer no longer makes this part, and there's no substitute part
