Angle Grinder

Model # 172417740 Official Craftsman angle grinder

Here are the diagrams and repair parts for Official Craftsman 172417740 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Craftsman Angle Grinder Motor Rotor PGA115SU1-30
#30

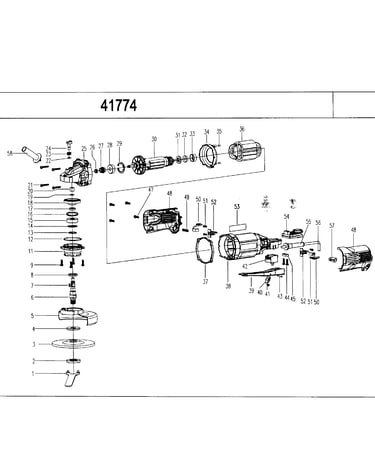

Main asy diagram

Craftsman angle grinder motor rotor

Part #PGA115SU1-30

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Spindle Bearing Washer PGA115SU1-14
#14

Main asy diagram

Craftsman angle grinder spindle bearing washer

Part #PGA115SU1-14

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Needle Bearing Retainer Ring PGA115SU1-22
#22

Main asy diagram

Craftsman angle grinder needle bearing retainer ring

Part #PGA115SU1-22

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Rotor Bearing Sleeve PGA115SU1-33
#33

Main asy diagram

Craftsman angle grinder rotor bearing sleeve

Part #PGA115SU1-33

The manufacturer no longer makes this part, and there's no substitute part

Handle PGA115SU1-58
#58

Main asy diagram

Handle

Part #PGA115SU1-58

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Stator Baffle PGA115SU1-34
#34

Main asy diagram

Craftsman angle grinder stator baffle

Part #PGA115SU1-34

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Washer PGA115SU1-13
#13

Main asy diagram

Craftsman angle grinder washer

Part #PGA115SU1-13

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder O-ring PGA115SU1-12
#12

Main asy diagram

Craftsman angle grinder o-ring

Part #PGA115SU1-12

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Power Cord Clamp Screw PGA115SU1-44
#44

Main asy diagram

Craftsman angle grinder power cord clamp screw

Part #PGA115SU1-44

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Decal PGA115SU1-53
#53

Main asy diagram

Craftsman angle grinder decal

Part #PGA115SU1-53

The manufacturer no longer makes this part, and there's no substitute part
