Electric Range

Model # JBP66SM3SS Official GE electric range

Here are the diagrams and repair parts for Official GE JBP66SM3SS electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forJBP66SM3SS Ranges

  • Range Oven Light Bulb WX12X1510
    #257

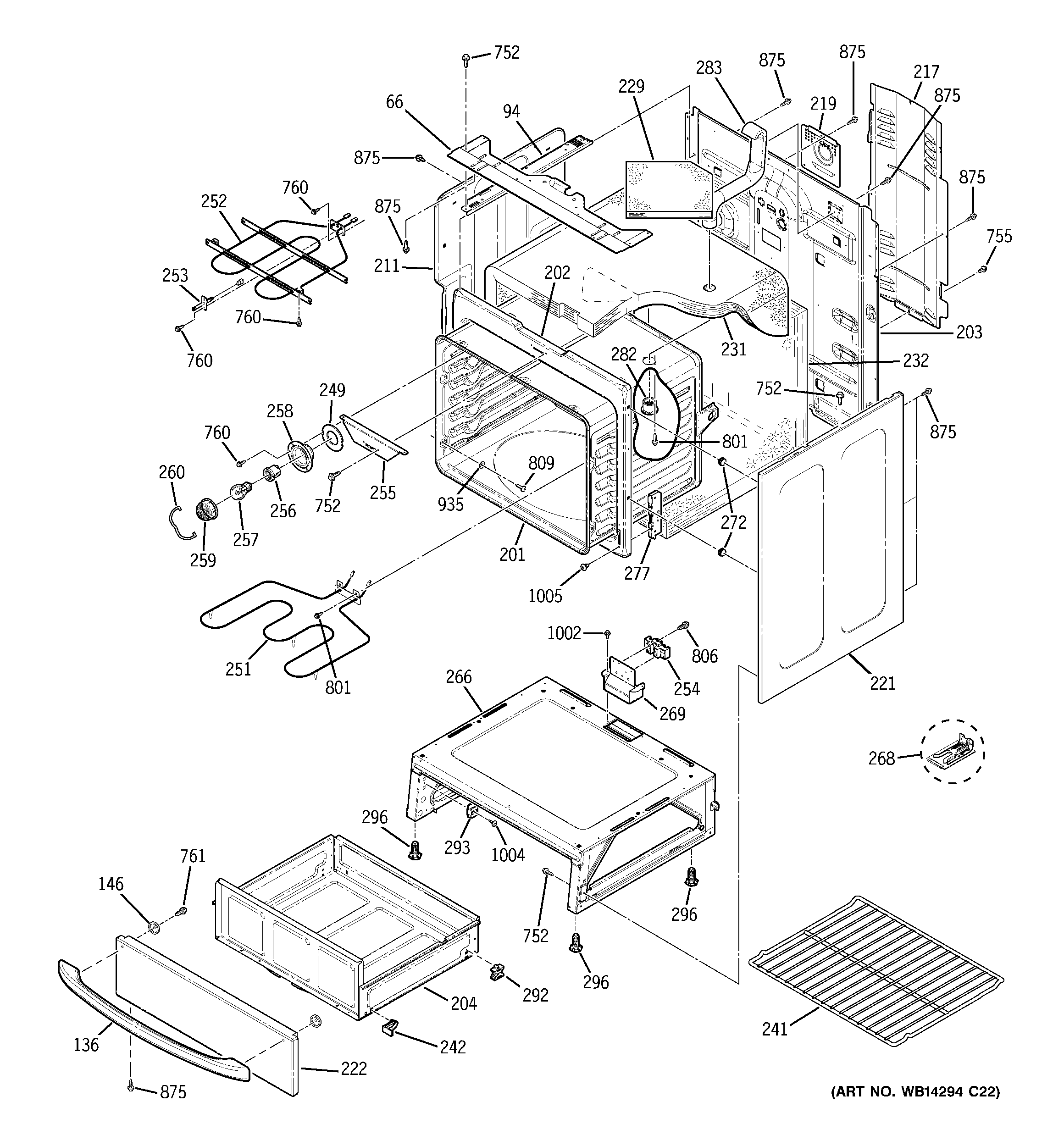

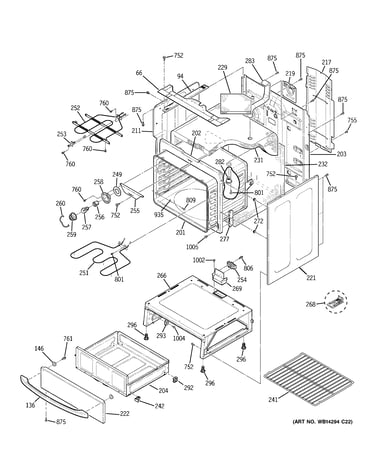

    Body parts diagram

    Range oven light bulb

    Part #WX12X1510

    Replaced by #40A15

    ?
    Manufacturer substitution
    This part replaces WX12X1510. Substitute parts can look different from the original.
    BEST SELLER
    $13.61
    13% OFF Phone Price : $15.61
    In Stock
  • G.e. Range Halogen Surface Element WB30T10130
    #58

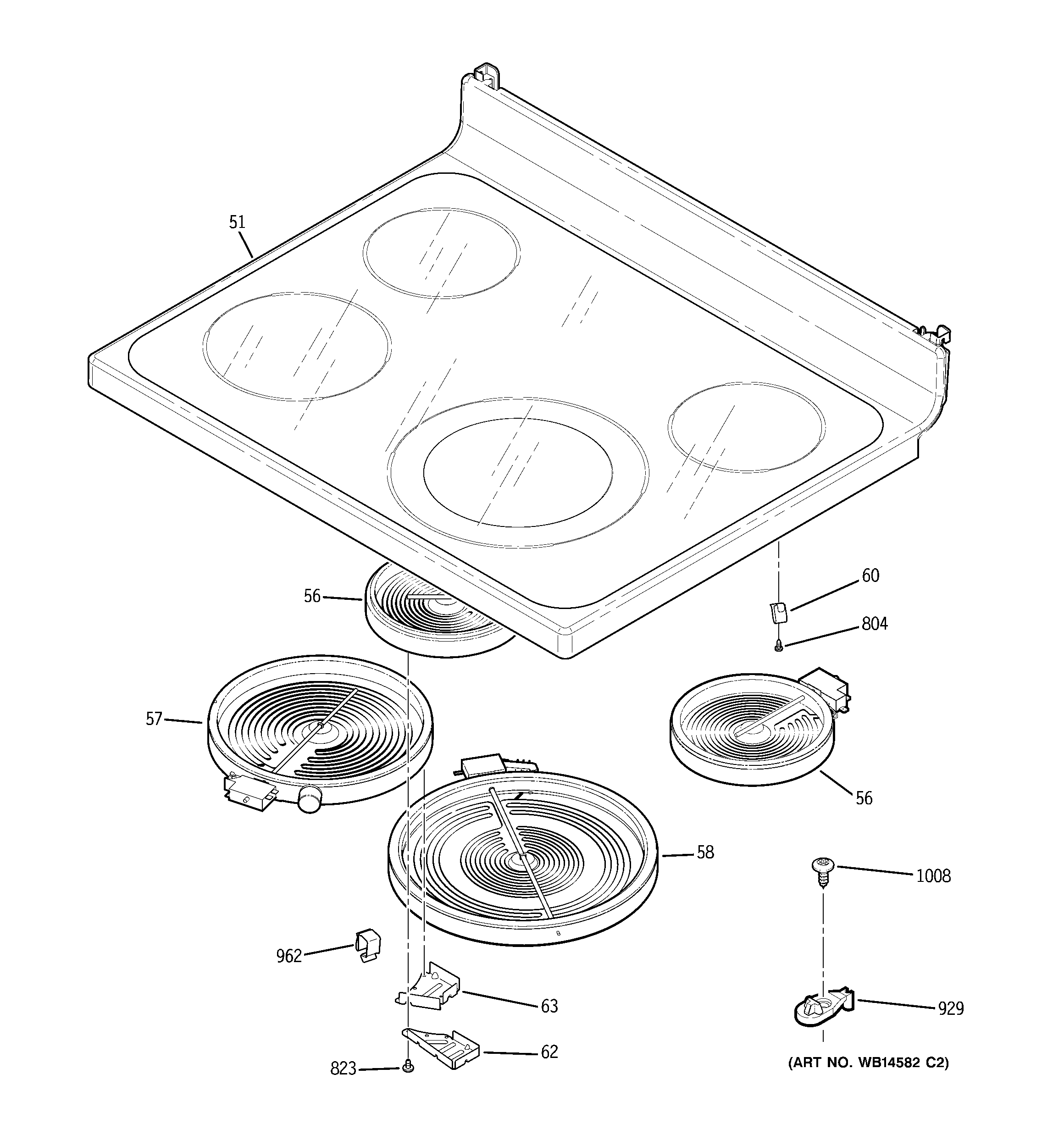

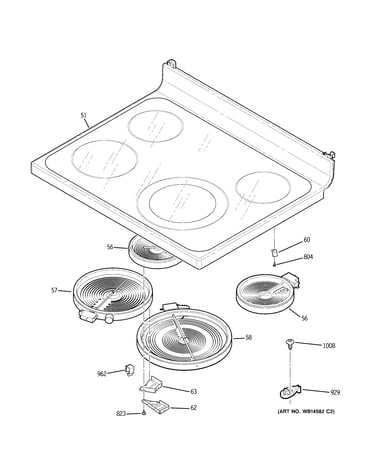

    Cooktop diagram

    G.e. range halogen surface element

    Part #WB30T10130

    BEST SELLER
    $155.64
    7% OFF Phone Price : $167.64
    In Stock
  • Wall Oven Temperature Sensor WB21T10007
    #253

    Body parts diagram

    Wall oven temperature sensor

    Part #WB21T10007

    Replaced by #WB21X22134

    ?
    Manufacturer substitution
    This part replaces WB21T10007. Substitute parts can look different from the original.
    BEST SELLER
    $20.60
    23% OFF Phone Price : $26.60
    In Stock
  • Range Surface Element Control Switch WB24T10146
    #23

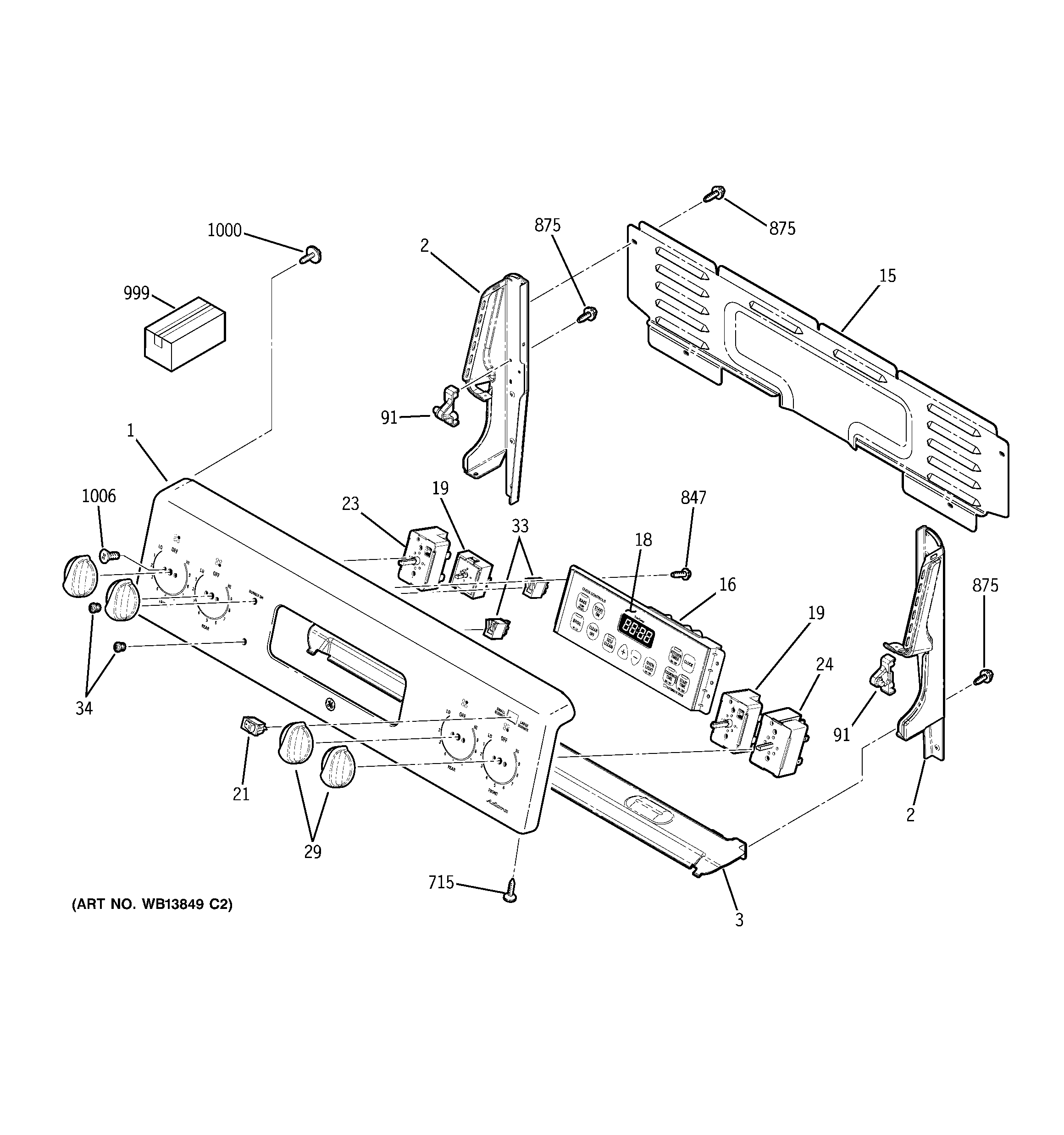

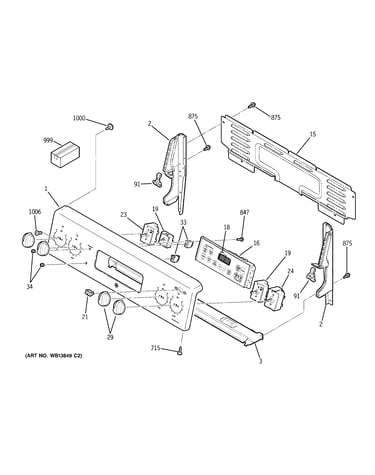

    Control panel diagram

    Range surface element control switch

    Part #WB24T10146

    BEST SELLER
    $35.90
    14% OFF Phone Price : $41.90
    In Stock
  • Range Dual Surface Element Control Switch WB24T10058
    #19

    Control panel diagram

    Range dual surface element control switch

    Part #WB24T10058

    BEST SELLER
    $97.19
    11% OFF Phone Price : $109.19
    In Stock
  • Range Radiant Surface Element, 6-in WB30T10129
    #56

    Cooktop diagram

    Range radiant surface element, 6-in

    Part #WB30T10129

    $105.55
    10% OFF Phone Price : $117.55
    In Stock
  • G.e. Range Oven Door Inner Glass WB57K5230
    #122

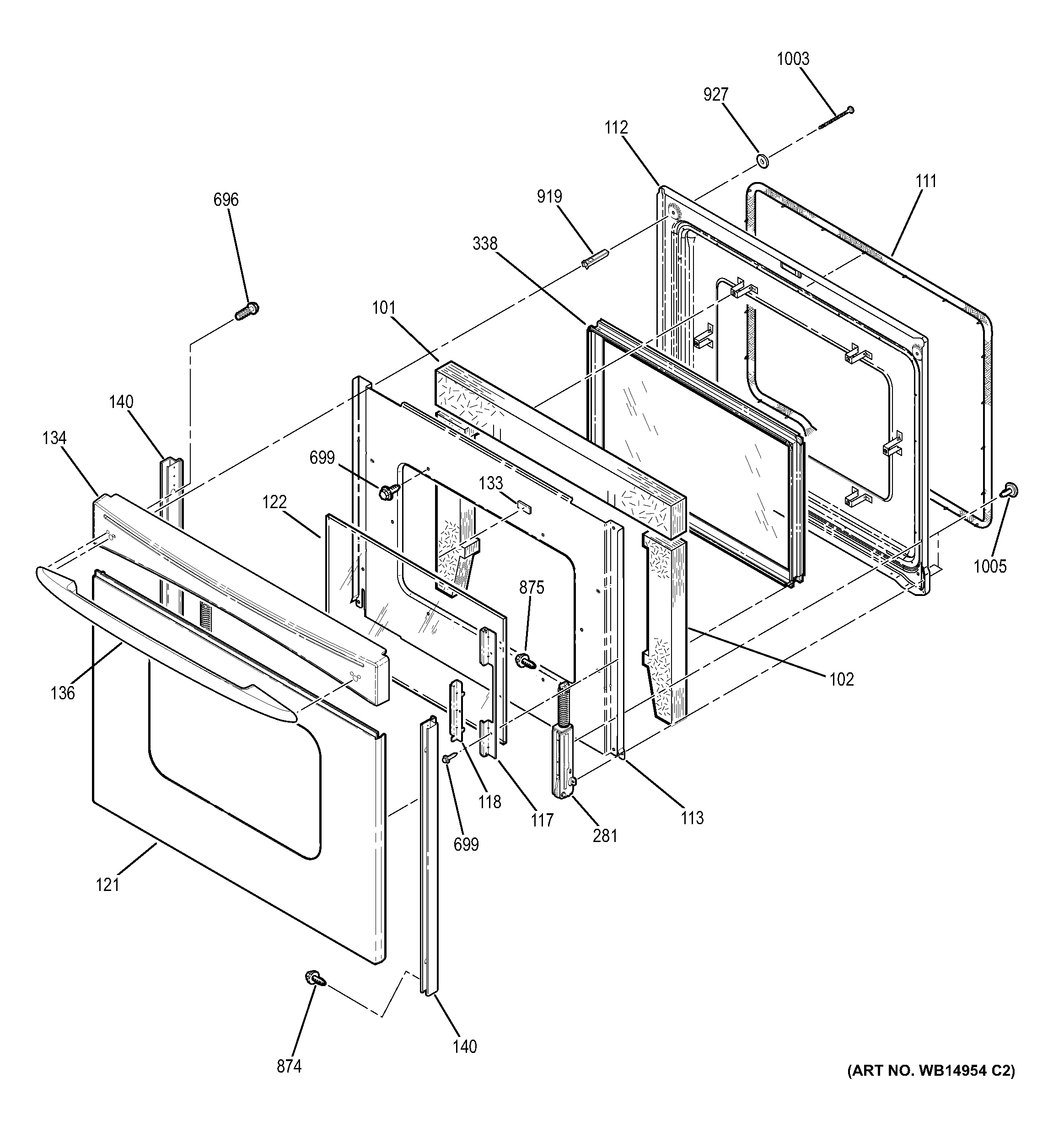

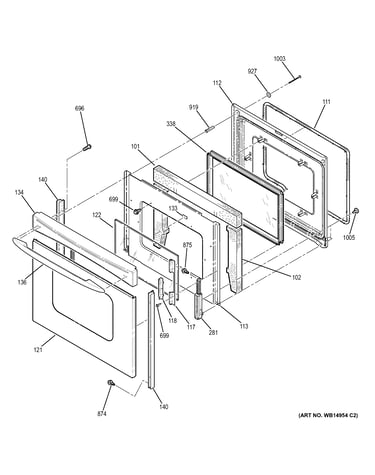

    Door diagram

    G.e. range oven door inner glass

    Part #WB57K5230

    $135.69
    8% OFF Phone Price : $147.69
    In Stock
  • Kenmore Range Indicator Light WB27T10626
    #33

    Control panel diagram

    Kenmore range indicator light

    Part #WB27T10626

    This item is not returnable
    $7.40
    12% OFF Phone Price : $8.40
    In Stock
  • Hotpoint Range Indicator Light Lens (red) WB25T10041
    #34

    Control panel diagram

    Hotpoint range indicator light lens (red)

    Part #WB25T10041

    This item is not returnable
    $8.70
    10% OFF Phone Price : $9.70
    In Stock
  • Range Storage Drawer Support, Rear WB48T10030
    #292

    Body parts diagram

    Range storage drawer support, rear

    Part #WB48T10030

    Replaced by #WB02X33180

    ?
    Manufacturer substitution
    This part replaces WB48T10030. Substitute parts can look different from the original.
    This item is not returnable
    $7.88
    11% OFF Phone Price : $8.88
    In Stock
