Kenmore
Gas Range

Model # 1033227790 Official Kenmore gas built-in oven

Here are the diagrams and repair parts for Official Kenmore 1033227790 gas built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

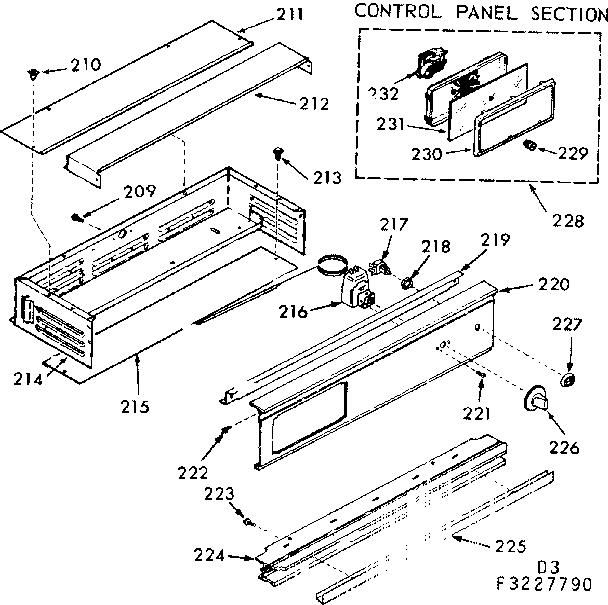

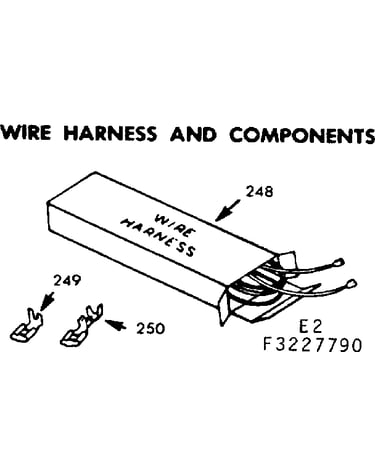

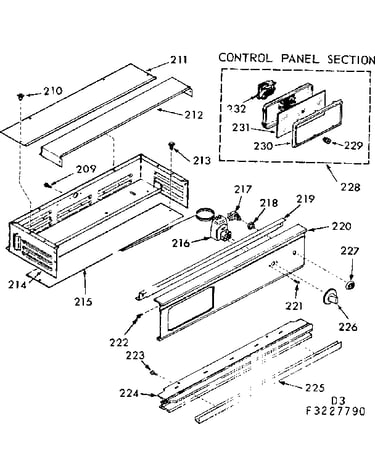

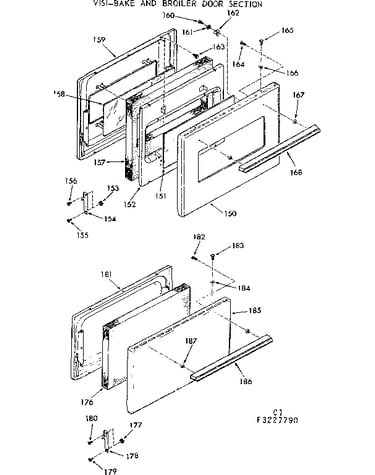

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 159 parts  |
Lamp Bulb STD372401
#47

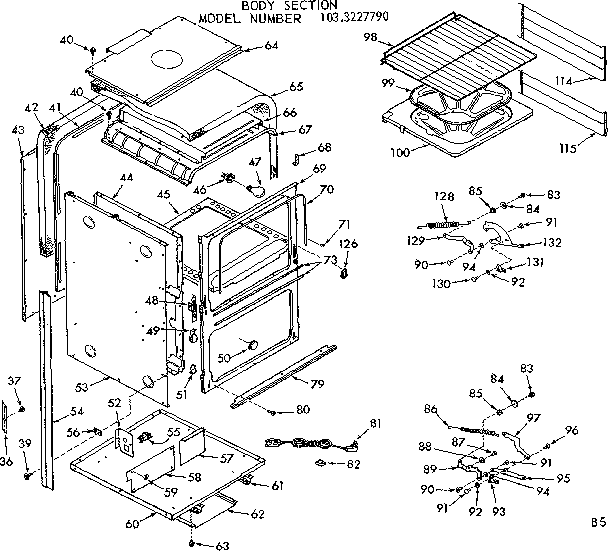

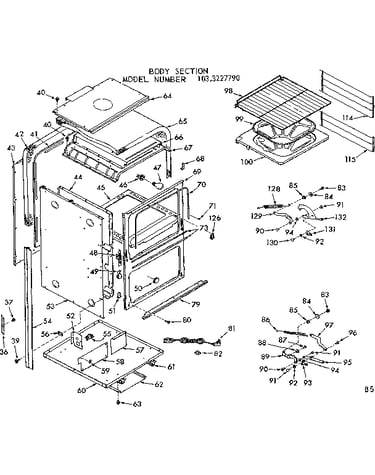

Body section diagram

Lamp bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Screw 105771
Screw

Part #105771

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces 105771. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Bracket 114660
#7

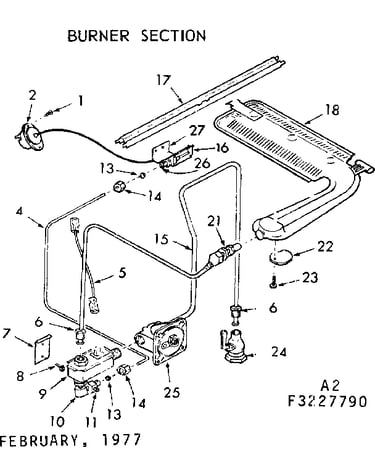

Burner section diagram

Bracket

Part #114660

This item is not returnable
$2.29
In Stock
Bracket 104659
#49

Body section diagram

Bracket

Part #104659

This item is not returnable
$2.29
In Stock
Screw 295849
Screw

Part #295849

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 295849. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 102430
Screw

Part #102430

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102430. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Hex Screw 102429
Hex screw

Part #102429

Replaced by #WB1X1297

?
Manufacturer substitution
This part replaces 102429. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Trim Clip 70588
Trim clip

Part #70588

Replaced by #WB2X9573

?
Manufacturer substitution
This part replaces 70588. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Screw 295850
#8

Burner section diagram

Screw

Part #295850

Replaced by #WB1X1424D

?
Manufacturer substitution
This part replaces 295850. Substitute parts can look different from the original.
This item is not returnable
$6.14 |
14% OFF Phone Price : $7.14
In Stock
Channel 110027
#61

Body section diagram

Channel

Part #110027

Replaced by #WB2X9634

?
Manufacturer substitution
This part replaces 110027. Substitute parts can look different from the original.
$8.59 |
10% OFF Phone Price : $9.59
In Stock
