Model # 7770AT Official Eureka upright vacuum
Here are the diagrams and repair parts for Official Eureka 7770AT upright vacuum, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
7770AT Vacuum Cleaners
#13

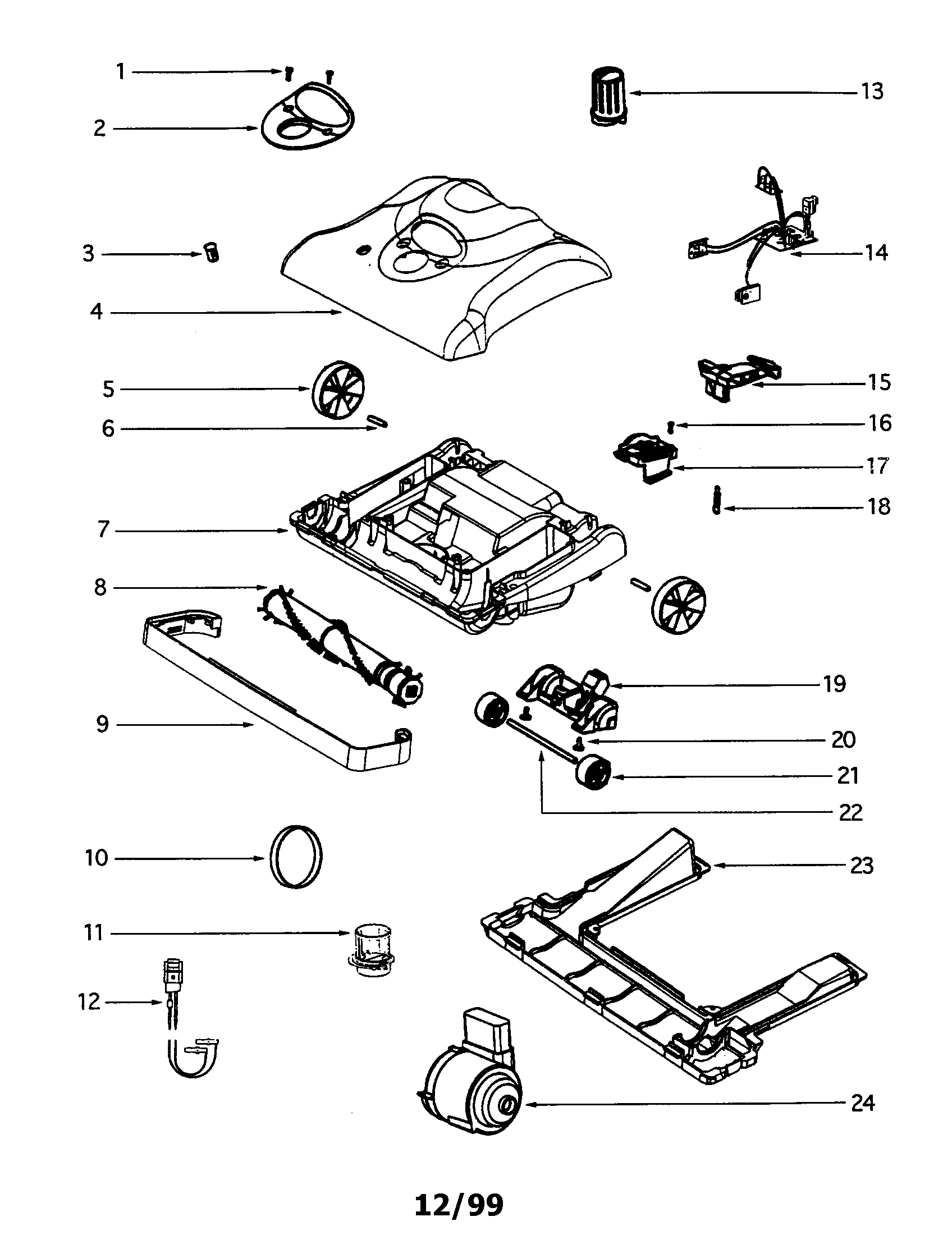

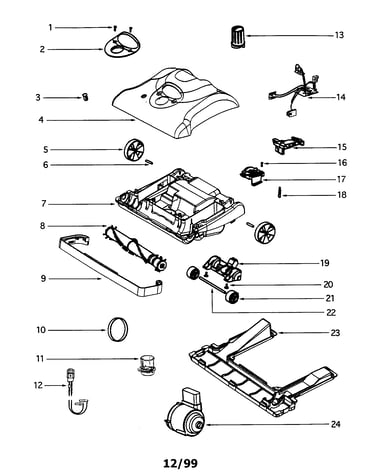

Hood assembly diagram
Vacuum knob
Part #28342A-288N
The manufacturer no longer makes this part, and there's no substitute part
#8

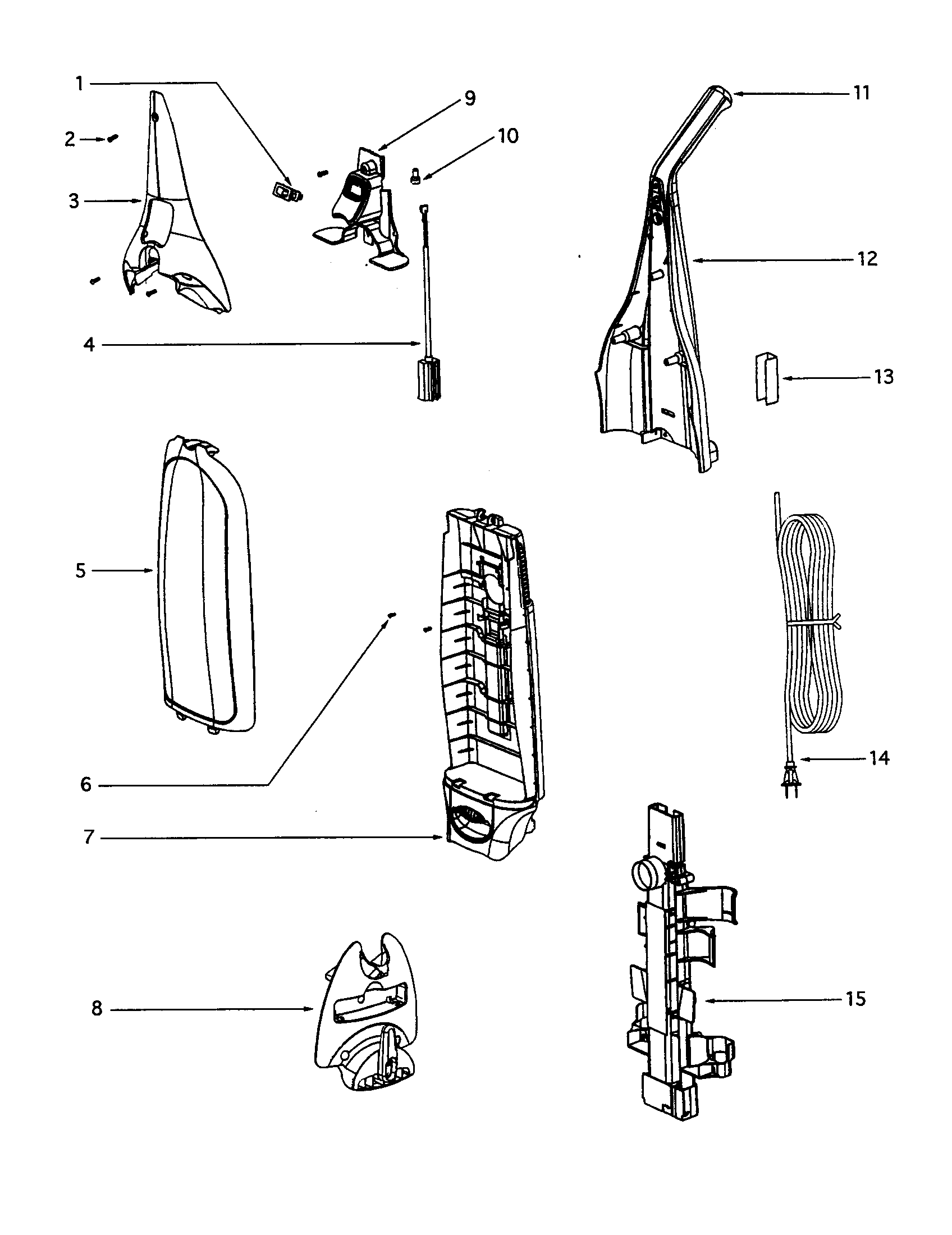

Upper and lower handle assembly diagram
Caddy tool
Part #28382-1
The manufacturer no longer makes this part, and there's no substitute part
#1

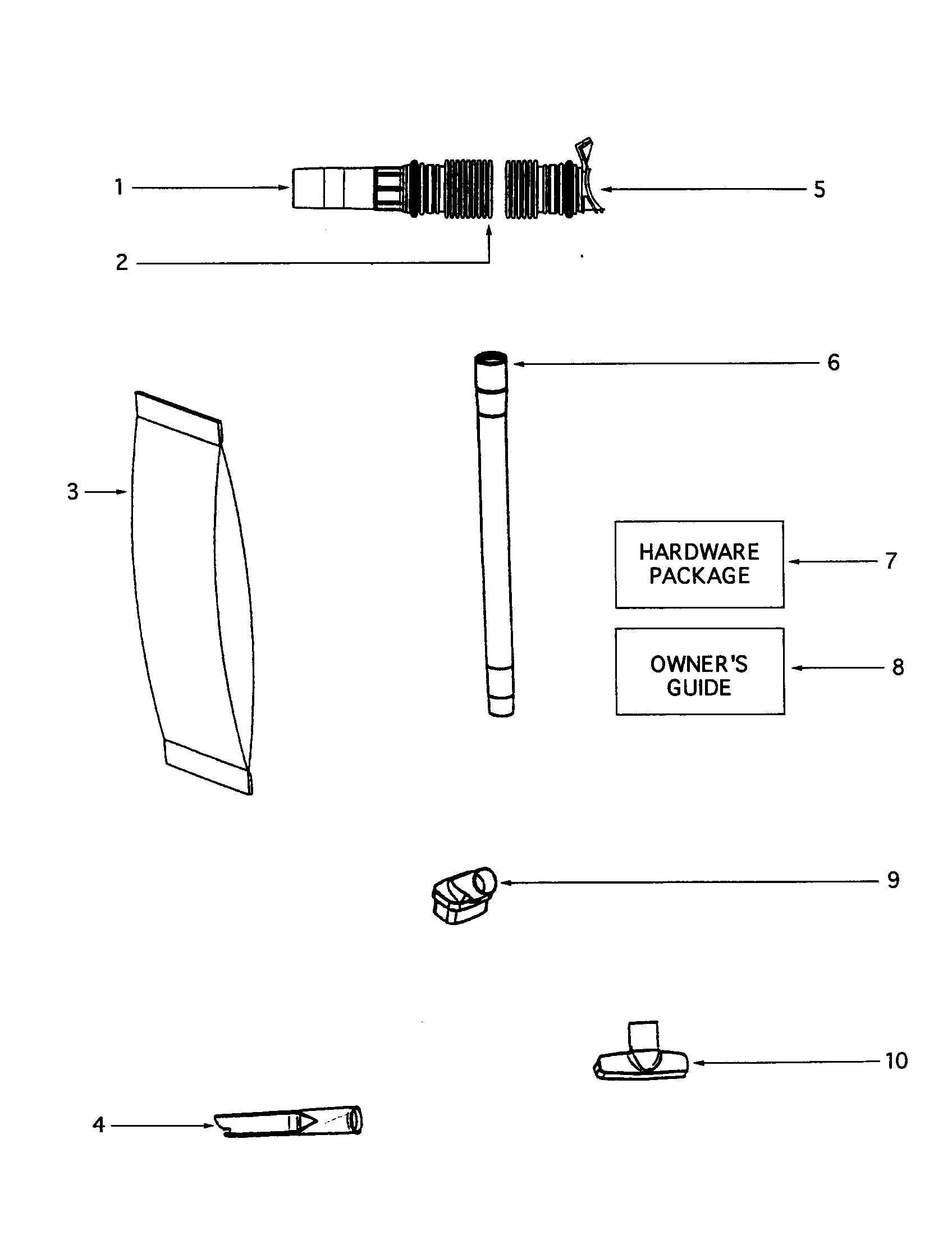

Hose assembly diagram
Adapter
Part #38239-2
The manufacturer no longer makes this part, and there's no substitute part
#12
Hood assembly diagram
Headlight
Part #38828B-3
The manufacturer no longer makes this part, and there's no substitute part
#3
Upper and lower handle assembly diagram
Handle
Part #02398-119N
The manufacturer no longer makes this part, and there's no substitute part
#9
Upper and lower handle assembly diagram
Plate switch
Part #15594-288N
The manufacturer no longer makes this part, and there's no substitute part
#12
Upper and lower handle assembly diagram
Handle
Part #39330
The manufacturer no longer makes this part, and there's no substitute part
#18
Hood assembly diagram
Spring axle
Part #53076-2
The manufacturer no longer makes this part, and there's no substitute part
#6
Hose assembly diagram
Vacuum wand
Part #14070-3
The manufacturer no longer makes this part, and there's no substitute part
#13
Upper and lower handle assembly diagram
Barrier
Part #39320
The manufacturer no longer makes this part, and there's no substitute part
