Model # DM15F-14B Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag DM15F-14B microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

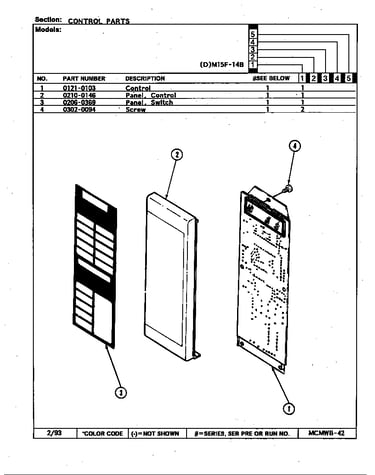

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Screw 03020068
#37G

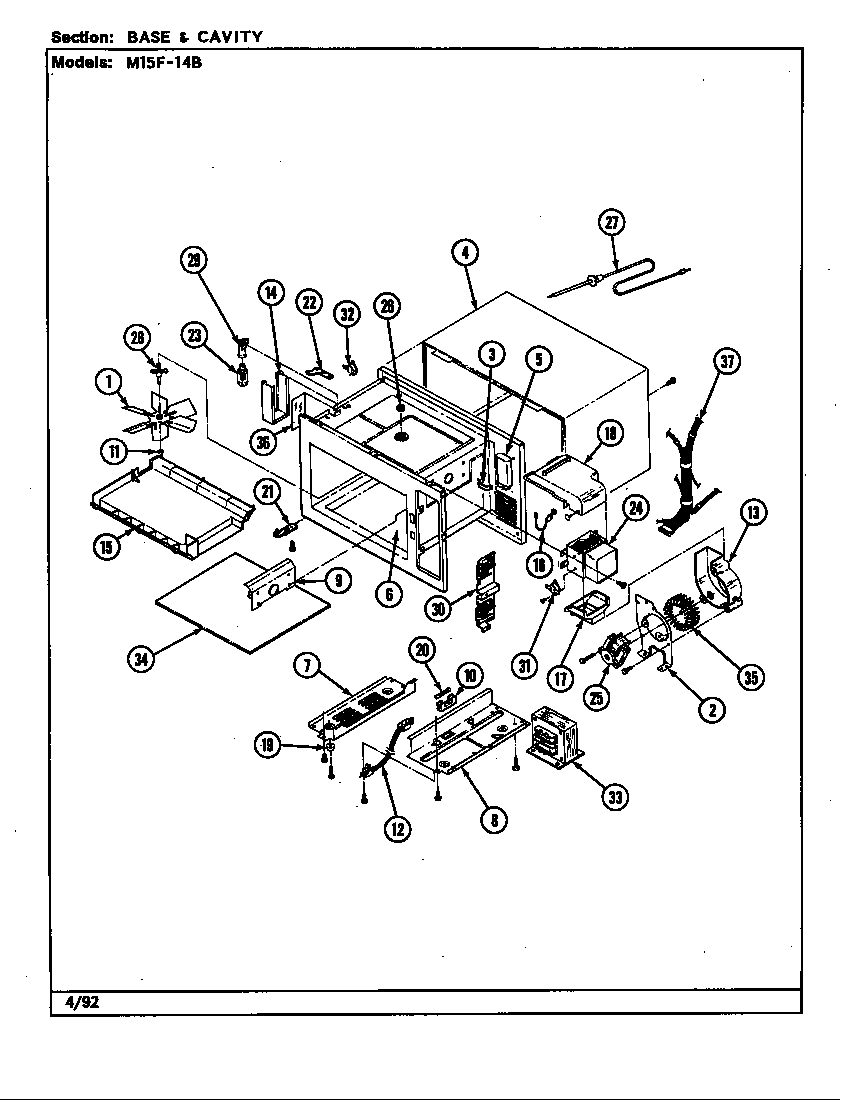

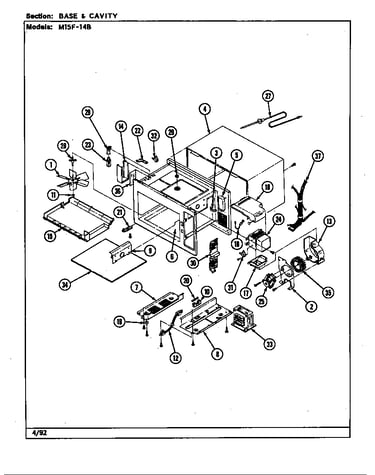

Base & cavity diagram

Screw

Part #03020068

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 03020068. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Capacitor 01020021
#5

Base & cavity diagram

Capacitor

Part #01020021

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces 01020021. Substitute parts can look different from the original.
$85.65 |
7% OFF Phone Price : $91.65
In Stock
Temperature Switch 01180012
#32

Base & cavity diagram

Temperature switch

Part #01180012

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 01100044
#10

Base & cavity diagram

Fuse holder

Part #01100044

The manufacturer no longer makes this part, and there's no substitute part

Trim 02100171
#37C

Base & cavity diagram

Trim

Part #02100171

The manufacturer no longer makes this part, and there's no substitute part

Temperature Switch 01180008
#31

Base & cavity diagram

Temperature switch

Part #01180008

The manufacturer no longer makes this part, and there's no substitute part

Seal 02120162
#7

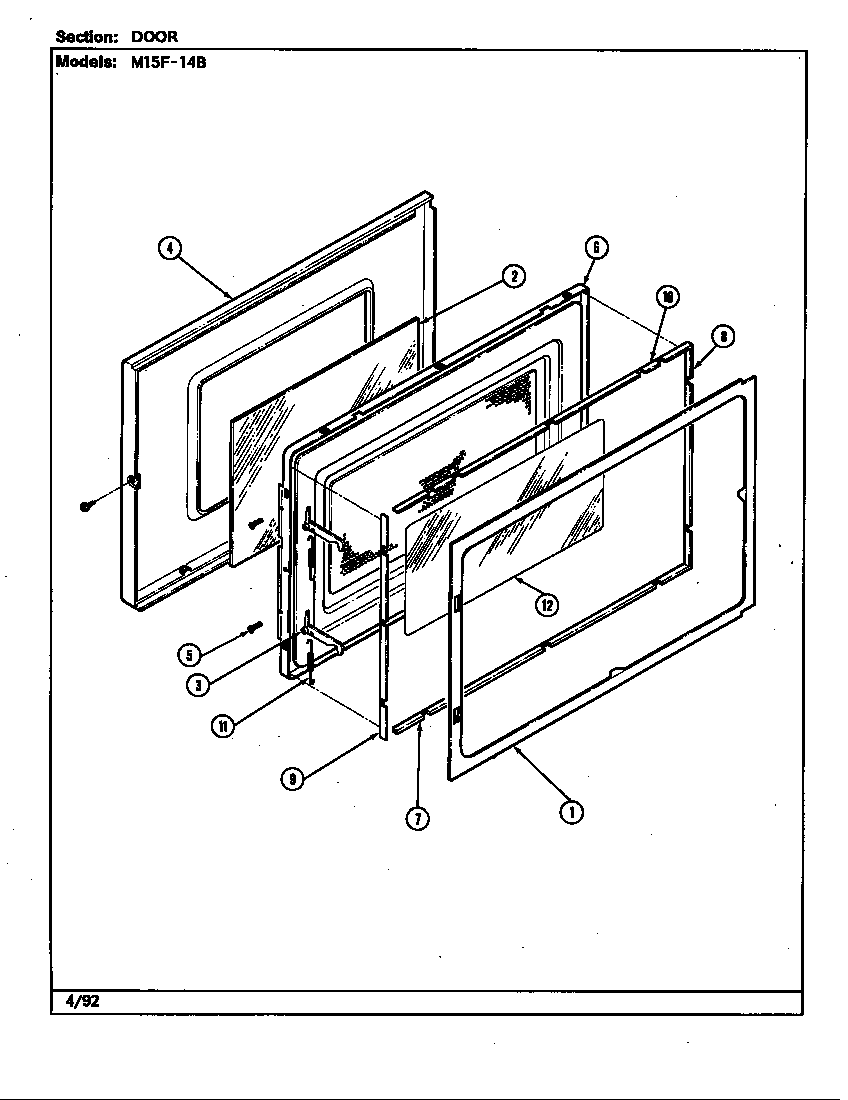

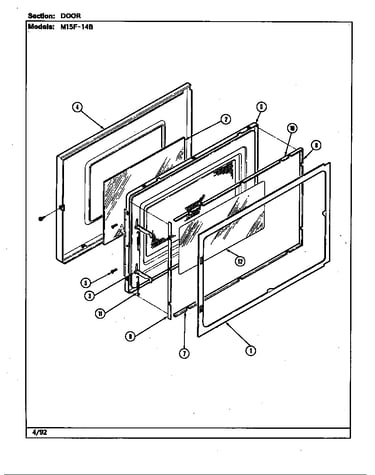

Door diagram

Seal

Part #02120162

The manufacturer no longer makes this part, and there's no substitute part

"nut, Shaft S" 03050007
#26

Base & cavity diagram

"nut, shaft s"

Part #03050007

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Shaft 02360058
#28

Base & cavity diagram

Stirrer shaft

Part #02360058

The manufacturer no longer makes this part, and there's no substitute part

"t" Fitting (flange) N/P
"t" fitting (flange)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part
