Model # RT11H/E7T00 Official Magic Chef refrigerator
Here are the diagrams and repair parts for Official Magic Chef RT11H/E7T00 refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
RT11H/E7T00 Refrigerator
#14

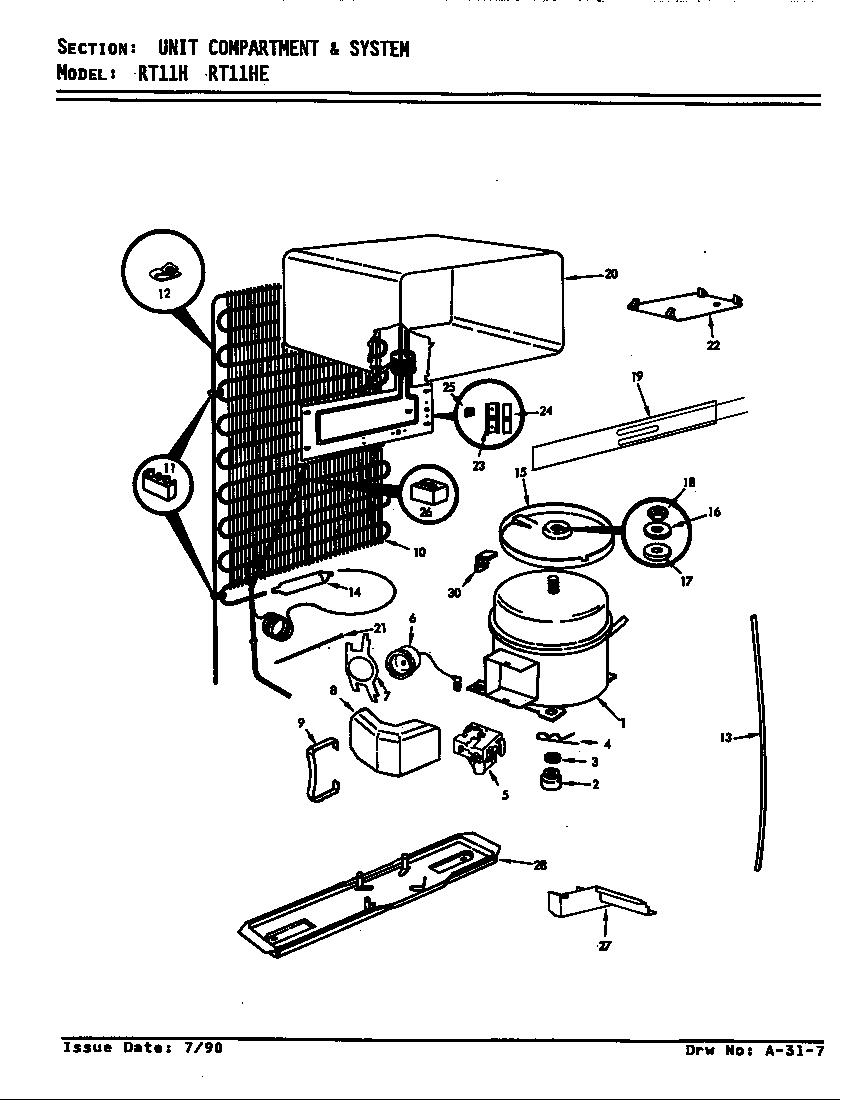

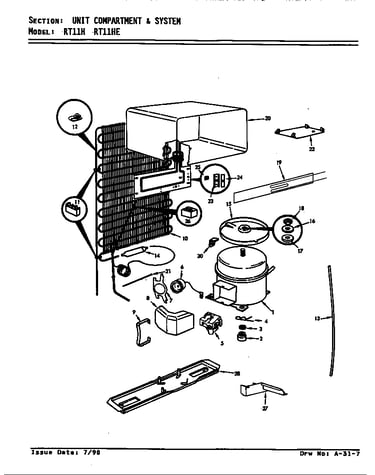

Unit compartment & system diagram
Drier
Part #13900
Replaced by #WPW10143759
?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
$20.87 |
22% OFF Phone Price : $26.87
In Stock
#23A

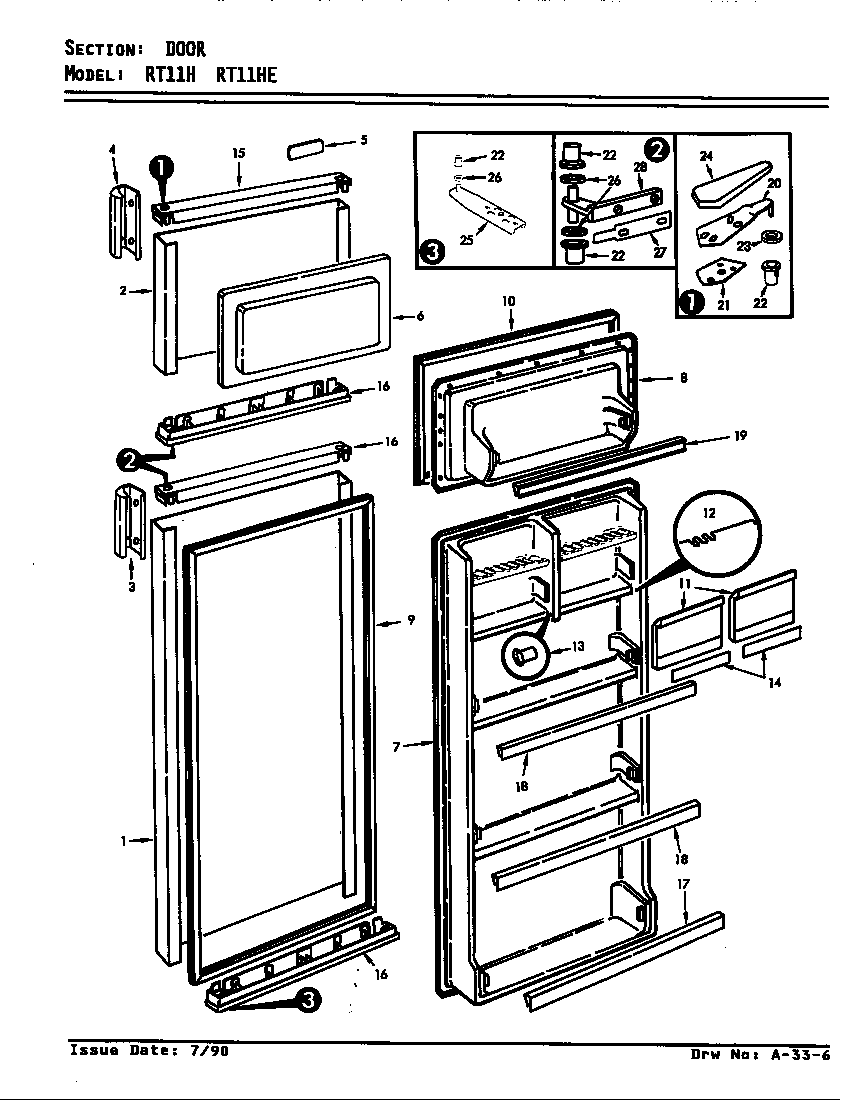

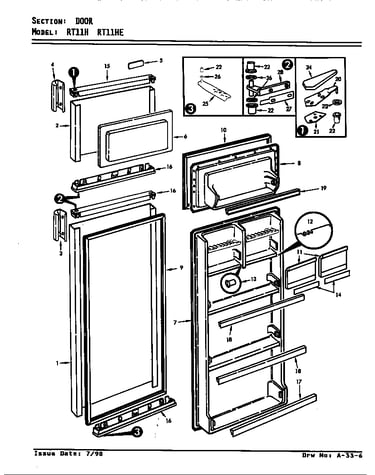

Doors diagram
Refrigerator screw
Part #918333232
Replaced by #WP59002061
?
Manufacturer substitution
This part replaces 918333232. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
#27A

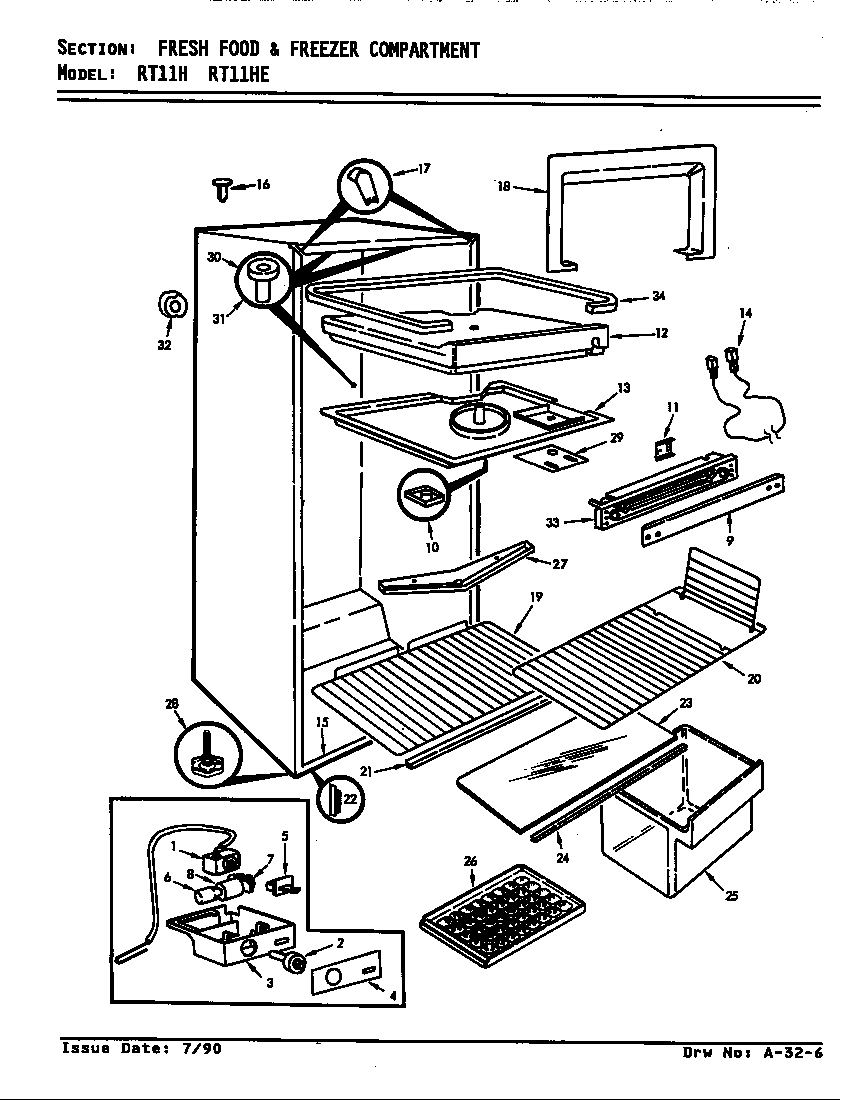

Fresh food & freezer compartment diagram
Refrigerator screw
Part #400021-1
Replaced by #WP400021-1
?
Manufacturer substitution
This part replaces 400021-1. Substitute parts can look different from the original.
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
#4
Doors diagram
Screw
Part #400015-12
Replaced by #W11233072
?
Manufacturer substitution
This part replaces 400015-12. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
#1
Unit compartment & system diagram
Refrigerator compressor
Part #RA1013
Replaced by #12000018
?
Manufacturer substitution
This part replaces RA1013. Substitute parts can look different from the original.
$445.60
In Stock
#26
Fresh food & freezer compartment diagram
Ice cube tray
Part #60112-1
Replaced by #WP61002140
?
Manufacturer substitution
This part replaces 60112-1. Substitute parts can look different from the original.
$19.32 |
9% OFF Phone Price : $21.32
In Stock
#4A
Doors diagram
Refrigerator screw
Part #400015-29
Replaced by #W11233072
?
Manufacturer substitution
This part replaces 400015-29. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
#28
Fresh food & freezer compartment diagram
Leveling leg
Part #6012-8
Replaced by #W11117769
?
Manufacturer substitution
This part replaces 6012-8. Substitute parts can look different from the original.
$12.39 |
14% OFF Phone Price : $14.39
In Stock
#8A
Doors diagram
Refrigerator screw
Part #991341239
Replaced by #W11233072
?
Manufacturer substitution
This part replaces 991341239. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Panel, frz. door (alm) - series 11
Part #NO LONGER AVAILABLE
The manufacturer no longer makes this part, and there's no substitute part
