Black & Decker
Coffee Maker

Model # TCM413-04 TYPE 3 Official Black & Decker coffee maker

Here are the diagrams and repair parts for Official Black & Decker TCM413-04-TYPE-3 coffee maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Label 285096-00
#51

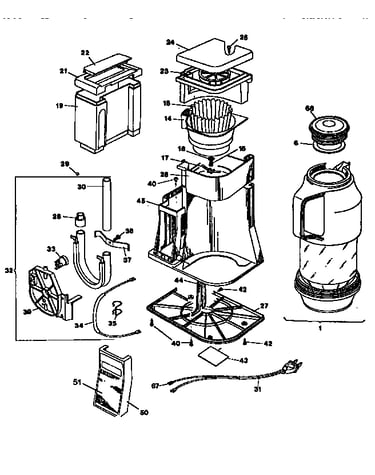

Replacement parts diagram

Label

Part #285096-00

The manufacturer no longer makes this part, and there's no substitute part

Heater Suprt 167431-00
#39

Replacement parts diagram

Heater suprt

Part #167431-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 168141-01
#25

Replacement parts diagram

Screw

Part #168141-01

The manufacturer no longer makes this part, and there's no substitute part

Housing 242304-00
#45

Replacement parts diagram

Housing

Part #242304-00

The manufacturer no longer makes this part, and there's no substitute part

Heater Clamp 167436-00
#37

Replacement parts diagram

Heater clamp

Part #167436-00

The manufacturer no longer makes this part, and there's no substitute part

Baffle 167619-01
#44

Replacement parts diagram

Baffle

Part #167619-01

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord Tc 167903-02
#31

Replacement parts diagram

Ac cord tc

Part #167903-02

The manufacturer no longer makes this part, and there's no substitute part

Screw 170210-00
Screw

Part #170210-00

The manufacturer no longer makes this part, and there's no substitute part

Spreader A 167410-02
#23

Replacement parts diagram

Spreader a

Part #167410-02

The manufacturer no longer makes this part, and there's no substitute part

Carrier 242577-00
#26

Replacement parts diagram

Carrier

Part #242577-00

The manufacturer no longer makes this part, and there's no substitute part
