Model # 1039377346 Official Kenmore 30" electric range with glass cooktop

Here are the diagrams and repair parts for Official Kenmore 1039377346 30" electric range with glass cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

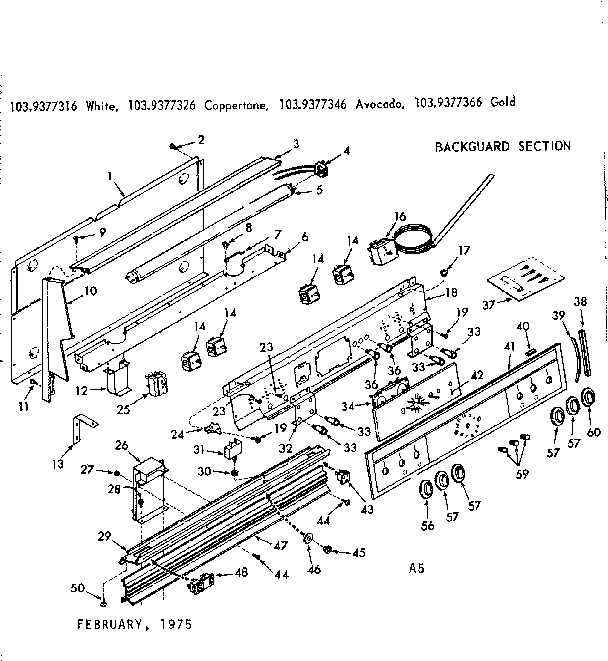

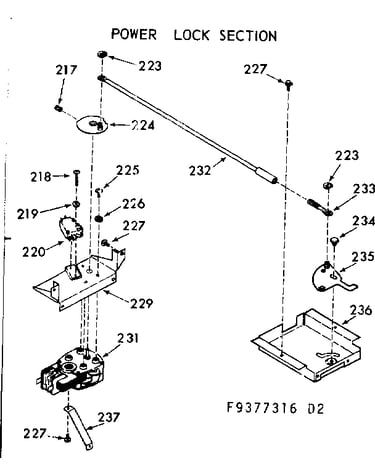

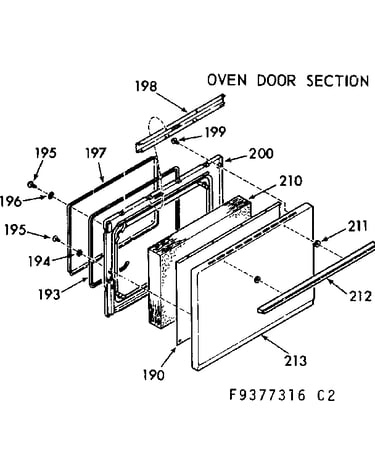

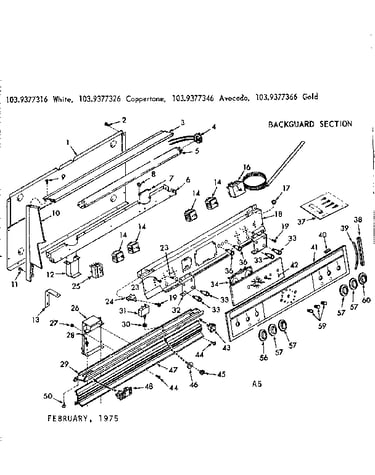

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 226 parts  |
Screw 105771
#330

Optional rotisserie diagram

Screw

Part #105771

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces 105771. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 295849
Screw

Part #295849

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 295849. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 102430
Screw

Part #102430

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102430. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Broil Element 293105
#124A

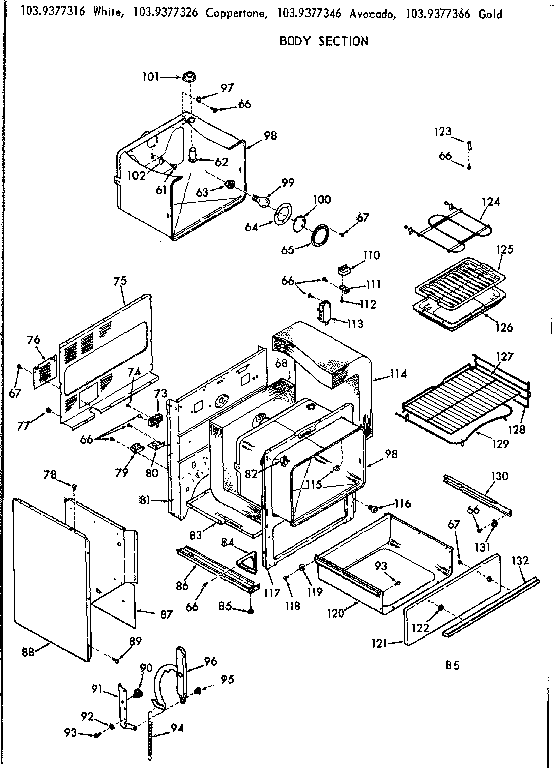

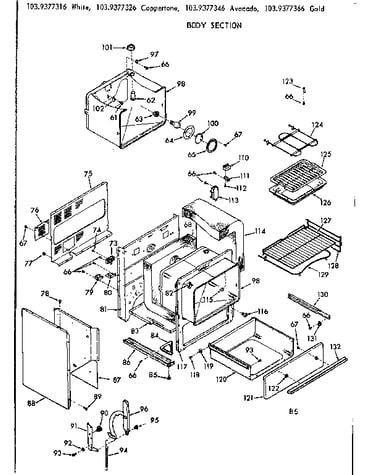

Body section diagram

Broil element

Part #293105

Replaced by #WB44M5

?
Manufacturer substitution
This part replaces 293105. Substitute parts can look different from the original.
$68.07 |
8% OFF Phone Price : $74.07
In Stock
Screw 75871
#254

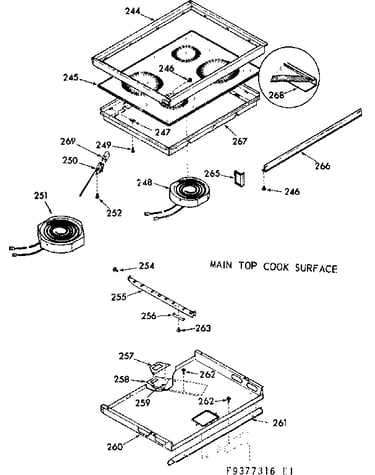

Main top cook surface diagram

Screw

Part #75871

This item is not returnable
$2.16
In Stock
Lead Wire (white) 284278
#342

Optional rotisserie diagram

Lead wire (white)

Part #284278

This item is not returnable
$2.29
In Stock
Cook Top Side Trim Kit Spit Support 282922
#339

Optional rotisserie diagram

Cook top side trim kit spit support

Part #282922

$45.99
In Stock
Wire Cover 281938
#75

Body section diagram

Wire cover

Part #281938

$14.49
In Stock
Bake Element 282858
#129B

Body section diagram

Bake element

Part #282858

The manufacturer no longer makes this part, and there's no substitute part

Bake Element 282717
#129A

Body section diagram

Bake element

Part #282717

The manufacturer no longer makes this part, and there's no substitute part
