Craftsman
Front-Engine Lawn Tractor

Model # 536255280 Official Craftsman 36" 11-hp lawn tractor

Here are the diagrams and repair parts for Official Craftsman 536255280 36" 11-hp lawn tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

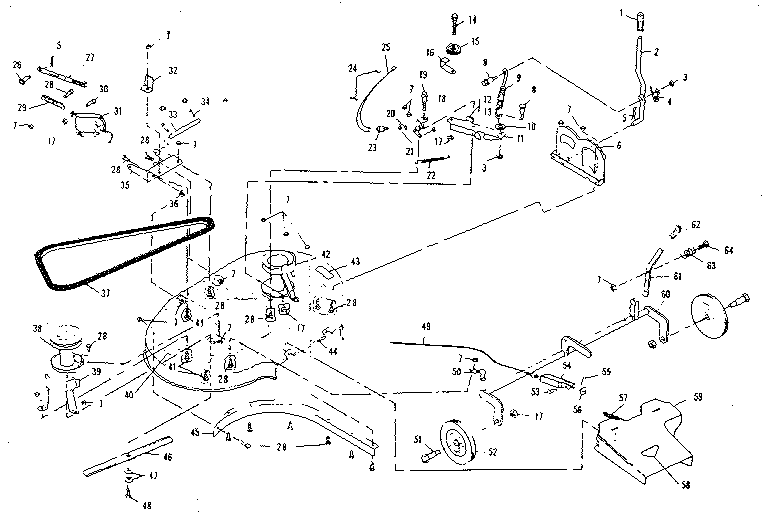

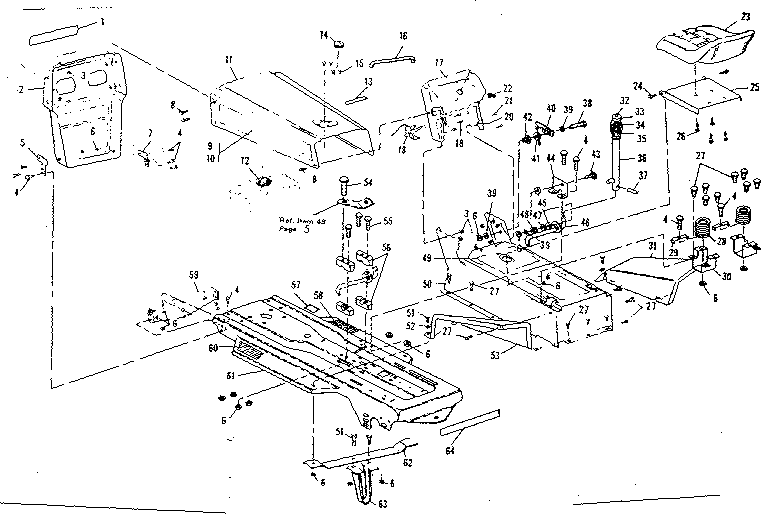

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 347 parts  |
Solenoid 44429
#27

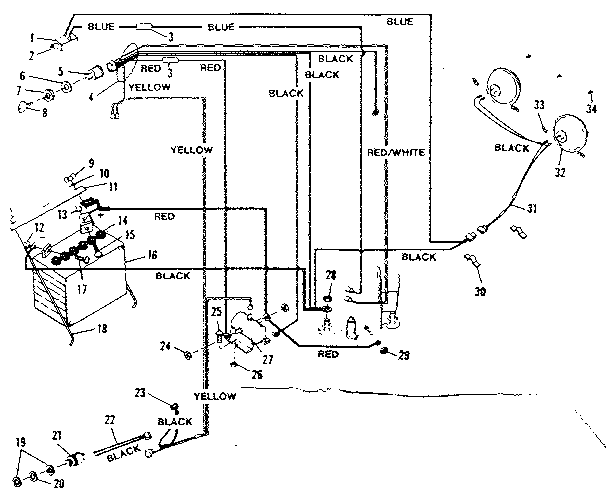

Wiring diagram diagram

Solenoid

Part #44429

Replaced by #532146154

?
Manufacturer substitution
This part replaces 44429. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Lock Nut 9424215
Lock nut

Part #9424215

Replaced by #703251

?
Manufacturer substitution
This part replaces 9424215. Substitute parts can look different from the original.
$8.07 |
11% OFF Phone Price : $9.07
In Stock
V-belt 50597
#56

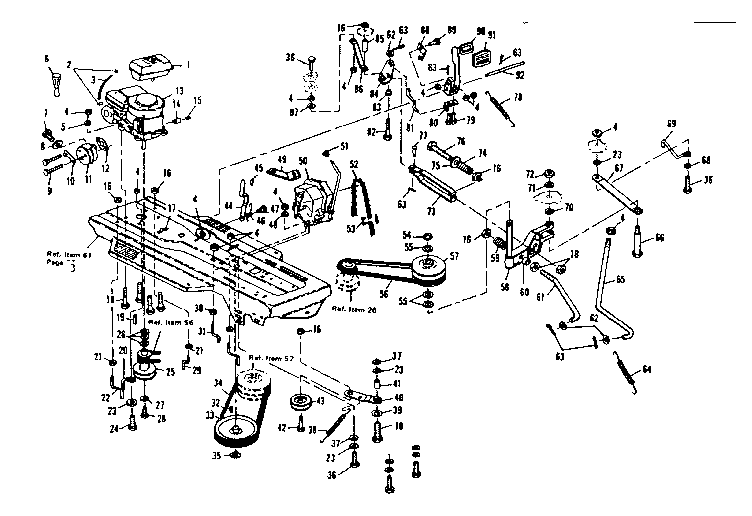

Engine diagram

V-belt

Part #50597

Replaced by #3526MA

?
Manufacturer substitution
This part replaces 50597. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$27.49 |
18% OFF Phone Price : $33.49
In Stock
Woodruff Key 431787
#6

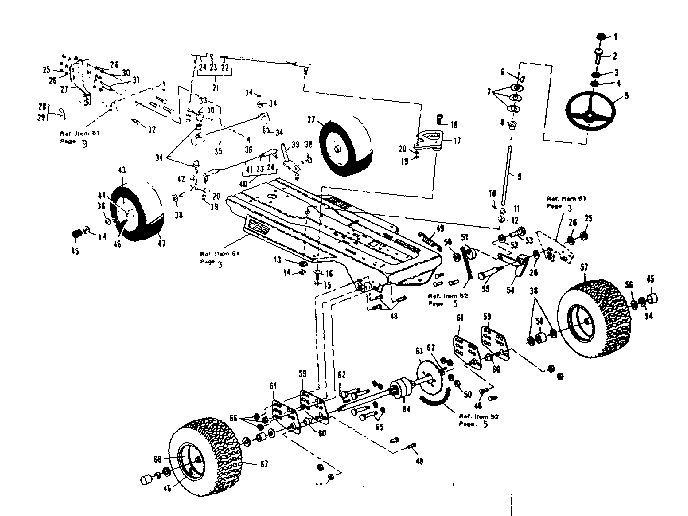

Drive assembly diagram

Woodruff key

Part #431787

Replaced by #703891

?
Manufacturer substitution
This part replaces 431787. Substitute parts can look different from the original.
This item is not returnable
$8.11 |
11% OFF Phone Price : $9.11
In Stock
Carriage Bolt 998013
#48

Drive assembly diagram

Carriage bolt

Part #998013

The manufacturer no longer makes this part, and there's no substitute part

Gasket 46708
#12

Engine diagram

Gasket

Part #46708

Replaced by #692236

?
Manufacturer substitution
This part replaces 46708. Substitute parts can look different from the original.
This item is not returnable
$7.89 |
11% OFF Phone Price : $8.89
In Stock
Washer 36006
#24B

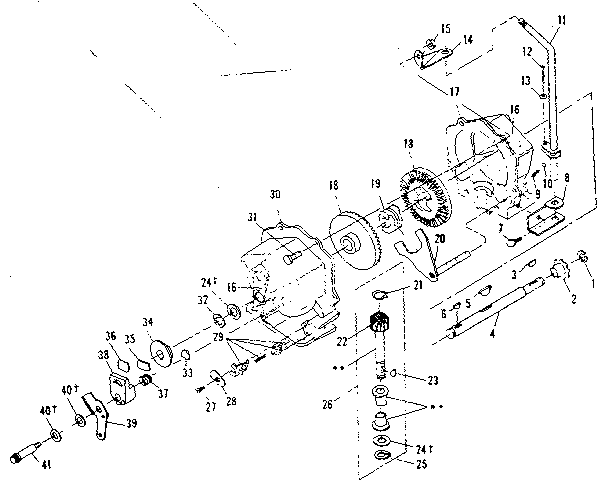

Transaxle diagram

Washer

Part #36006

Replaced by #583728901

?
Manufacturer substitution
This part replaces 36006. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Puck 50484
#33

Transaxle diagram

Puck

Part #50484

Replaced by #583775101

?
Manufacturer substitution
This part replaces 50484. Substitute parts can look different from the original.
$46.64
In Stock
Housing 774345
#1AA

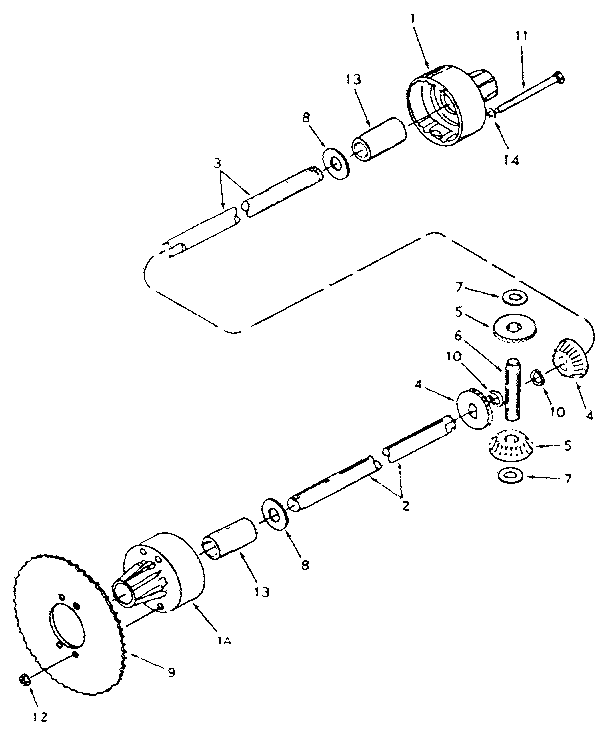

Differential model numbers 143.171 & 143.171a diagram

Housing

Part #774345

Replaced by #774660

?
Manufacturer substitution
This part replaces 774345. Substitute parts can look different from the original.
$58.20
In Stock
Washer 792061
#14

Differential model numbers 143.171 & 143.171a diagram

Washer

Part #792061

Replaced by #792061

?
Manufacturer substitution
This part replaces 792061. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
