Amana
Range

Model # CC-2/P27271-2S Official Amana range

Here are the diagrams and repair parts for Official Amana CC-2-P27271-2S range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

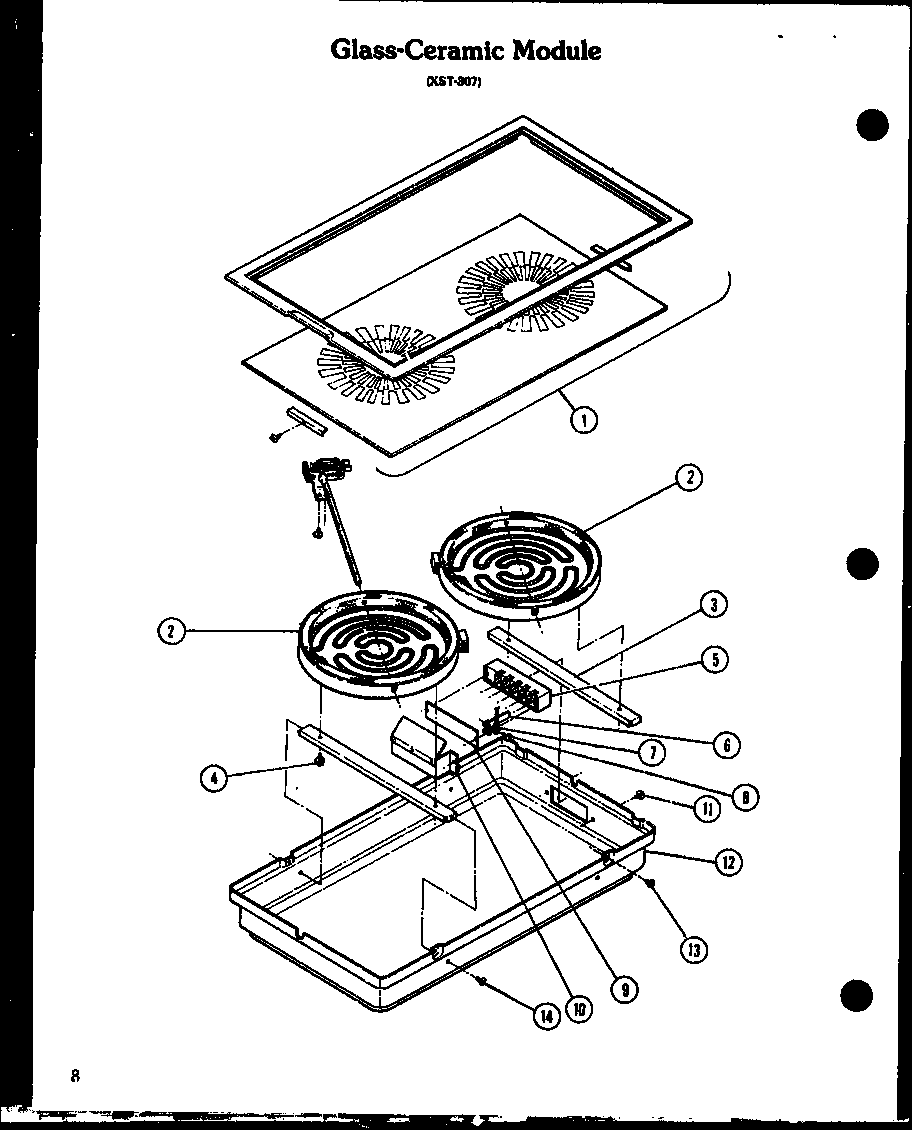

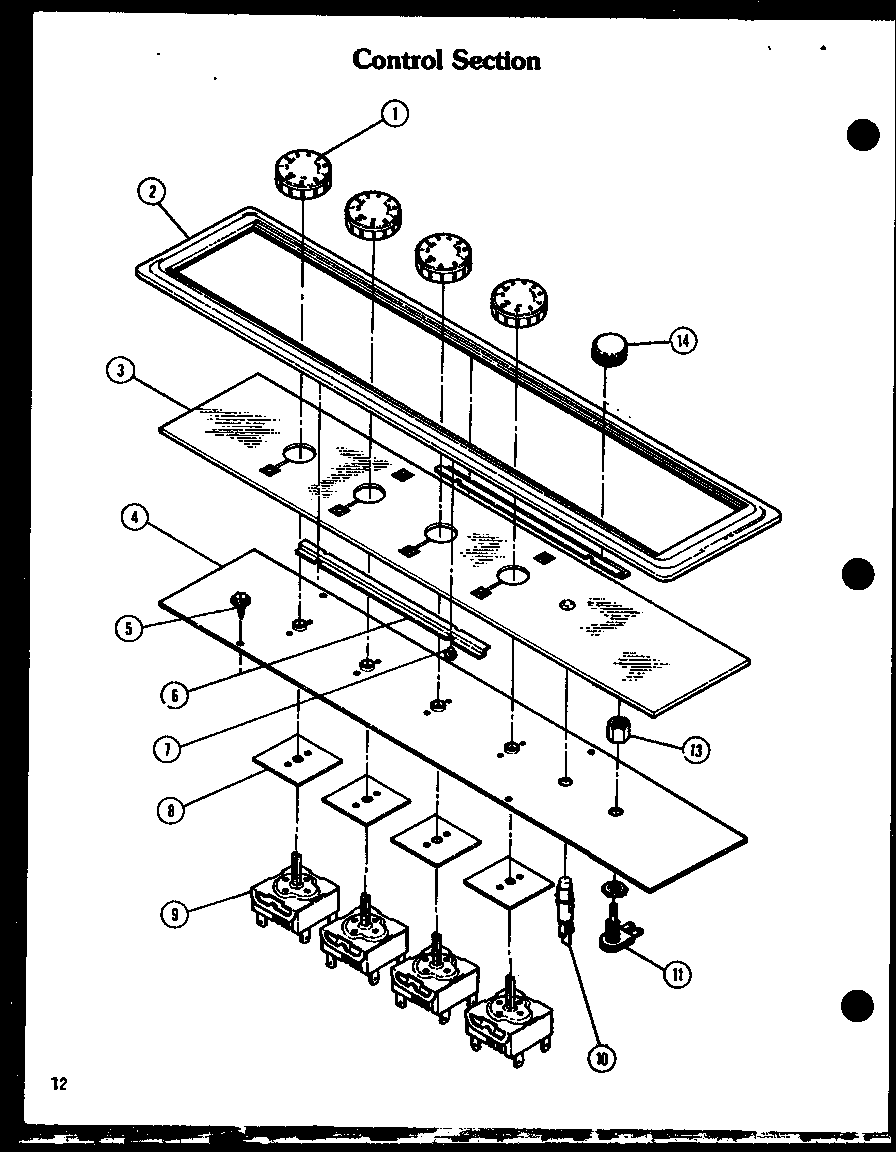

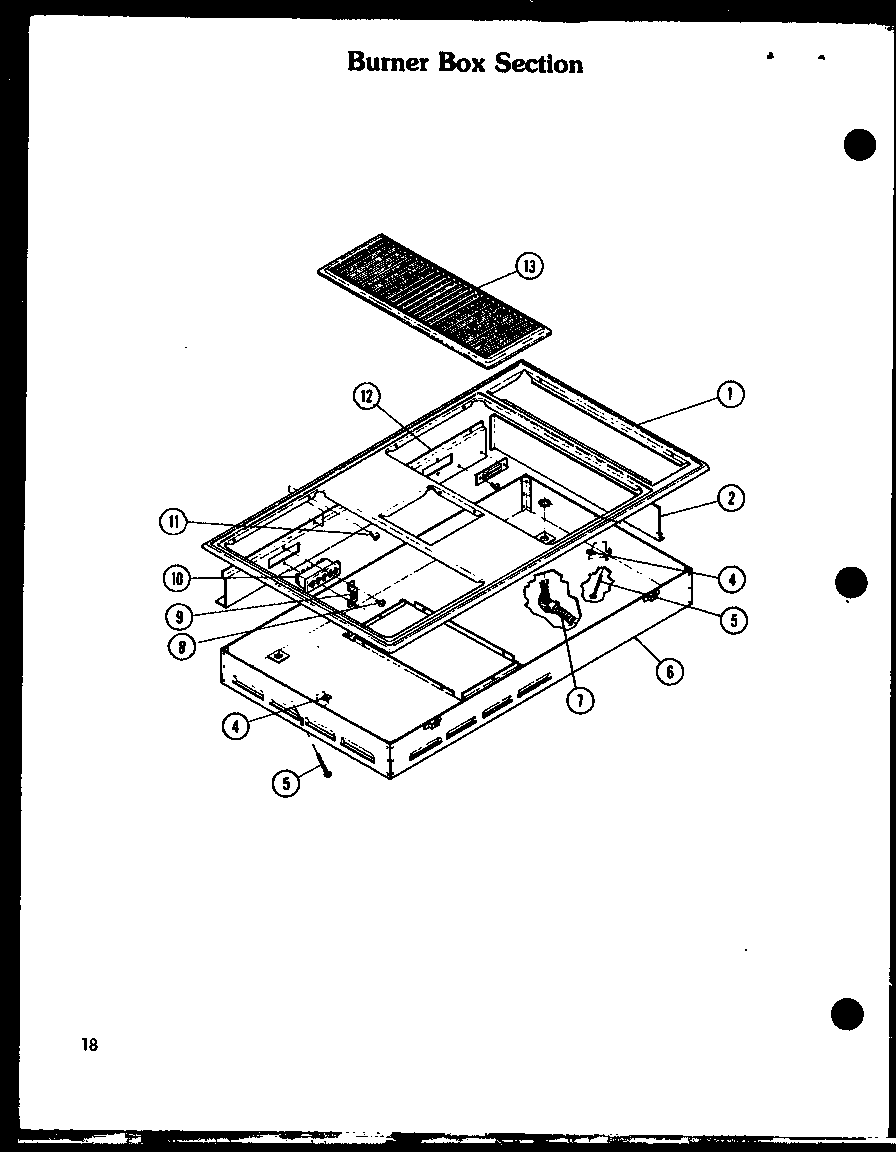

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Burner Bowl C2710301
#6

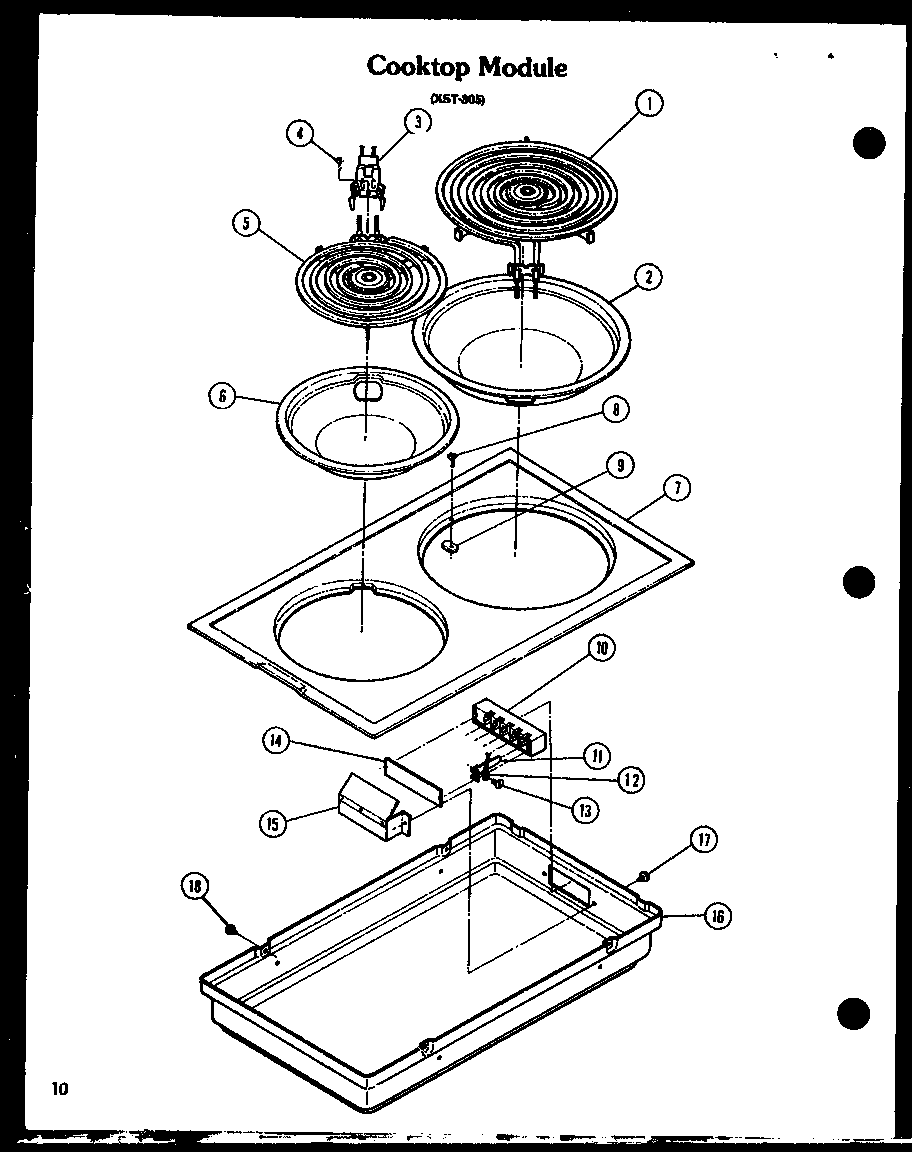

Cooktop module (cc-1/p27271-1s) diagram

Burner bowl

Part #C2710301

Replaced by #WPW10196406

?
Manufacturer substitution
This part replaces C2710301. Substitute parts can look different from the original.
BEST SELLER
$7.46 |
12% OFF Phone Price : $8.46
In Stock
Burner Bowl C2710601
#2

Cooktop module (cc-1/p27271-1s) diagram

Burner bowl

Part #C2710601

Replaced by #WPW10196405

?
Manufacturer substitution
This part replaces C2710601. Substitute parts can look different from the original.
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Tapng Scrw 8 R0157992
#16B

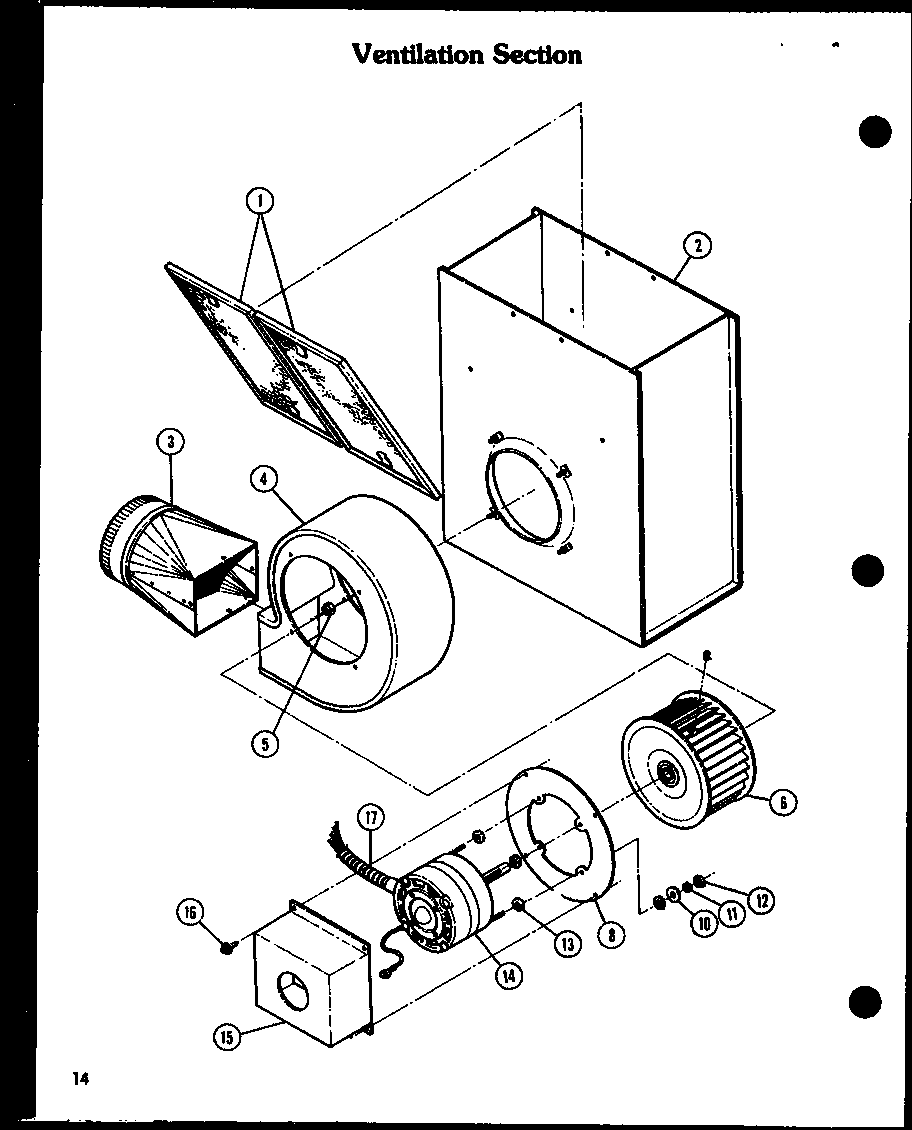

Ventilation section (akd-1/p85558-1s) diagram

Tapng scrw 8

Part #R0157992

Replaced by #WP8281227

?
Manufacturer substitution
This part replaces R0157992. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Screw R0157761
Screw

Part #R0157761

Replaced by #M0211016

?
Manufacturer substitution
This part replaces R0157761. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Wire Assembly R0157952

#NI

All parts diagram

Wire assembly

Part #R0157952

The manufacturer no longer makes this part, and there's no substitute part

Module R0157936
#16

Cooktop module (cc-1/p27271-1s) diagram

Module

Part #R0157936

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness R0157978

#NI

All parts diagram

Wire harness

Part #R0157978

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer R0157987
#10

Ventilation section (akd-1/p85558-1s) diagram

Flat washer

Part #R0157987

The manufacturer no longer makes this part, and there's no substitute part

Grille R0157916
#4

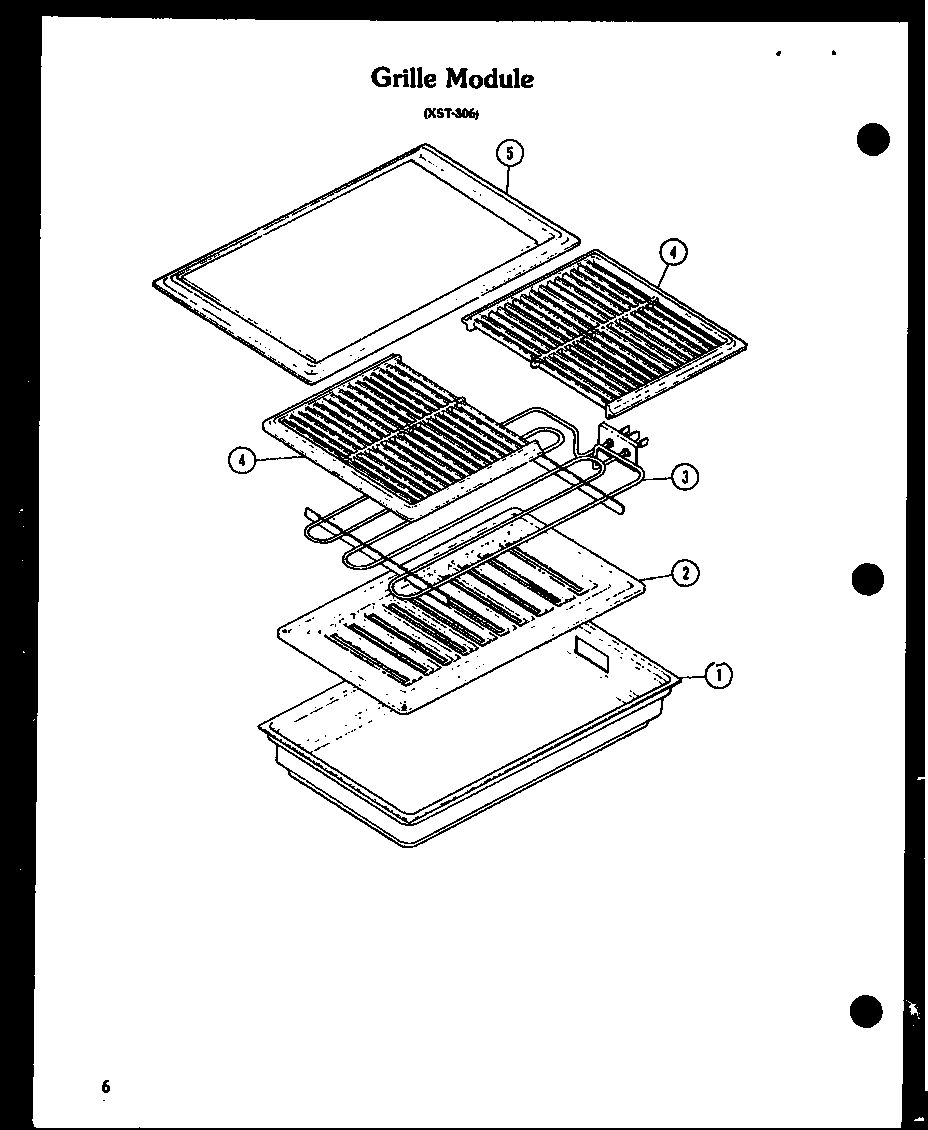

Grille module (cc-3/p27271-3s) diagram

Grille

Part #R0157916

The manufacturer no longer makes this part, and there's no substitute part

Lock-nut Nyl R0157984
#5

Ventilation section (akd-1/p85558-1s) diagram

Lock-nut nyl

Part #R0157984

The manufacturer no longer makes this part, and there's no substitute part
