Room Air Conditioner

Model # ACS082PP0 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACS082PP0 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Cover Gasket 789831
#13

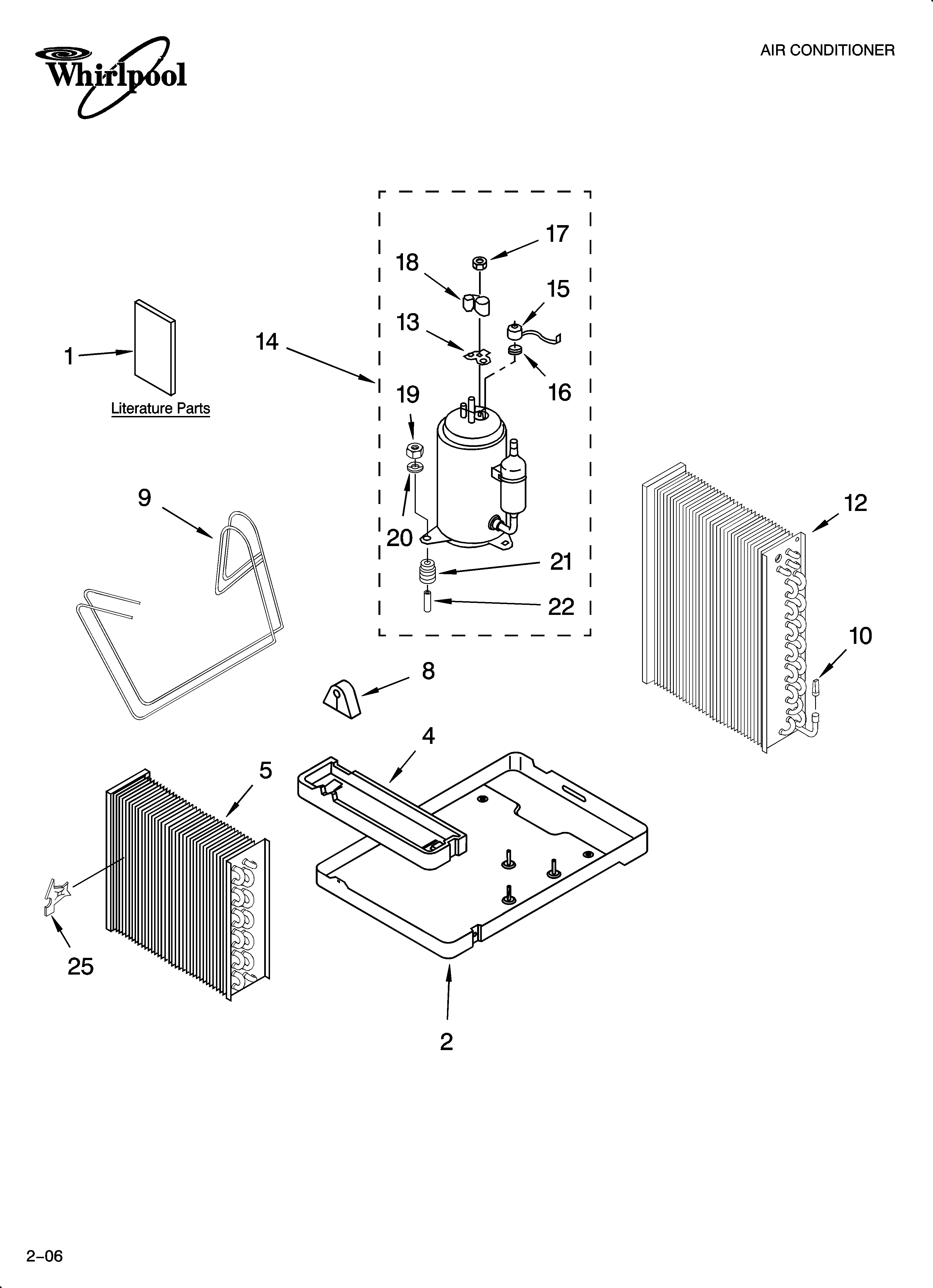

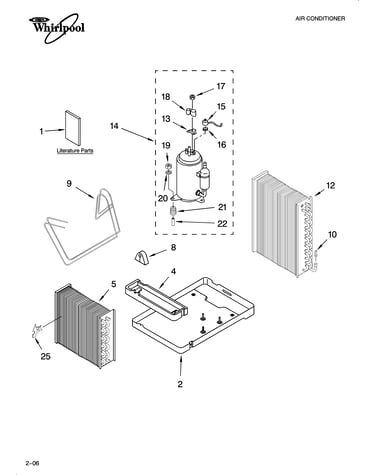

Unit parts diagram

Cover gasket

Part #789831

Replaced by #WP950035

?
Manufacturer substitution
This part replaces 789831. Substitute parts can look different from the original.
$29.89
In Stock
Washer 789784
#20

Unit parts diagram

Washer

Part #789784

Replaced by #W11236646

?
Manufacturer substitution
This part replaces 789784. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Terminal Cover 789832
#18

Unit parts diagram

Terminal cover

Part #789832

The manufacturer no longer makes this part, and there's no substitute part

Dividing Wall 789794
#4

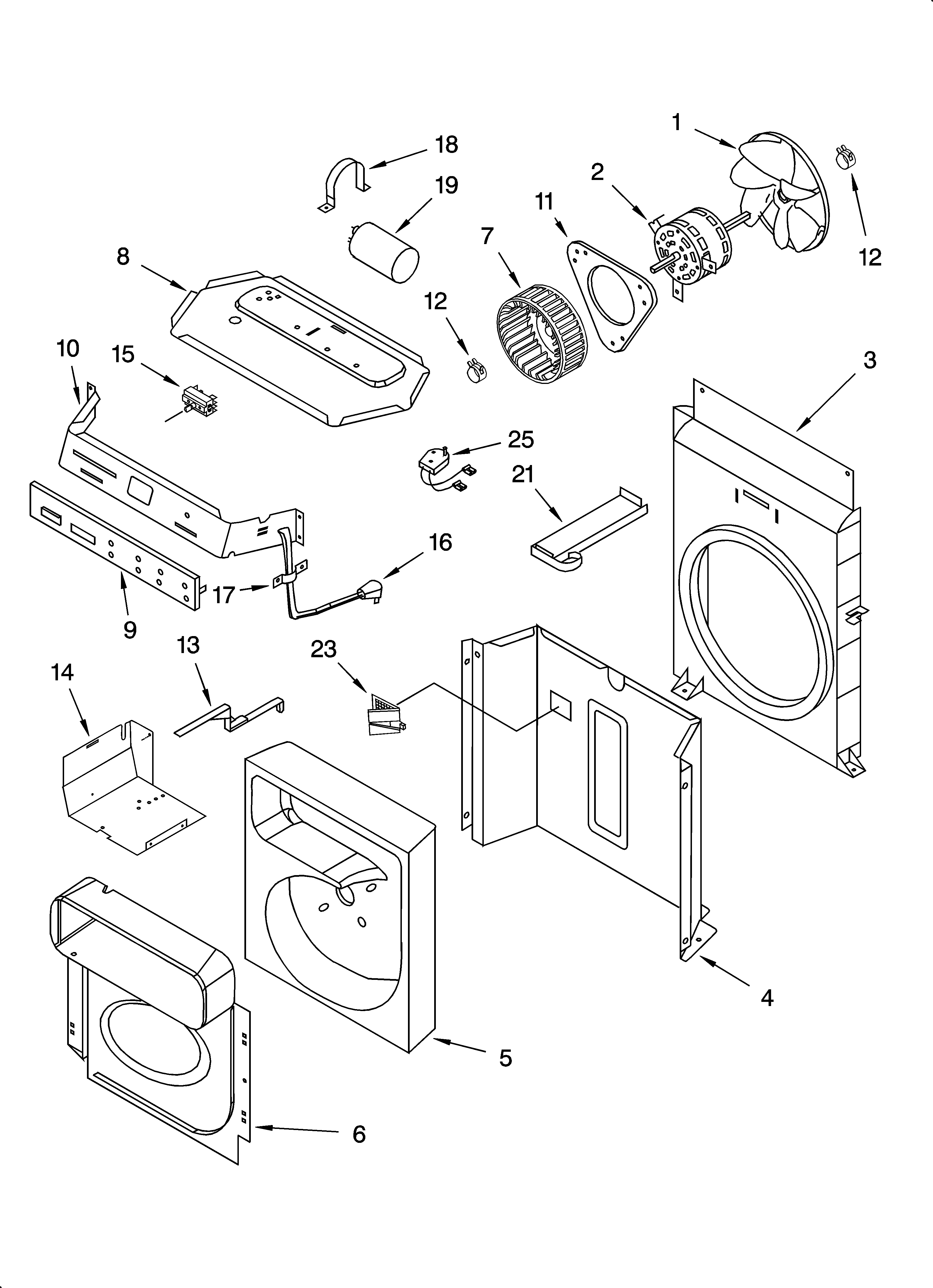

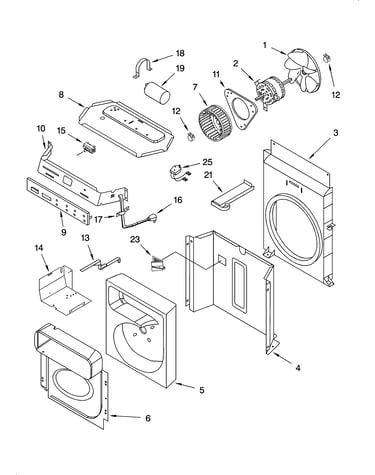

Air flow and control parts diagram

Dividing wall

Part #789794

The manufacturer no longer makes this part, and there's no substitute part

Mounting Nut 789833
#17

Unit parts diagram

Mounting nut

Part #789833

The manufacturer no longer makes this part, and there's no substitute part

Transformer 8199574
#15

Air flow and control parts diagram

Transformer

Part #8199574

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 8199570
#19

Air flow and control parts diagram

Capacitor

Part #8199570

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Door 789907
#23

Air flow and control parts diagram

Exhaust door

Part #789907

The manufacturer no longer makes this part, and there's no substitute part

Drip Pan 789778
#4

Unit parts diagram

Drip pan

Part #789778

The manufacturer no longer makes this part, and there's no substitute part

Shroud Condenser 789836
#3

Air flow and control parts diagram

Shroud condenser

Part #789836

The manufacturer no longer makes this part, and there's no substitute part
