Model # GT54CS-96043022500 Official Husqvarna tractor

Here are the diagrams and repair parts for Official Husqvarna GT54CS-96043022500 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

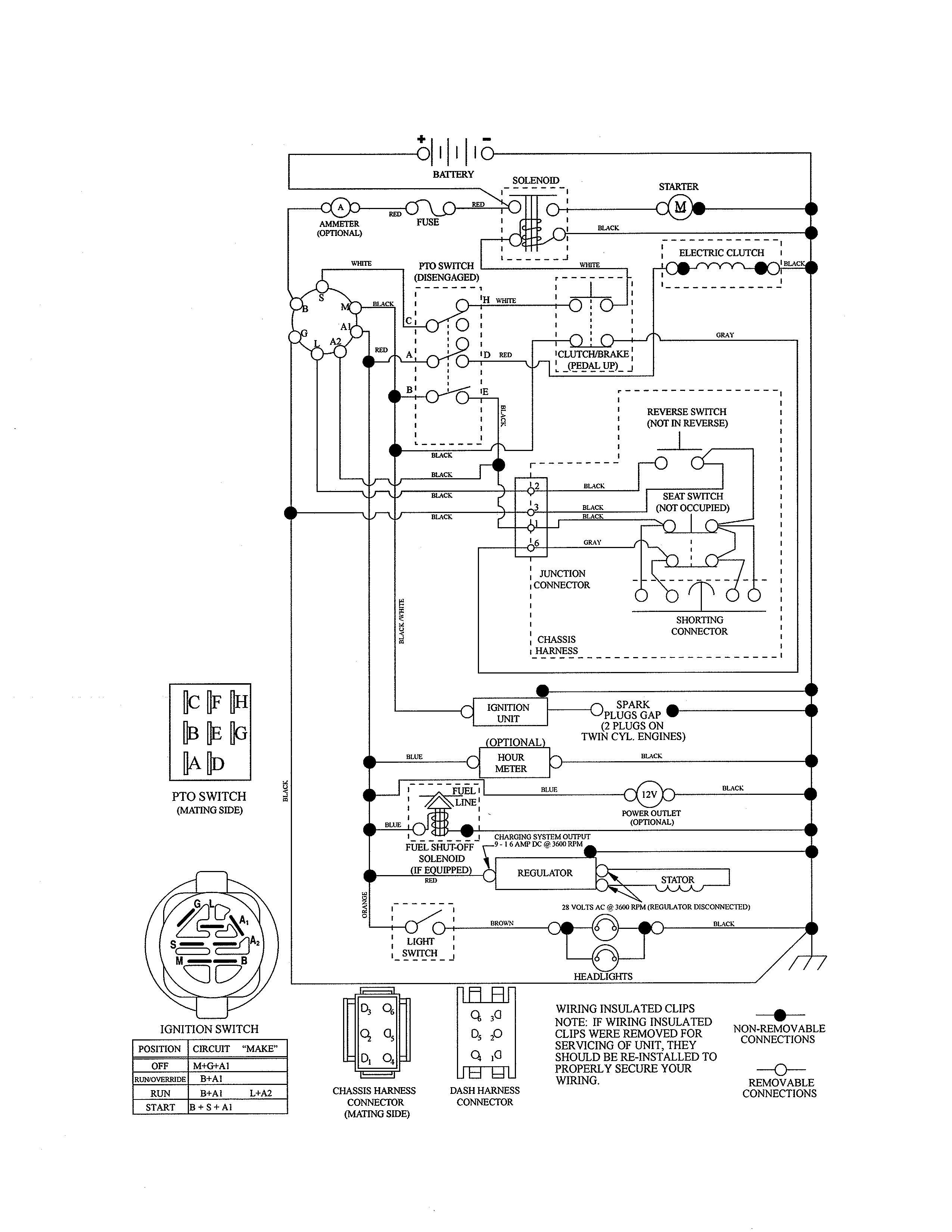

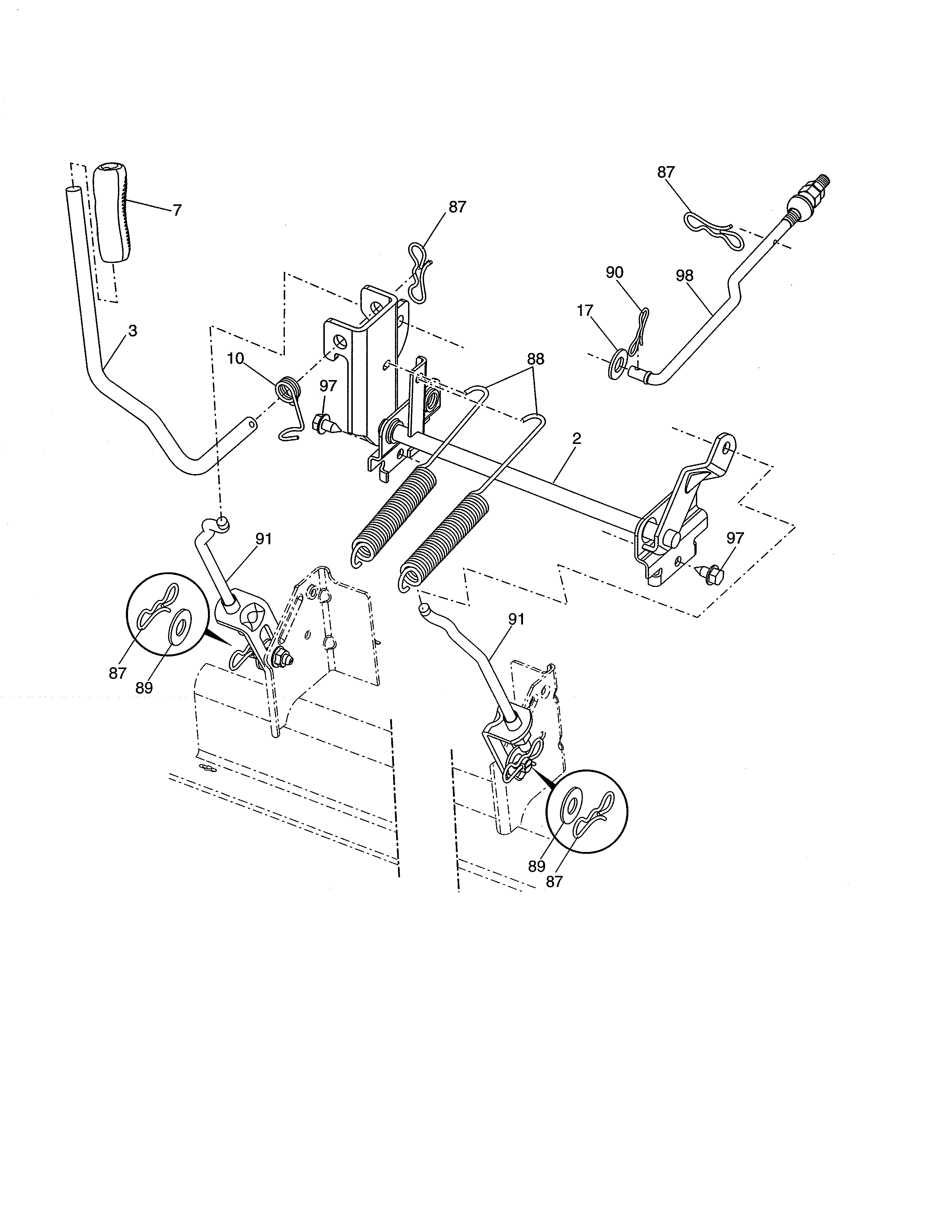

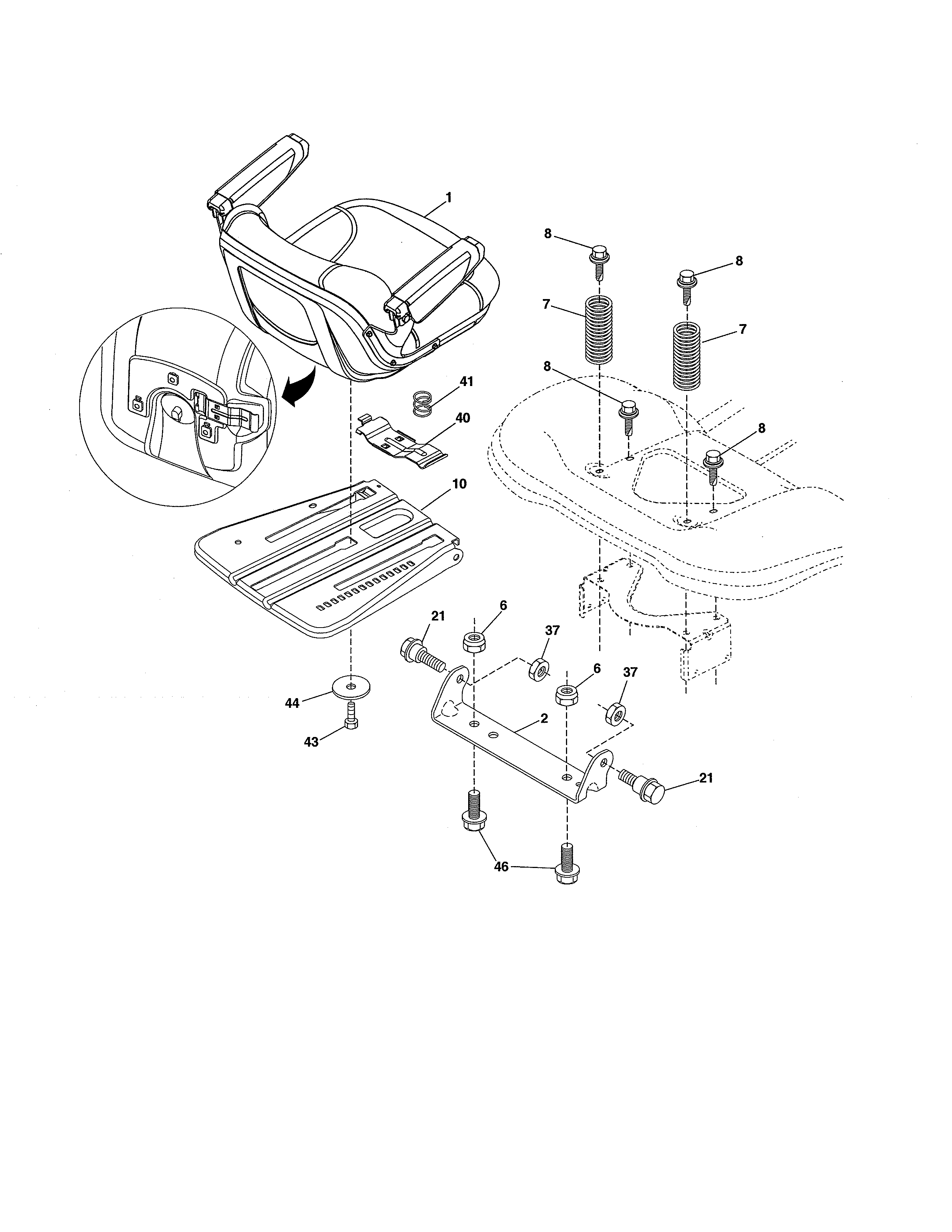

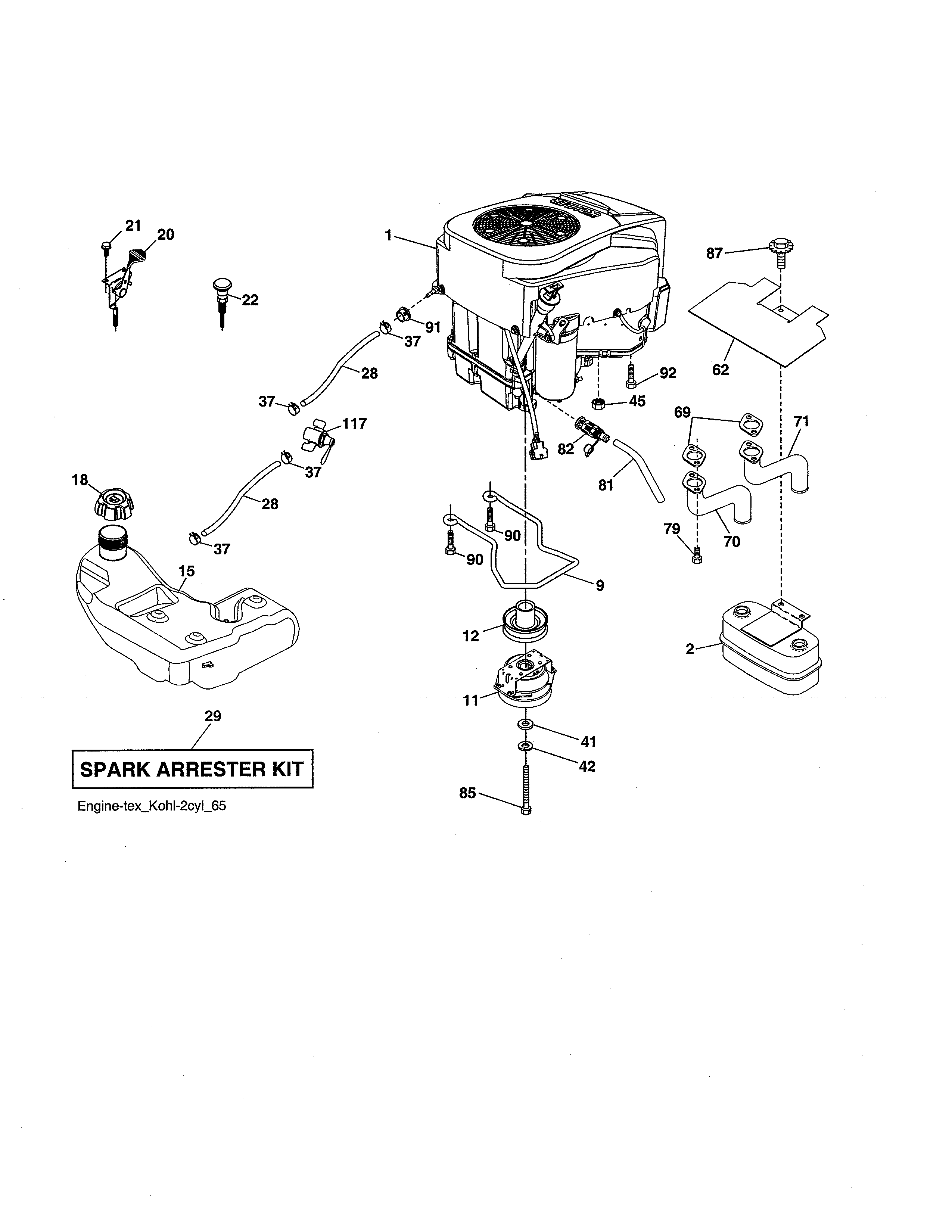

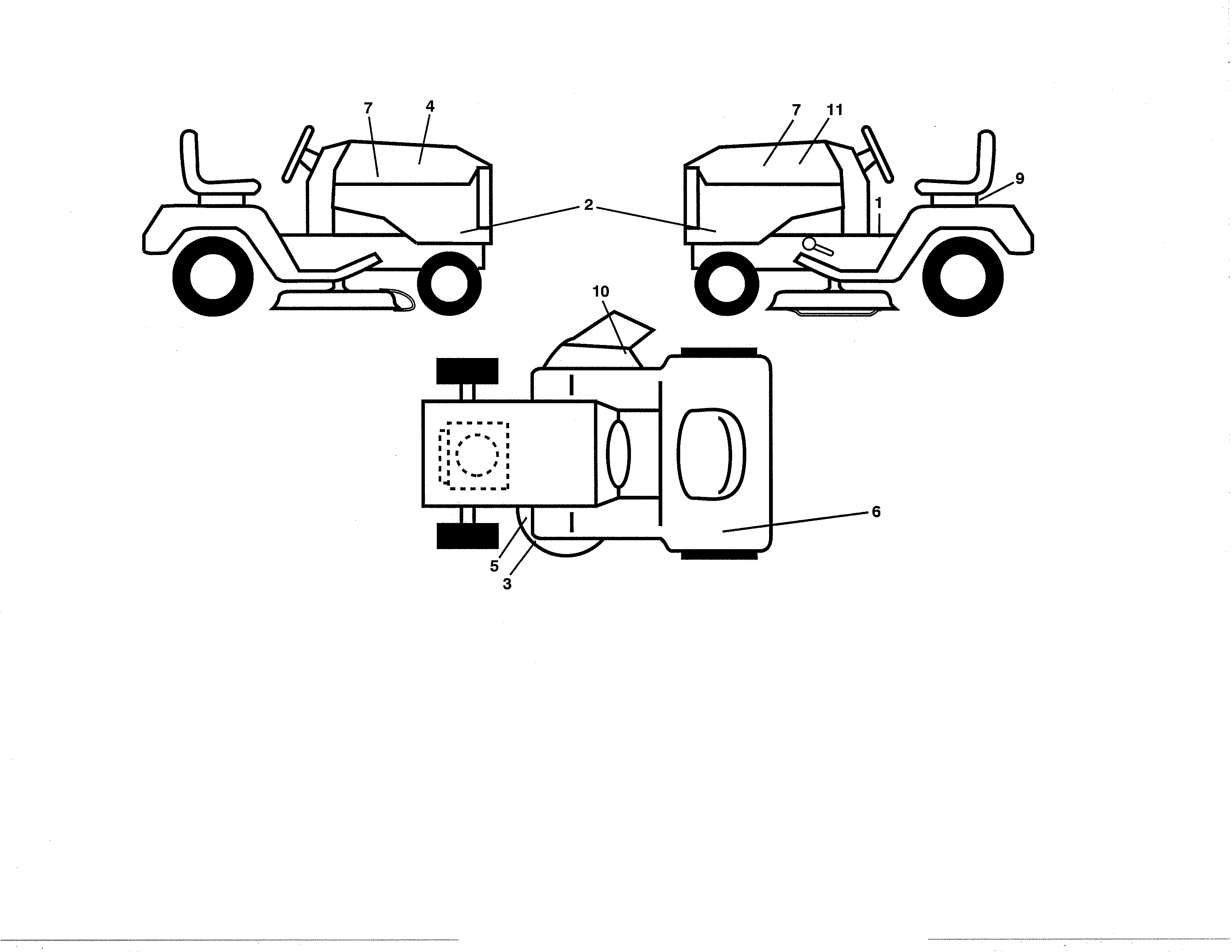

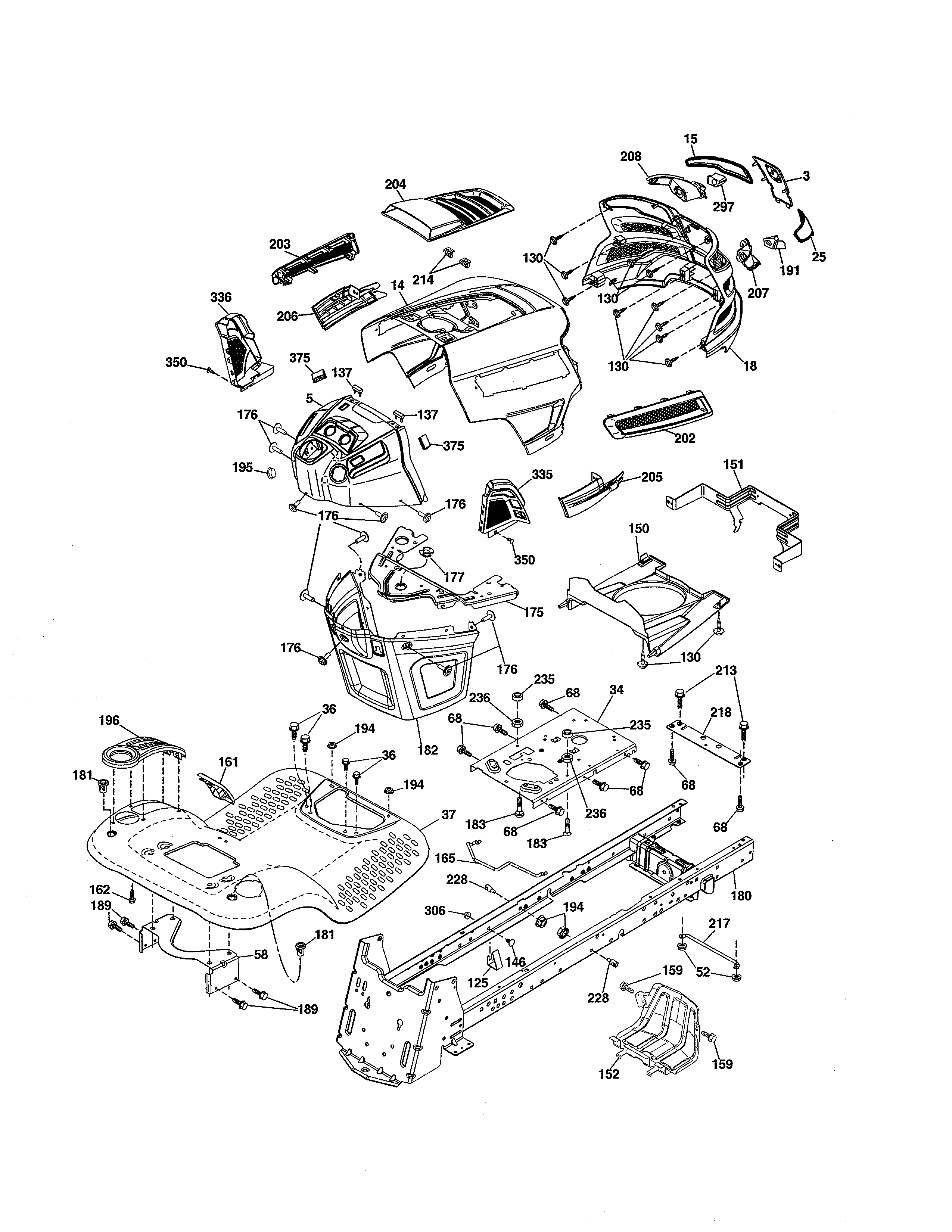

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 525 parts  |
Hub Cap 532175039
#8

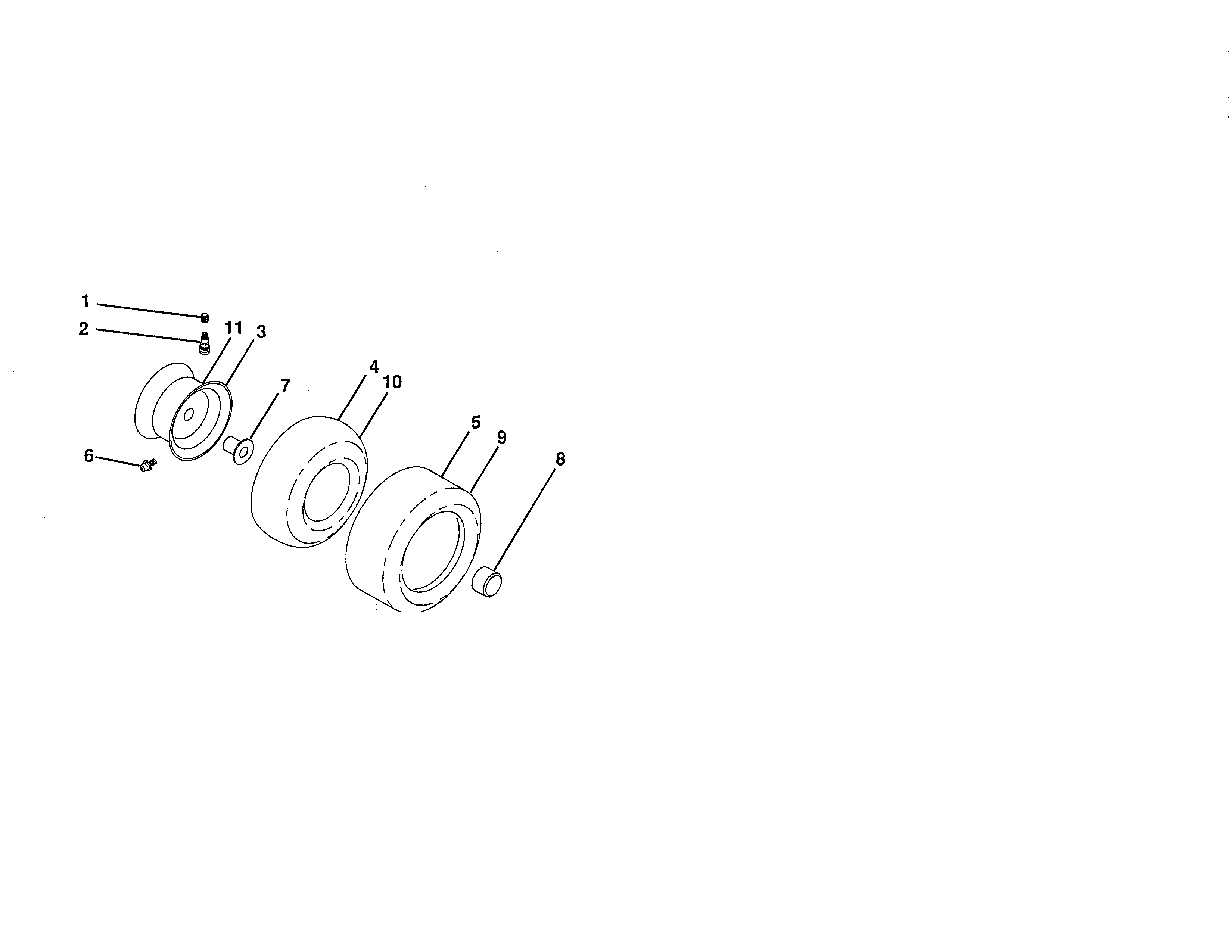

Wheels & tires diagram

Hub cap

Part #532175039

Replaced by #532104757

?
Manufacturer substitution
This part replaces 532175039. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Blade Drive Belt, 5/8 X 145-in (replaces 196103, 33155) 587686701
#47

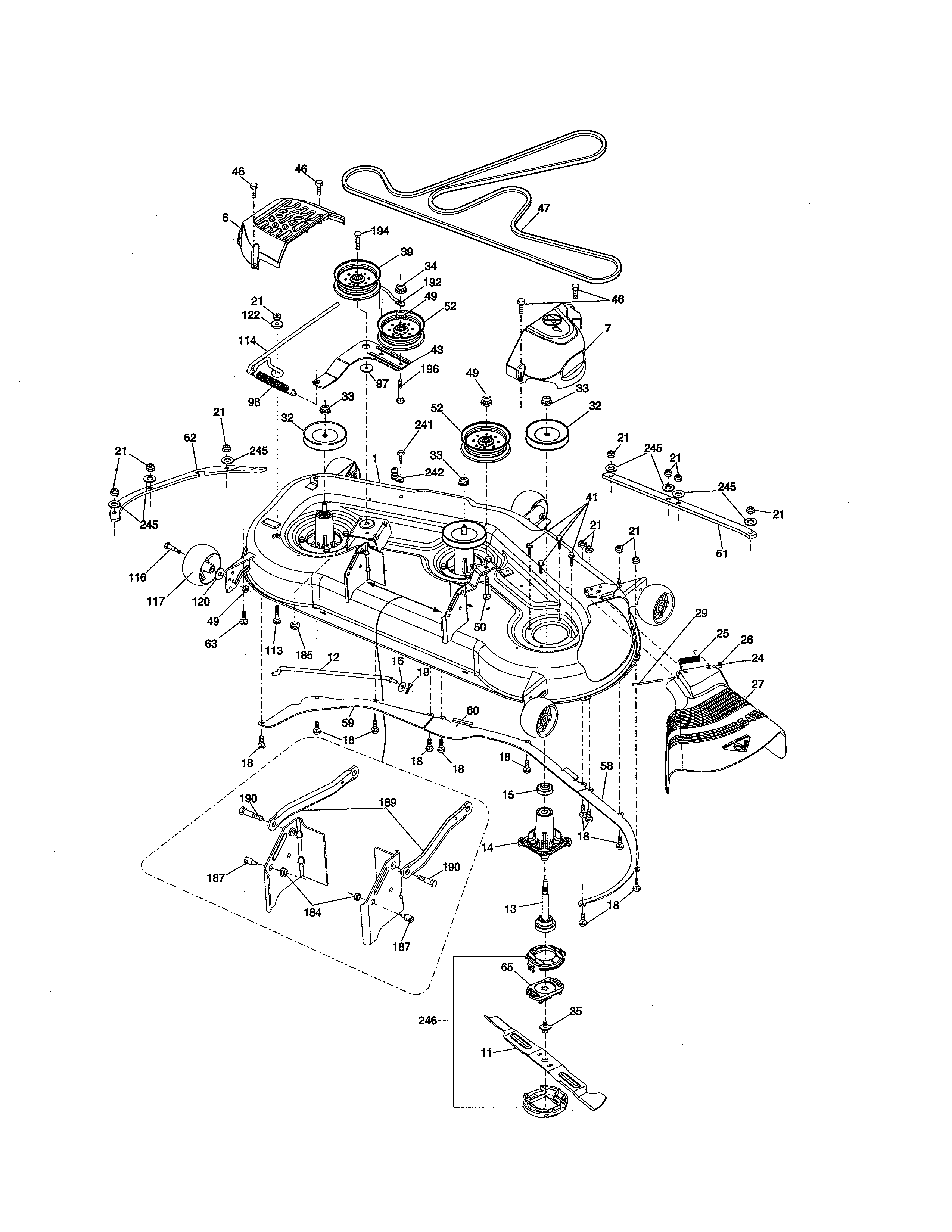

Mower deck diagram

Lawn tractor blade drive belt, 5/8 x 145-in (replaces 196103, 33155)

Part #587686701

BEST SELLER

Get free shipping with Automatic Reorder

$55.53 |
10% OFF Phone Price : $61.53
In Stock
Locking Flange Nut 873900600
Locking flange nut

Part #873900600

Replaced by #532409149

?
Manufacturer substitution
This part replaces 873900600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Subassembly Link 532436887
#81

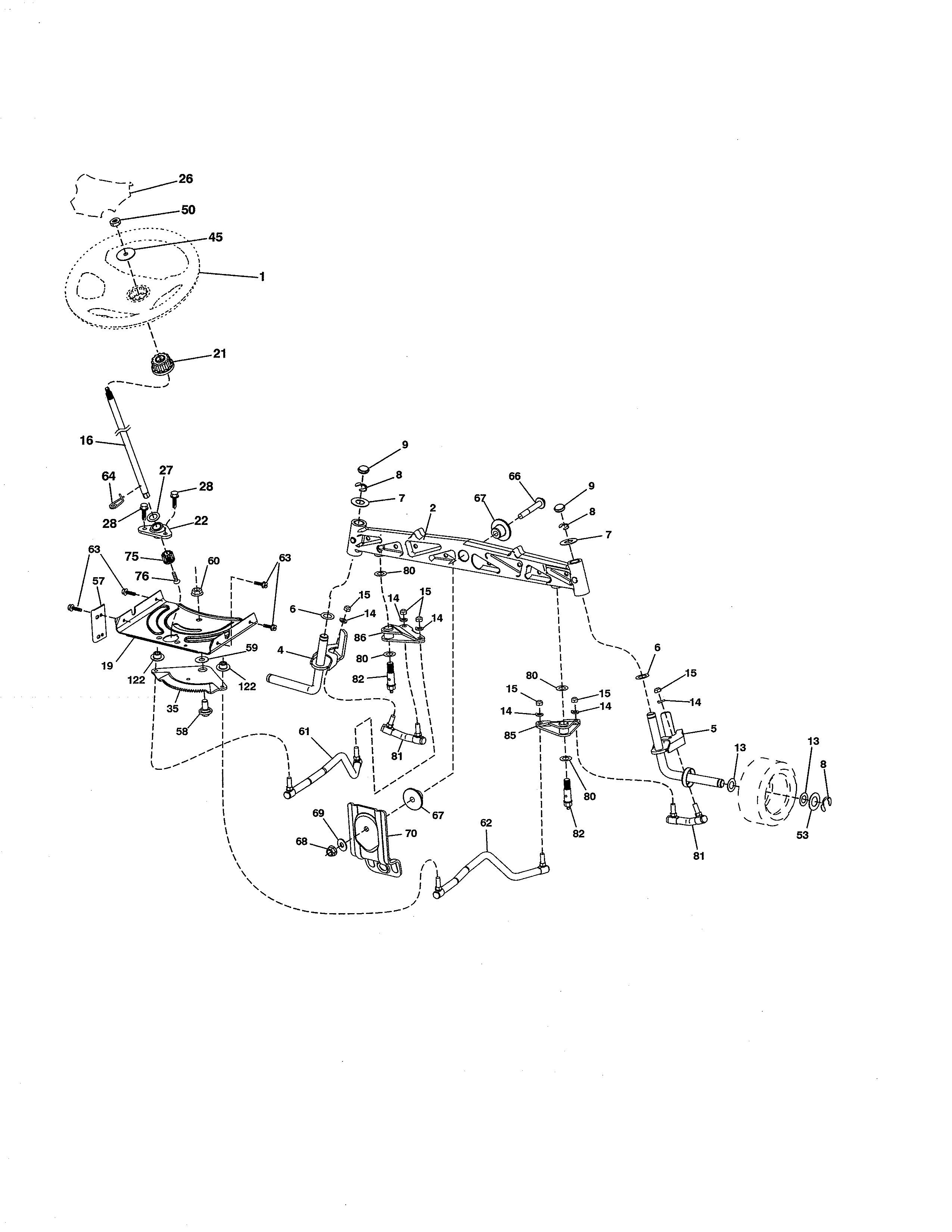

Steering diagram

Subassembly link

Part #532436887

Replaced by #597069702

?
Manufacturer substitution
This part replaces 532436887. Substitute parts can look different from the original.
BEST SELLER
$14.12 |
12% OFF Phone Price : $16.12
In Stock
Lawn Tractor Ground Drive Belt, 1/2 X 82-in (replaces 24103) 532140294
#56

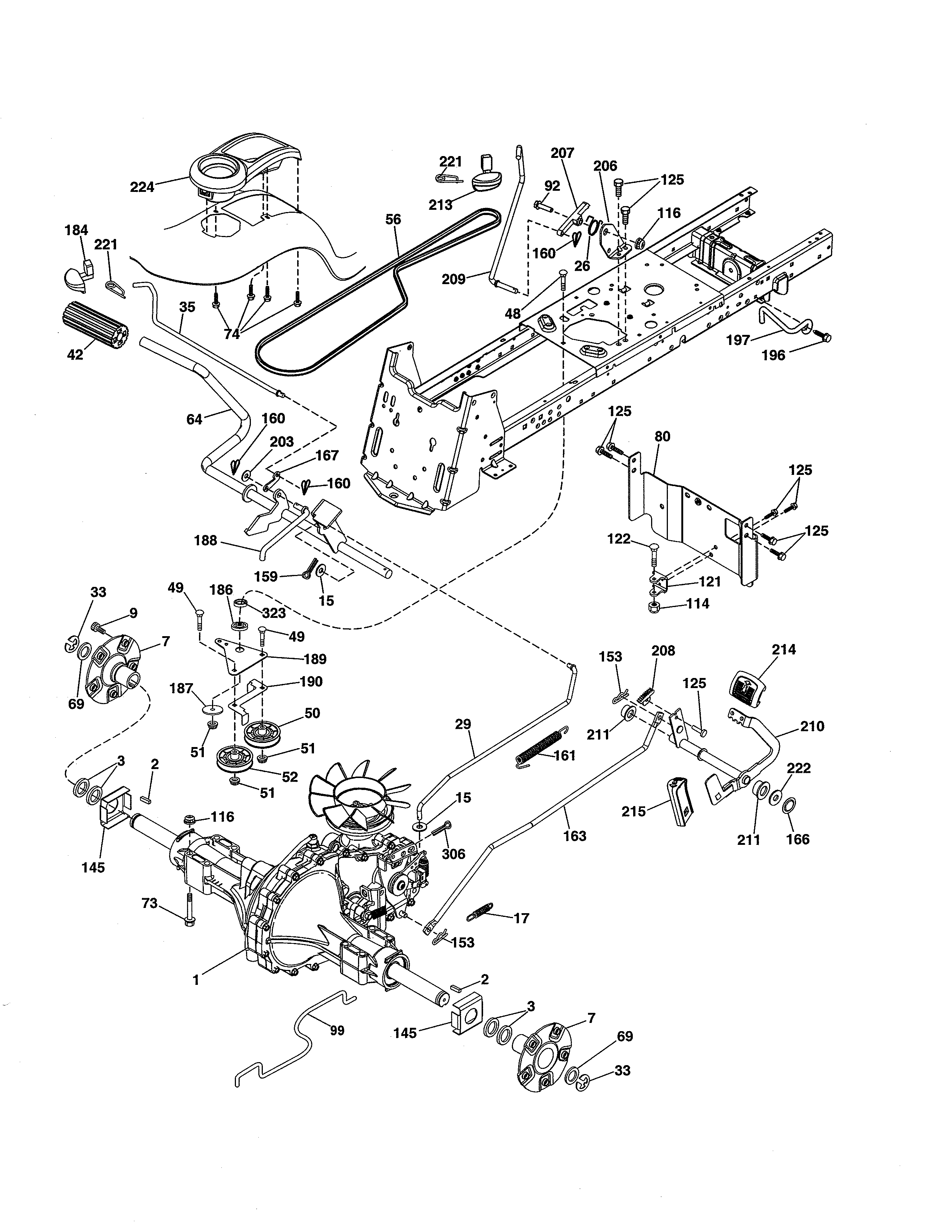

Drive diagram

Lawn tractor ground drive belt, 1/2 x 82-in (replaces 24103)

Part #532140294

BEST SELLER

Get free shipping with Automatic Reorder

$32.99 |
15% OFF Phone Price : $38.99
In Stock
Lawn Tractor Starter Solenoid 532192507
#43

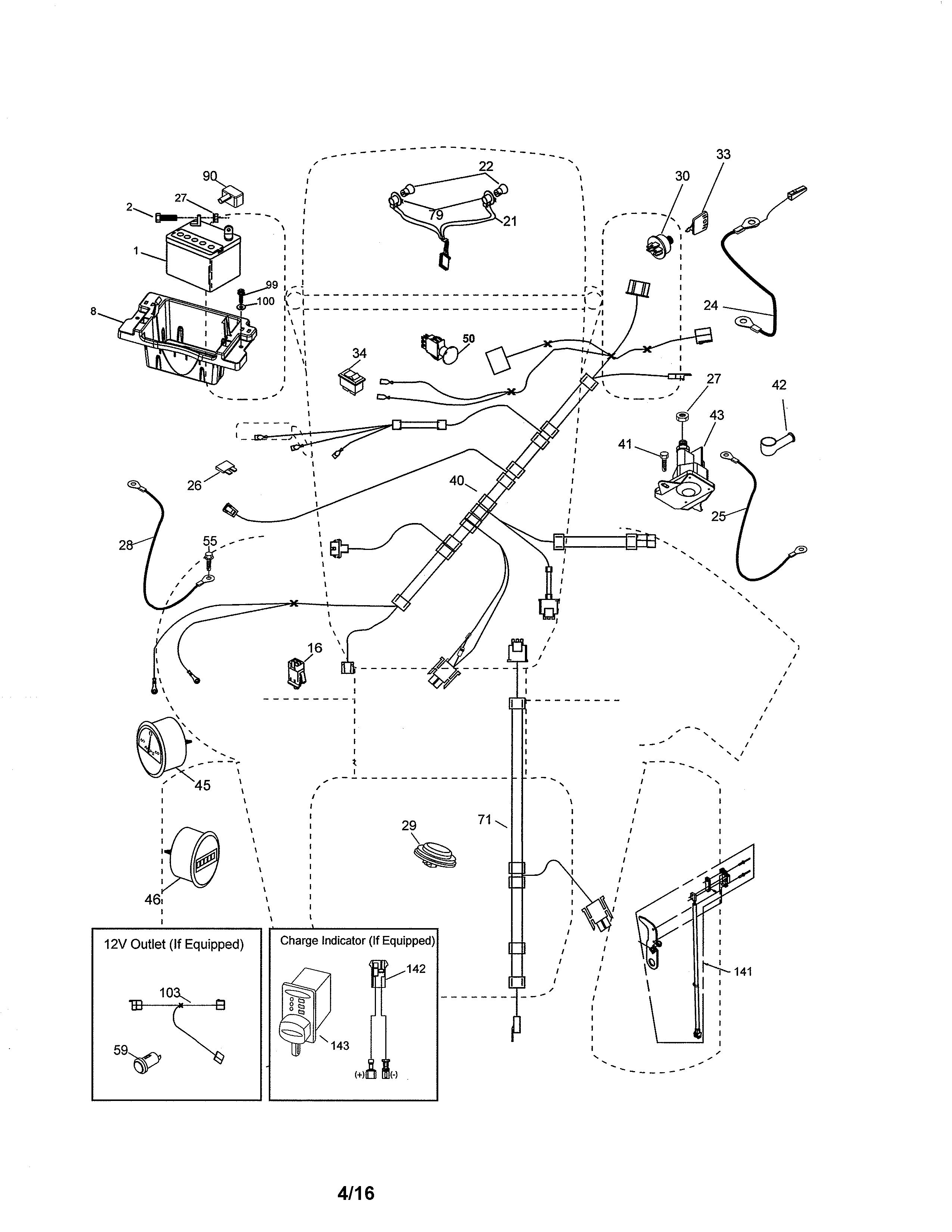

Electrical diagram

Lawn tractor starter solenoid

Part #532192507

Replaced by #582042802

?
Manufacturer substitution
This part replaces 532192507. Substitute parts can look different from the original.
BEST SELLER
$30.64 |
16% OFF Phone Price : $36.64
In Stock
Lawn Tractor Ignition Switch (replaces 193350) 532193350
#30

Electrical diagram

Lawn tractor ignition switch (replaces 193350)

Part #532193350

BEST SELLER
$25.83 |
19% OFF Phone Price : $31.83
In Stock
Pto Switch 532174651
#50

Electrical diagram

Pto switch

Part #532174651

Replaced by #582107601

?
Manufacturer substitution
This part replaces 532174651. Substitute parts can look different from the original.
BEST SELLER
$30.76 |
16% OFF Phone Price : $36.76
In Stock
Subassembly Link 532436885
#62

Steering diagram

Subassembly link

Part #532436885

Replaced by #597069902

?
Manufacturer substitution
This part replaces 532436885. Substitute parts can look different from the original.
BEST SELLER
$29.98 |
17% OFF Phone Price : $35.98
In Stock
Gauge Wheel 532174873
#117

Mower deck diagram

Gauge wheel

Part #532174873

Replaced by #589527301

?
Manufacturer substitution
This part replaces 532174873. Substitute parts can look different from the original.
BEST SELLER
$11.98 |
14% OFF Phone Price : $13.98
In Stock
