Model # GFWH1300D0WW Official GE washer

Here are the diagrams and repair parts for Official GE GFWH1300D0WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Washer Door Lock WH10X10006
#217

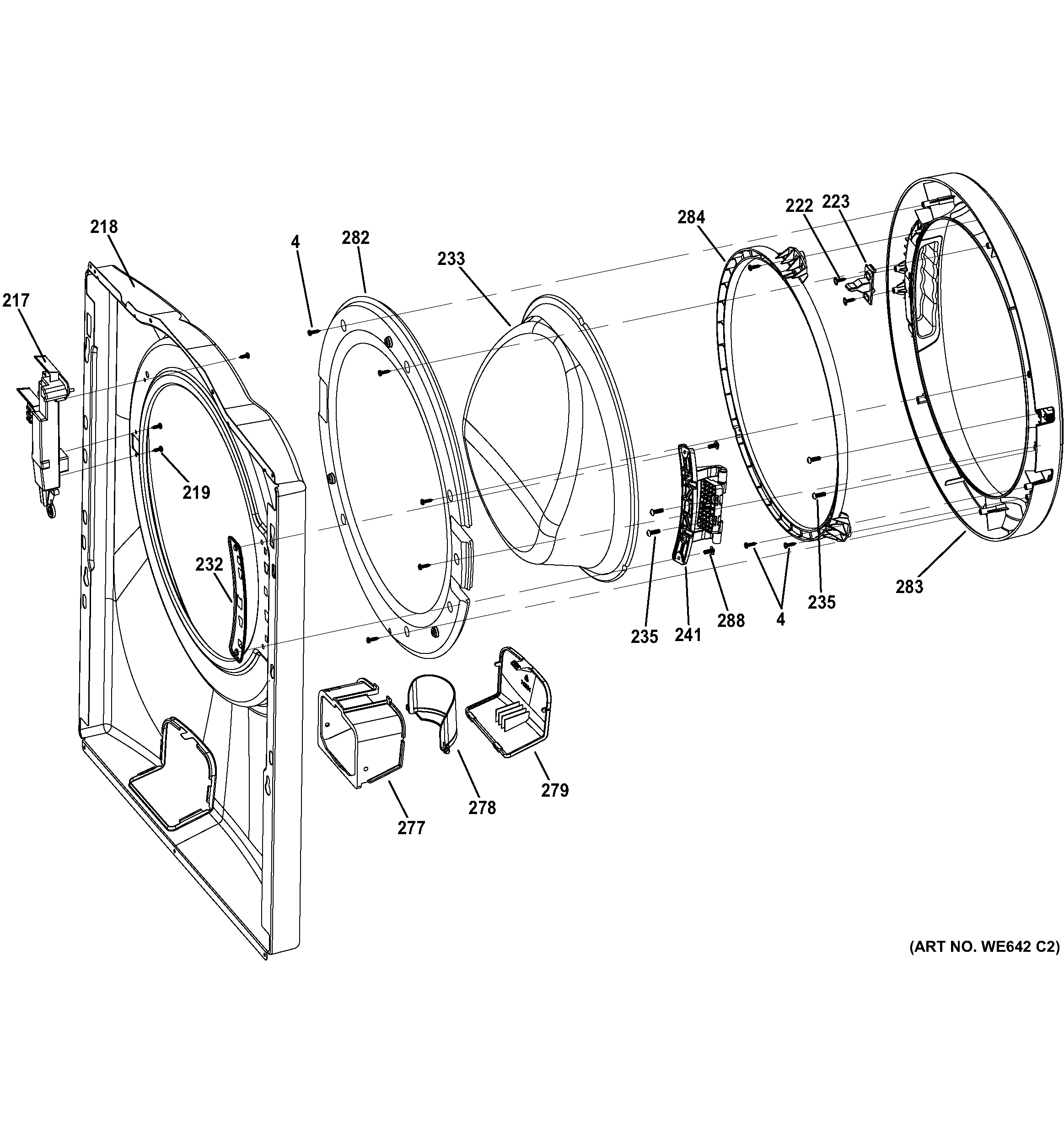

Front panel & door diagram

Washer door lock

Part #WH10X10006

$158.03 |
7% OFF Phone Price : $170.03
In Stock
Washer Drive Pulley Kit WH07X10022
#322

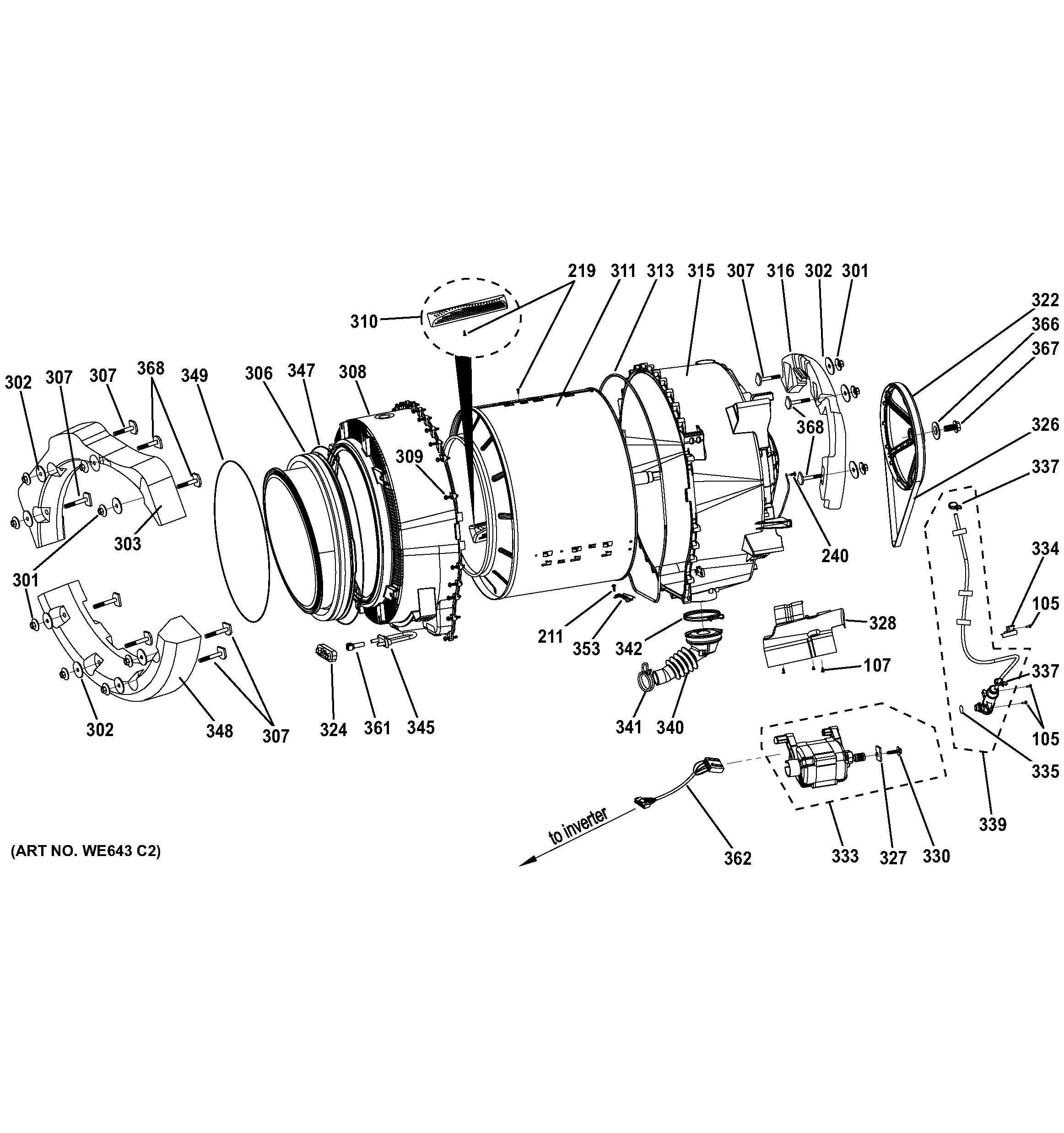

Tub & motor diagram

Washer drive pulley kit

Part #WH07X10022

$100.93 |
11% OFF Phone Price : $112.93
In Stock
Washer Electronic Control Board WH12X10544
#104

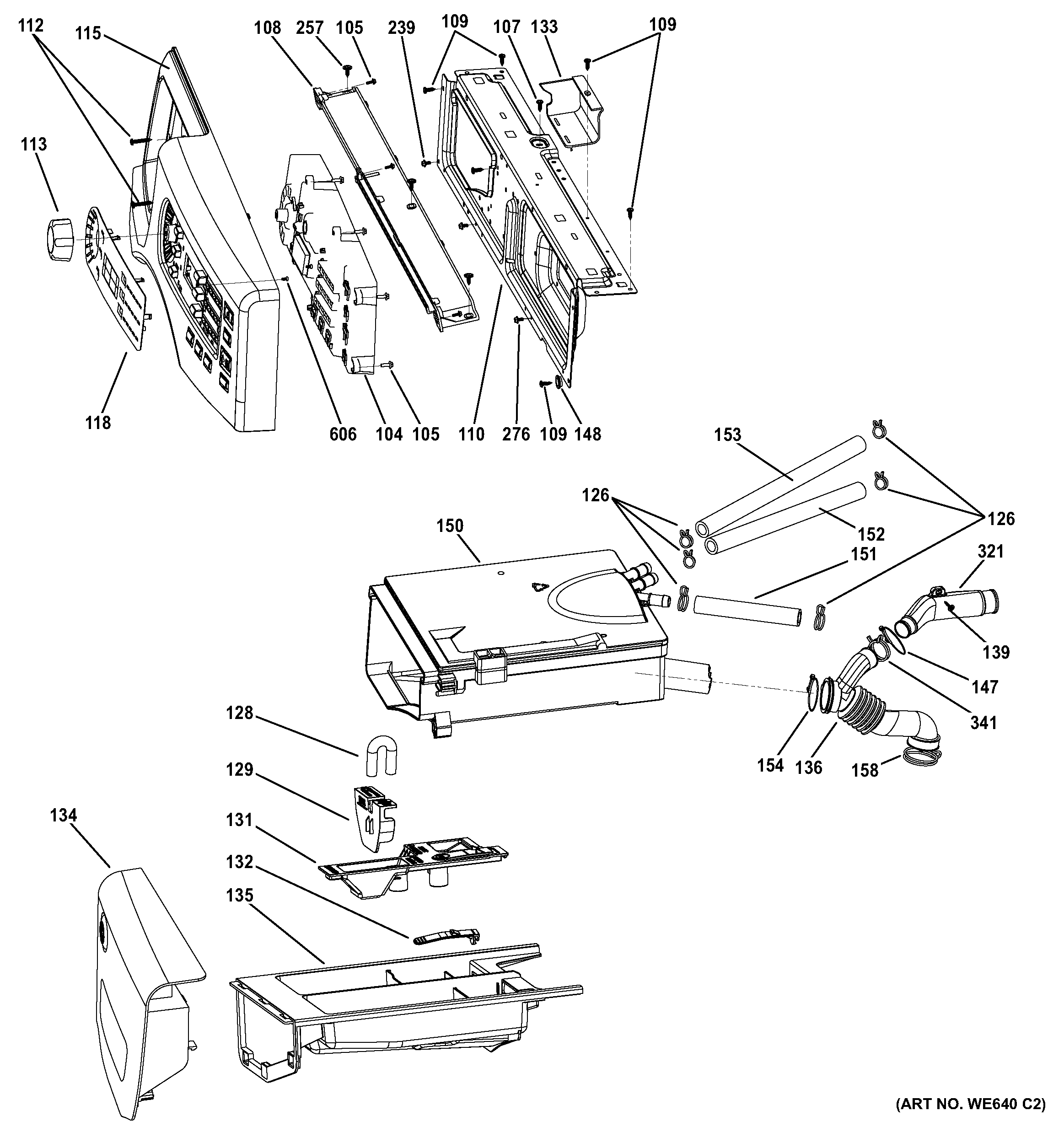

Controls & dispenser diagram

Washer electronic control board

Part #WH12X10544

This item is not returnable
$398.15 |
$12.00 OFF Phone Price : $410.15
In Stock
Washer Door Boot Spring Clamp, Inner WH01X10277
#347

Tub & motor diagram

Washer door boot spring clamp, inner

Part #WH01X10277

This item is not returnable
$21.30 |
22% OFF Phone Price : $27.30
In Stock
Washer Door Boot WH08X10064
#306

Tub & motor diagram

Washer door boot

Part #WH08X10064

$237.52 |
5% OFF Phone Price : $249.52
In Stock
Washer Door Boot Spring Clamp, Outer WH01X10279
#349

Tub & motor diagram

Washer door boot spring clamp, outer

Part #WH01X10279

This item is not returnable
$21.30 |
22% OFF Phone Price : $27.30
In Stock
Washer Tub Seal WH08X10054
#313

Tub & motor diagram

Washer tub seal

Part #WH08X10054

$30.99 |
16% OFF Phone Price : $36.99
In Stock
Washer Cycle Selector Knob WH11X10061
#113

Controls & dispenser diagram

Washer cycle selector knob

Part #WH11X10061

Replaced by #WE04X21014

?
Manufacturer substitution
This part replaces WH11X10061. Substitute parts can look different from the original.
$22.80 |
21% OFF Phone Price : $28.80
In Stock
Flange Bolt WH02X10334
#367

Tub & motor diagram

Flange bolt

Part #WH02X10334

The manufacturer no longer makes this part, and there's no substitute part

Washer Drain Hose Adapter WH01X10266
#273

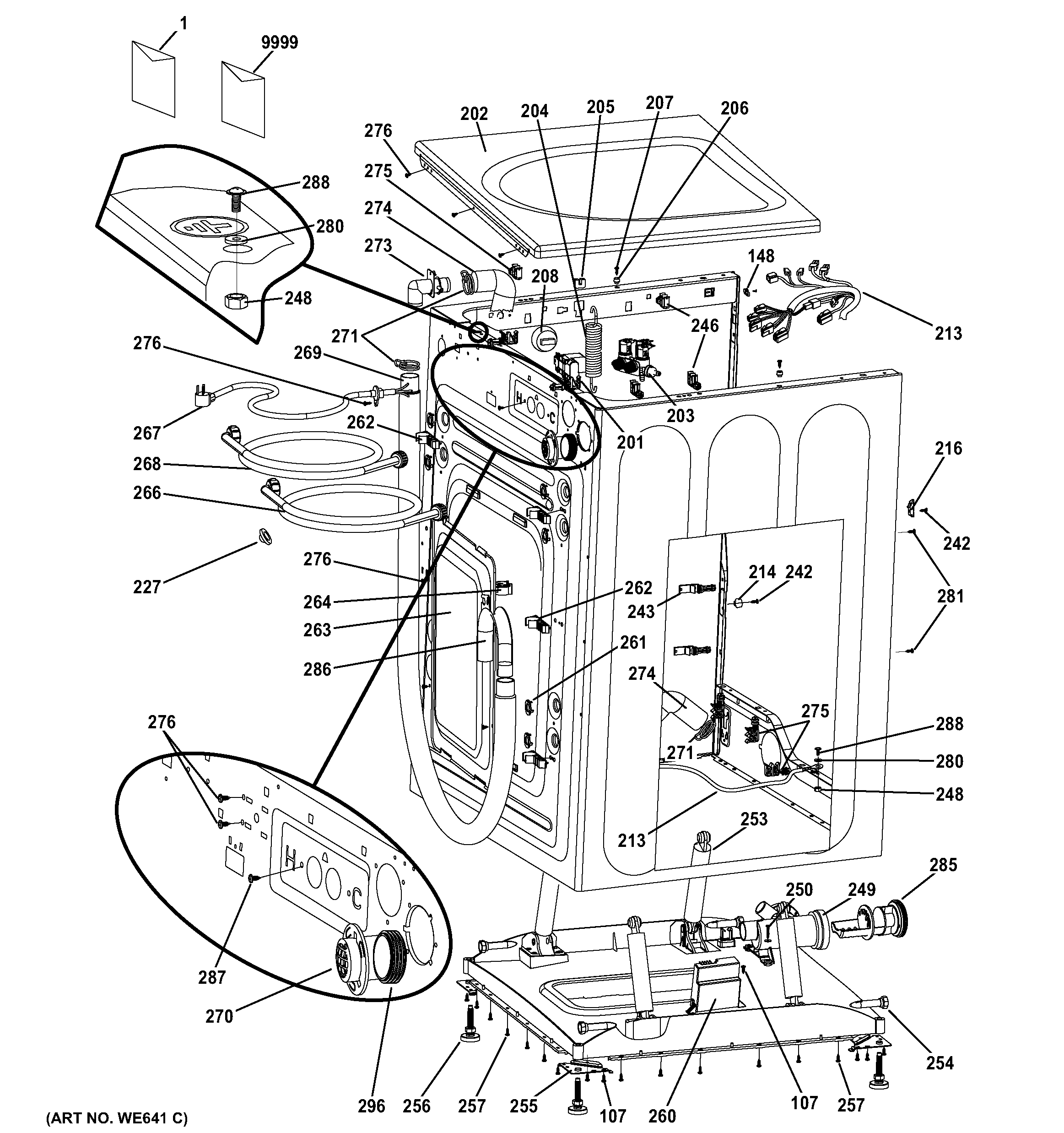

Cabinet & top panel diagram

Washer drain hose adapter

Part #WH01X10266

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
