Kenmore
Gas Water Heater

Model # 153335640 Official Kenmore power miser 8 gas water heater

Here are the diagrams and repair parts for Official Kenmore 153335640 power miser 8 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Flue Baffle 9000419
#17

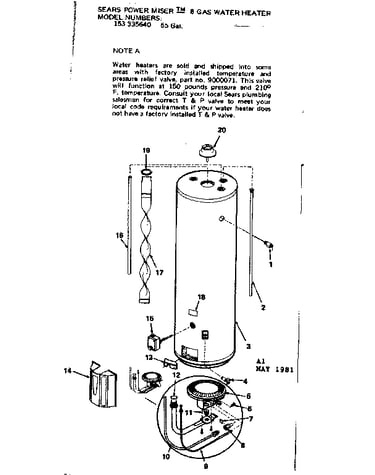

Replacement parts diagram

Flue baffle

Part #9000419

$17.85
In Stock
Water Heater Manifold Inner Door 9000281
#13

Replacement parts diagram

Water heater manifold inner door

Part #9000281

$17.69 |
10% OFF Phone Price : $19.69
In Stock
Manifold 0220107
#12

Replacement parts diagram

Manifold

Part #0220107

Replaced by #100108818

?
Manufacturer substitution
This part replaces 0220107. Substitute parts can look different from the original.
$54.44
In Stock
Water Heater Vent Draft Hood (replaces 183853-000, 2190144, 9003499) 9000274
#20

Replacement parts diagram

Water heater vent draft hood (replaces 183853-000, 2190144, 9003499)

Part #9000274

Replaced by #100108368

?
Manufacturer substitution
This part replaces 9000274. Substitute parts can look different from the original.
$36.67
In Stock
Thermocouple 42-9231
#9

Replacement parts diagram

Thermocouple

Part #42-9231

Replaced by #H06E-36

?
Manufacturer substitution
This part replaces 42-9231. Substitute parts can look different from the original.
This item is not returnable
$14.52 |
12% OFF Phone Price : $16.52
Back Order
Water Heater Pilot Tube Assembly (replaces Std317025, Std317255) 9000278
#10

Replacement parts diagram

Water heater pilot tube assembly (replaces std317025, std317255)

Part #9000278

Replaced by #100108370

?
Manufacturer substitution
This part replaces 9000278. Substitute parts can look different from the original.
$36.67
In Stock
Ring 9000275
#19

Replacement parts diagram

Ring

Part #9000275

Replaced by #100108369

?
Manufacturer substitution
This part replaces 9000275. Substitute parts can look different from the original.
$27.78
In Stock
Mag Erad 3515

#NI

All parts diagram

Mag erad

Part #3515

Replaced by #23600

?
Manufacturer substitution
This part replaces 3515. Substitute parts can look different from the original.
$35.19
In Stock
Orifice 0230120
#11

Replacement parts diagram

Orifice

Part #0230120

Replaced by #100108635

?
Manufacturer substitution
This part replaces 0230120. Substitute parts can look different from the original.
$24.29
In Stock
Drain 9000058
#4

Replacement parts diagram

Drain

Part #9000058

Replaced by #100108269

?
Manufacturer substitution
This part replaces 9000058. Substitute parts can look different from the original.
$18.57
In Stock
