Model # S2147 Official Hoover quick broom ii

Here are the diagrams and repair parts for Official Hoover S2147 quick broom ii, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Screw 21447218
Screw

Part #21447218

The manufacturer no longer makes this part, and there's no substitute part

Hoover Tube 32458006
#17

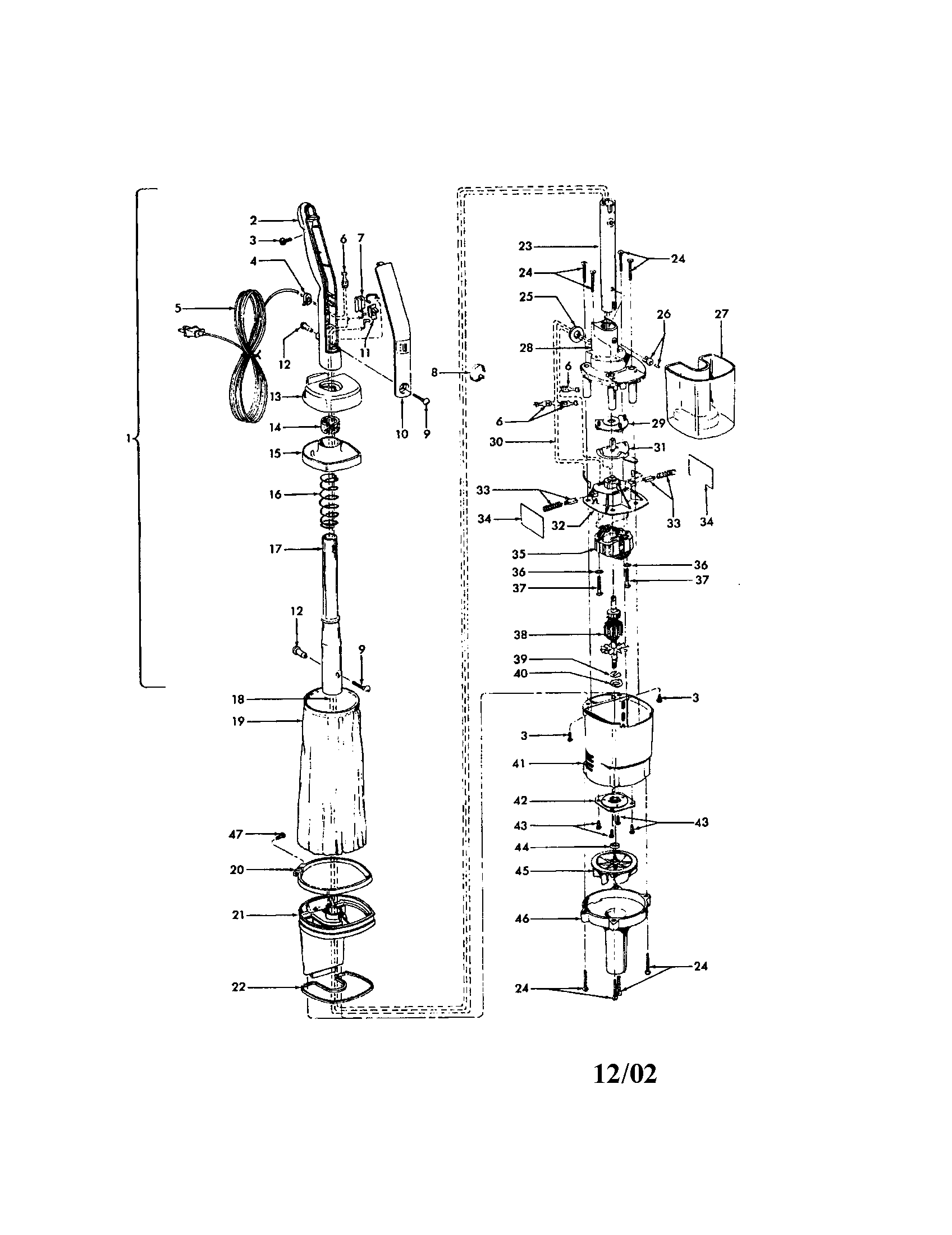

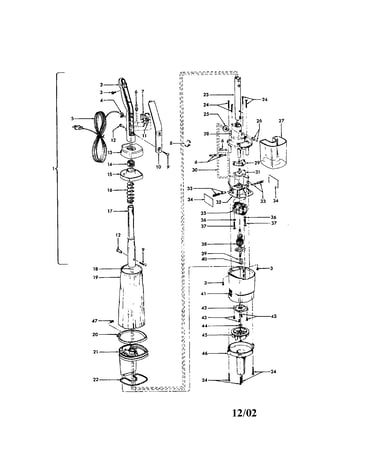

Handle/motor cover/fan diagram

Hoover tube

Part #32458006

The manufacturer no longer makes this part, and there's no substitute part

Hoover Motor Cover 37196103
#28

Handle/motor cover/fan diagram

Hoover motor cover

Part #37196103

The manufacturer no longer makes this part, and there's no substitute part

Hand Clamp Bolt Nut 32277021
#12

Handle/motor cover/fan diagram

Hand clamp bolt nut

Part #32277021

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 21338030
#36

Handle/motor cover/fan diagram

Lock washer

Part #21338030

The manufacturer no longer makes this part, and there's no substitute part

Hoover Handle Cover 37226075
#10

Handle/motor cover/fan diagram

Hoover handle cover

Part #37226075

The manufacturer no longer makes this part, and there's no substitute part

Hoover Field Assembly 45317036
#35

Handle/motor cover/fan diagram

Hoover field assembly

Part #45317036

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Floor Nozzle 43414180

#NI01

All parts diagram

Vacuum floor nozzle

Part #43414180

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Floor Nozzle Roller 38521018
#4

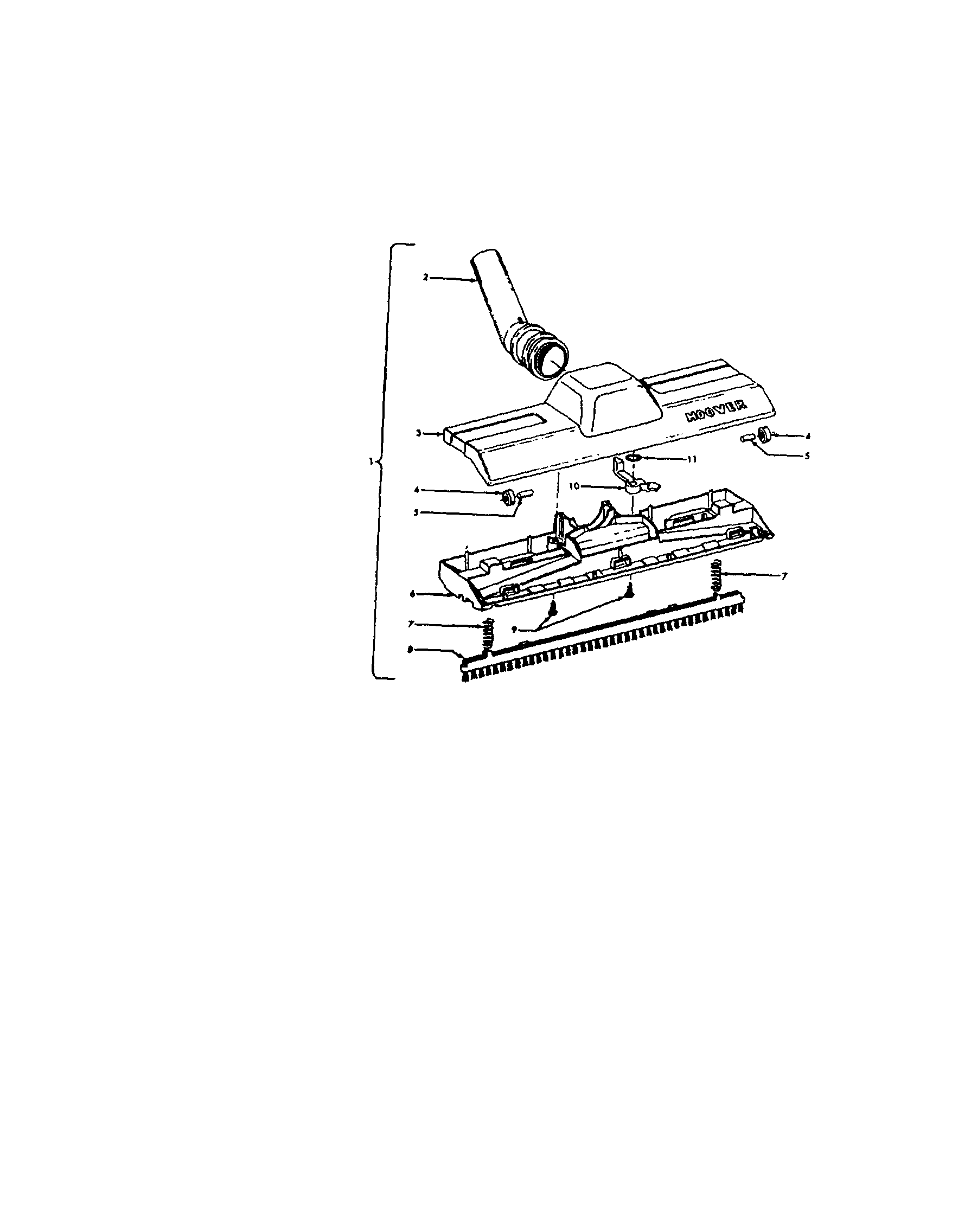

Rug and floor nozzle diagram

Vacuum floor nozzle roller

Part #38521018

The manufacturer no longer makes this part, and there's no substitute part

Motor Wire 46513006
#18

Handle/motor cover/fan diagram

Motor wire

Part #46513006

The manufacturer no longer makes this part, and there's no substitute part
