Kenmore
Top-Mount Refrigerator

Model # 25360505510 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 25360505510 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

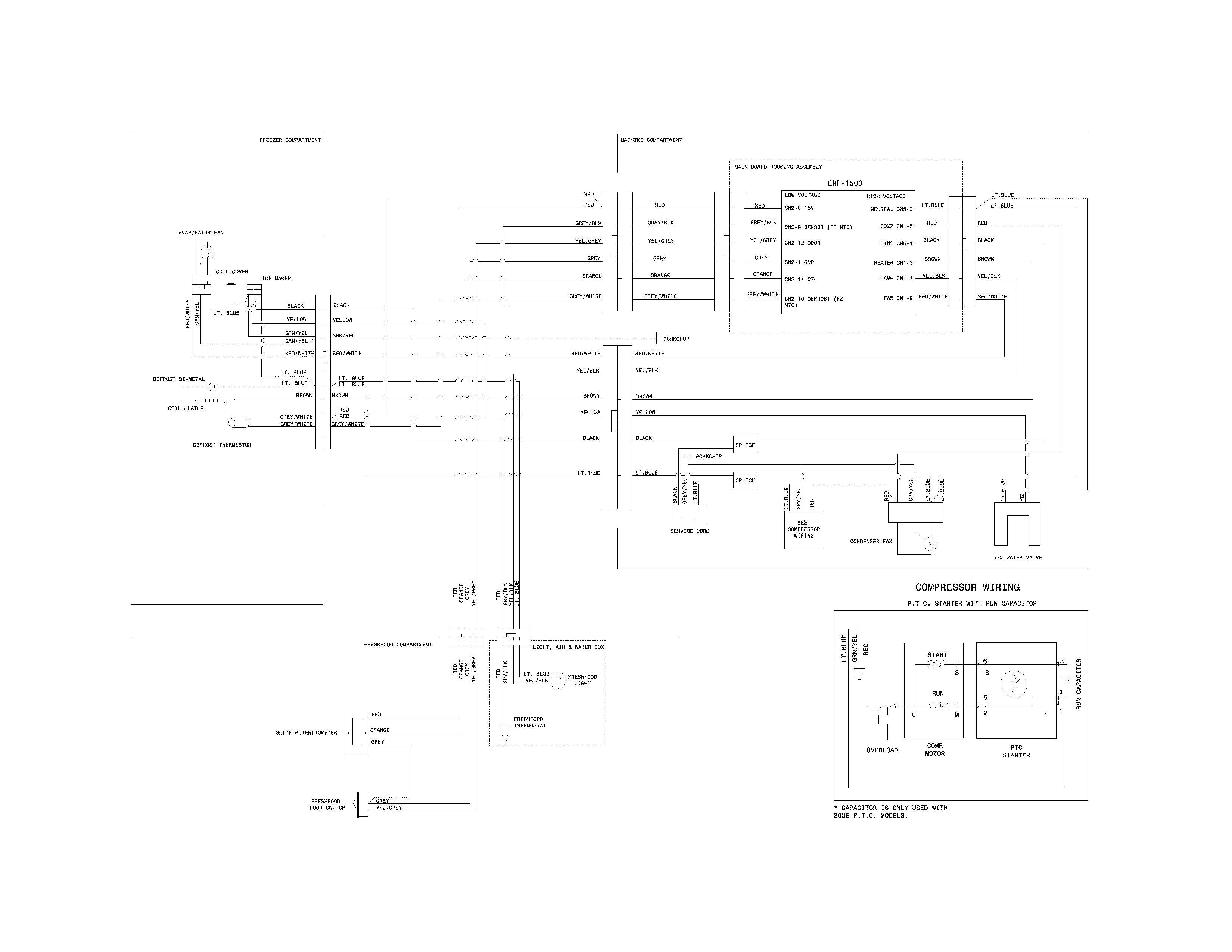

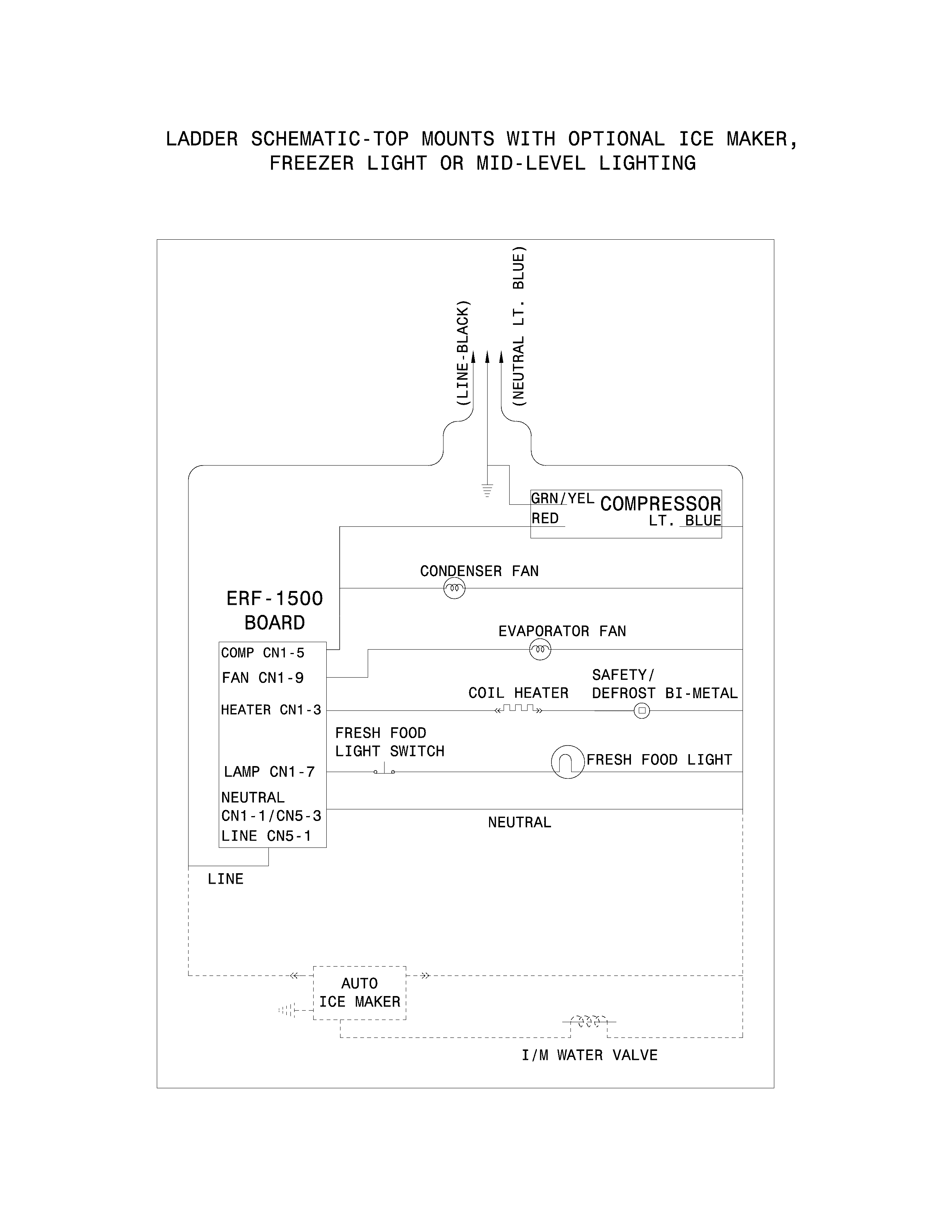

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Refrigerator Filter Dryer 242190201
#4

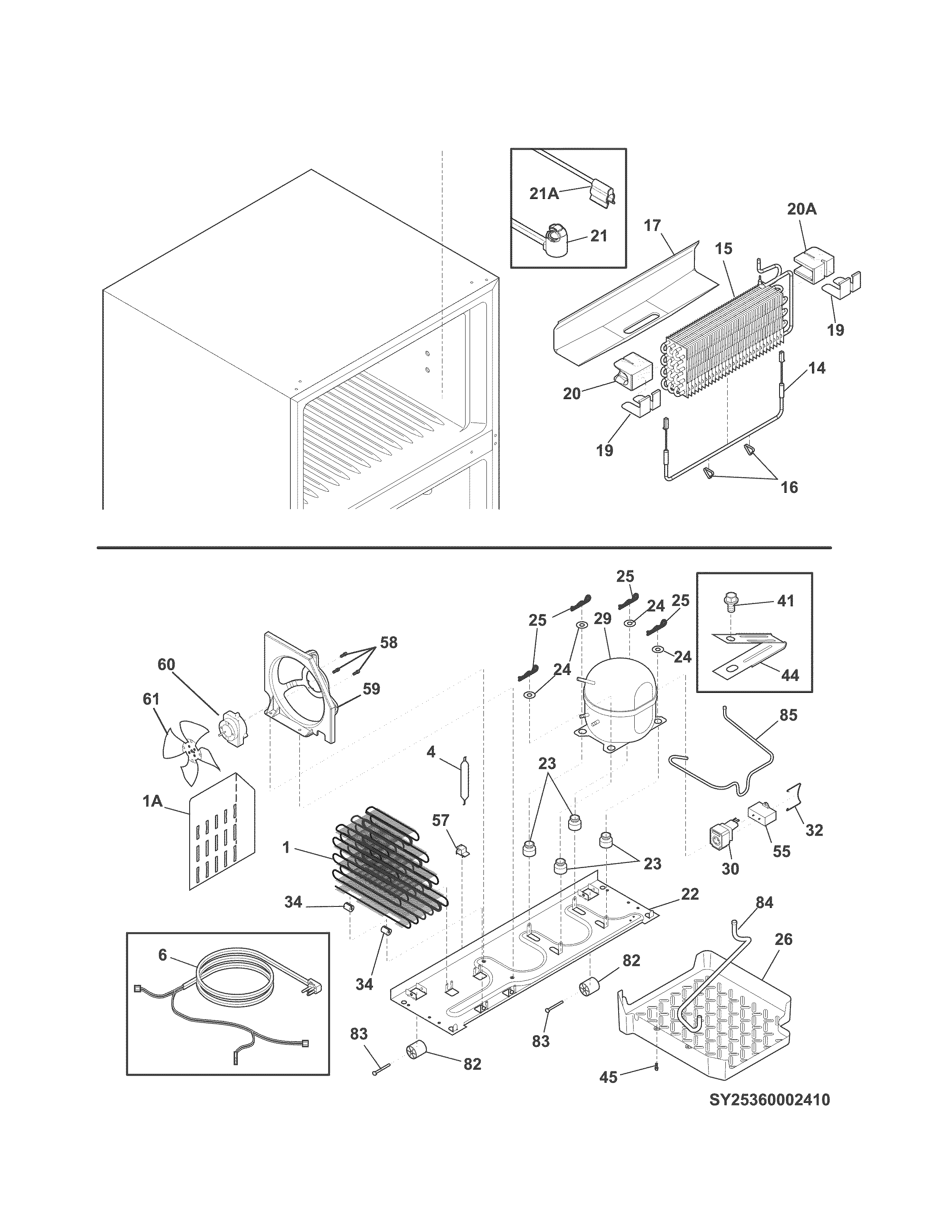

System diagram

Refrigerator filter dryer

Part #242190201

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242190201. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Crisper Drawer - Refrigerator Storage Component By Frigidaire (replaces 240337107, 240337108, 240337109) 240337103
#26

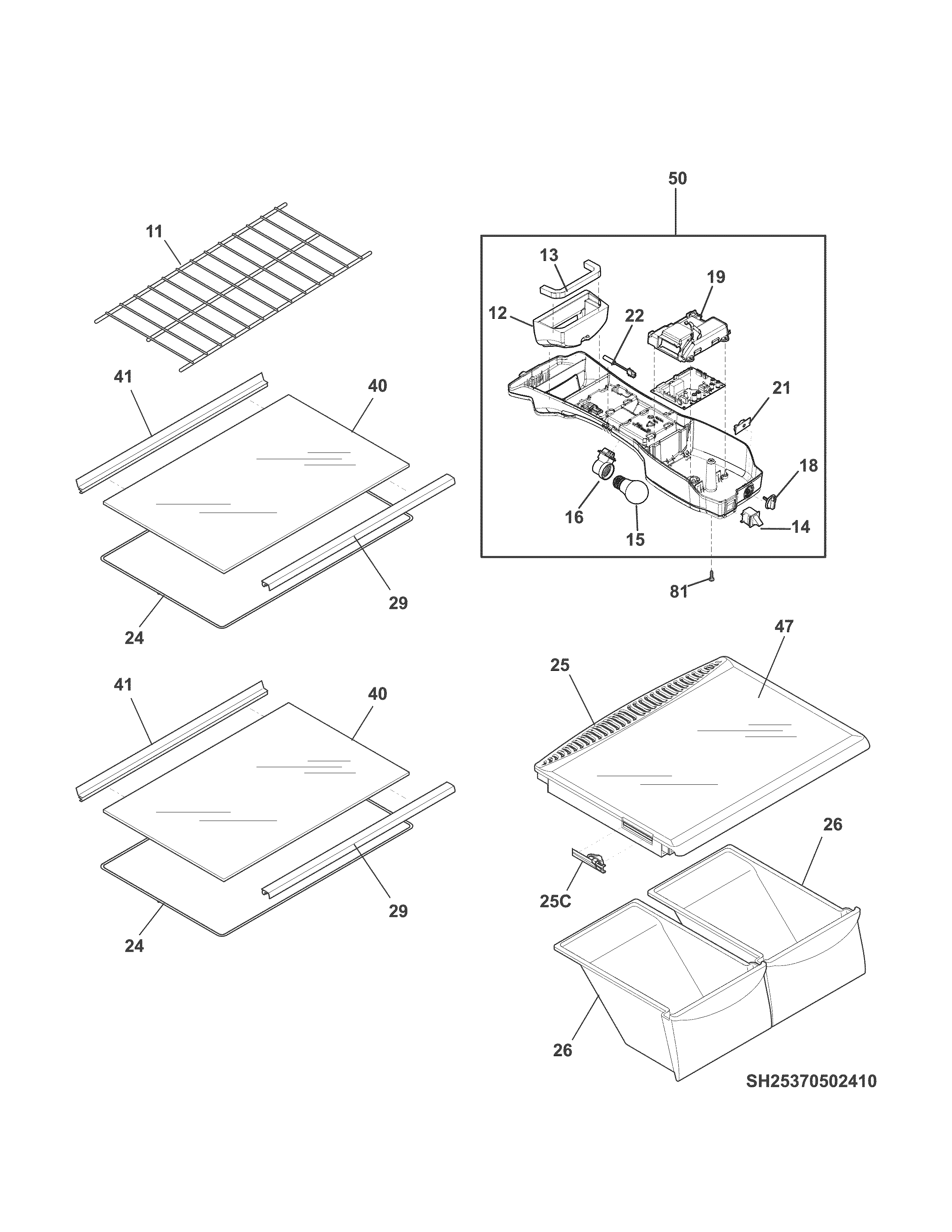

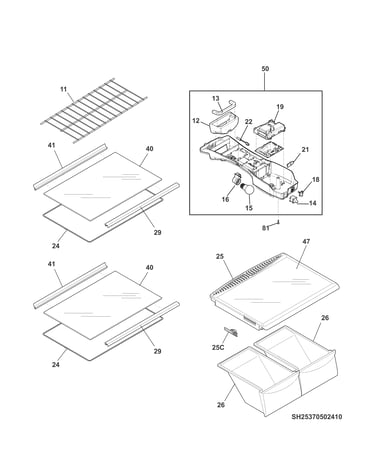

Shelves diagram

Crisper drawer - refrigerator storage component by frigidaire (replaces 240337107, 240337108, 240337109)

Part #240337103

BEST SELLER
$106.90 |
10% OFF Phone Price : $118.90
In Stock
Refrigerator Light Bulb (replaces 7241555401) 241555401
#15

Shelves diagram

Refrigerator light bulb (replaces 7241555401)

Part #241555401

Replaced by #316538904

?
Manufacturer substitution
This part replaces 241555401. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Refrigerator Crisper Drawer Cover Insert (replaces 240350655, 241711220, 241711270, 297194400) 240350608
#47

Shelves diagram

Refrigerator crisper drawer cover insert (replaces 240350655, 241711220, 241711270, 297194400)

Part #240350608

BEST SELLER
$101.48 |
11% OFF Phone Price : $113.48
In Stock
Refrigerator Temperature Sensor (replaces 240597201, 240597202, 7240597203) 240597203
#22

Shelves diagram

Refrigerator temperature sensor (replaces 240597201, 240597202, 7240597203)

Part #240597203

BEST SELLER
$41.65 |
13% OFF Phone Price : $47.65
In Stock
Gibson Refrigerator Run Capacitor (replaces 216985001, 297286804) 297286803
#55

System diagram

Gibson refrigerator run capacitor (replaces 216985001, 297286804)

Part #297286803

BEST SELLER
$35.37 |
15% OFF Phone Price : $41.37
In Stock
Refrigerator Door Hinge Nylon Washer (replaces 240311301) 240311303
#34

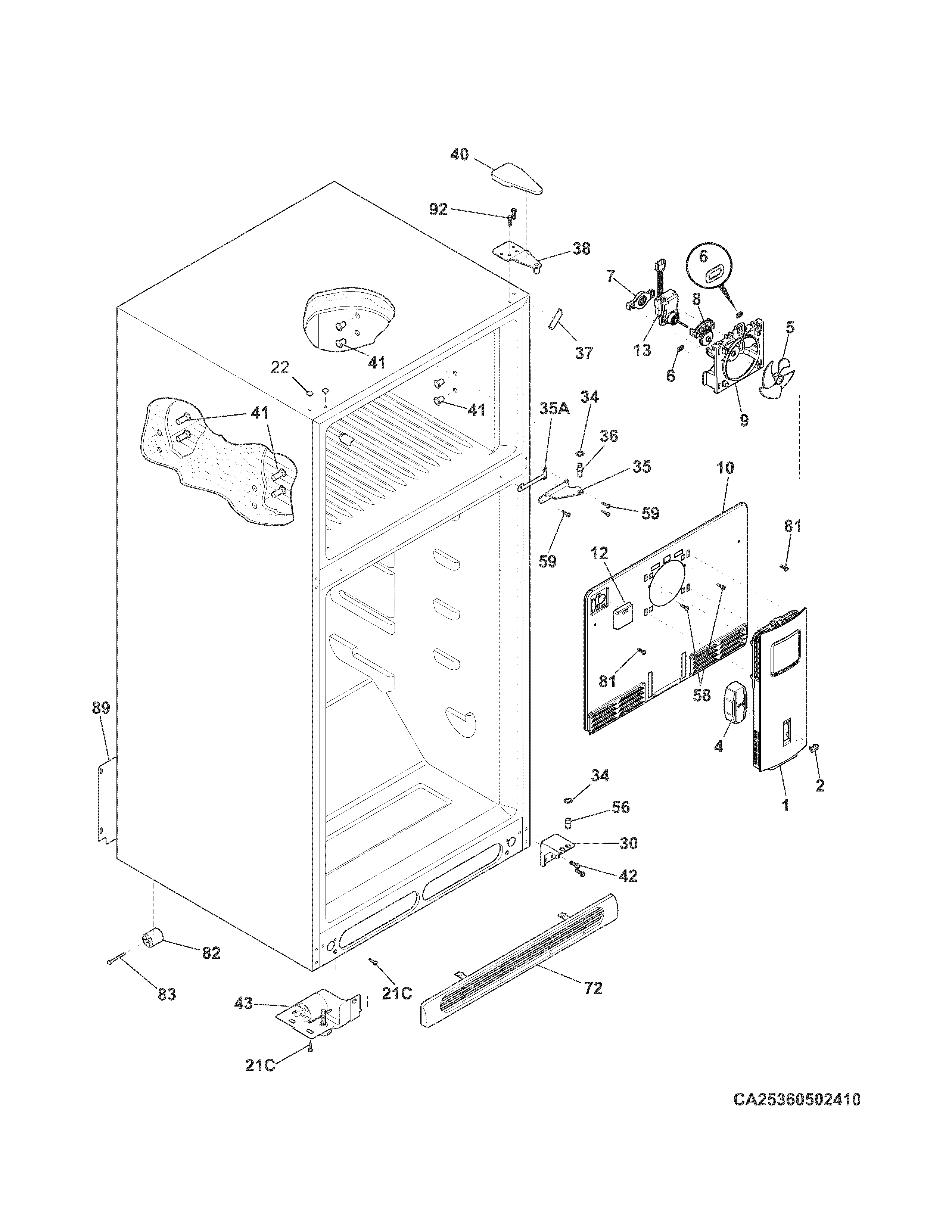

Cabinet diagram

Refrigerator door hinge nylon washer (replaces 240311301)

Part #240311303

BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Electrolux Refrigerator Condenser Fan Blade (replaces 241639501) 241639502
#61

System diagram

Electrolux refrigerator condenser fan blade (replaces 241639501)

Part #241639502

BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Frigidaire Refrigerator Door Gasket (black) 242193212
#2

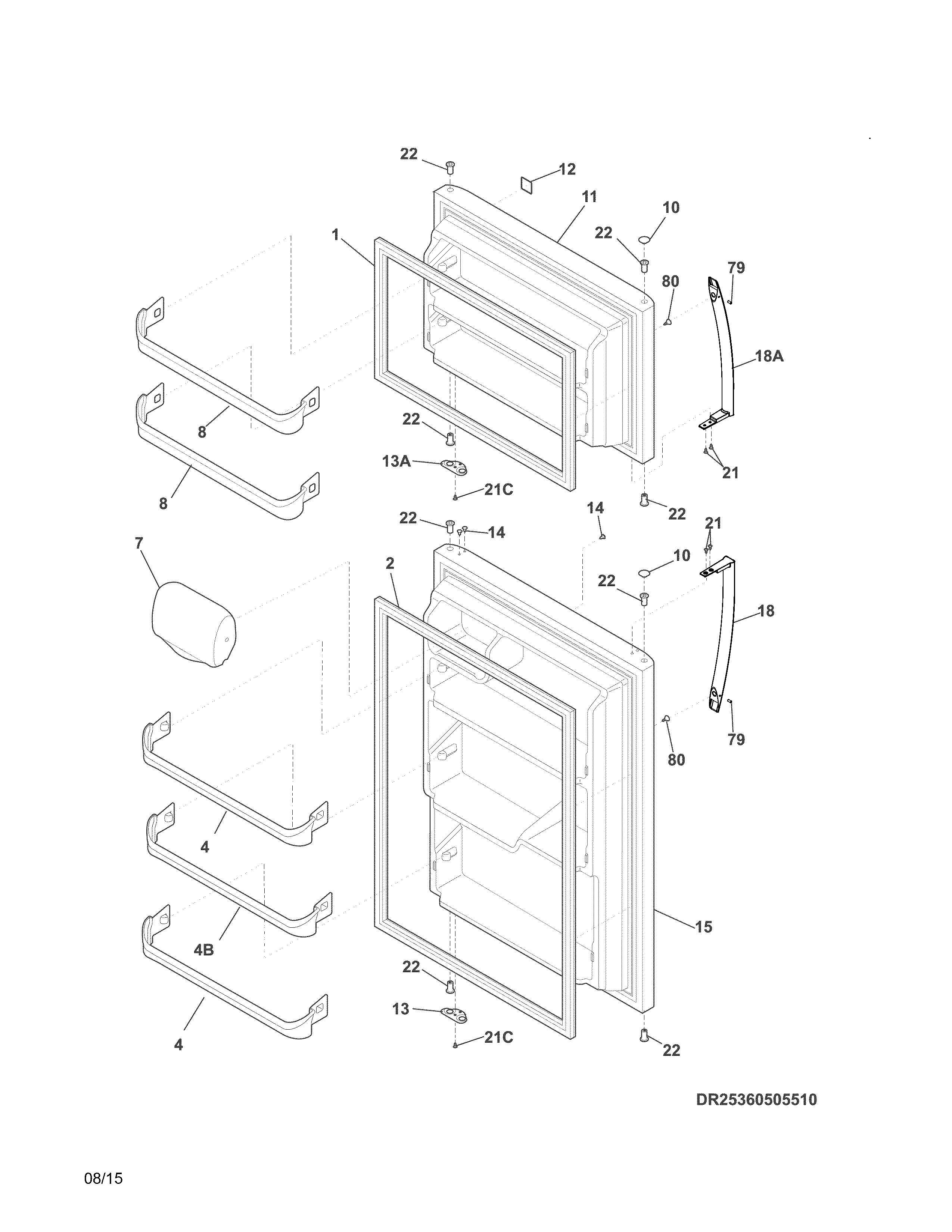

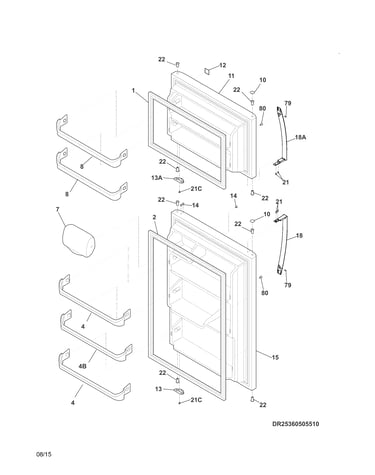

Doors diagram

Frigidaire refrigerator door gasket (black)

Part #242193212

BEST SELLER
$120.90 |
9% OFF Phone Price : $132.90
In Stock
Refrigerator Defrost Heater 242044008
#14

System diagram

Refrigerator defrost heater

Part #242044008

Replaced by #242044020

?
Manufacturer substitution
This part replaces 242044008. Substitute parts can look different from the original.
BEST SELLER
$68.51 |
8% OFF Phone Price : $74.51
In Stock
