Kenmore
Countertop Microwave

Model # 72165002400 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72165002400 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C
#4003

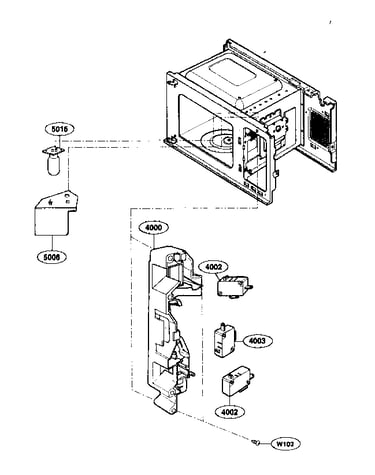

Latch board parts diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

BEST SELLER
$11.77 |
15% OFF Phone Price : $13.77
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#4002

Latch board parts diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Thermostat 6930W1A003B
#5016

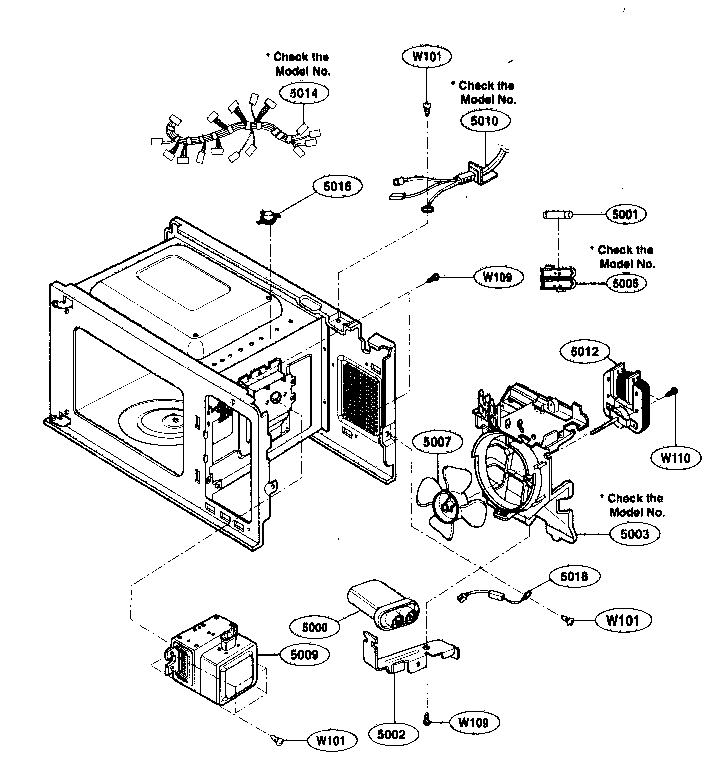

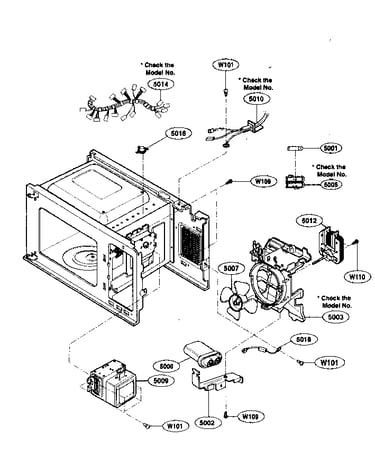

Interior parts 1 diagram

Microwave thermostat

Part #6930W1A003B

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Door Release Button Spring 4B72023B
#2005

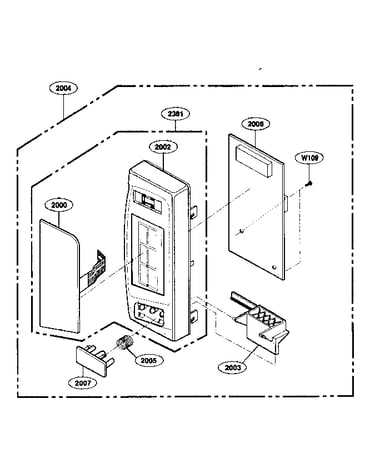

Controller parts diagram

Microwave door release button spring

Part #4B72023B

This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Microwave Fuse 3B74133P
#5001

Interior parts 1 diagram

Microwave fuse

Part #3B74133P

$8.29
In Stock
Door Panel 3720W0D367A
#1003

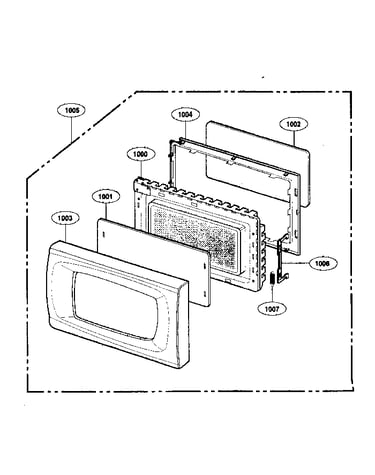

Door parts diagram

Door panel

Part #3720W0D367A

$26.27
In Stock
Ac Power Cord Assembly 6411W1A032B
#5010

Interior parts 1 diagram

Ac power cord assembly

Part #6411W1A032B

$27.26
In Stock
Transformer 6170W1D091B
#5008

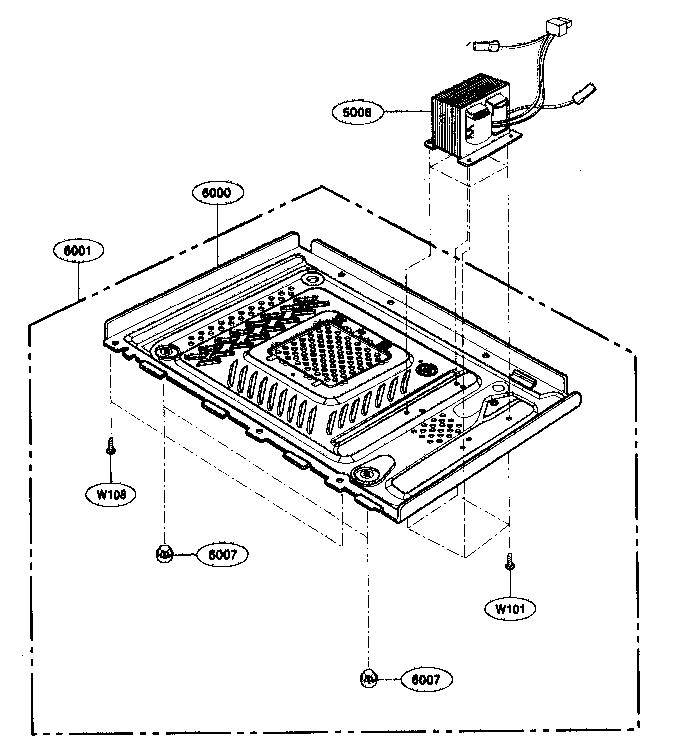

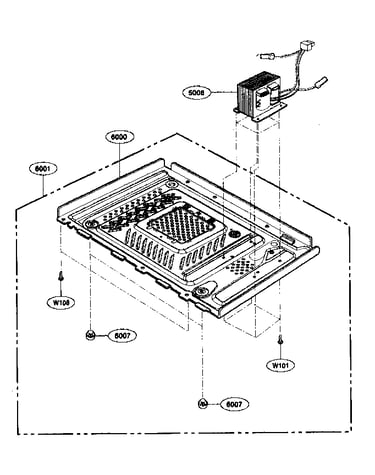

Base plate parts diagram

Transformer

Part #6170W1D091B

$106.86
In Stock
Front Scrn 3352W1A152A
#1001

Door parts diagram

Front scrn

Part #3352W1A152A

$8.29
In Stock
Microwave Turntable Tray 3390W1A035A
#3002

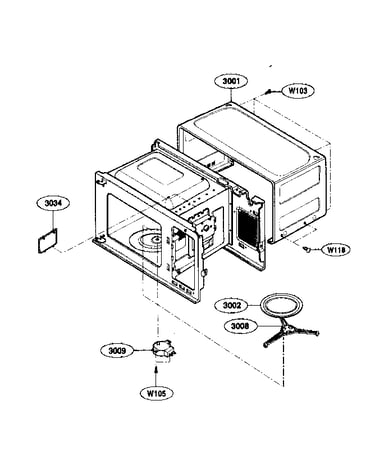

Oven cavity parts diagram

Microwave turntable tray

Part #3390W1A035A

This item is not returnable
$11.12 |
15% OFF Phone Price : $13.12
In Stock
