Model # LAB2700LK0 Official Whirlpool laundry pedestal

Here are the diagrams and repair parts for Official Whirlpool LAB2700LK0 laundry pedestal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

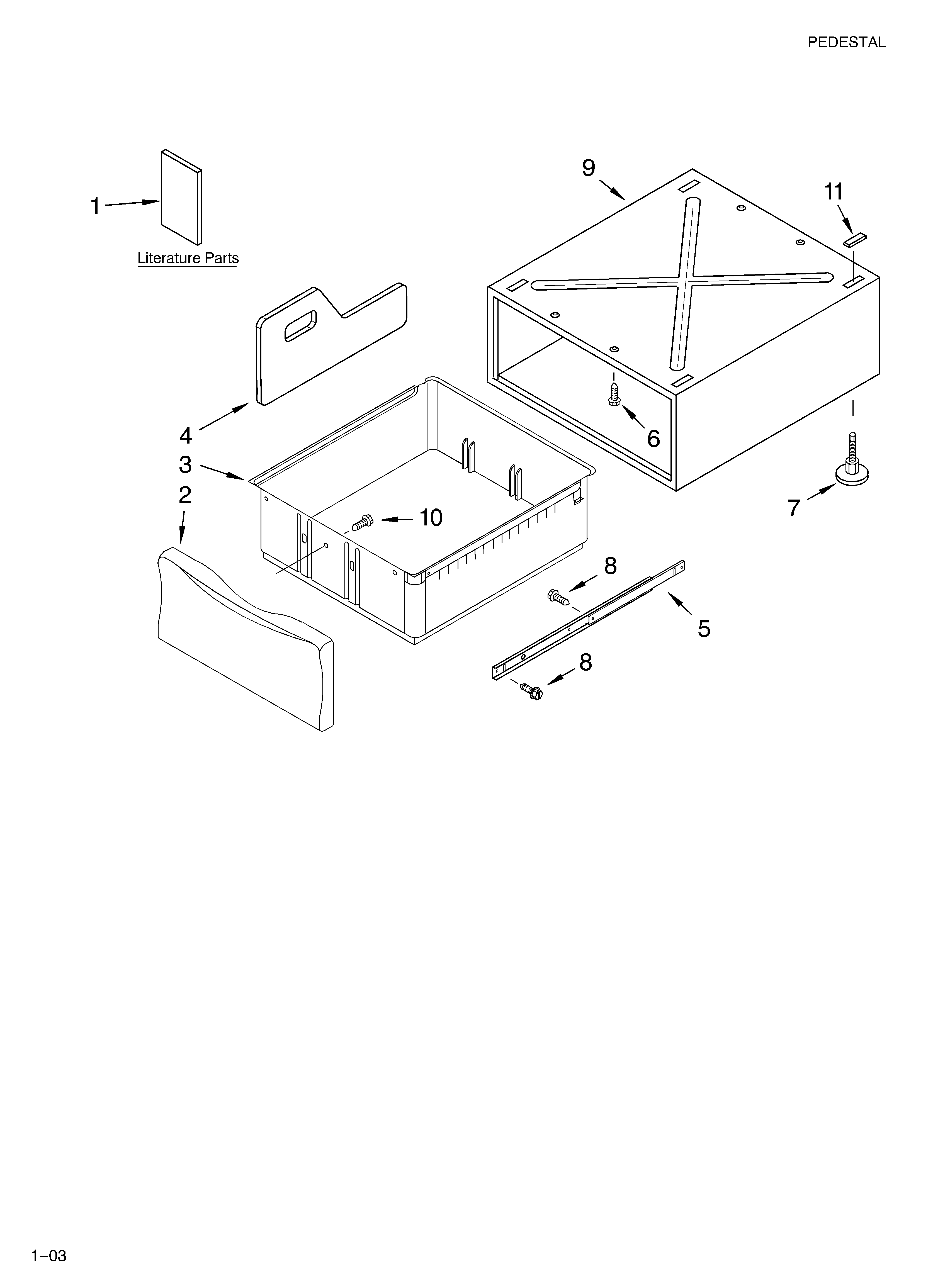

Cabinet parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Appliance Touch-up Paint, 0.6-oz (biscuit) (replaces 22002900, 4392899r, R9900463, W10831386) 4392899
#NI

Cabinet parts diagram

Appliance touch-up paint, 0.6-oz (biscuit) (replaces 22002900, 4392899r, r9900463, w10831386)

Part #4392899

This item is not returnable
$15.38 |
12% OFF Phone Price : $17.38
In Stock
Foot 8181779
#7

Cabinet parts diagram

Foot

Part #8181779

Replaced by #WP8563585

?
Manufacturer substitution
This part replaces 8181779. Substitute parts can look different from the original.
This item is not returnable
$12.58 |
14% OFF Phone Price : $14.58
In Stock
Screw 8181793
#8

Cabinet parts diagram

Screw

Part #8181793

Replaced by #WP694091

?
Manufacturer substitution
This part replaces 8181793. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 3400111
#6

Cabinet parts diagram

Screw

Part #3400111

Replaced by #WPW10346892

?
Manufacturer substitution
This part replaces 3400111. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Screw 487909
#10

Cabinet parts diagram

Screw

Part #487909

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487909. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Slide 8181778
#5

Cabinet parts diagram

Slide

Part #8181778

Replaced by #WP8578394

?
Manufacturer substitution
This part replaces 8181778. Substitute parts can look different from the original.
$41.00 |
13% OFF Phone Price : $47.00
In Stock
Installation Instructions LIT8528308
#1

Cabinet parts diagram

Installation instructions

Part #LIT8528308

The manufacturer no longer makes this part, and there's no substitute part

Front 8181772
#2

Cabinet parts diagram

Front

Part #8181772

The manufacturer no longer makes this part, and there's no substitute part

Pad 8181909
#11

Cabinet parts diagram

Pad

Part #8181909

The manufacturer no longer makes this part, and there's no substitute part
