Model # E30EC70FSS1 Official Electrolux cooktop

Here are the diagrams and repair parts for Official Electrolux E30EC70FSS1 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

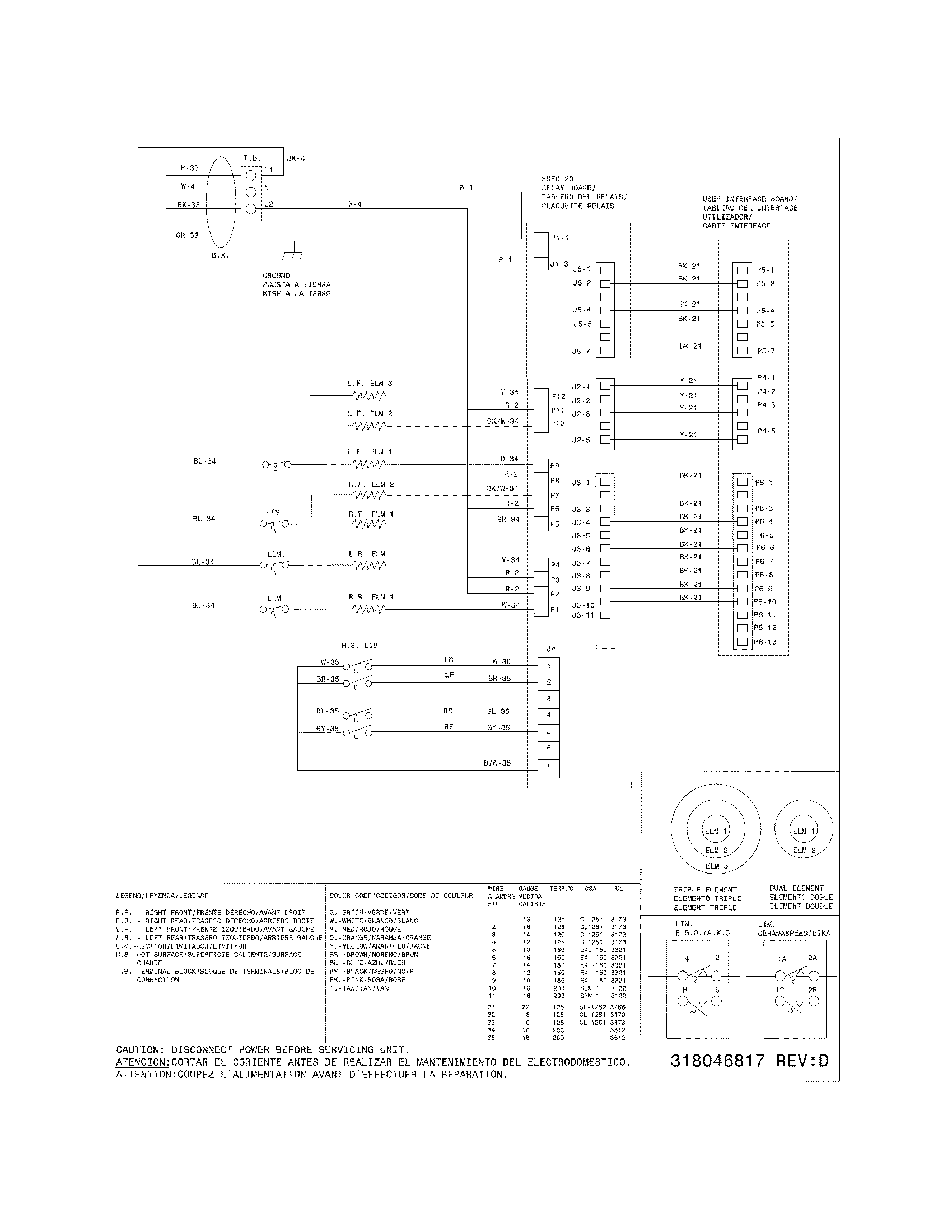

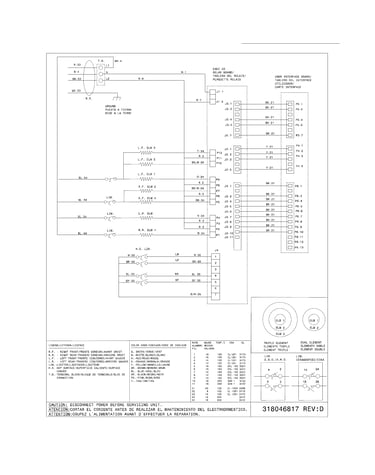

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |

Terminal Block 316056000
#62

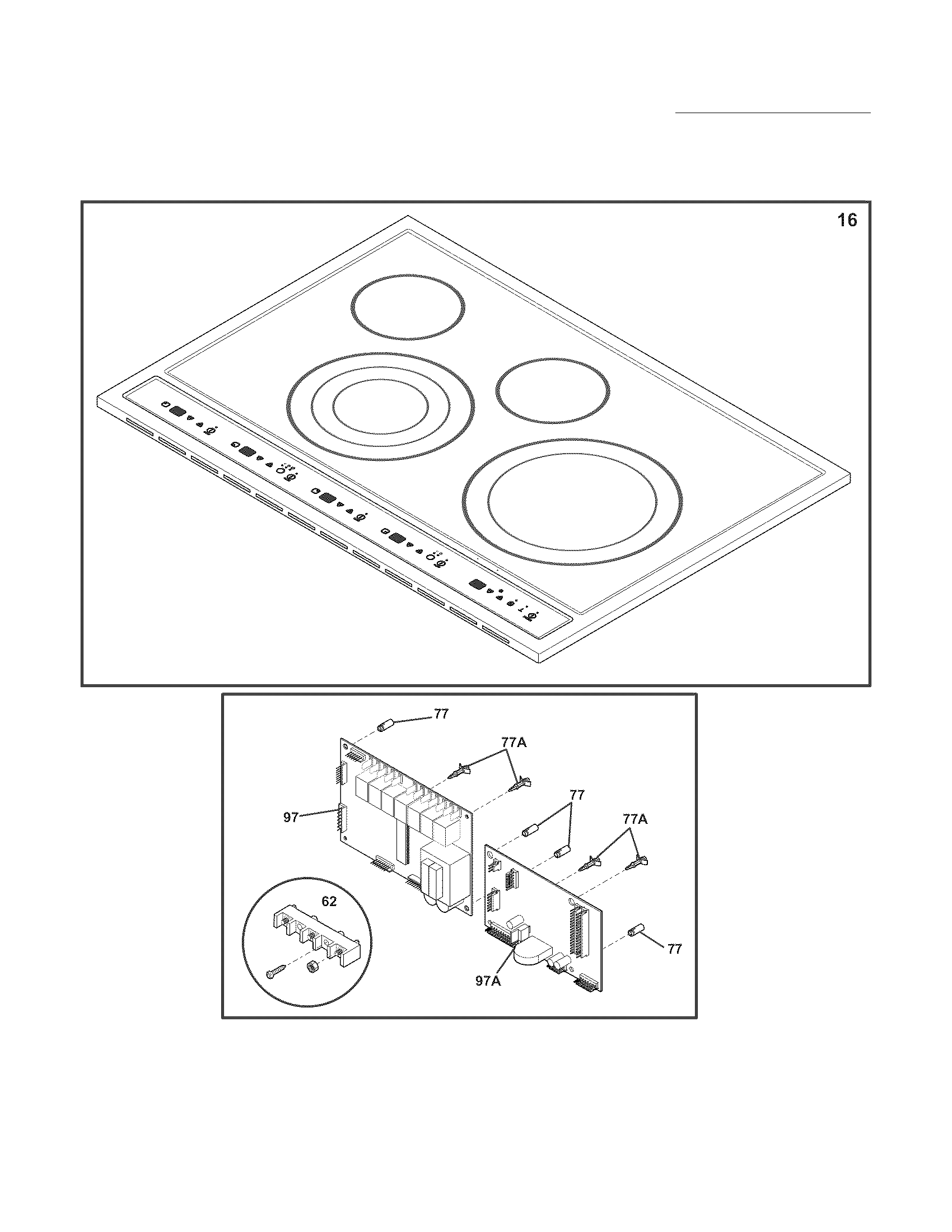

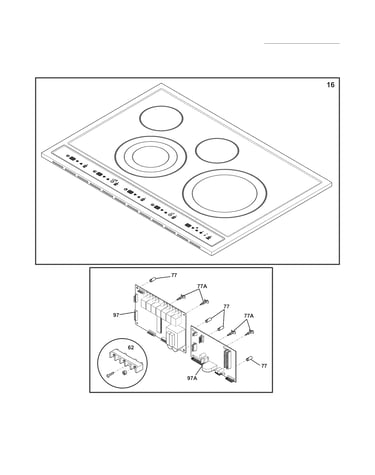

Controls diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64
9% OFF Phone Price : $10.64
In Stock
Kenmore Pro Range Radiant Surface Element, 6-in (replaces 318198810) 318198817
#15

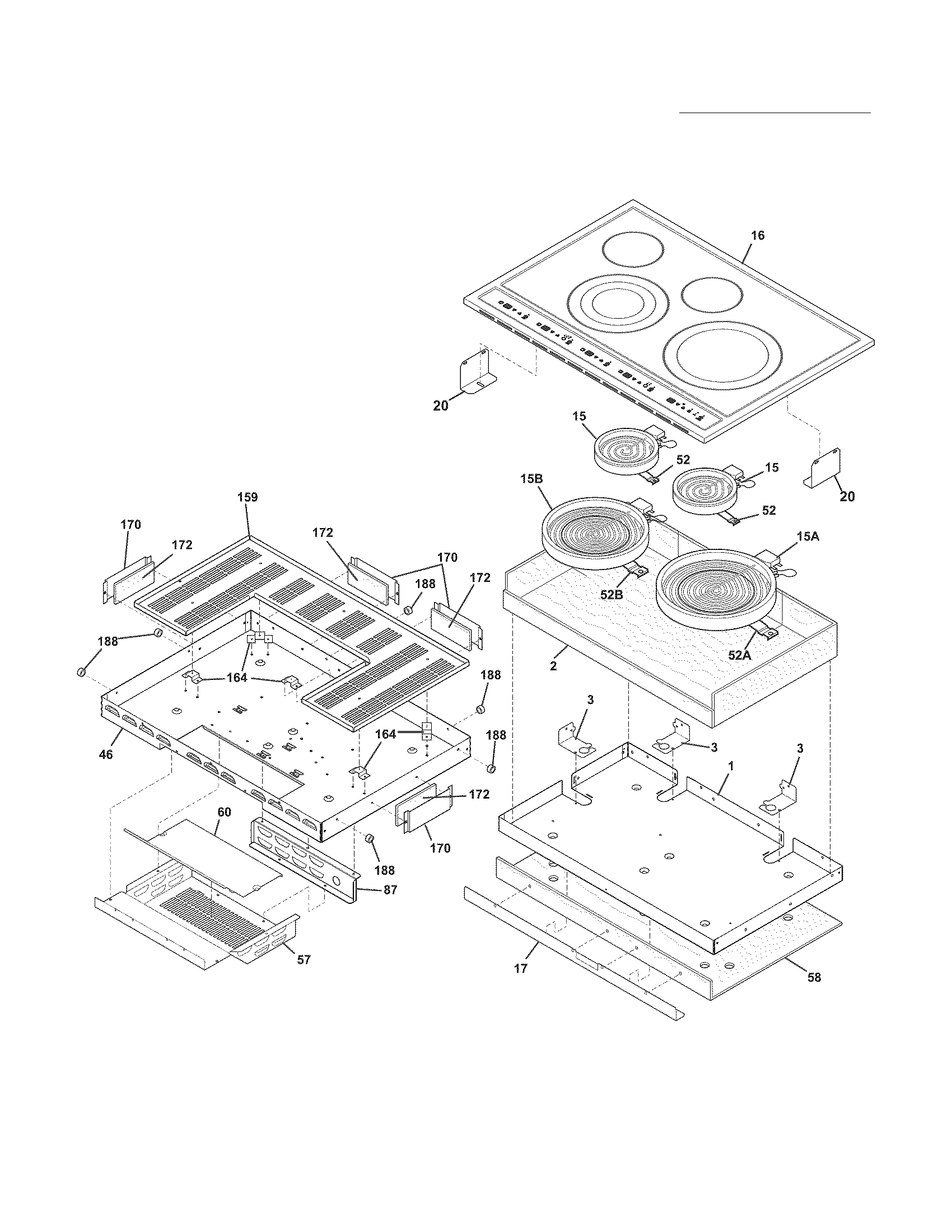

Main top diagram

Kenmore pro range radiant surface element, 6-in (replaces 318198810)

Part #318198817

$149.91
7% OFF Phone Price : $161.91
In Stock
Range Screw 5303300265
#NI

Main top diagram

Range screw

Part #5303300265

This item is not returnable
In Stock
Range Nut 5303323144
#NI

Controls diagram

Range nut

Part #5303323144

In Stock
Spring 318122011
#52A

Main top diagram

Spring

Part #318122011

In Stock
White-westinghouse Range Surface Element Mounting Spring 318122006
#52

Main top diagram

White-westinghouse range surface element mounting spring

Part #318122006

$54.27
10% OFF Phone Price : $60.27
In Stock
Range Screw 5303307980
#NI

Main top diagram

Range screw

Part #5303307980

$21.34
22% OFF Phone Price : $27.34
In Stock
Kenmore Pro Range Screw, 10 X 24 X 29/32-in 5303323130
#NI

Main top diagram

Kenmore pro range screw, 10 x 24 x 29/32-in

Part #5303323130

In Stock
Cooking Appliance Control Board Spacer 316247900
#77

Controls diagram

Cooking appliance control board spacer

Part #316247900

In Stock
Range Screw 5303323140
#NI

Main top diagram

Range screw

Part #5303323140

In Stock
