GE
Top-Mount Refrigerator

Model # TBXS19BLC Official GE refrigerator

Here are the diagrams and repair parts for Official GE TBXS19BLC refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

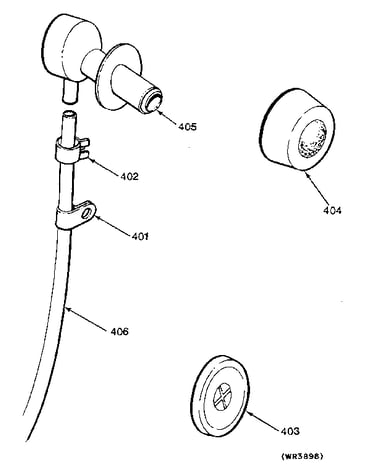

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 216 parts  |
Dryer Assembly WR86X0086
#13

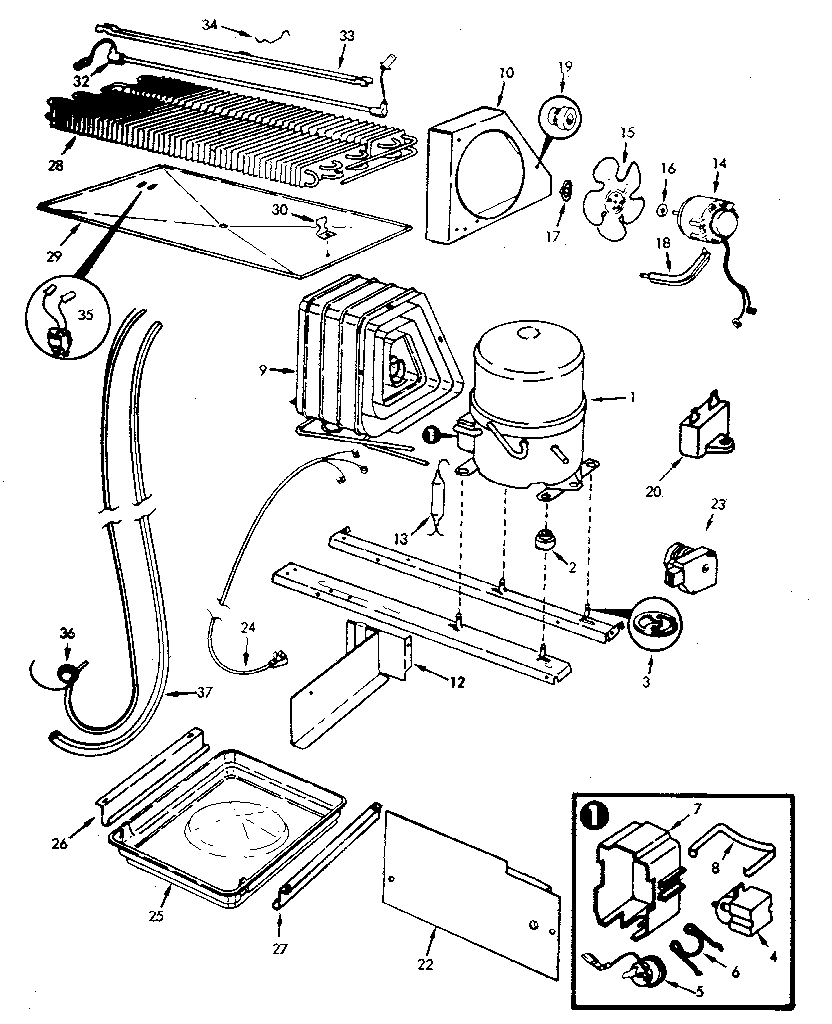

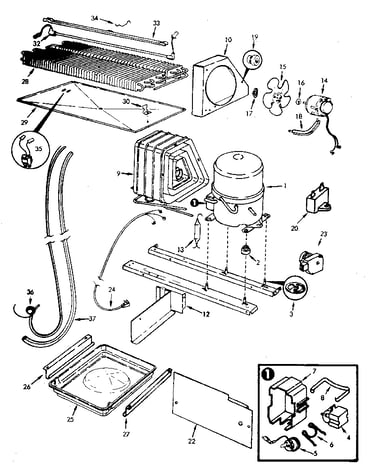

Unit compartment & system diagram

Dryer assembly

Part #WR86X0086

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0086. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Ice Tray WR30X0275
#115

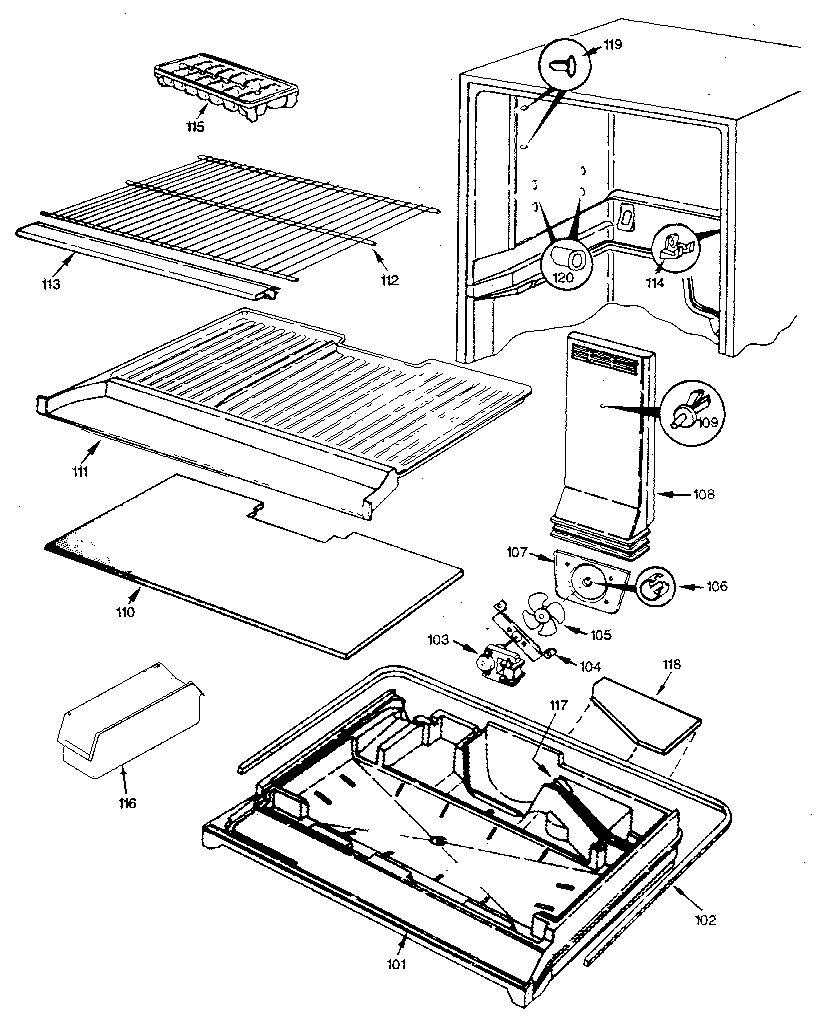

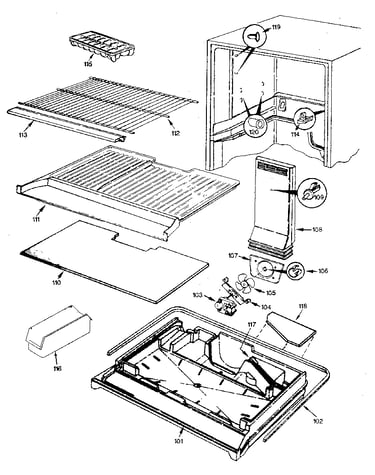

Freezer compartment diagram

Refrigerator ice tray

Part #WR30X0275

Replaced by #WR30X311

?
Manufacturer substitution
This part replaces WR30X0275. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Screw WR01X1785
#352

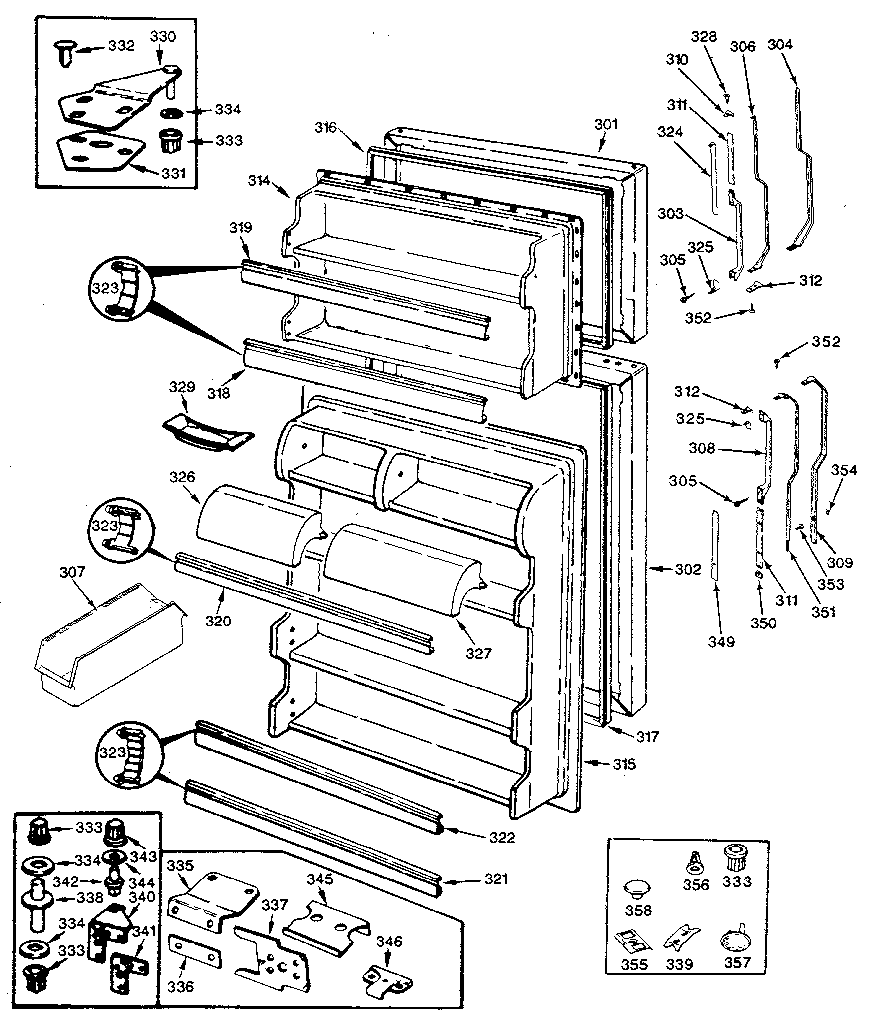

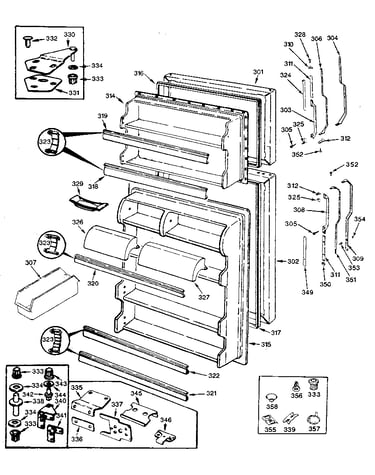

Door diagram

Refrigerator screw

Part #WR01X1785

Replaced by #WR1X1726D

?
Manufacturer substitution
This part replaces WR01X1785. Substitute parts can look different from the original.
This item is not returnable
$23.67 |
20% OFF Phone Price : $29.67
In Stock
Refrigerator Screw WR01X1727
#352B

Door diagram

Refrigerator screw

Part #WR01X1727

Replaced by #WR1X1726D

?
Manufacturer substitution
This part replaces WR01X1727. Substitute parts can look different from the original.
This item is not returnable
$23.67 |
20% OFF Phone Price : $29.67
In Stock
Refrigerator Screw WR01X1784
#352A

Door diagram

Refrigerator screw

Part #WR01X1784

Replaced by #WR1X1726D

?
Manufacturer substitution
This part replaces WR01X1784. Substitute parts can look different from the original.
This item is not returnable
$23.67 |
20% OFF Phone Price : $29.67
In Stock
Refrigerator Screw WR01X1726
#328

Door diagram

Refrigerator screw

Part #WR01X1726

Replaced by #WR1X1726D

?
Manufacturer substitution
This part replaces WR01X1726. Substitute parts can look different from the original.
This item is not returnable
$23.67 |
20% OFF Phone Price : $29.67
In Stock
Refrigerator Cantilever Shelf WR71X6088
#231

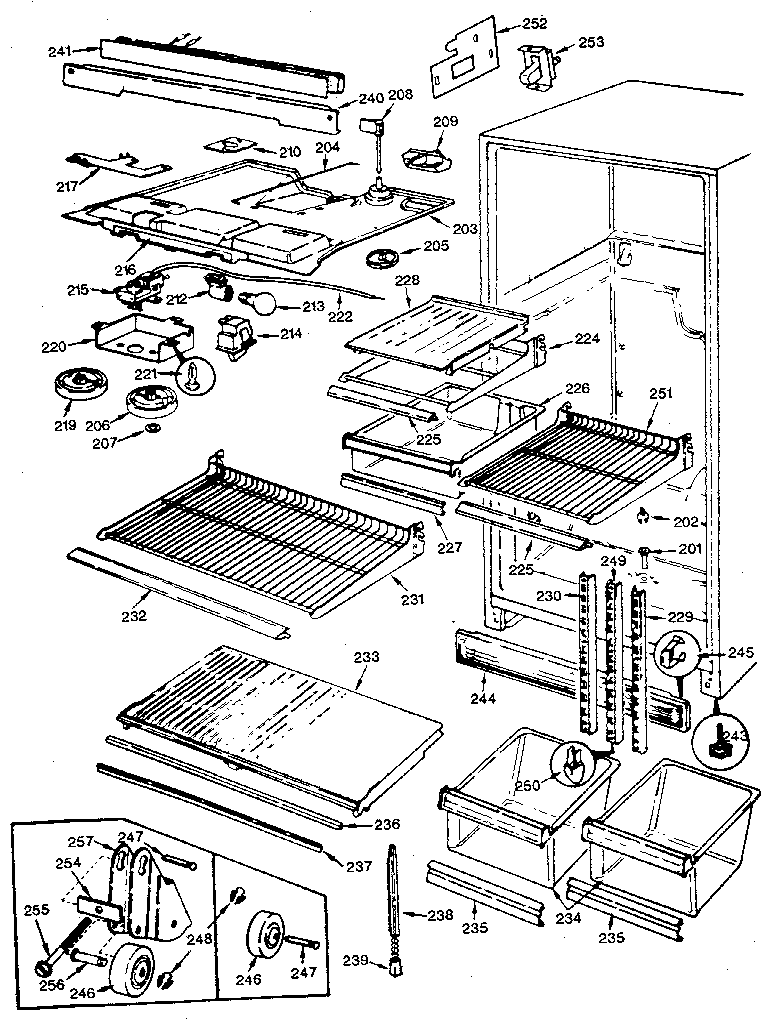

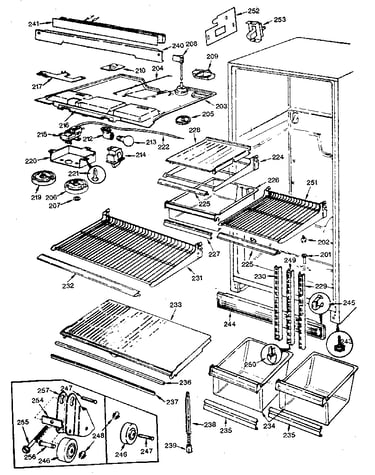

Fresh food compartment diagram

Refrigerator cantilever shelf

Part #WR71X6088

$109.49
In Stock
In Dr Frz WR77X5684
#314

Door diagram

In dr frz

Part #WR77X5684

$96.99
In Stock
Refrigerator Door, Inner WR77X5685
#315

Door diagram

Refrigerator door, inner

Part #WR77X5685

$138.99
In Stock
Ff O Dr Ha WR78X8183
#302B

Door diagram

Ff o dr ha

Part #WR78X8183

$153.49
In Stock
