Bosch
Warming Drawer

Model # HWD272UC/01 Official Bosch warming drawer

Here are the diagrams and repair parts for Official Bosch HWD272UC-01 warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Switch 189432
#121

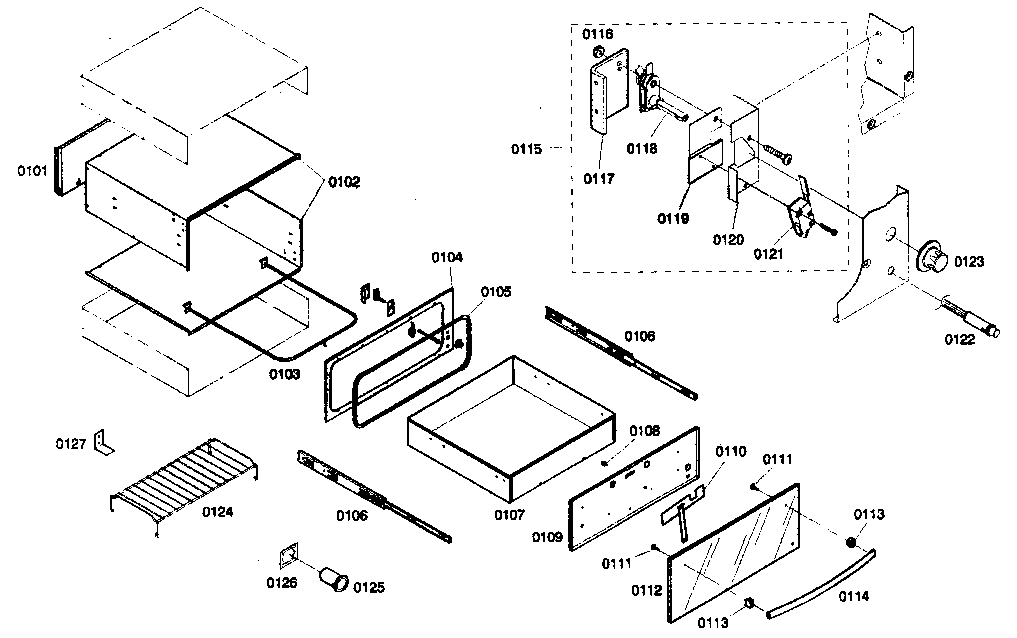

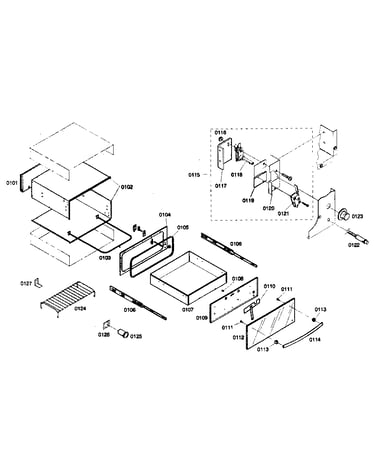

Warming drawer diagram

Switch

Part #189432

$64.33
In Stock
End Cap 184587
#113

Warming drawer diagram

End cap

Part #184587

Replaced by #00615350

?
Manufacturer substitution
This part replaces 184587. Substitute parts can look different from the original.
$13.03
In Stock
Bracket 189429
#119

Warming drawer diagram

Bracket

Part #189429

The manufacturer no longer makes this part, and there's no substitute part

Oven Door Seal 484255
#105

Warming drawer diagram

Oven door seal

Part #484255

The manufacturer no longer makes this part, and there's no substitute part

Bracket 189450
#127

Warming drawer diagram

Bracket

Part #189450

The manufacturer no longer makes this part, and there's no substitute part

Wire,white 189422
#NI

Warming drawer diagram

Wire,white

Part #189422

The manufacturer no longer makes this part, and there's no substitute part

Grid Rack 238521
#124

Warming drawer diagram

Grid rack

Part #238521

The manufacturer no longer makes this part, and there's no substitute part

Oven Sensor 189418
#115

Warming drawer diagram

Oven sensor

Part #189418

The manufacturer no longer makes this part, and there's no substitute part

Warming Drawer Temperature Knob (white) 414378
#123

Warming drawer diagram

Warming drawer temperature knob (white)

Part #414378

The manufacturer no longer makes this part, and there's no substitute part

Drawer Slide 440843
#106

Warming drawer diagram

Drawer slide

Part #440843

The manufacturer no longer makes this part, and there's no substitute part
