Model # MC2001 Official Adobe Aire mini furnace

Here are the diagrams and repair parts for Official Adobe Aire MC2001 mini furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Screw (switch To Front) 1005564000
#4

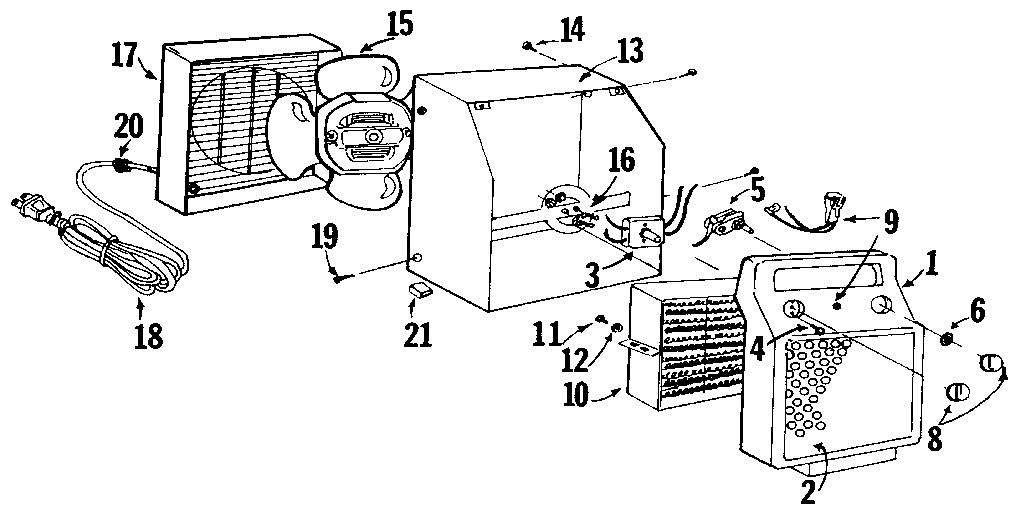

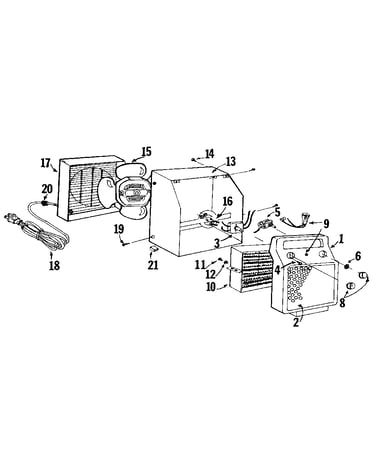

Replacement parts diagram

Screw (switch to front)

Part #1005564000

The manufacturer no longer makes this part, and there's no substitute part

Cord Assembly 10750000
#18

Replacement parts diagram

Cord assembly

Part #10750000

The manufacturer no longer makes this part, and there's no substitute part

Nut 1003501000
#6

Replacement parts diagram

Nut

Part #1003501000

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 1005535000
#5

Replacement parts diagram

Thermostat

Part #1005535000

The manufacturer no longer makes this part, and there's no substitute part

Rubber Feet P603401A
#21

Replacement parts diagram

Rubber feet

Part #P603401A

The manufacturer no longer makes this part, and there's no substitute part

Screw (element To Front) 1005247001
#11

Replacement parts diagram

Screw (element to front)

Part #1005247001

The manufacturer no longer makes this part, and there's no substitute part

Heyco 1001541001
#20

Replacement parts diagram

Heyco

Part #1001541001

The manufacturer no longer makes this part, and there's no substitute part

Screw (case To Back) P801602R
#19

Replacement parts diagram

Screw (case to back)

Part #P801602R

The manufacturer no longer makes this part, and there's no substitute part

4 Position Switch 1005630000
#3

Replacement parts diagram

4 position switch

Part #1005630000

The manufacturer no longer makes this part, and there's no substitute part

Screw (motor To Bracket) 1004919001
#16

Replacement parts diagram

Screw (motor to bracket)

Part #1004919001

The manufacturer no longer makes this part, and there's no substitute part
