Model # JSP28GP2BG Official GE electric range

Here are the diagrams and repair parts for Official GE JSP28GP2BG electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

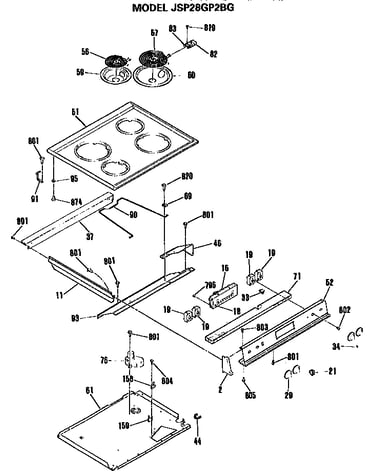

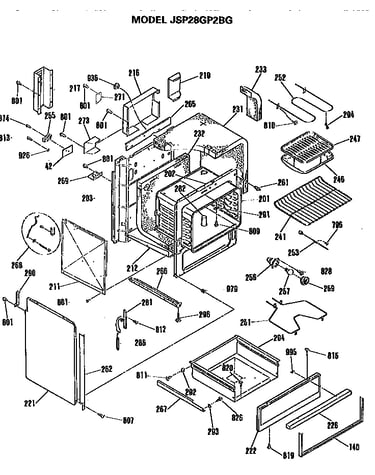

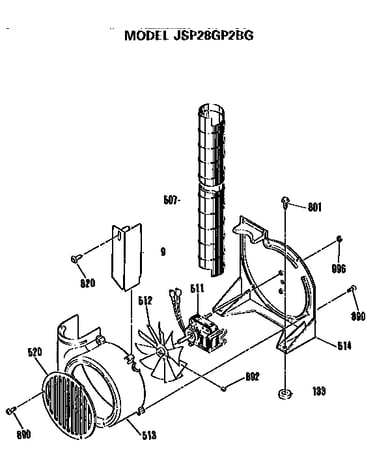

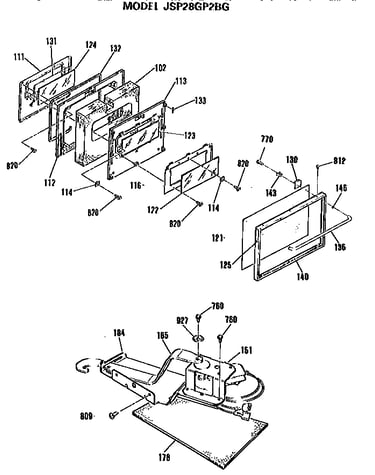

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |
Sensor WB20X106

#253

All parts diagram

Sensor

Part #WB20X106

Replaced by #WB21X5301

?
Manufacturer substitution
This part replaces WB20X106. Substitute parts can look different from the original.
BEST SELLER
$147.17 |
8% OFF Phone Price : $159.17
Back Order
Range Oven Door Hinge, Right (replaces Wb14x0104, Wb14x114) WB14X104

#281

All parts diagram

Range oven door hinge, right (replaces wb14x0104, wb14x114)

Part #WB14X104

BEST SELLER
$32.83 |
15% OFF Phone Price : $38.83
In Stock
Range Broil Element (replaces Wb44x0232) WB44X232

#252

All parts diagram

Range broil element (replaces wb44x0232)

Part #WB44X232

BEST SELLER
$58.44 |
9% OFF Phone Price : $64.44
In Stock
Range Drip Pan WB31M16

#59

All parts diagram

Range drip pan

Part #WB31M16

Replaced by #WB31K10265

?
Manufacturer substitution
This part replaces WB31M16. Substitute parts can look different from the original.
This item is not returnable
$8.72 |
10% OFF Phone Price : $9.72
In Stock
Ov Lt Dr Sw WB24K5031

#261

All parts diagram

Ov lt dr sw

Part #WB24K5031

Replaced by #WB24T10147

?
Manufacturer substitution
This part replaces WB24K5031. Substitute parts can look different from the original.
This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
Lock Motor WB26K5030

#151

All parts diagram

Lock motor

Part #WB26K5030

Replaced by #WB49T10020

?
Manufacturer substitution
This part replaces WB26K5030. Substitute parts can look different from the original.
$130.30 |
8% OFF Phone Price : $142.30
In Stock
Screw-10-32 WB1X1135

#830

All parts diagram

Screw-10-32

Part #WB1X1135

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB1X1135. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw-4-pk WB1M01

#801

All parts diagram

Screw-4-pk

Part #WB1M01

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB1M01. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Kenmore Range Surface Element Control Switch (replaces Wb23m0024) WB23M24

#19

All parts diagram

Kenmore range surface element control switch (replaces wb23m0024)

Part #WB23M24

$85.06 |
7% OFF Phone Price : $91.06
In Stock
Range Surface Element Control Switch WB23K5027

#19

All parts diagram

Range surface element control switch

Part #WB23K5027

$77.27 |
7% OFF Phone Price : $83.27
In Stock
