GE
Built-In Microwave

Model # ZSC1202J1SS Official GE microwave

Here are the diagrams and repair parts for Official GE ZSC1202J1SS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

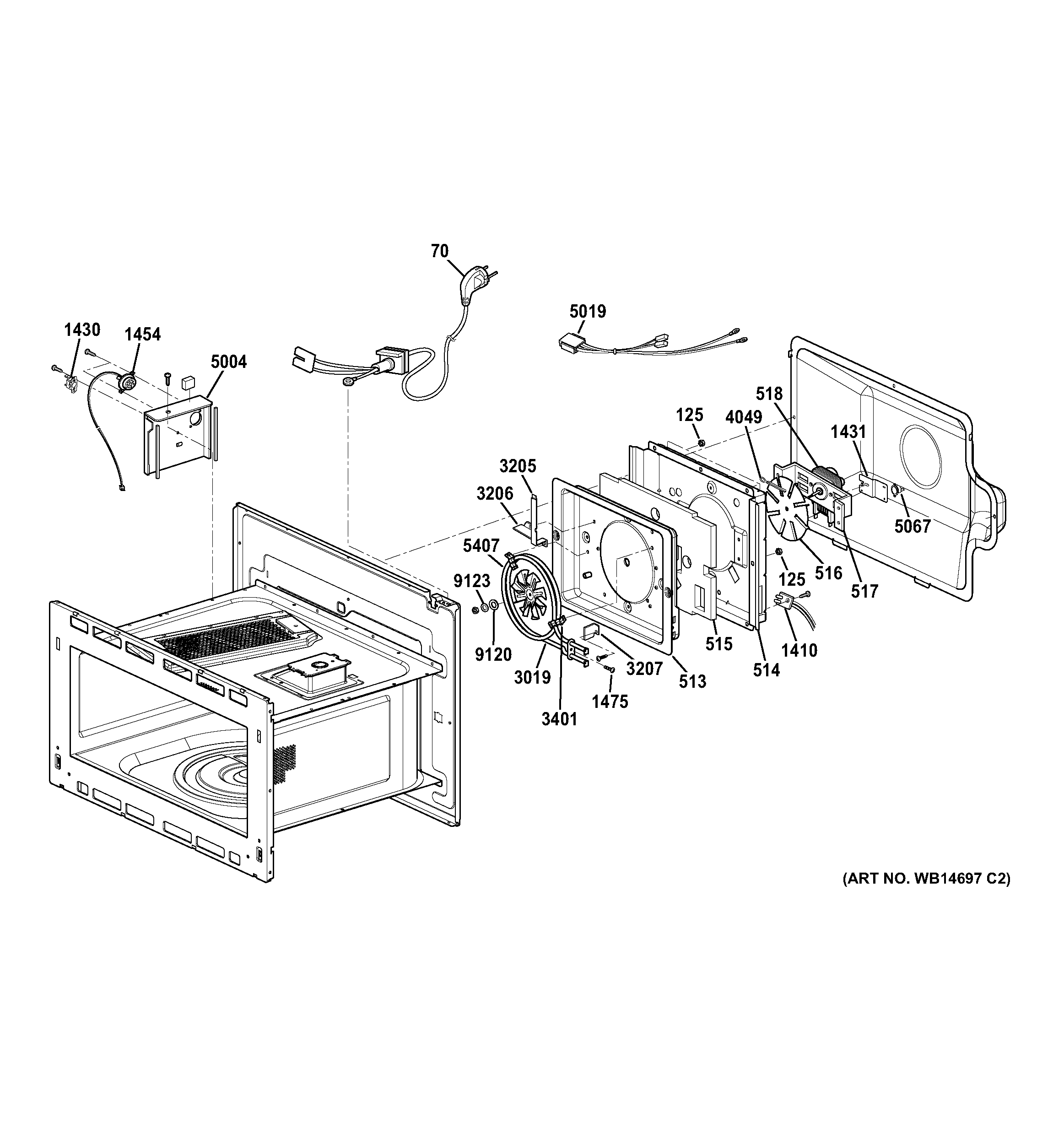

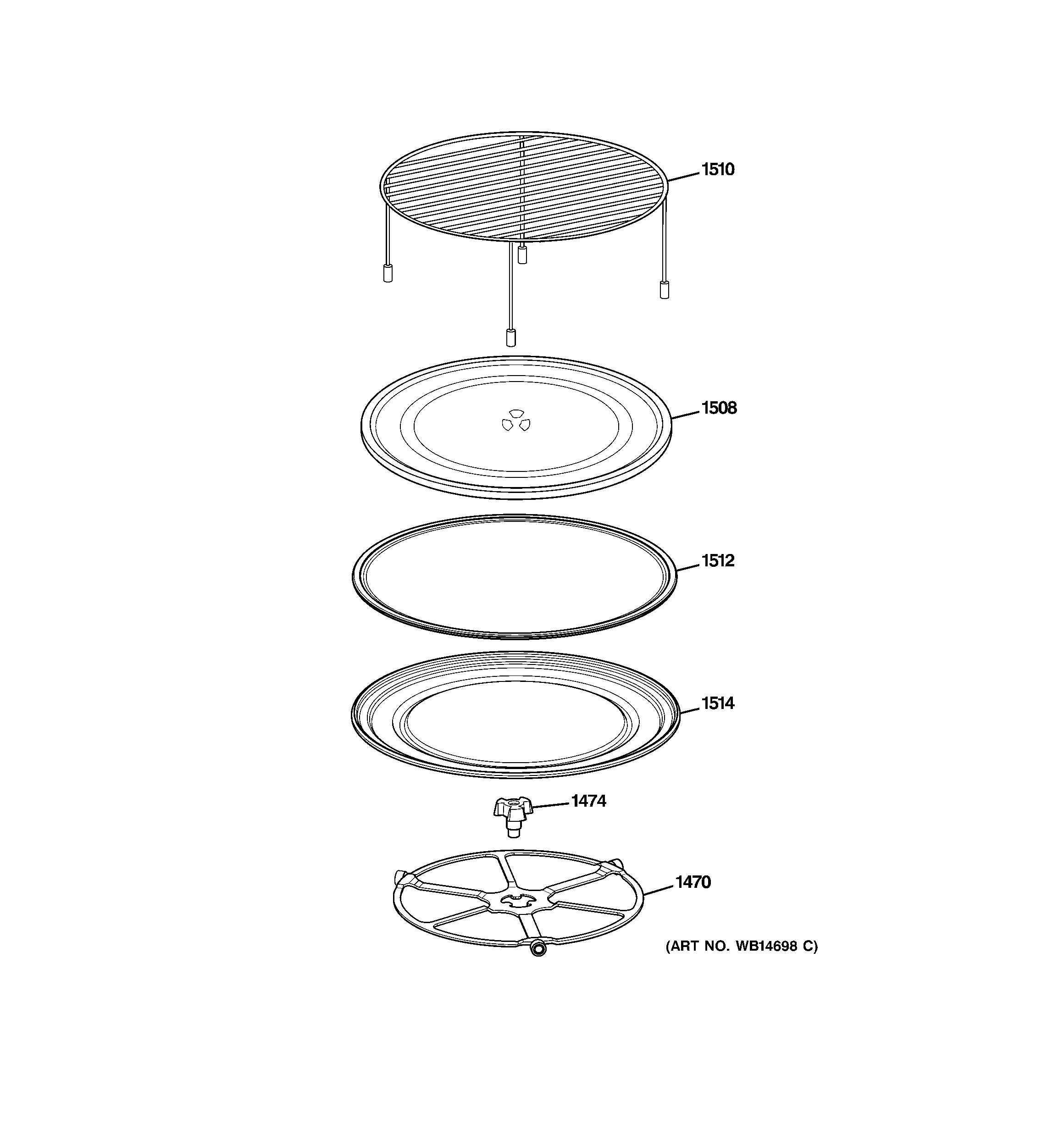

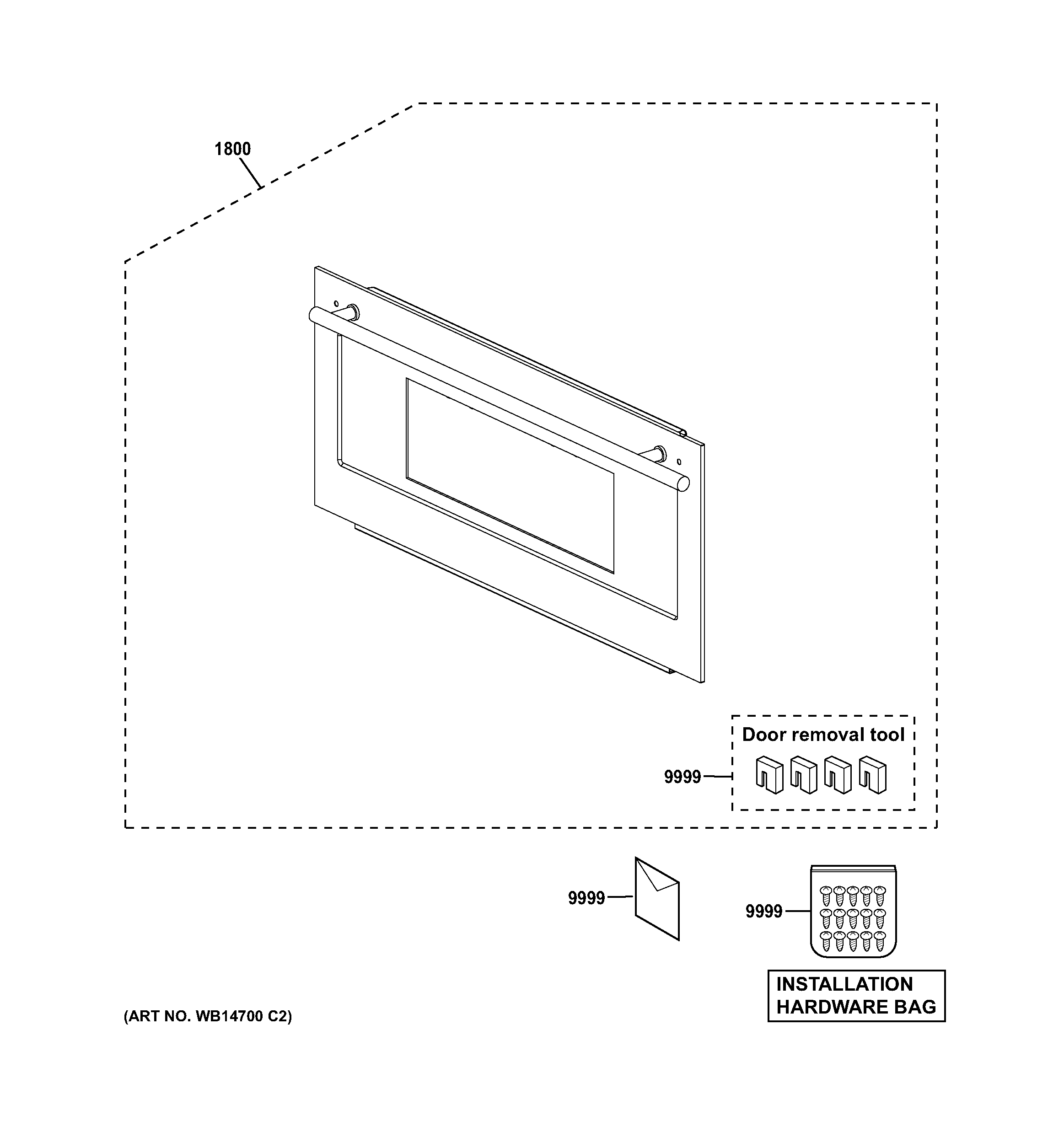

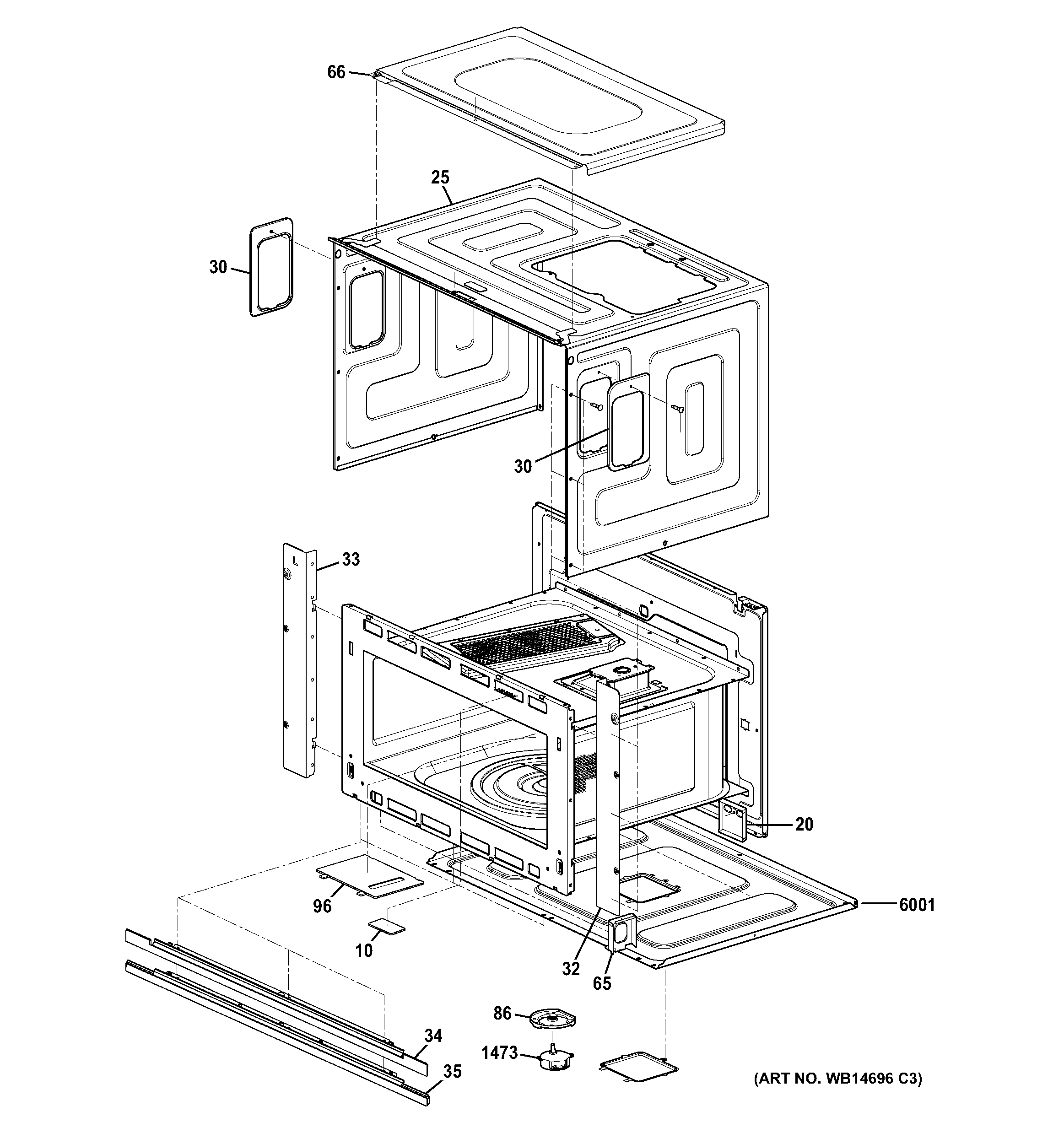

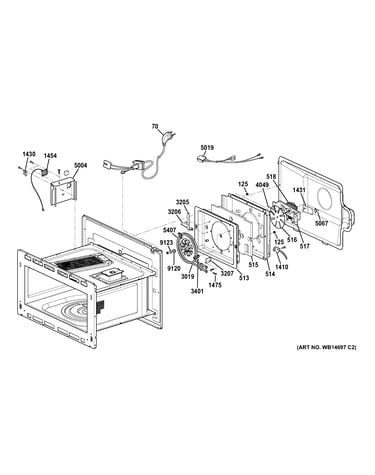

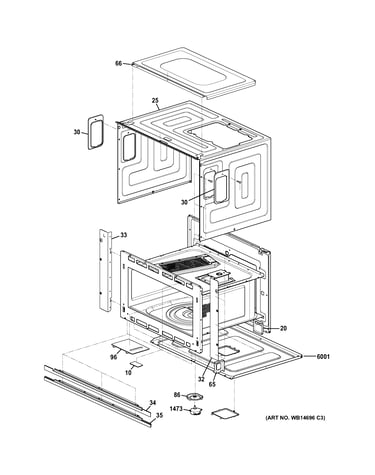

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Microwave Fuse WB27X10388
#1626

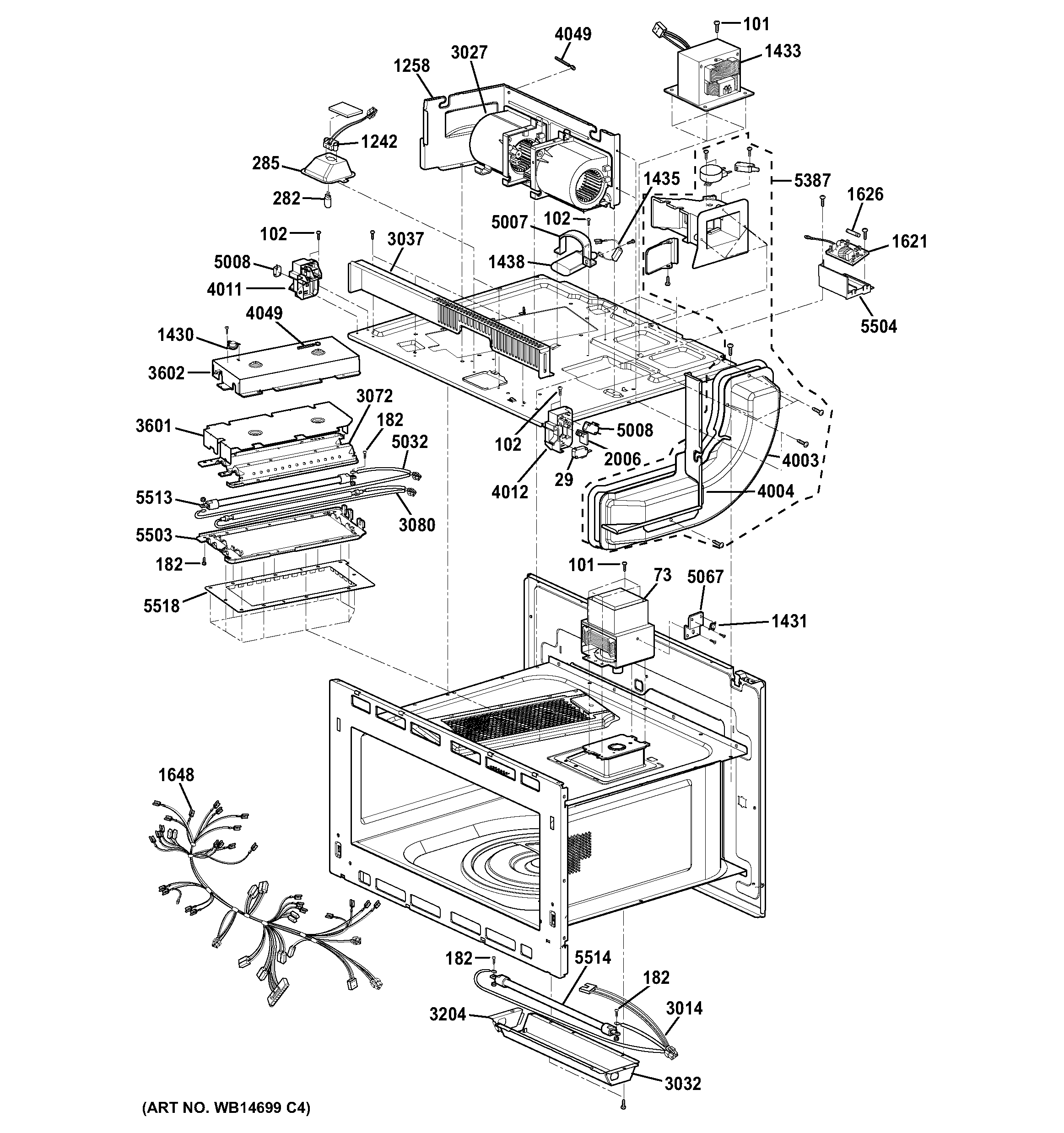

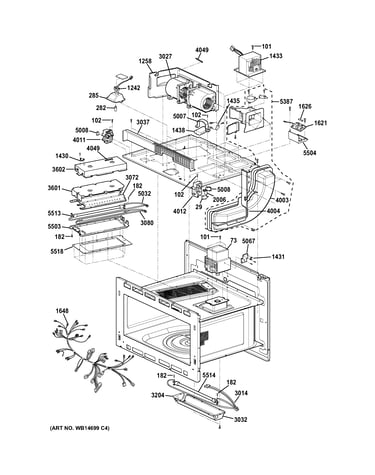

Insulator parts diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave Magnetron WB27X10305
#73

Insulator parts diagram

Microwave magnetron

Part #WB27X10305

The manufacturer no longer makes this part, and there's no substitute part

Primary Switch WB24X0815
#5008

Insulator parts diagram

Primary switch

Part #WB24X0815

Replaced by #WB24X10047

?
Manufacturer substitution
This part replaces WB24X0815. Substitute parts can look different from the original.
BEST SELLER
$24.27 |
20% OFF Phone Price : $30.27
In Stock
Drive Capacitor WB27X10701
#1438

Insulator parts diagram

Drive capacitor

Part #WB27X10701

Replaced by #WB27X11033

?
Manufacturer substitution
This part replaces WB27X10701. Substitute parts can look different from the original.
BEST SELLER
$41.91 |
13% OFF Phone Price : $47.91
In Stock
Cable WB18X10286
#1435

Insulator parts diagram

Cable

Part #WB18X10286

Replaced by #WB27X10037

?
Manufacturer substitution
This part replaces WB18X10286. Substitute parts can look different from the original.
BEST SELLER
$24.73 |
20% OFF Phone Price : $30.73
In Stock
Microwave Display Board WB27X10856
#1600

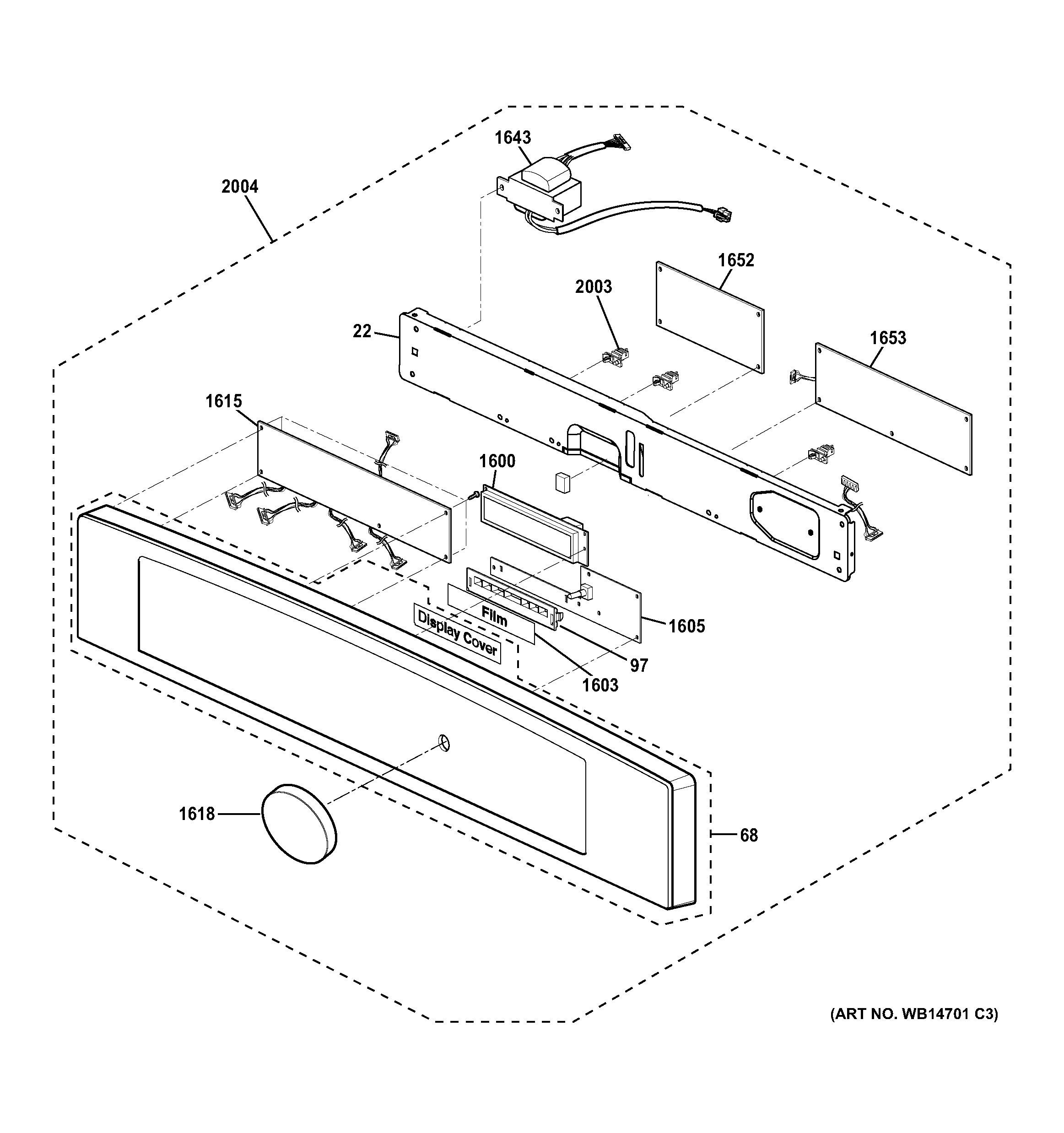

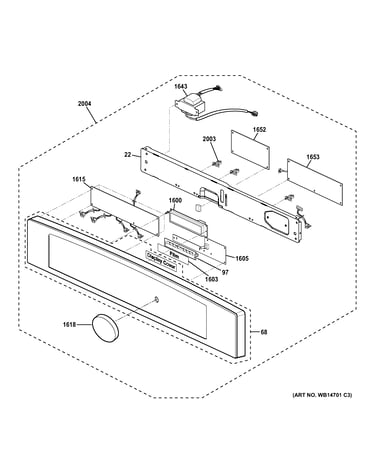

Control parts diagram

Microwave display board

Part #WB27X10856

BEST SELLER
$234.03 |
5% OFF Phone Price : $246.03
In Stock
Microwave Thermostat WB20X10048
Microwave thermostat

Part #WB20X10048

BEST SELLER
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Microwave Power Control Board WB27X10858
#1615

Control parts diagram

Microwave power control board

Part #WB27X10858

BEST SELLER
This item is not returnable
$164.26 |
7% OFF Phone Price : $176.26
In Stock
Microwave Power Control Board WB27X10861
#1652

Control parts diagram

Microwave power control board

Part #WB27X10861

BEST SELLER
This item is not returnable
$154.71 |
7% OFF Phone Price : $166.71
Back Order
Microwave High-voltage Transformer (replaces Wb17x10020) WB17X10030
#1433

Insulator parts diagram

Microwave high-voltage transformer (replaces wb17x10020)

Part #WB17X10030

BEST SELLER
$154.97 |
7% OFF Phone Price : $166.97
In Stock
