Model # 315796660 Official Craftsman 20" hedge trimmer
Here are the diagrams and repair parts for Official Craftsman 315796660 20" hedge trimmer, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
315796660 20" Hedge Trimmer
#19

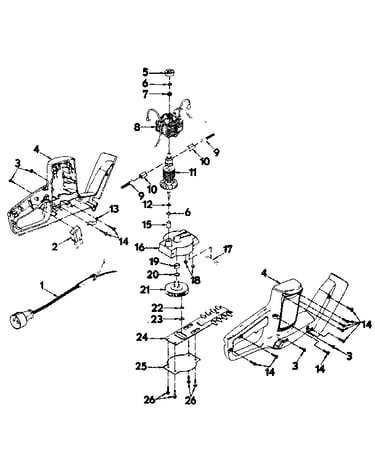

Replacement parts diagram
Bearing
Part #990316-001
The manufacturer no longer makes this part, and there's no substitute part
#1

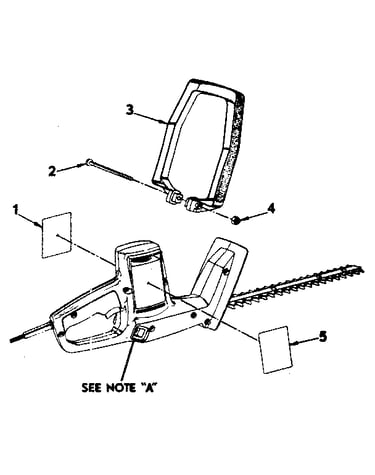

Handle assembly diagram
Logo plate
Part #998557-005
The manufacturer no longer makes this part, and there's no substitute part
#2
Replacement parts diagram
Switch
Part #623247-008
The manufacturer no longer makes this part, and there's no substitute part
#3
Replacement parts diagram
Screw
Part #622180-027
The manufacturer no longer makes this part, and there's no substitute part
#3
Handle assembly diagram
Handle
Part #612695-001
The manufacturer no longer makes this part, and there's no substitute part
#8
Replacement parts diagram
Field assembly
Part #990785-002
The manufacturer no longer makes this part, and there's no substitute part
#25
Replacement parts diagram
Grease cover
Part #990460-001
The manufacturer no longer makes this part, and there's no substitute part
#6
Replacement parts diagram
Washer
Part #706382-805
The manufacturer no longer makes this part, and there's no substitute part
#22
Replacement parts diagram
Spring washer
Part #622347-004
The manufacturer no longer makes this part, and there's no substitute part
#11
Replacement parts diagram
Armature
Part #989933-007
The manufacturer no longer makes this part, and there's no substitute part
