Frigidaire
Top-Mount Refrigerator

Model # FFTR1835VWA Official Frigidaire top-mount refrigerator

Here are the diagrams and repair parts for Official Frigidaire FFTR1835VWA top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

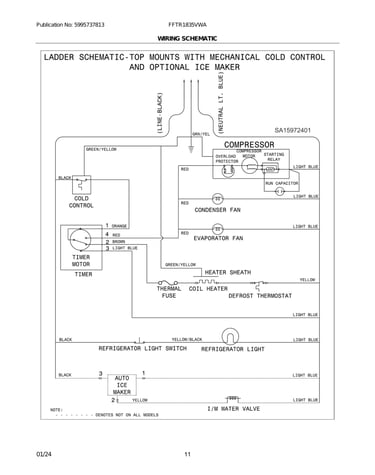

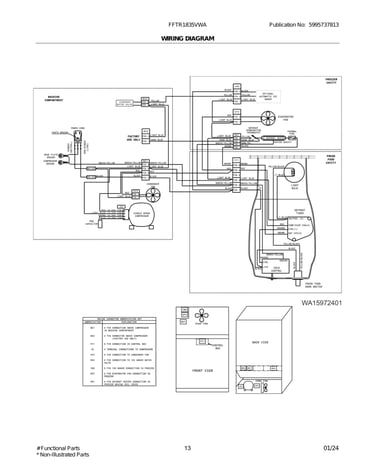

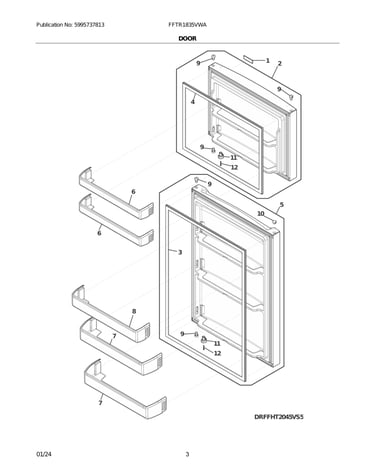

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Refrigerator Defrost Timer 5304522331
#19

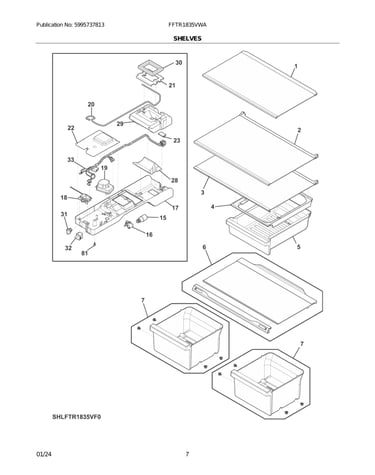

Shelves diagram

Refrigerator defrost timer

Part #5304522331

Replaced by #5304526183

?
Manufacturer substitution
This part replaces 5304522331. Substitute parts can look different from the original.
BEST SELLER
$82.73
In Stock
Refrigerator Temperature Control Thermostat 5304522330
#18

Shelves diagram

Refrigerator temperature control thermostat

Part #5304522330

BEST SELLER
$58.06 |
9% OFF Phone Price : $64.06
In Stock
Refrigerator Filter Dryer 5304522277
#4

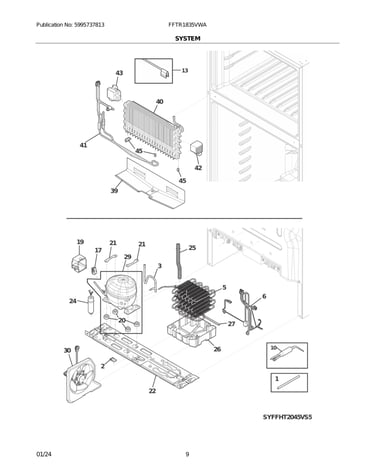

System diagram

Refrigerator filter dryer

Part #5304522277

BEST SELLER
$18.89 |
10% OFF Phone Price : $20.89
In Stock
S/a Pur Compressor Esx55cbt 5304529496
#29

System diagram

S/a pur compressor esx55cbt

Part #5304529496

Replaced by #5304532451

?
Manufacturer substitution
This part replaces 5304529496. Substitute parts can look different from the original.
BEST SELLER
$193.64
In Stock
Refrigerator Defrost Heater And Thermostat 5304522340
#41

System diagram

Refrigerator defrost heater and thermostat

Part #5304522340

BEST SELLER
$81.16 |
7% OFF Phone Price : $87.16
In Stock
Refrigerator Evaporator Fan Motor (replaces 242077704) 5304530651
#16

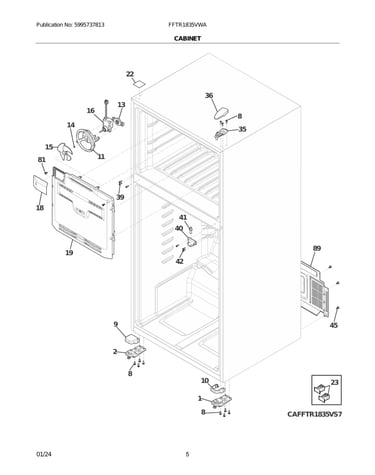

Cabinet diagram

Refrigerator evaporator fan motor (replaces 242077704)

Part #5304530651

BEST SELLER
$95.25 |
11% OFF Phone Price : $107.25
In Stock
Refrigerator Evaporator Fan Blade 242219302
#15

Cabinet diagram

Refrigerator evaporator fan blade

Part #242219302

BEST SELLER
$17.09 |
10% OFF Phone Price : $19.09
In Stock
Refrigerator Run Capacitor (replaces 5304522105) 5304528894
#24

System diagram

Refrigerator run capacitor (replaces 5304522105)

Part #5304528894

BEST SELLER
$34.04
In Stock
Assy-evaporator & Compts Br 5304529495
#40

System diagram

Assy-evaporator & compts br

Part #5304529495

BEST SELLER
$133.52
In Stock
Refrigerator Compressor Overload And Start Relay 5304522267
#17

System diagram

Refrigerator compressor overload and start relay

Part #5304522267

BEST SELLER
$28.68 |
17% OFF Phone Price : $34.68
In Stock
