KitchenAid
Side-By-Side Refrigerator

Model # KSRB25QGBL01 Official KitchenAid refrigerator

Here are the diagrams and repair parts for Official KitchenAid KSRB25QGBL01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

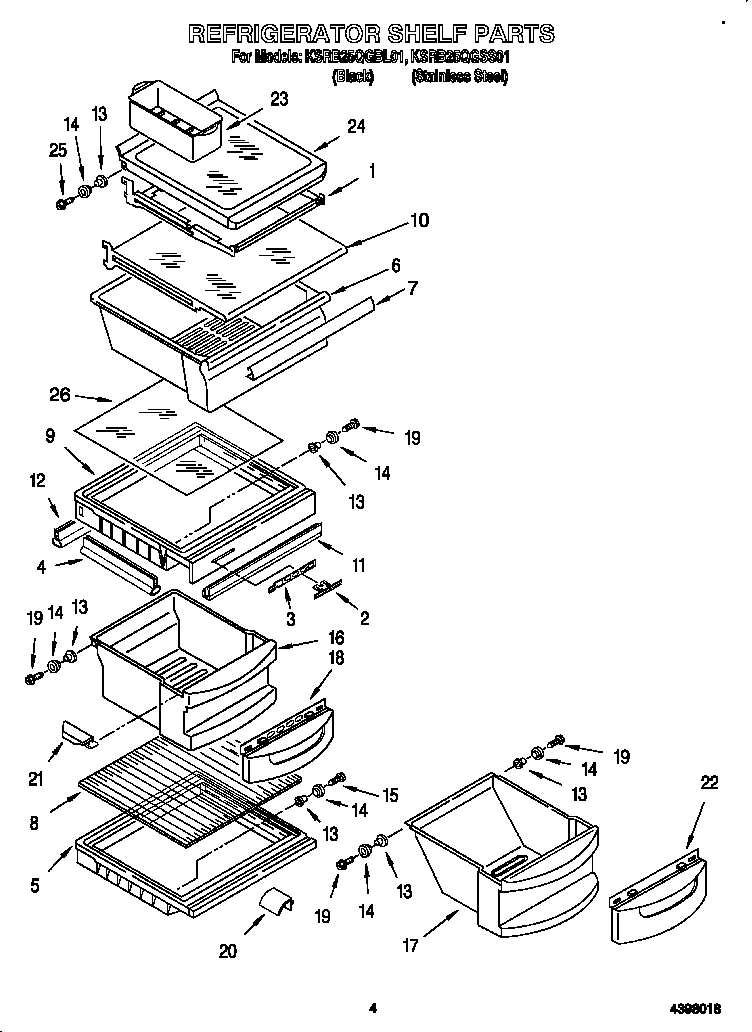

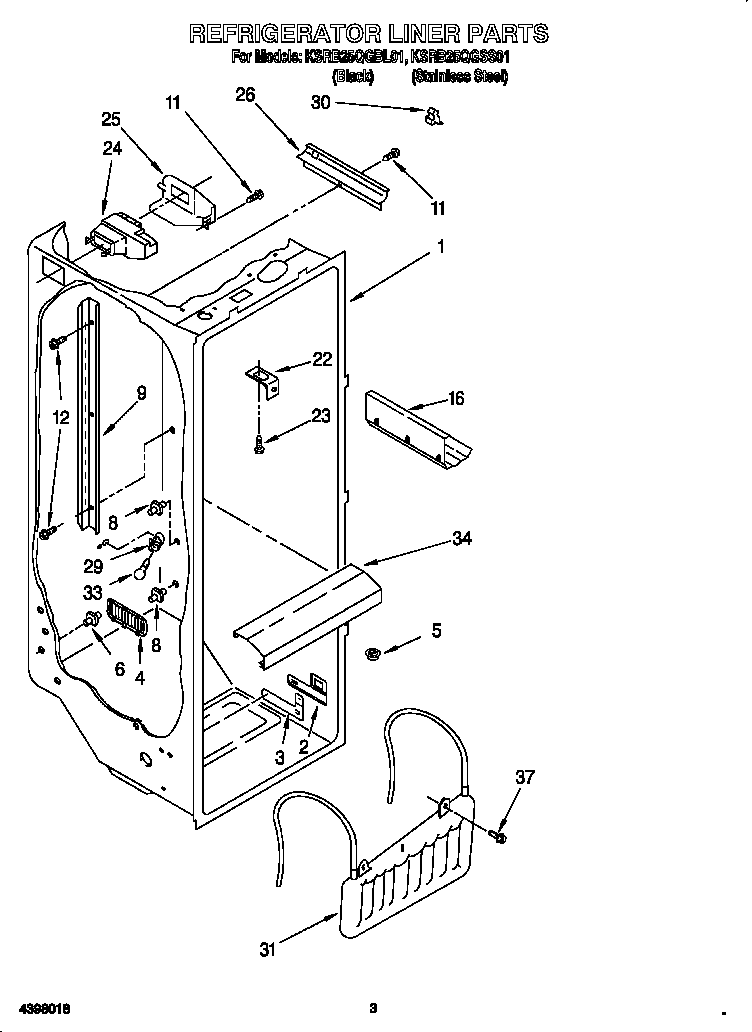

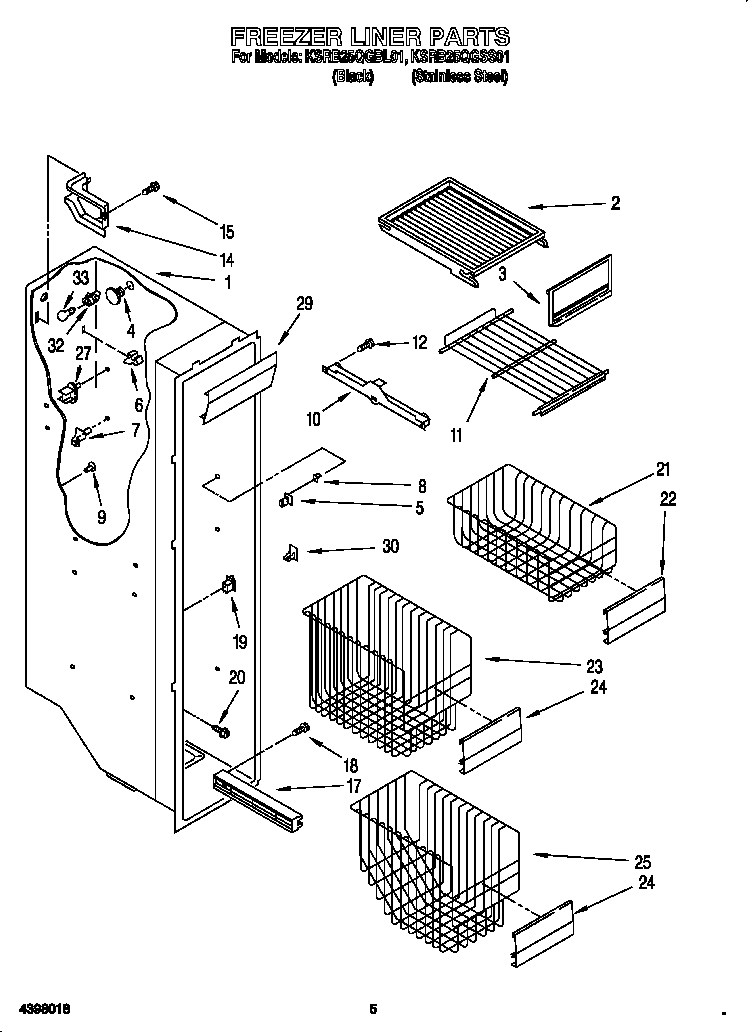

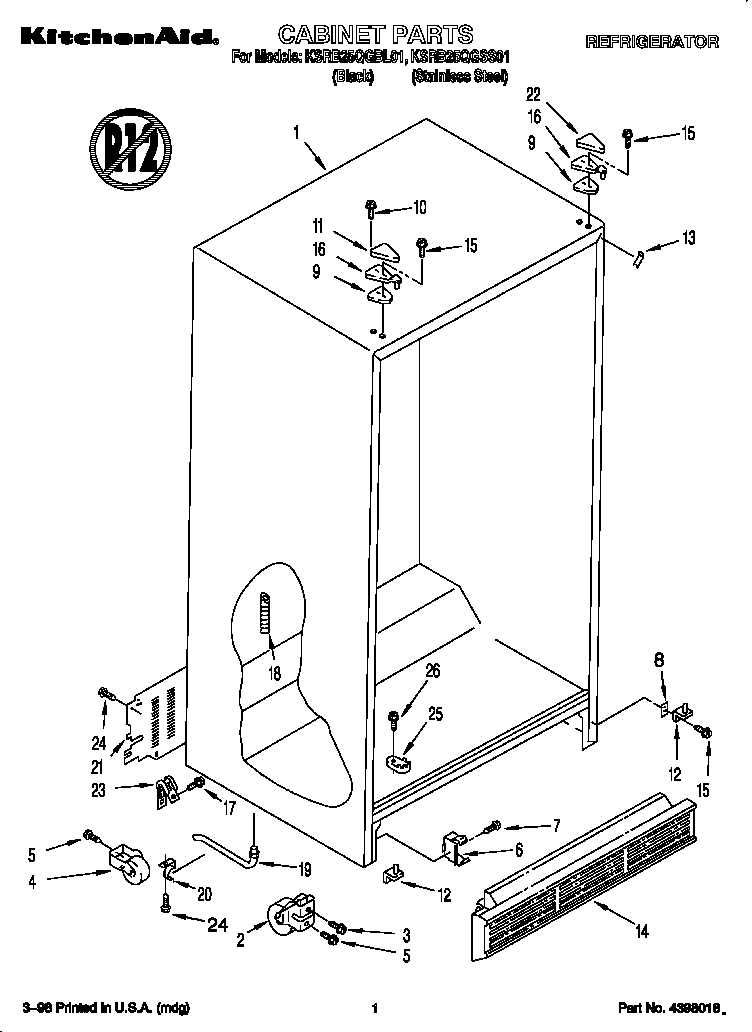

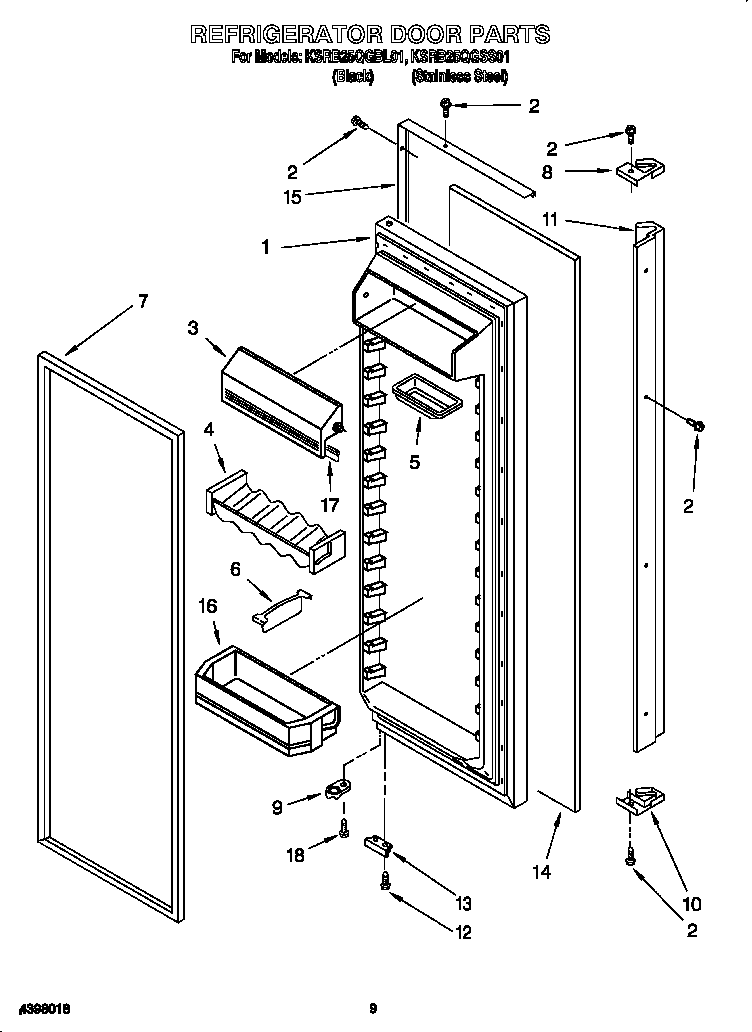

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 334 parts  |
Ice Maker Assembly - Refrigerator Ice Maker By Whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, M626687, W10122496, W10190952, W10281545, W10632400) 4317943
#100

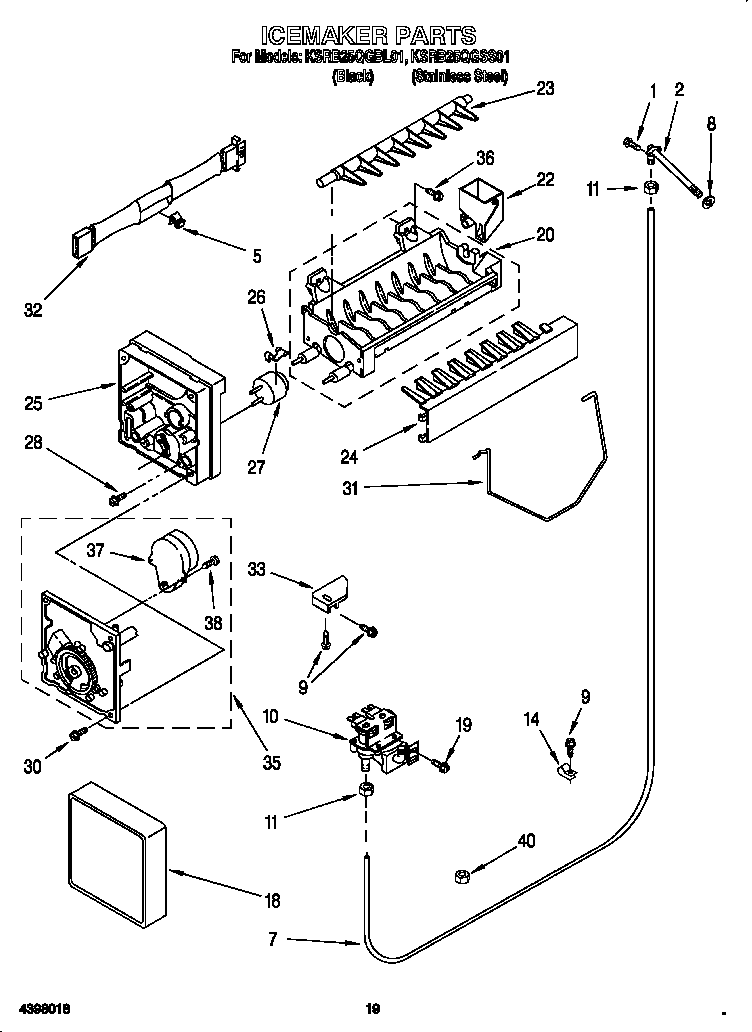

Icemaker diagram

Ice maker assembly - refrigerator ice maker by whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, m626687, w10122496, w10190952, w10281545, w10632400)

Part #4317943

BEST SELLER
$96.71 |
11% OFF Phone Price : $108.71
In Stock
Refrigerator Defrost Bi-metal 2176066
#35

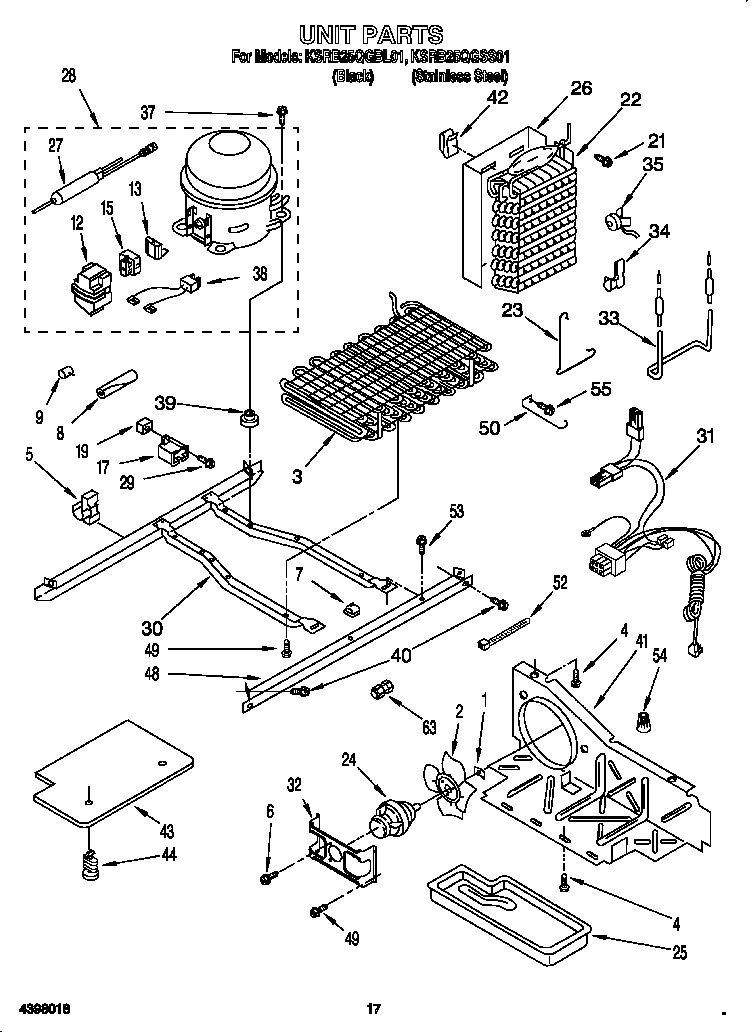

Unit diagram

Refrigerator defrost bi-metal

Part #2176066

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2176066. Substitute parts can look different from the original.
BEST SELLER
$34.02 |
15% OFF Phone Price : $40.02
In Stock
Light Bulb 527949
Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Drier Tube 2164409
#27

Unit diagram

Drier tube

Part #2164409

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2164409. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Ice Bin 2196091
#14

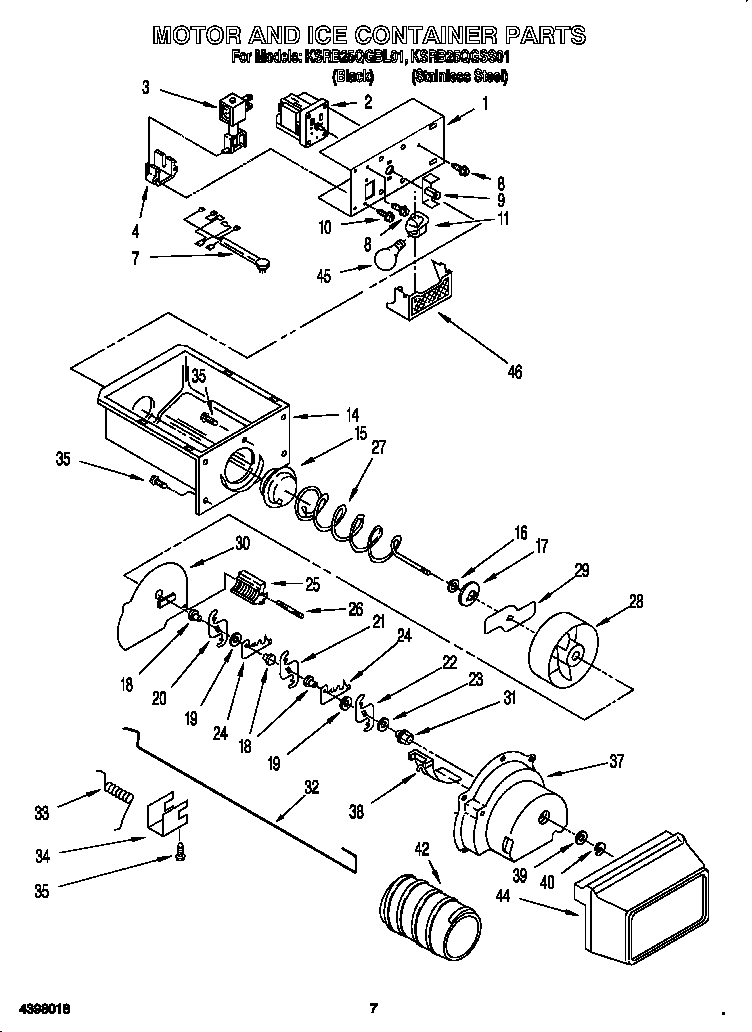

Motor and ice container diagram

Refrigerator ice bin

Part #2196091

Replaced by #WPW10670845

?
Manufacturer substitution
This part replaces 2196091. Substitute parts can look different from the original.
BEST SELLER
$78.52 |
7% OFF Phone Price : $84.52
In Stock
Refrigerator Evaporator Fan Blade 2169142
#8

Air flow diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Refrigerator Compressor 2183455
#28

Unit diagram

Refrigerator compressor

Part #2183455

Replaced by #W10309994

?
Manufacturer substitution
This part replaces 2183455. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
Refrigerator Ice Chute 2180224
#12

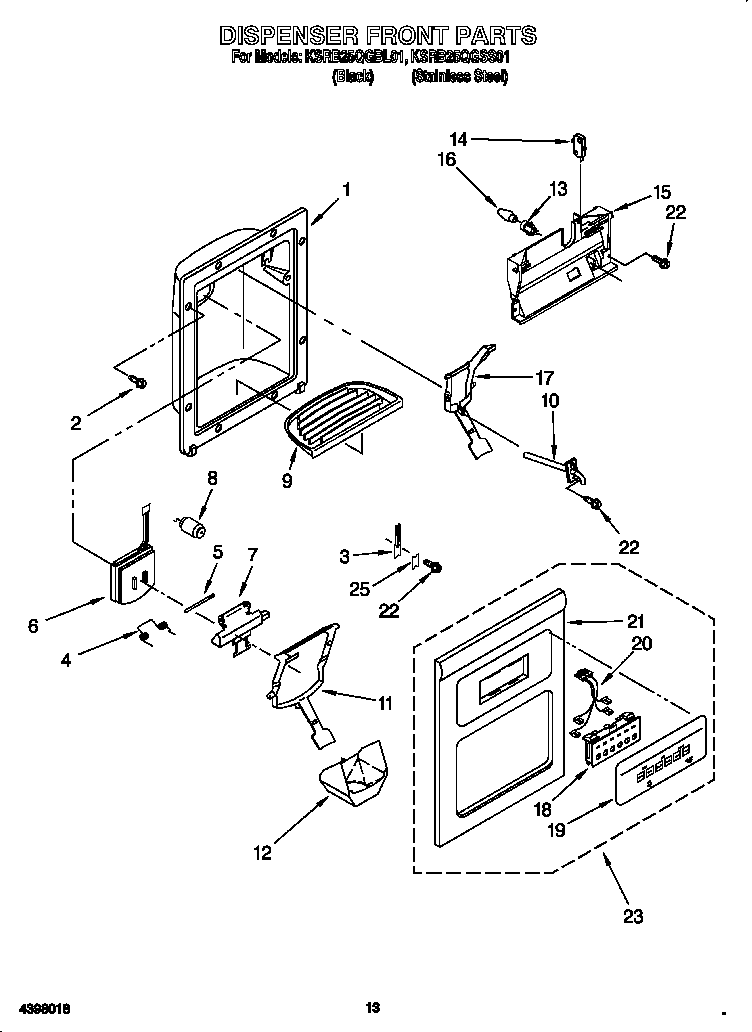

Dispenser front diagram

Refrigerator ice chute

Part #2180224

Replaced by #WP2180224

?
Manufacturer substitution
This part replaces 2180224. Substitute parts can look different from the original.
BEST SELLER
$13.83 |
13% OFF Phone Price : $15.83
In Stock
Refrigerator Water Tube 2181940
#7

Icemaker diagram

Refrigerator water tube

Part #2181940

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 2181940. Substitute parts can look different from the original.
BEST SELLER
$32.60 |
16% OFF Phone Price : $38.60
In Stock
Refrigerator Defrost Timer 2169267
#6

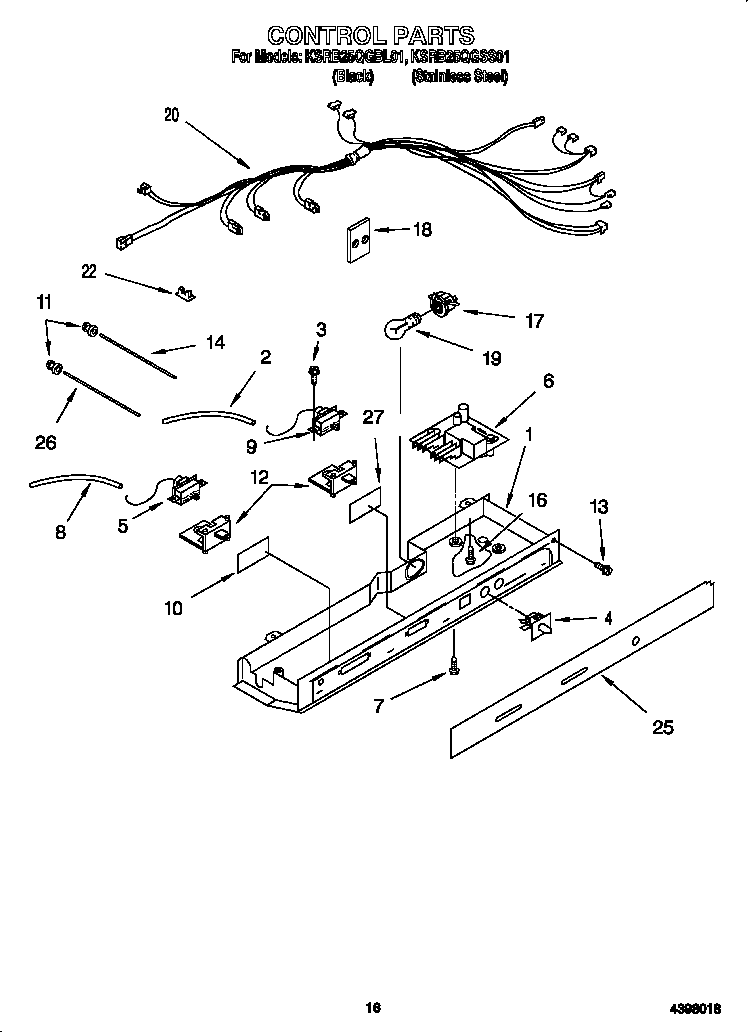

Control diagram

Refrigerator defrost timer

Part #2169267

Replaced by #4388932

?
Manufacturer substitution
This part replaces 2169267. Substitute parts can look different from the original.
BEST SELLER
$281.56 |
$12.00 OFF Phone Price : $293.56
In Stock
