Porter Cable
Wet/Dry Vacuum

Model # 7810 Official Porter Cable wet/dry vacuum

Here are the diagrams and repair parts for Official Porter Cable 7810 wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

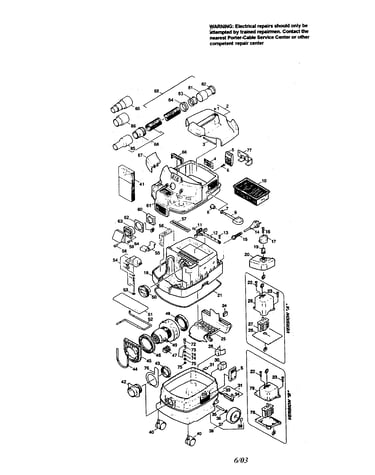

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |

Porter Cable Receptacle, (120v) 1258781
#63

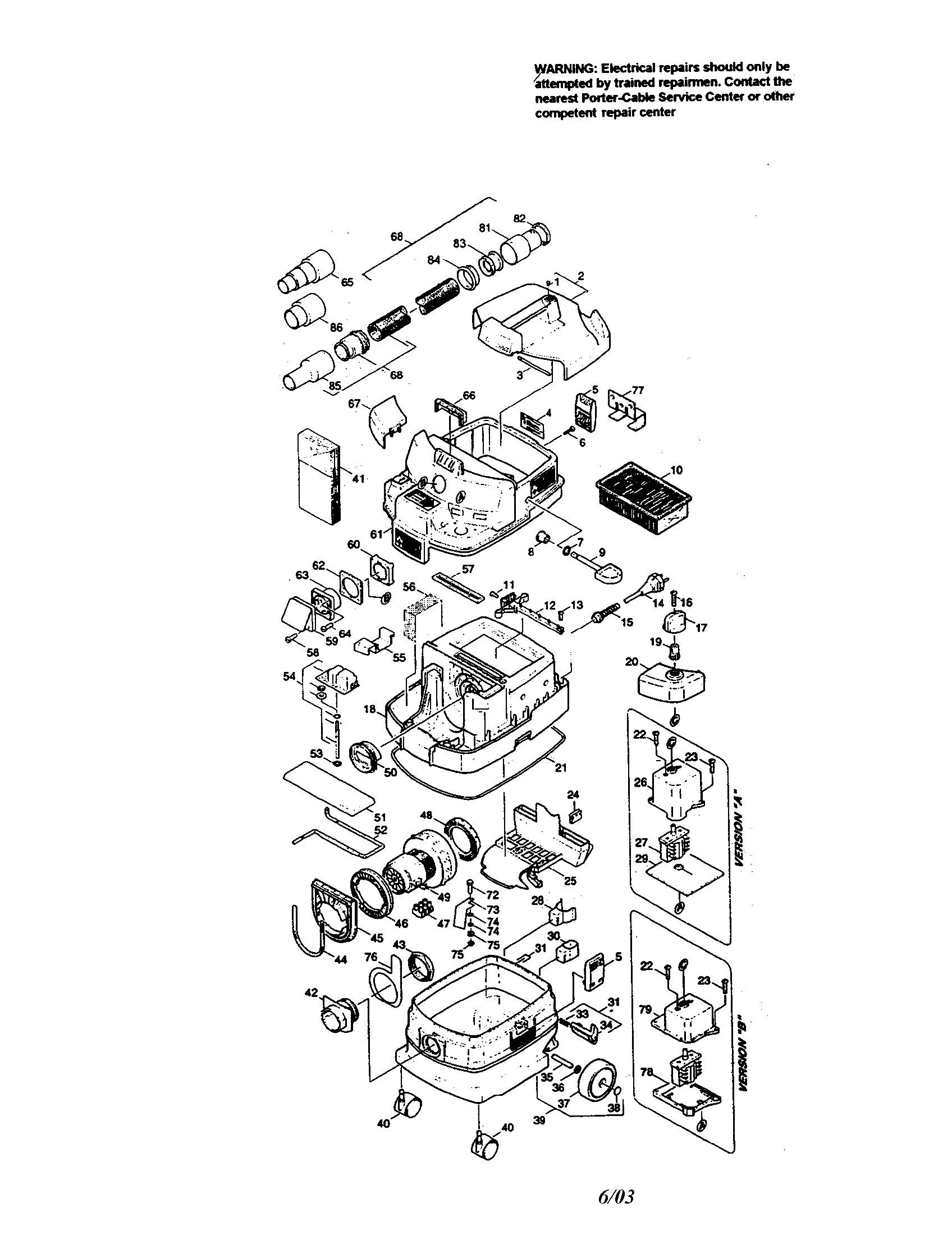

Power tool-triggered wet/dry vac diagram

Porter cable receptacle, (120v)

Part #1258781

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Housing 1258828
#79

Power tool-triggered wet/dry vac diagram

Porter cable housing

Part #1258828

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Shaker 1258777
#12

Power tool-triggered wet/dry vac diagram

Porter cable shaker

Part #1258777

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Seal 1258787
#48

Power tool-triggered wet/dry vac diagram

Porter cable seal

Part #1258787

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Sleeve 1258824
#84

Power tool-triggered wet/dry vac diagram

Porter cable sleeve

Part #1258824

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Brake 1258797
#34

Power tool-triggered wet/dry vac diagram

Porter cable brake

Part #1258797

The manufacturer no longer makes this part, and there's no substitute part

Seal 1258827
Seal

Part #1258827

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Cover 1258775
#66

Power tool-triggered wet/dry vac diagram

Porter cable cover

Part #1258775

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Hose-end Connector 1258825
#85

Power tool-triggered wet/dry vac diagram

Porter cable hose-end connector

Part #1258825

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Strain Reliever, (120v) 1258762
#15

Power tool-triggered wet/dry vac diagram

Porter cable strain reliever, (120v)

Part #1258762

The manufacturer no longer makes this part, and there's no substitute part
