Dacor
Electric Wall Oven

Model # ECPS230 Official Dacor oven

Here are the diagrams and repair parts for Official Dacor ECPS230 oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

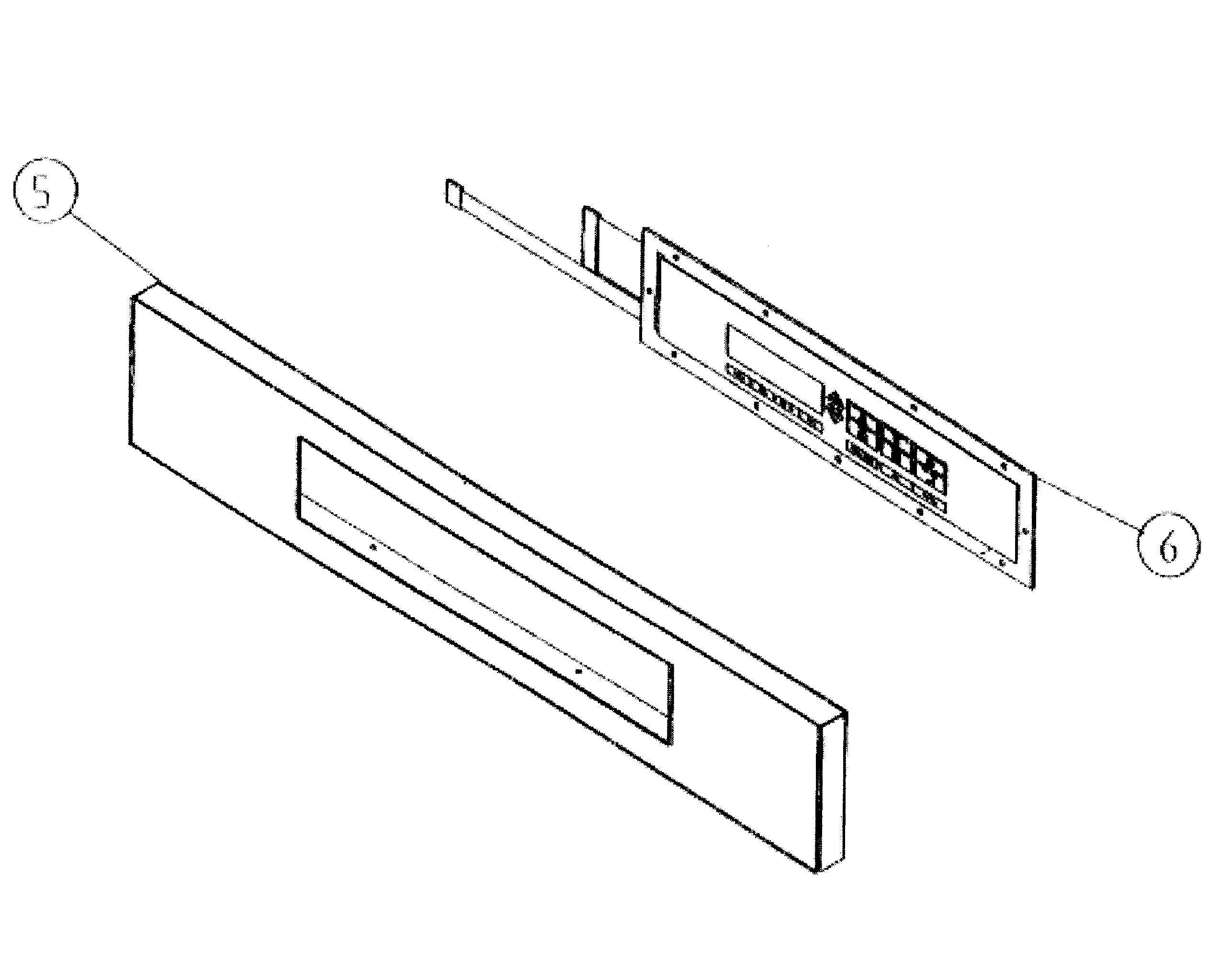

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Oven Door Glass 82216B
#80A

Door assy diagram

Oven door glass

Part #82216B

$58.99
In Stock
Drive Frame 27497R
#78A

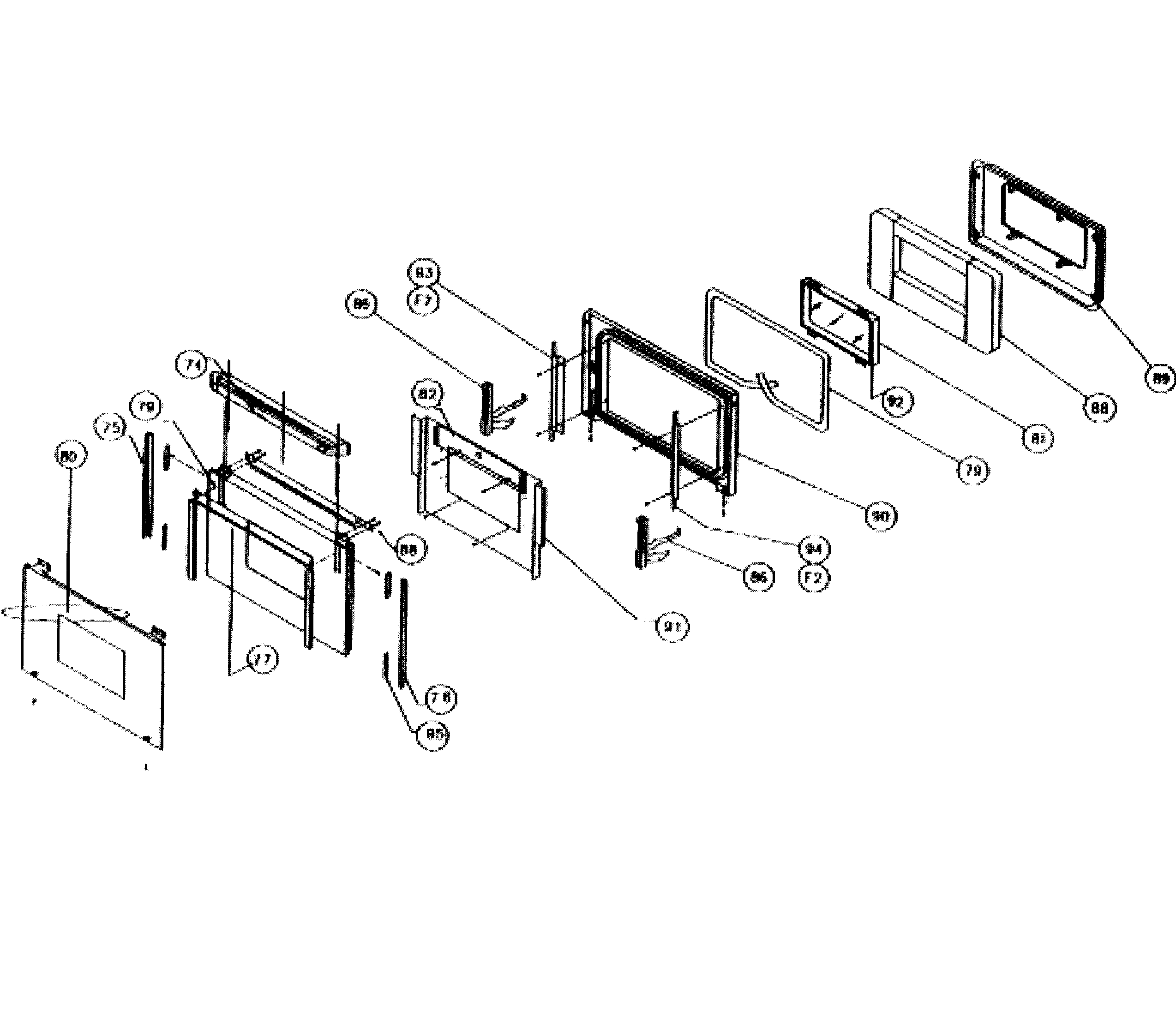

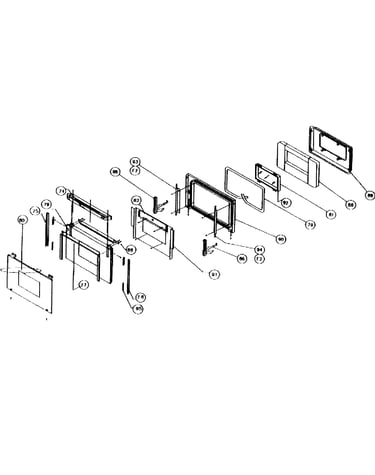

Door assy diagram

Drive frame

Part #27497R

$90.49
In Stock
Connector 82195
#31

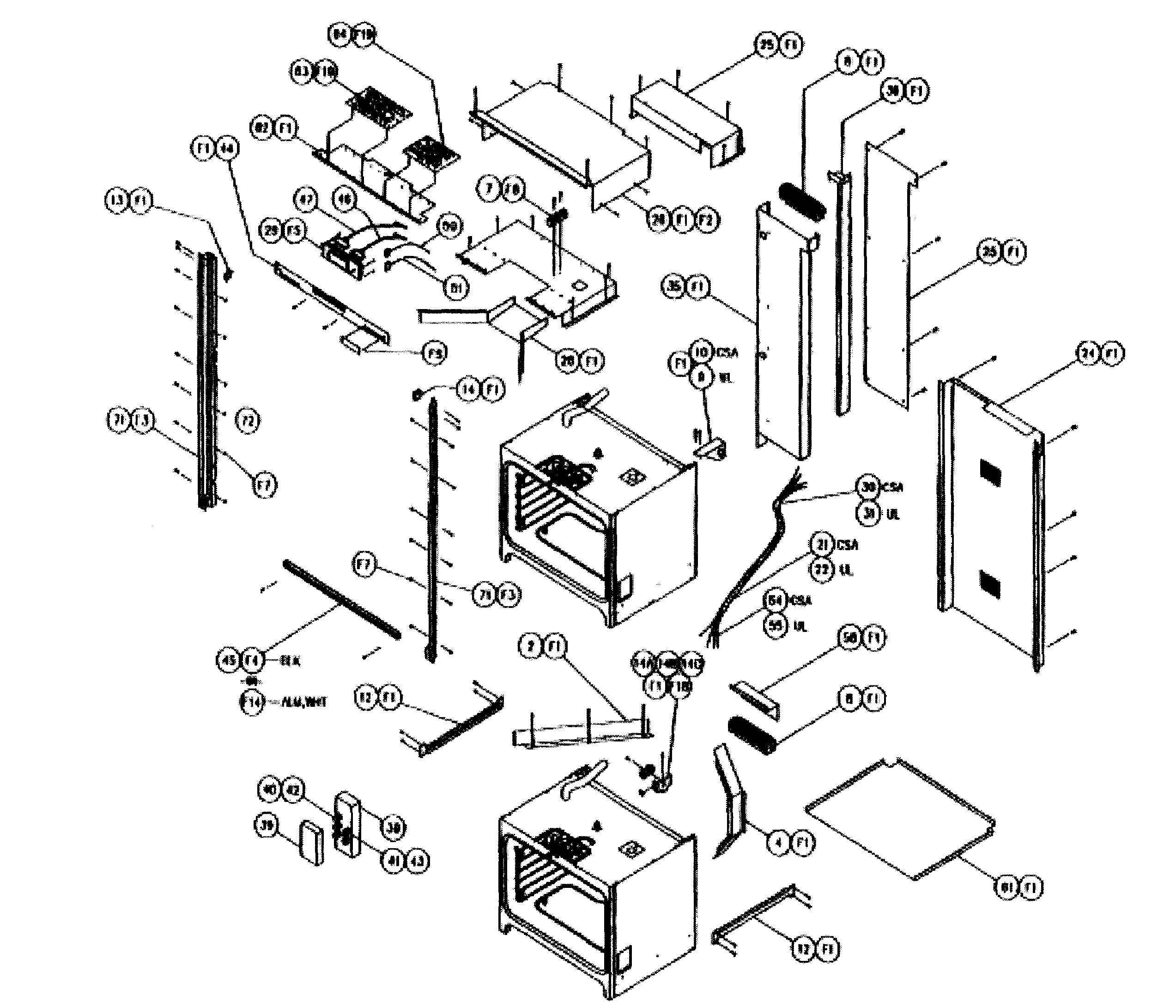

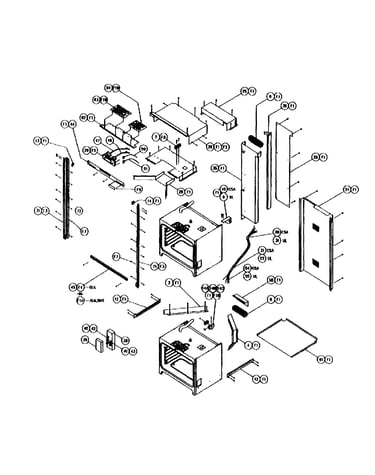

Cabinet assy diagram

Connector

Part #82195

$10.99
In Stock
Dacor Wall Oven Trim 27469B
#70

Cabinet assy diagram

Dacor wall oven trim

Part #27469B

$68.29 |
8% OFF Phone Price : $74.29
In Stock
Dacor Wall Oven Door Trim 26490R
#76A

Door assy diagram

Dacor wall oven door trim

Part #26490R

$22.23 |
21% OFF Phone Price : $28.23
In Stock
Dacor Wall Oven Door Trim 26489R
#75C

Door assy diagram

Dacor wall oven door trim

Part #26489R

$22.23 |
21% OFF Phone Price : $28.23
In Stock
Cover 26635
#27

Cabinet assy diagram

Cover

Part #26635

$42.49
In Stock
Door Skin 82216R
#80B

Door assy diagram

Door skin

Part #82216R

$130.99
In Stock
Bulb, 40-watt 82089
#15

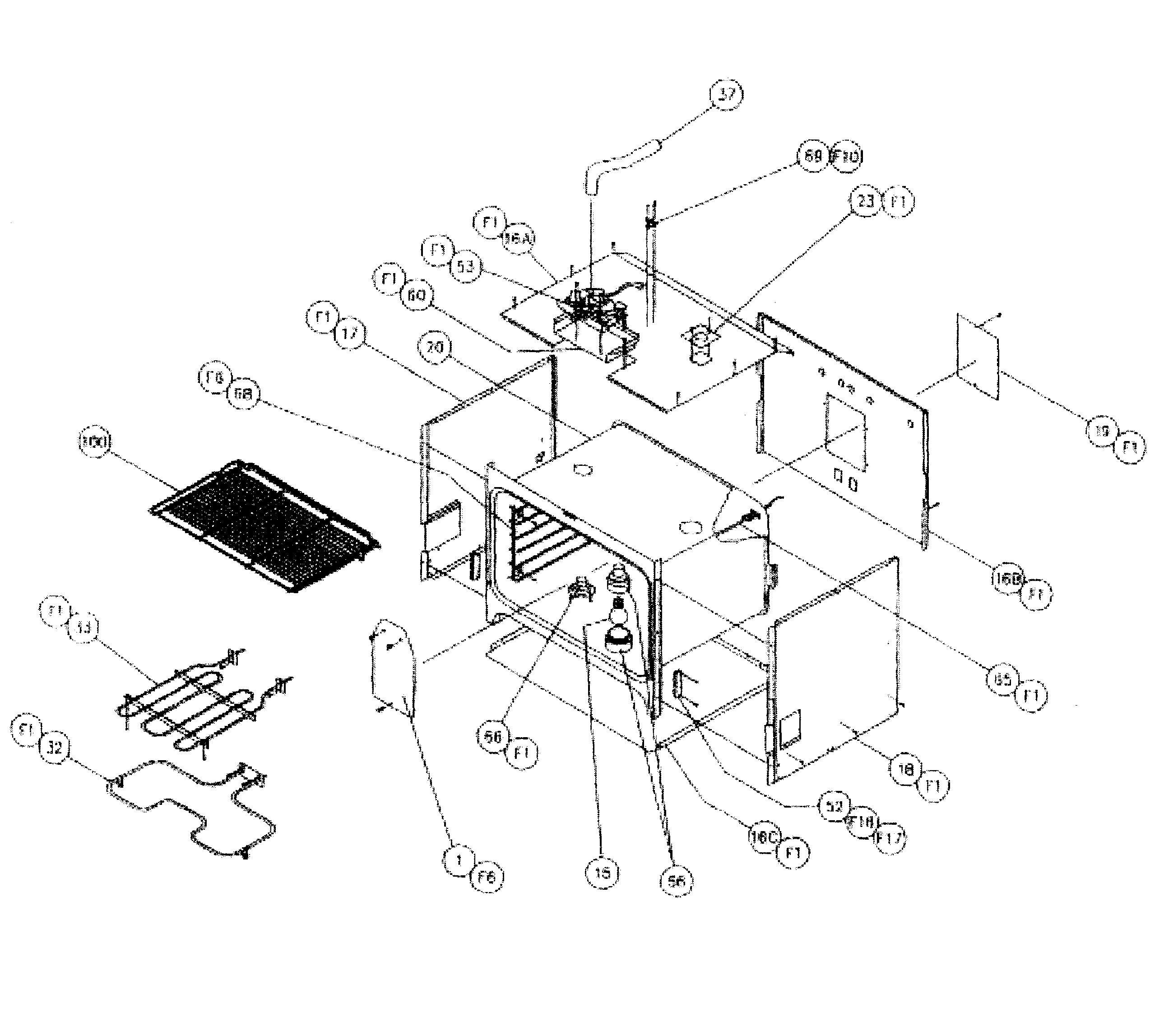

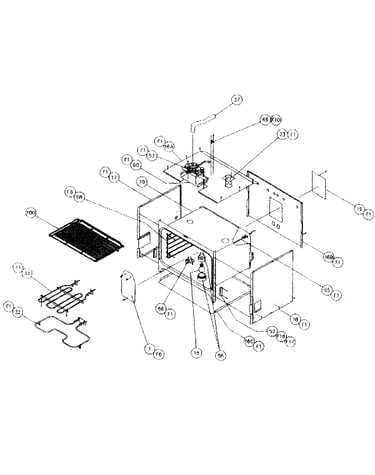

Oven cell diagram

Bulb, 40-watt

Part #82089

$10.99
In Stock
Heat Shield 26640
#82

Door assy diagram

Heat shield

Part #26640

$10.99
In Stock
