Model # 758140131 Official Kenmore console humidifier

Here are the diagrams and repair parts for Official Kenmore 758140131 console humidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Screw 29433
#2

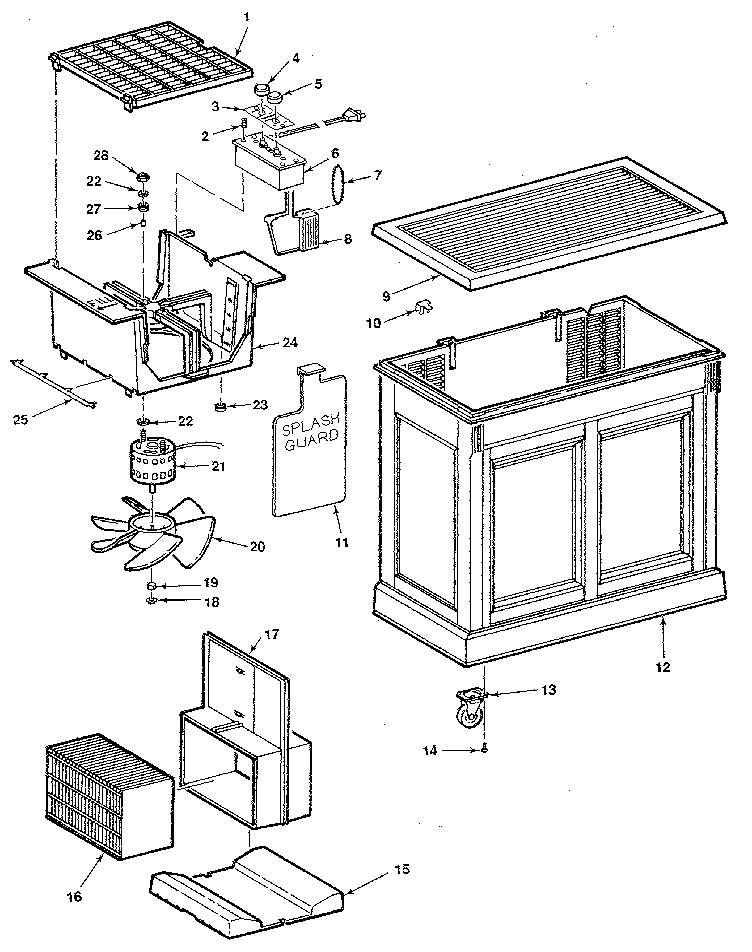

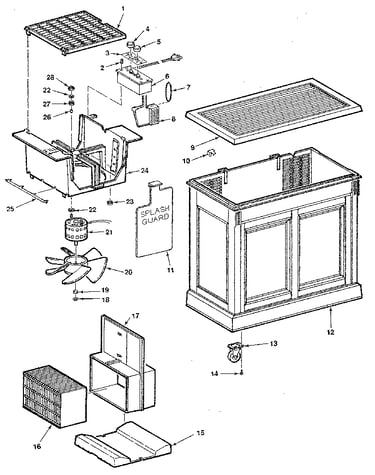

Unit parts diagram

Screw

Part #29433

The manufacturer no longer makes this part, and there's no substitute part

Label 820083
#3

Unit parts diagram

Label

Part #820083

The manufacturer no longer makes this part, and there's no substitute part

Filter 32-14910
#16

Unit parts diagram

Filter

Part #32-14910

The manufacturer no longer makes this part, and there's no substitute part

Float Filted 817195
#15

Unit parts diagram

Float filted

Part #817195

The manufacturer no longer makes this part, and there's no substitute part

Hsing-filter 817196
#17

Unit parts diagram

Hsing-filter

Part #817196

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 816133
#19

Unit parts diagram

Hose clamp

Part #816133

The manufacturer no longer makes this part, and there's no substitute part

Caster 13832
#13

Unit parts diagram

Caster

Part #13832

The manufacturer no longer makes this part, and there's no substitute part

Screw STD601005
#14

Unit parts diagram

Screw

Part #STD601005

The manufacturer no longer makes this part, and there's no substitute part

Lid Clip 819428
#10

Unit parts diagram

Lid clip

Part #819428

The manufacturer no longer makes this part, and there's no substitute part

Fan Guard 817241
#1

Unit parts diagram

Fan guard

Part #817241

The manufacturer no longer makes this part, and there's no substitute part
