GE
Countertop Microwave

Model # LEM045H03 Official GE microwave

Here are the diagrams and repair parts for Official GE LEM045H03 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Micro-switch WB24X329
#54

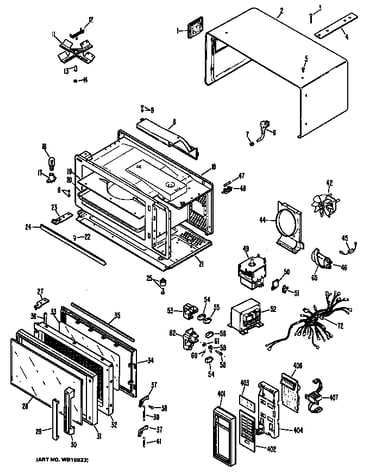

Microwave assembly diagram

Micro-switch

Part #WB24X329

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X329. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Micro-switch WB24X384
#55

Microwave assembly diagram

Micro-switch

Part #WB24X384

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X384. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Diode WB27X286
#45

Microwave assembly diagram

Diode

Part #WB27X286

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X286. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Smart Board WB27X395
#406

Microwave assembly diagram

Smart board

Part #WB27X395

$231.49
In Stock
Base Plate WB56X1755
#21

Microwave assembly diagram

Base plate

Part #WB56X1755

The manufacturer no longer makes this part, and there's no substitute part

Holder-fu WB2X4627
#48

Microwave assembly diagram

Holder-fu

Part #WB2X4627

The manufacturer no longer makes this part, and there's no substitute part

Foot Assembly WB2X9974
#25

Microwave assembly diagram

Foot assembly

Part #WB2X9974

The manufacturer no longer makes this part, and there's no substitute part

Handle WB15X271
#30

Microwave assembly diagram

Handle

Part #WB15X271

The manufacturer no longer makes this part, and there's no substitute part

Latch Body WB2X4259
#62

Microwave assembly diagram

Latch body

Part #WB2X4259

The manufacturer no longer makes this part, and there's no substitute part

Cover WB2X4625
#44

Microwave assembly diagram

Cover

Part #WB2X4625

The manufacturer no longer makes this part, and there's no substitute part
