Model # 11320500 Official Craftsman 18" jig saw

Here are the diagrams and repair parts for Official Craftsman 11320500 18" jig saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

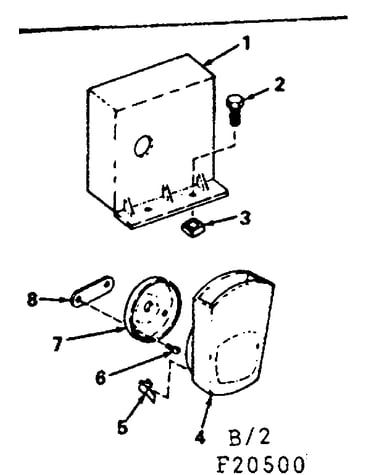

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Nylon Screw 60287
#12

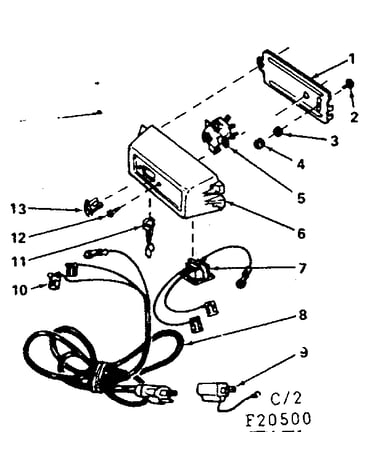

Switch box assembly diagram

Nylon screw

Part #60287

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Carriage Adjustment Knob 63316
#12

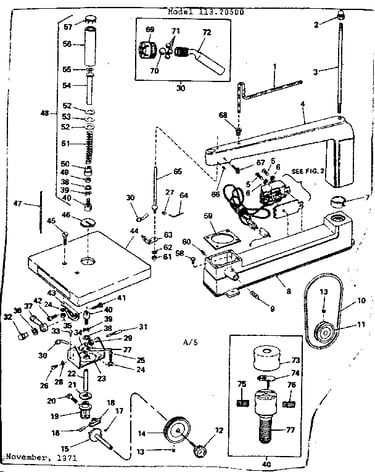

Unit diagram

Radial arm saw carriage adjustment knob

Part #63316

The manufacturer no longer makes this part, and there's no substitute part

Wing Screw (silver) 37858
#67

Unit diagram

Wing screw (silver)

Part #37858

The manufacturer no longer makes this part, and there's no substitute part

Washer 60317
#14

Switch box assembly diagram

Washer

Part #60317

The manufacturer no longer makes this part, and there's no substitute part

Relief Str 37818
#11

Switch box assembly diagram

Relief str

Part #37818

The manufacturer no longer makes this part, and there's no substitute part

Gasket 31811
#59

Unit diagram

Gasket

Part #31811

The manufacturer no longer makes this part, and there's no substitute part

Scr Set Sl 102706
#66

Unit diagram

Scr set sl

Part #102706

The manufacturer no longer makes this part, and there's no substitute part

Screw 115709
#45

Unit diagram

Screw

Part #115709

The manufacturer no longer makes this part, and there's no substitute part

Pointer 18935
#28

Unit diagram

Pointer

Part #18935

The manufacturer no longer makes this part, and there's no substitute part

Ball 453565
#71

Unit diagram

Ball

Part #453565

The manufacturer no longer makes this part, and there's no substitute part
