Kenmore
Top-Mount Refrigerator

Model # 3639734787 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 3639734787 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

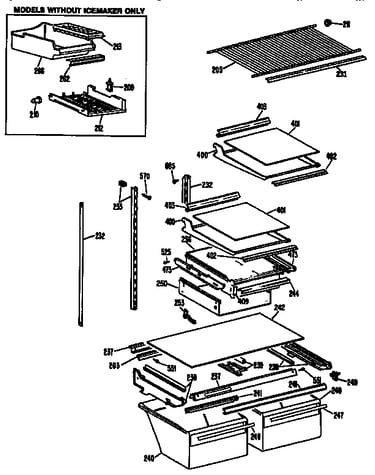

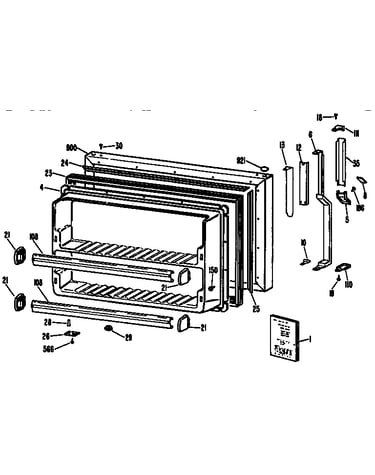

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 214 parts  |
Refrigerator Ice Maker Kit WR30X0289
#820

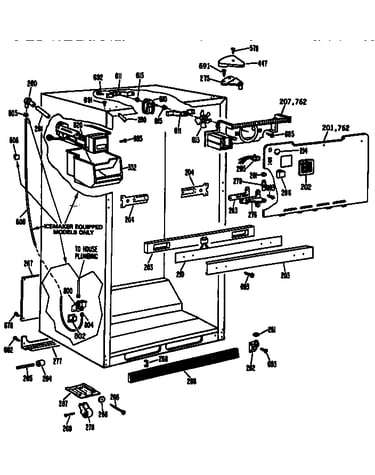

Cabinet parts diagram

Refrigerator ice maker kit

Part #WR30X0289

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X0289. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Dryer Assembly WR86X0086
#740

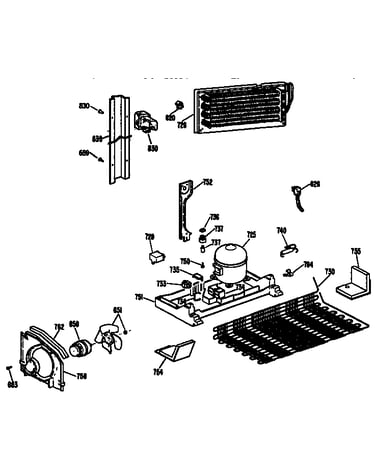

Unit parts diagram

Dryer assembly

Part #WR86X0086

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0086. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
#435A

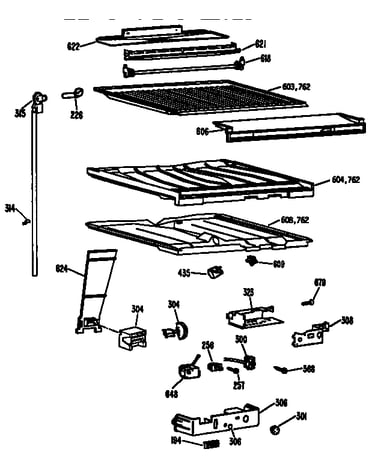

Compartment separator parts diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Water Valve WR57X0095
#800

Cabinet parts diagram

Water valve

Part #WR57X0095

Replaced by #WR57X10033

?
Manufacturer substitution
This part replaces WR57X0095. Substitute parts can look different from the original.
BEST SELLER
$39.92 |
13% OFF Phone Price : $45.92
In Stock
Refrigerator Defrost Control WR09X0478
#648

Compartment separator parts diagram

Refrigerator defrost control

Part #WR09X0478

Replaced by #WR9X483

?
Manufacturer substitution
This part replaces WR09X0478. Substitute parts can look different from the original.
BEST SELLER
$42.02 |
12% OFF Phone Price : $48.02
In Stock
Refrigerator Door Gasket WR24X0437
#104

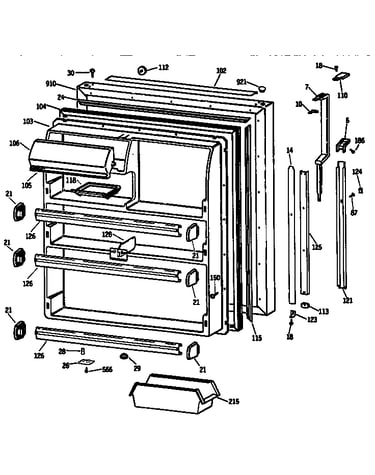

Fresh food door diagram

Refrigerator door gasket

Part #WR24X0437

Replaced by #WR24X437

?
Manufacturer substitution
This part replaces WR24X0437. Substitute parts can look different from the original.
$65.79 |
8% OFF Phone Price : $71.79
In Stock
Sckt & Term WR02X8265
#435B

Compartment separator parts diagram

Sckt & term

Part #WR02X8265

Replaced by #WR2X9391

?
Manufacturer substitution
This part replaces WR02X8265. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Refrigerator Ice Maker 8339

#NI

All parts diagram

Refrigerator ice maker

Part #8339

Replaced by #IM6D

?
Manufacturer substitution
This part replaces 8339. Substitute parts can look different from the original.
$149.94 |
7% OFF Phone Price : $161.94
In Stock
Refrigerator Ice Maker Fill Tube (replaces Swr17x1948, Wr17x0969, Wr17x1059, Wr17x1125, Wr17x12313, Wr17x1356, Wr17x5404, Wr17x5566, Wr17x969, Wr29x5036) WR17X1948
#806

Cabinet parts diagram

Refrigerator ice maker fill tube (replaces swr17x1948, wr17x0969, wr17x1059, wr17x1125, wr17x12313, wr17x1356, wr17x5404, wr17x5566, wr17x969, wr29x5036)

Part #WR17X1948

This item is not returnable
$10.84 |
16% OFF Phone Price : $12.84
In Stock
Light Switch WR23X0193
#609

Compartment separator parts diagram

Light switch

Part #WR23X0193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X0193. Substitute parts can look different from the original.
$8.11
In Stock
