Kenmore
Room Air Conditioner

Model # 25379083990 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 25379083990 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

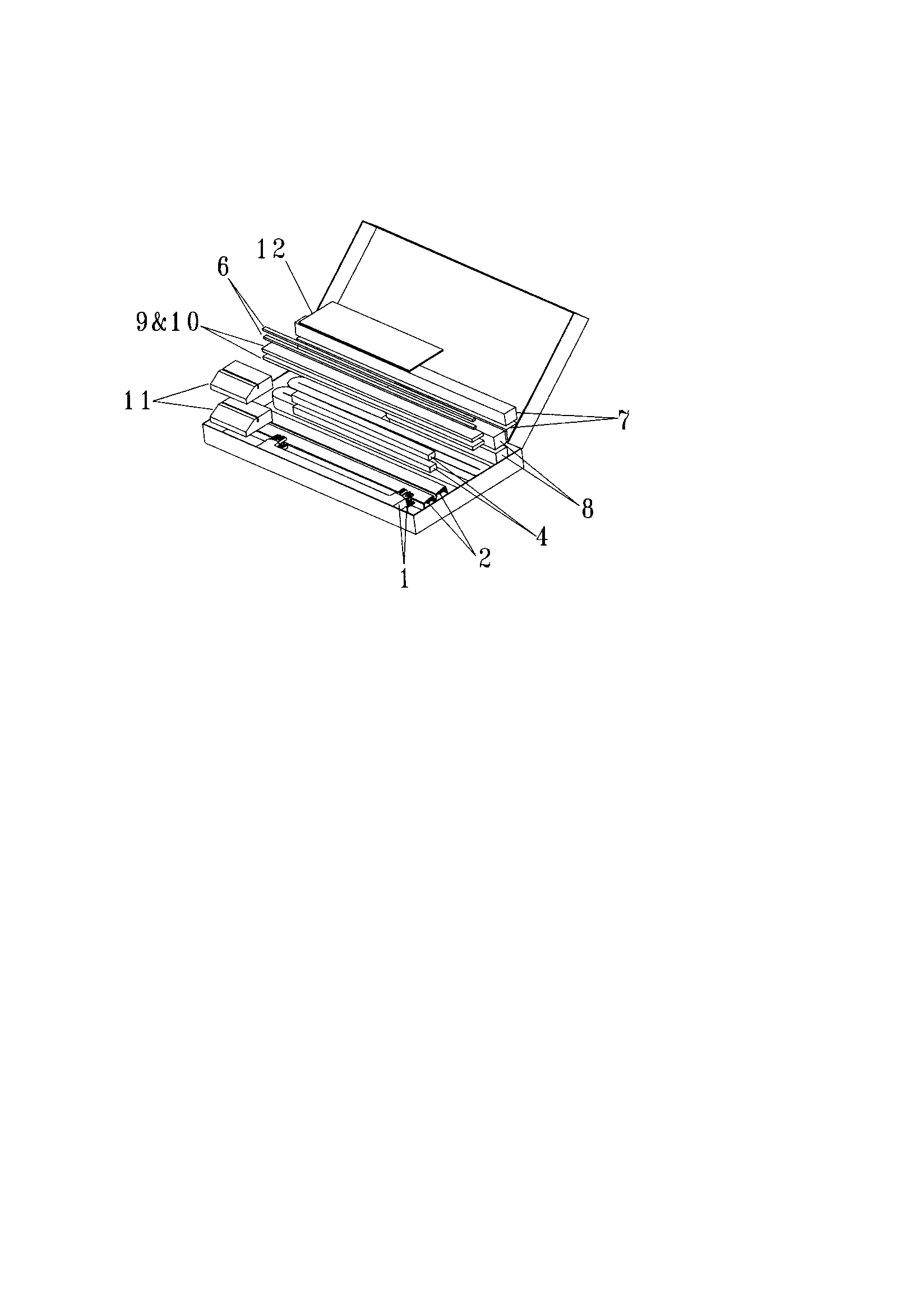

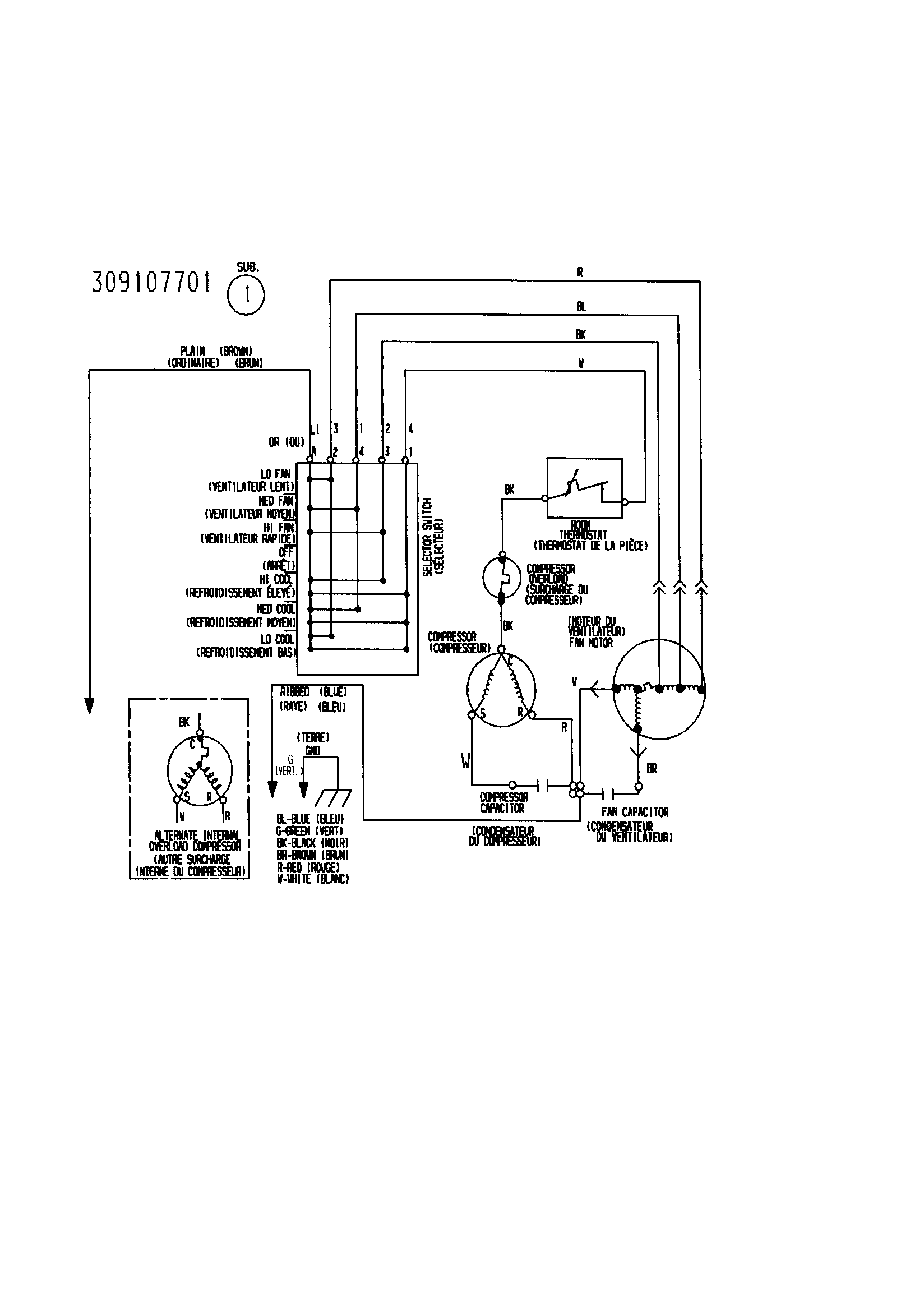

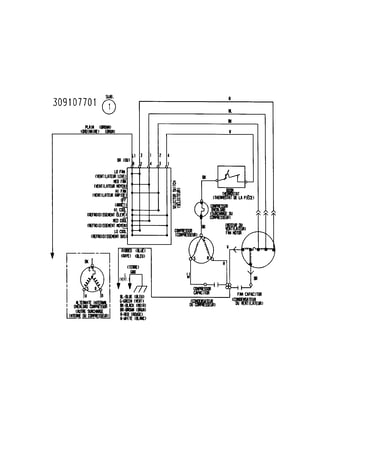

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#19

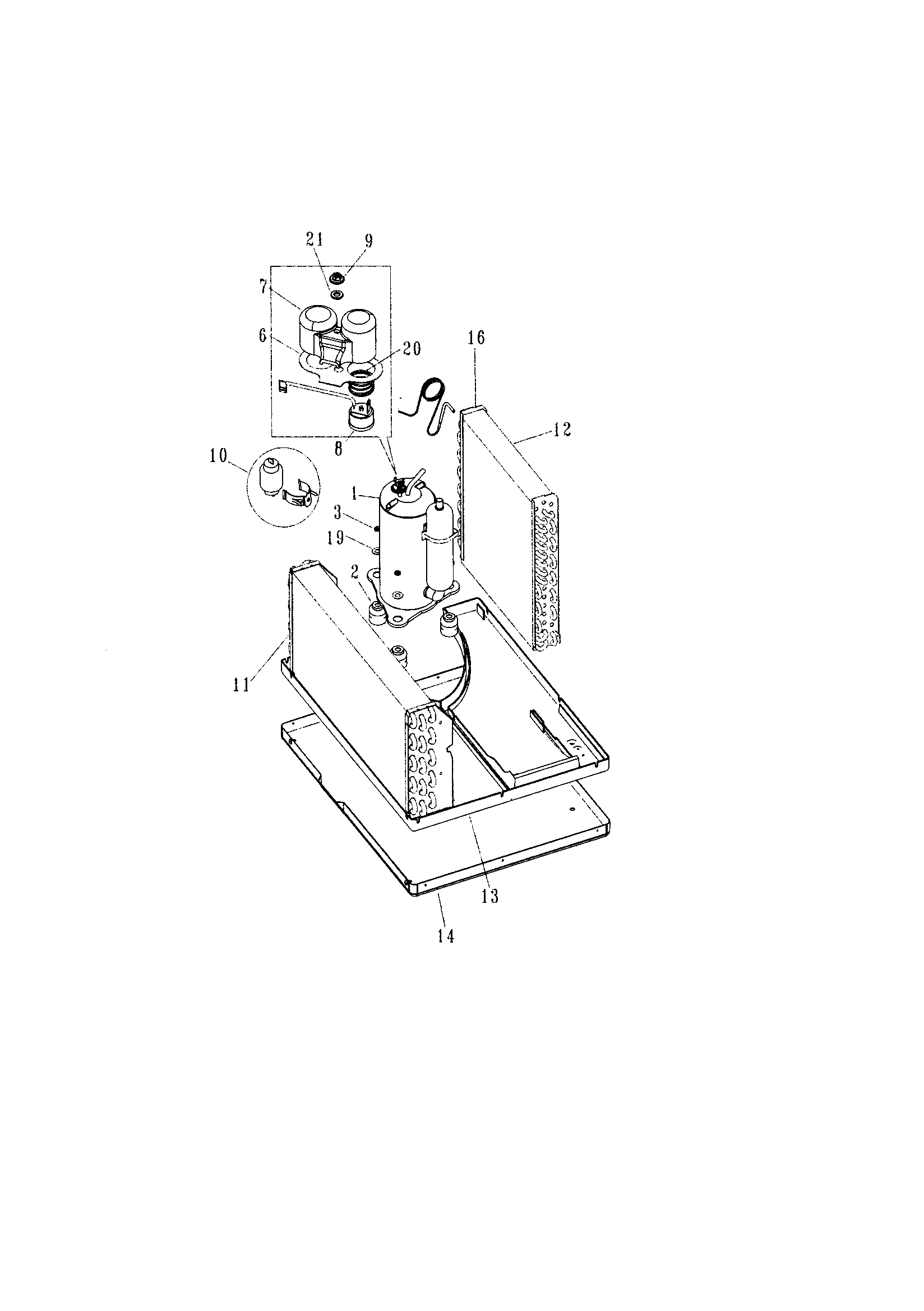

Compressor diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Screw 3202975
#2

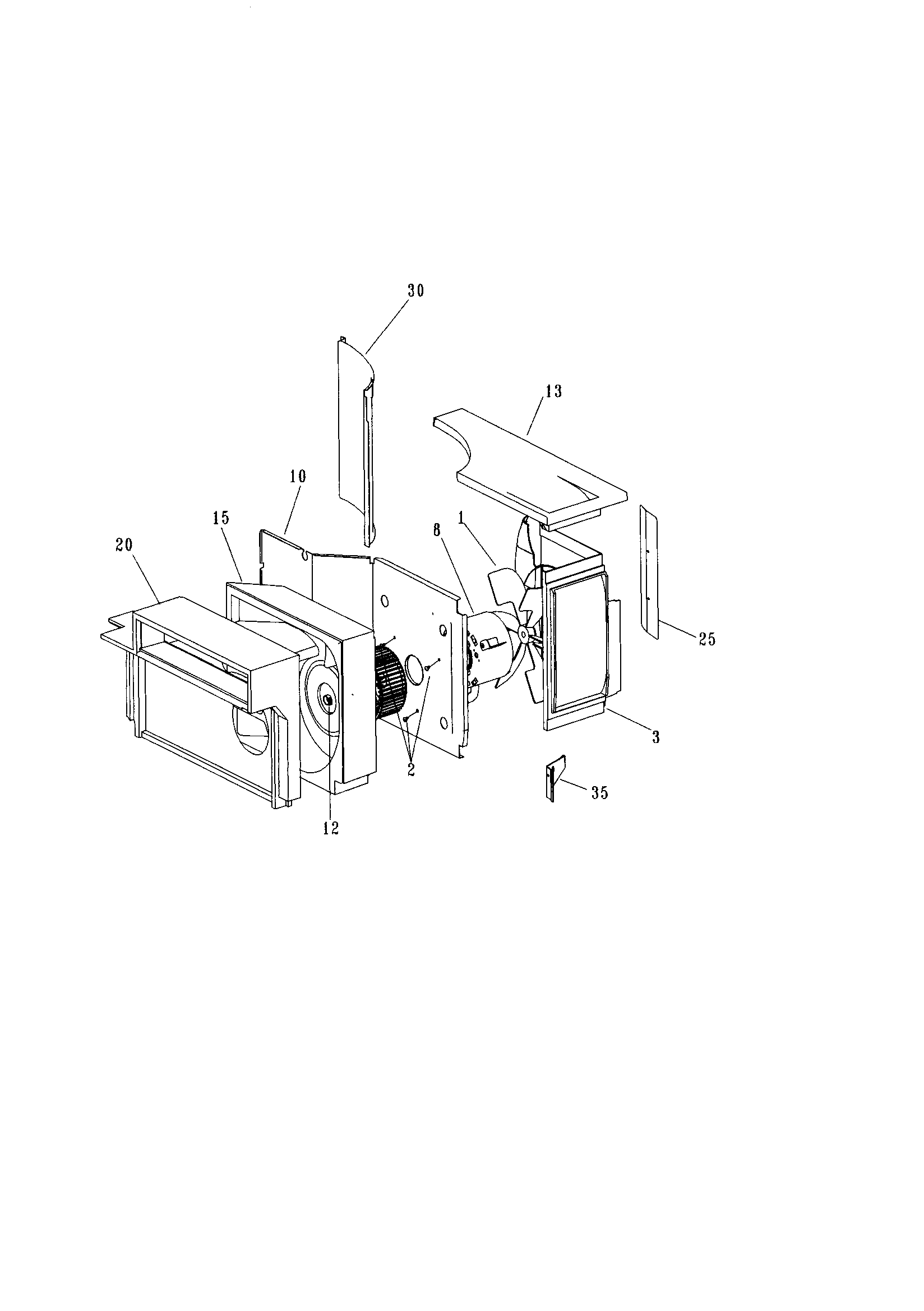

Air handling diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Spacer 3200761
#35

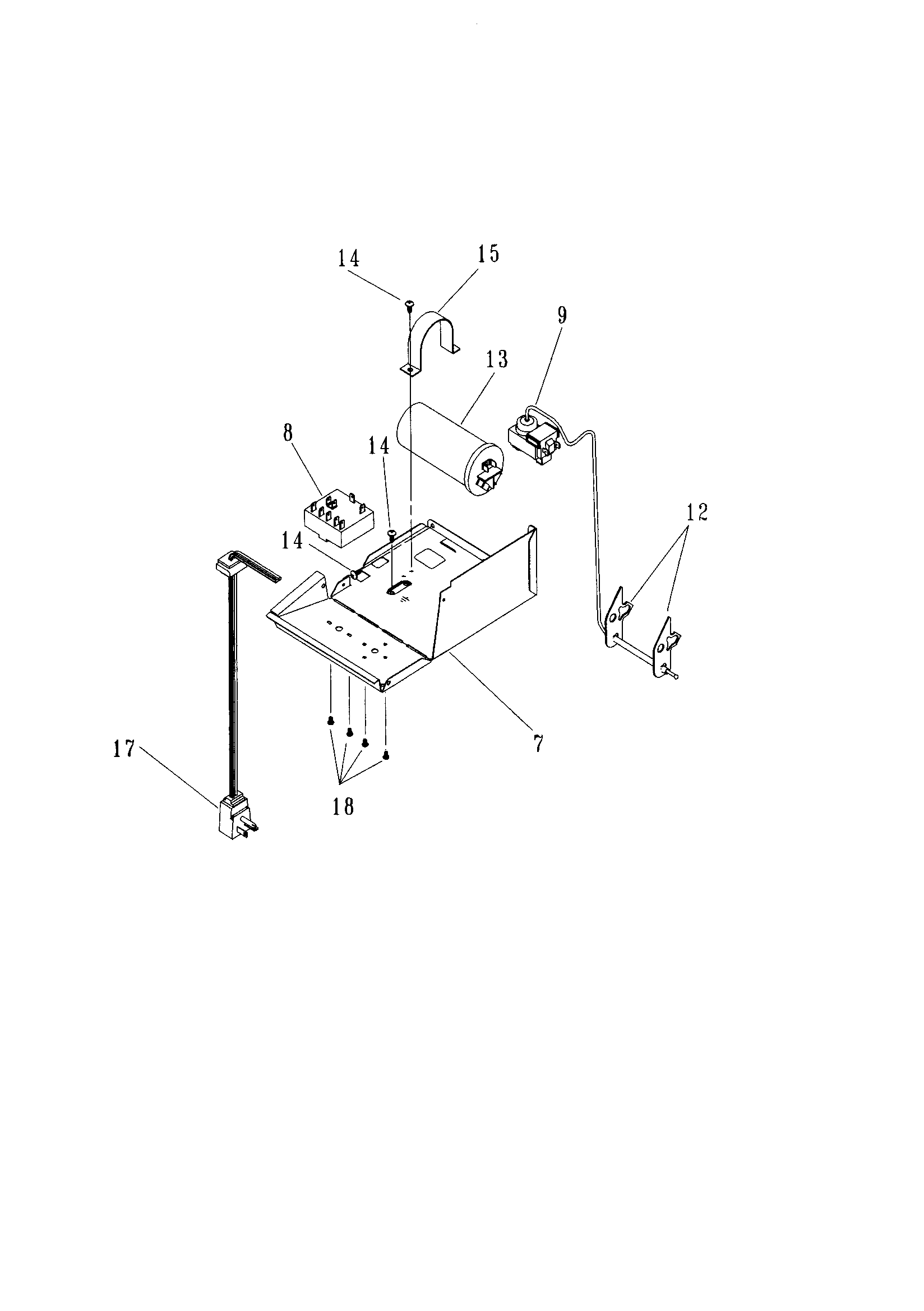

Control diagram

Spacer

Part #3200761

The manufacturer no longer makes this part, and there's no substitute part

Cover Nut 5303311734
#9

Compressor diagram

Cover nut

Part #5303311734

The manufacturer no longer makes this part, and there's no substitute part

+evap Assy-1 309632303
#11

Compressor diagram

+evap assy-1

Part #309632303

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Compressor Grommet 5303283877
#2

Compressor diagram

Room air conditioner compressor grommet

Part #5303283877

The manufacturer no longer makes this part, and there's no substitute part

#bulkhead-18 309627401
#10

Air handling diagram

#bulkhead-18

Part #309627401

The manufacturer no longer makes this part, and there's no substitute part

Control Box 309628501
#7

Control diagram

Control box

Part #309628501

The manufacturer no longer makes this part, and there's no substitute part

Control Cover 309631803
#43

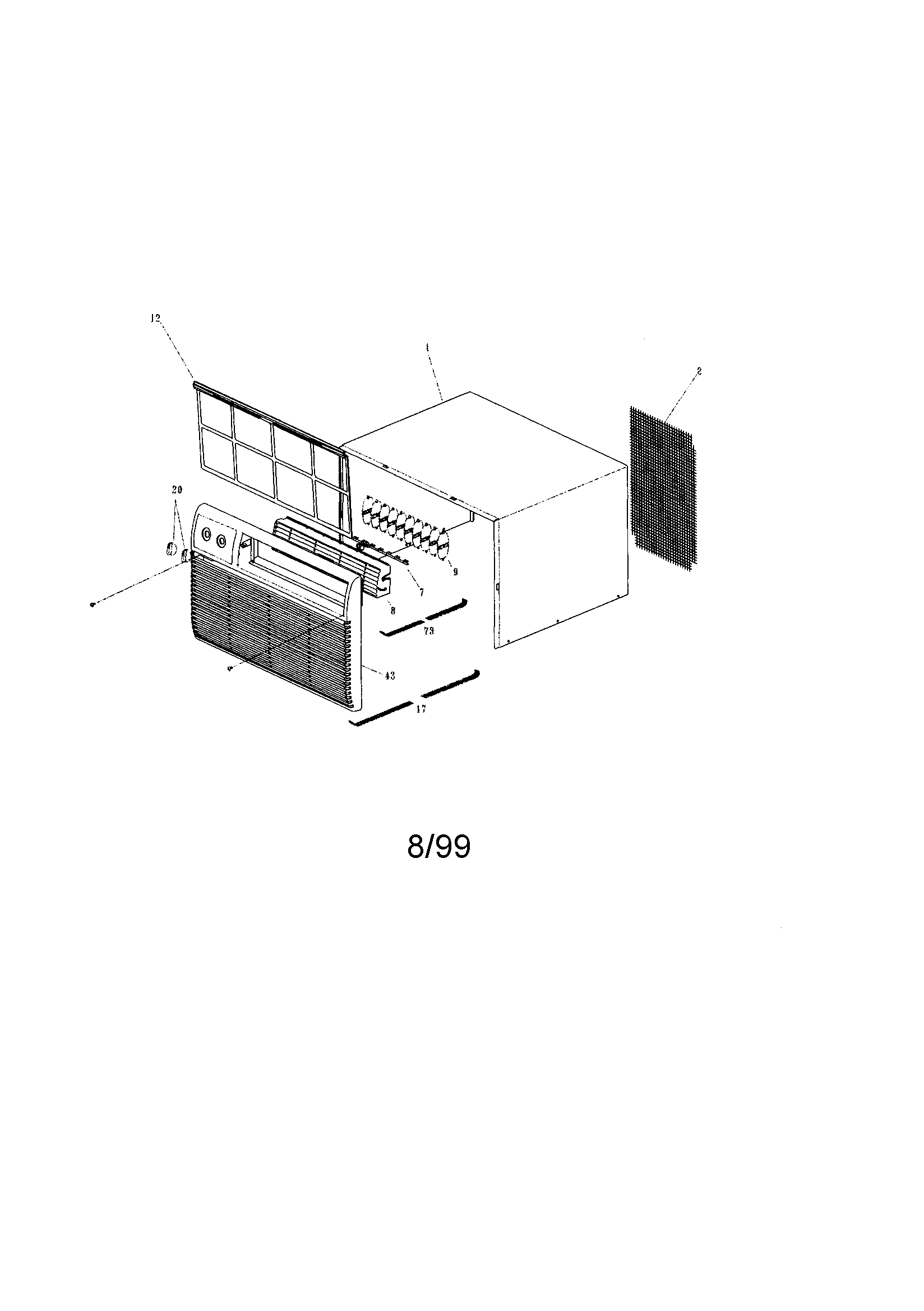

Cabinet front and wrapper diagram

Control cover

Part #309631803

The manufacturer no longer makes this part, and there's no substitute part

Safety Scren 309636101
#2

Cabinet front and wrapper diagram

Safety scren

Part #309636101

The manufacturer no longer makes this part, and there's no substitute part
