Kenmore
Canister Vacuum

Model # 1162040092 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1162040092 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |

Vacuum Receptacle Assembly 4147243
#24

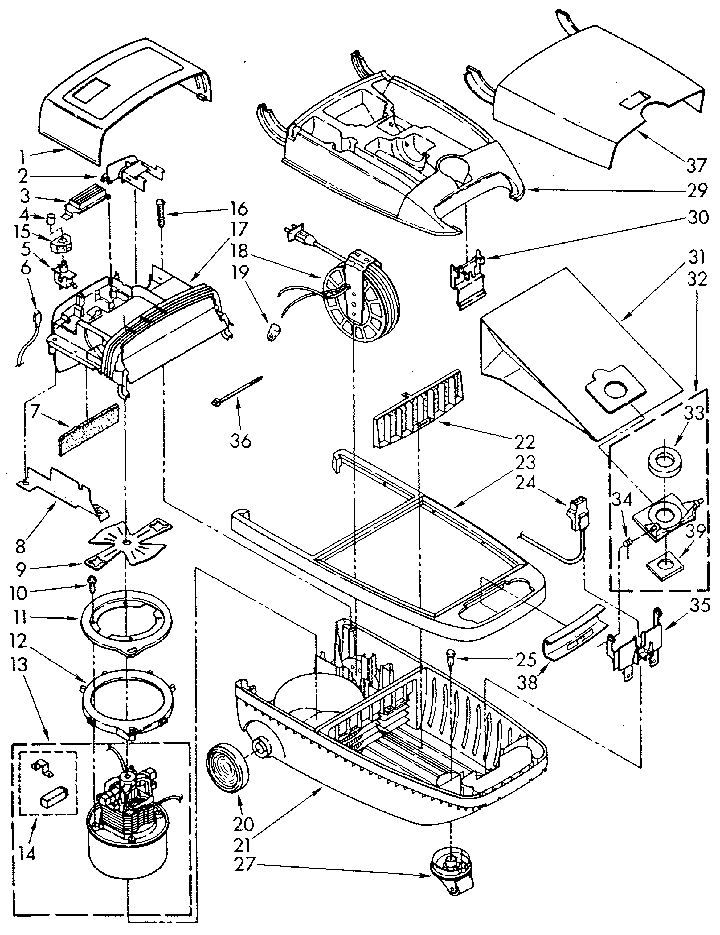

Base assembly diagram

Vacuum receptacle assembly

Part #4147243

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 4153014
#10

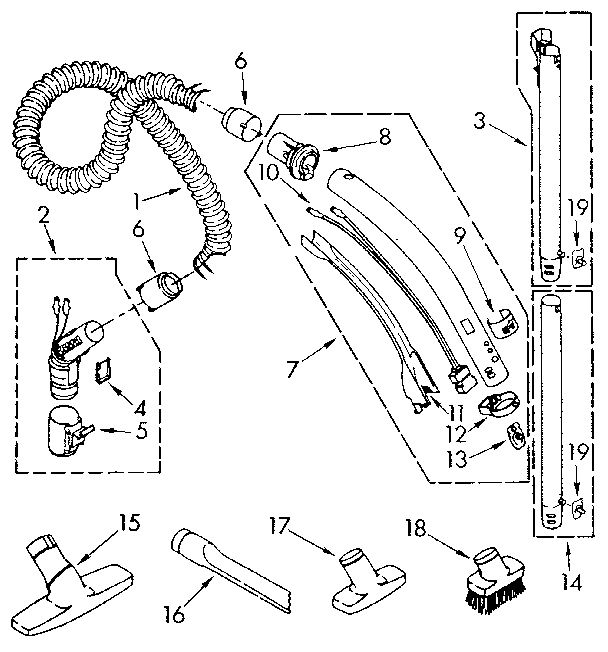

Hose and attachment diagram

Power cord

Part #4153014

The manufacturer no longer makes this part, and there's no substitute part

Seal 4150105
#39

Base assembly diagram

Seal

Part #4150105

The manufacturer no longer makes this part, and there's no substitute part

Grip 4147255
#38

Base assembly diagram

Grip

Part #4147255

The manufacturer no longer makes this part, and there's no substitute part

Filtr-sfty 4152969
#22

Base assembly diagram

Filtr-sfty

Part #4152969

The manufacturer no longer makes this part, and there's no substitute part

Canopy Cover 4154794
#1

Base assembly diagram

Canopy cover

Part #4154794

The manufacturer no longer makes this part, and there's no substitute part

Wand 747120
#3

Hose and attachment diagram

Wand

Part #747120

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 4147126
#20

Base assembly diagram

Vacuum wheel

Part #4147126

The manufacturer no longer makes this part, and there's no substitute part

Hood Latch 4147145
#30

Base assembly diagram

Hood latch

Part #4147145

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Adapter (gray) 4153047
#8

Hose and attachment diagram

Vacuum adapter (gray)

Part #4153047

The manufacturer no longer makes this part, and there's no substitute part
