Model # IR244 Official Ingersoll Rand wrench

Here are the diagrams and repair parts for Official Ingersoll Rand IR244 wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 45 parts |

#13

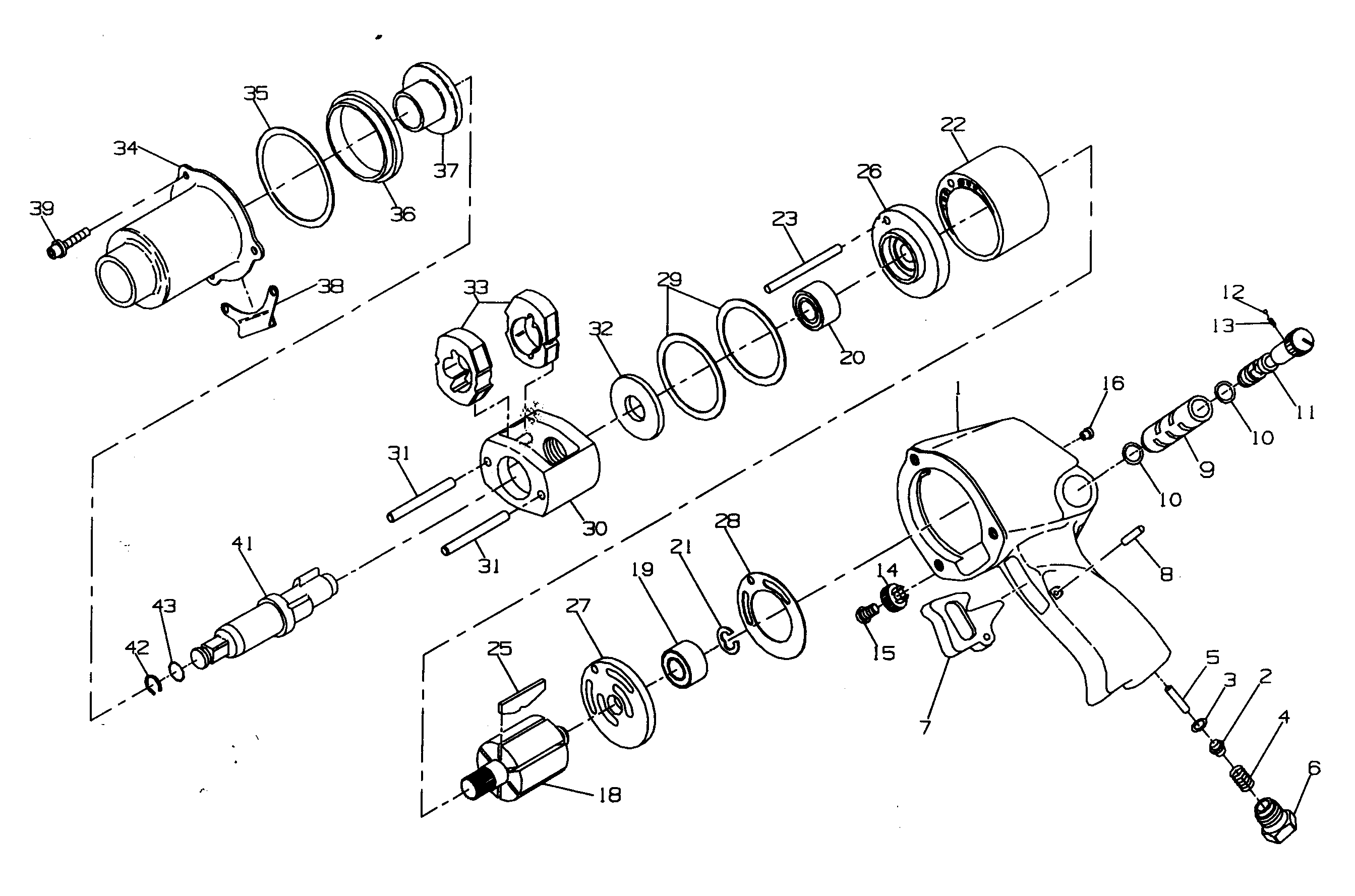

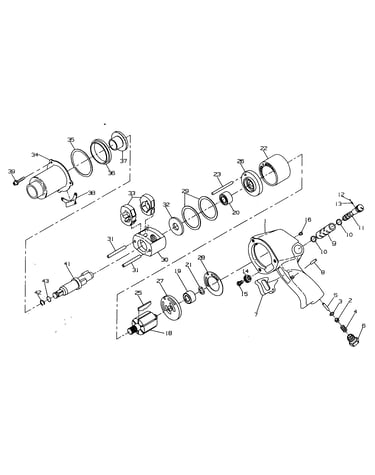

Wrench assy diagram

Pneumatic tool valve spring

Part #231-664

The manufacturer no longer makes this part, and there's no substitute part

#34

Wrench assy diagram

Hammer case

Part #705-A927

The manufacturer no longer makes this part, and there's no substitute part

#31

Wrench assy diagram

Part #231-704

The manufacturer no longer makes this part, and there's no substitute part

#23

Wrench assy diagram

Dowel

Part #230-98

The manufacturer no longer makes this part, and there's no substitute part

#36

Wrench assy diagram

Pilot

Part #405-800

The manufacturer no longer makes this part, and there's no substitute part

#29

Wrench assy diagram

Washer

Part #227-207

The manufacturer no longer makes this part, and there's no substitute part

#19

Wrench assy diagram

Bearing

Part #402-22

The manufacturer no longer makes this part, and there's no substitute part

#16

Wrench assy diagram

Fitting

Part #130SR-188

The manufacturer no longer makes this part, and there's no substitute part

#16A

Wrench assy diagram

Craftsman label

Part #WARNING-2-99

The manufacturer no longer makes this part, and there's no substitute part

#37

Wrench assy diagram

Pushing

Part #705-941

The manufacturer no longer makes this part, and there's no substitute part
