Model # WTW7120HW1 Official Whirlpool washer

Here are the diagrams and repair parts for Official Whirlpool WTW7120HW1 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

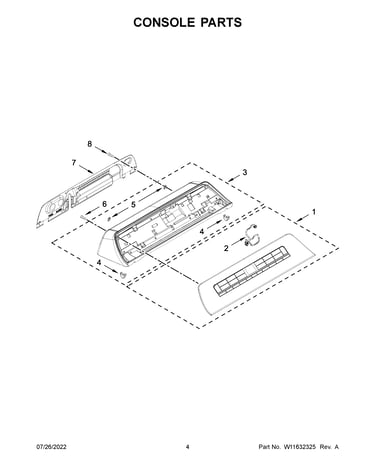

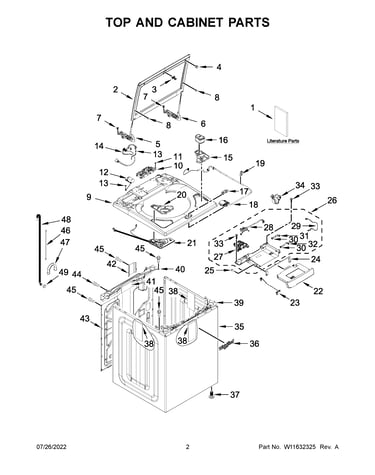

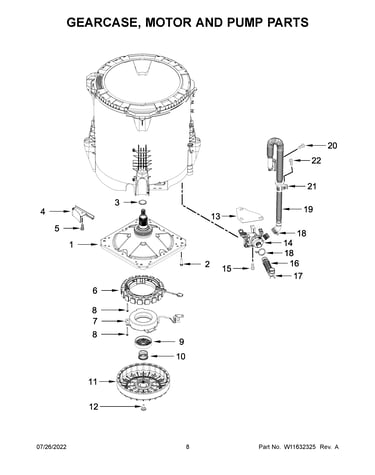

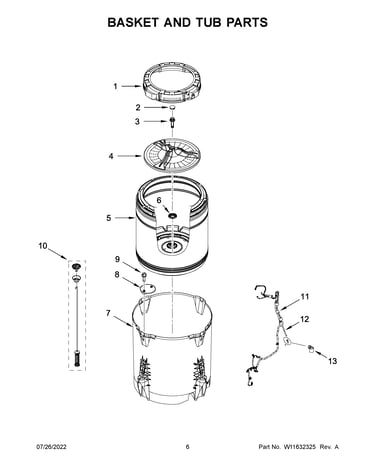

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Spring Support W10006494
Spring support

Part #W10006494

Replaced by #W10734521

?
Manufacturer substitution
This part replaces W10006494. Substitute parts can look different from the original.
BEST SELLER
$30.14 |
17% OFF Phone Price : $36.14
In Stock
Slider W10905025
Slider

Part #W10905025

Replaced by #W10734521

?
Manufacturer substitution
This part replaces W10905025. Substitute parts can look different from the original.
BEST SELLER
$30.14 |
17% OFF Phone Price : $36.14
In Stock
Clutch Coil W10905022
Clutch coil

Part #W10905022

Replaced by #W10754448

?
Manufacturer substitution
This part replaces W10905022. Substitute parts can look different from the original.
BEST SELLER
$66.68 |
8% OFF Phone Price : $72.68
In Stock
Lid Lock-sol W11032875
Lid lock-sol

Part #W11032875

Replaced by #W11700916

?
Manufacturer substitution
This part replaces W11032875. Substitute parts can look different from the original.
BEST SELLER
$36.44 |
14% OFF Phone Price : $42.44
In Stock
Washer Washplate Screw W10625252
Washer washplate screw

Part #W10625252

Replaced by #W10752187

?
Manufacturer substitution
This part replaces W10625252. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.13 |
24% OFF Phone Price : $4.13
In Stock
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$12.27 |
14% OFF Phone Price : $14.27
In Stock
Washer Lid Strike W11091027
Washer lid strike

Part #W11091027

Replaced by #W11457841

?
Manufacturer substitution
This part replaces W11091027. Substitute parts can look different from the original.
BEST SELLER
$13.45 |
13% OFF Phone Price : $15.45
In Stock
Damper Asm - W11187091
Damper asm -

Part #W11187091

Replaced by #W11400156

?
Manufacturer substitution
This part replaces W11187091. Substitute parts can look different from the original.
BEST SELLER
$70.46 |
8% OFF Phone Price : $76.46
In Stock
Impeller W10834890
Impeller

Part #W10834890

Replaced by #W10752283

?
Manufacturer substitution
This part replaces W10834890. Substitute parts can look different from the original.
BEST SELLER
$70.92 |
8% OFF Phone Price : $76.92
In Stock
Pump Asm, Dr W11263349
Pump asm, dr

Part #W11263349

Replaced by #W11396717

?
Manufacturer substitution
This part replaces W11263349. Substitute parts can look different from the original.
BEST SELLER
$93.40 |
6% OFF Phone Price : $99.40
In Stock
