Kenmore
Gas Range

Model # 1037394000 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 1037394000 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

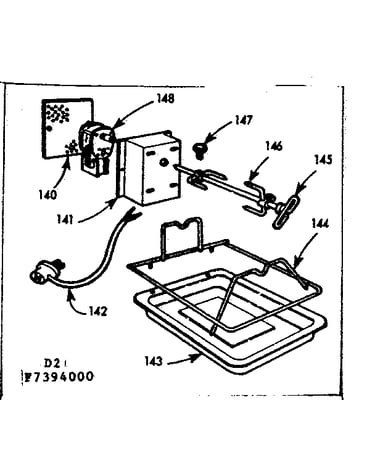

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Drawer Guide 97820
#103

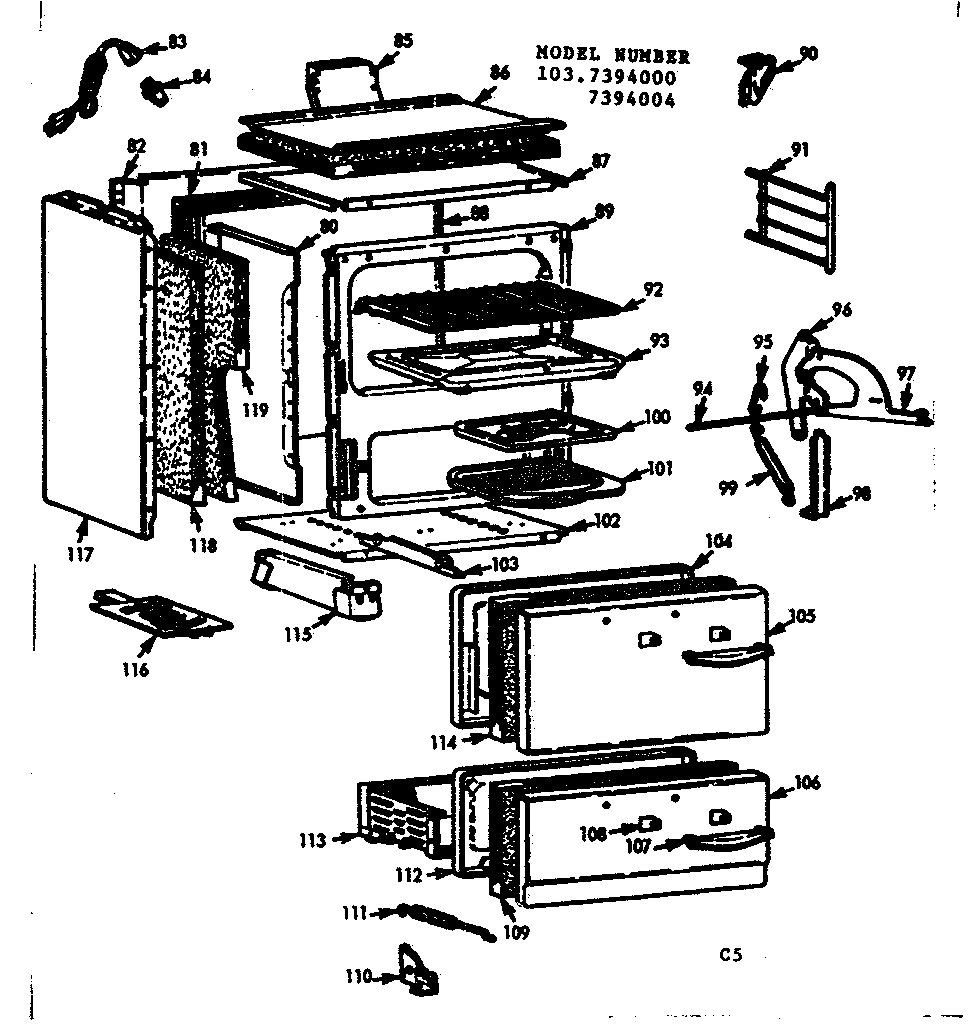

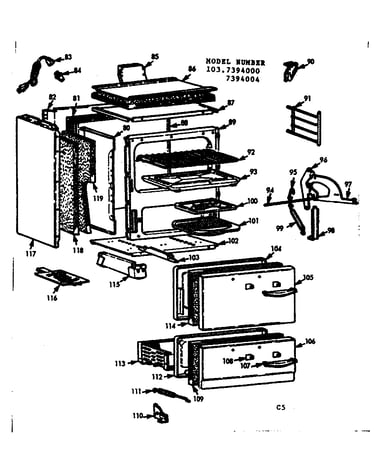

Body section diagram

Drawer guide

Part #97820

This item is not returnable
$3.99
In Stock
Door Panel 106693
#106

Body section diagram

Door panel

Part #106693

The manufacturer no longer makes this part, and there's no substitute part

Main 98214
#82

Body section diagram

Main

Part #98214

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness 108396
#10

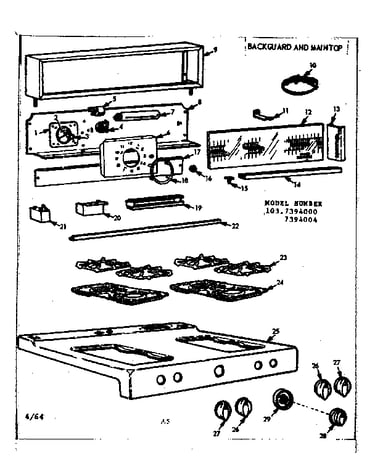

Backguard and maintop diagram

Wire harness

Part #108396

The manufacturer no longer makes this part, and there's no substitute part

Insulation 87577
#118

Body section diagram

Insulation

Part #87577

The manufacturer no longer makes this part, and there's no substitute part

Valve Knob 97996
#27

Backguard and maintop diagram

Valve knob

Part #97996

The manufacturer no longer makes this part, and there's no substitute part

Clock Bezel 70669
#18

Backguard and maintop diagram

Clock bezel

Part #70669

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 73258
#58

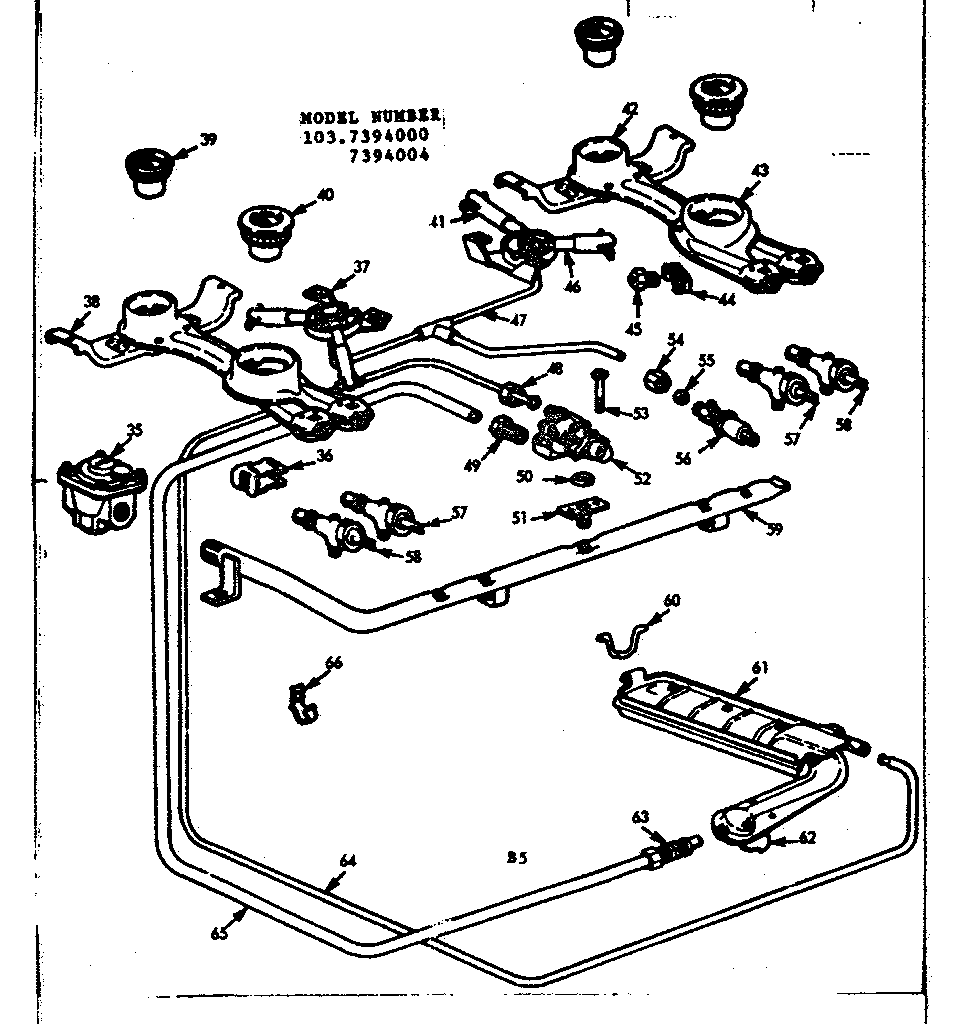

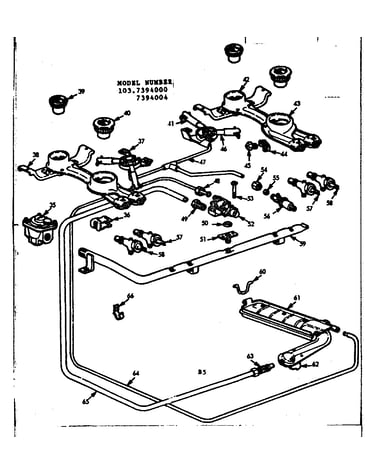

Burner section diagram

Gas valve

Part #73258

The manufacturer no longer makes this part, and there's no substitute part

Burner 106570
#43A

Burner section diagram

Burner

Part #106570

The manufacturer no longer makes this part, and there's no substitute part

Door Hinge 70406
#96

Body section diagram

Door hinge

Part #70406

The manufacturer no longer makes this part, and there's no substitute part
