Kenmore
Bottom-Mount Refrigerator

Model # 59668953801 Official Kenmore bottom-mount refrigerator

Here are the diagrams and repair parts for Official Kenmore 59668953801 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

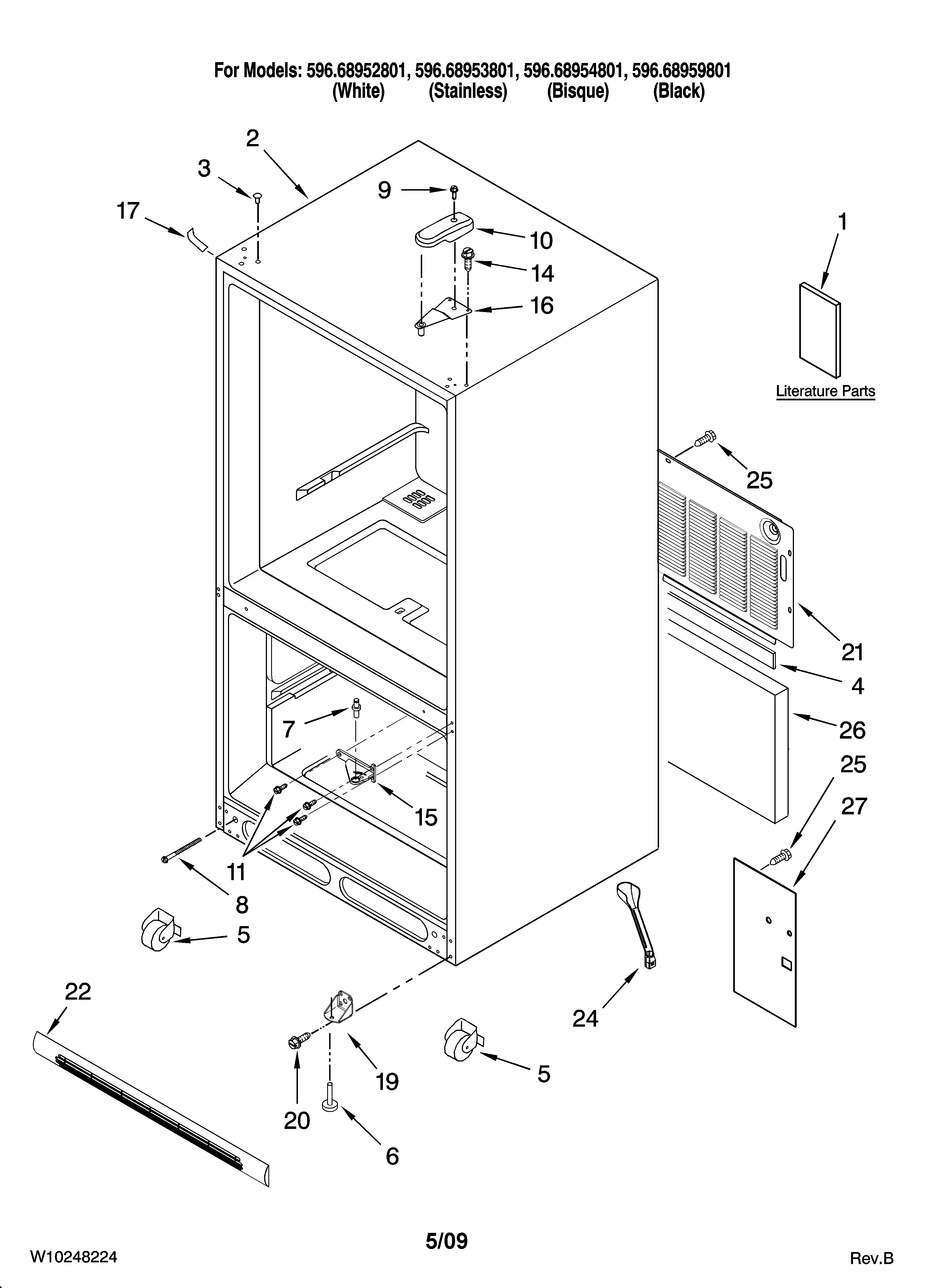

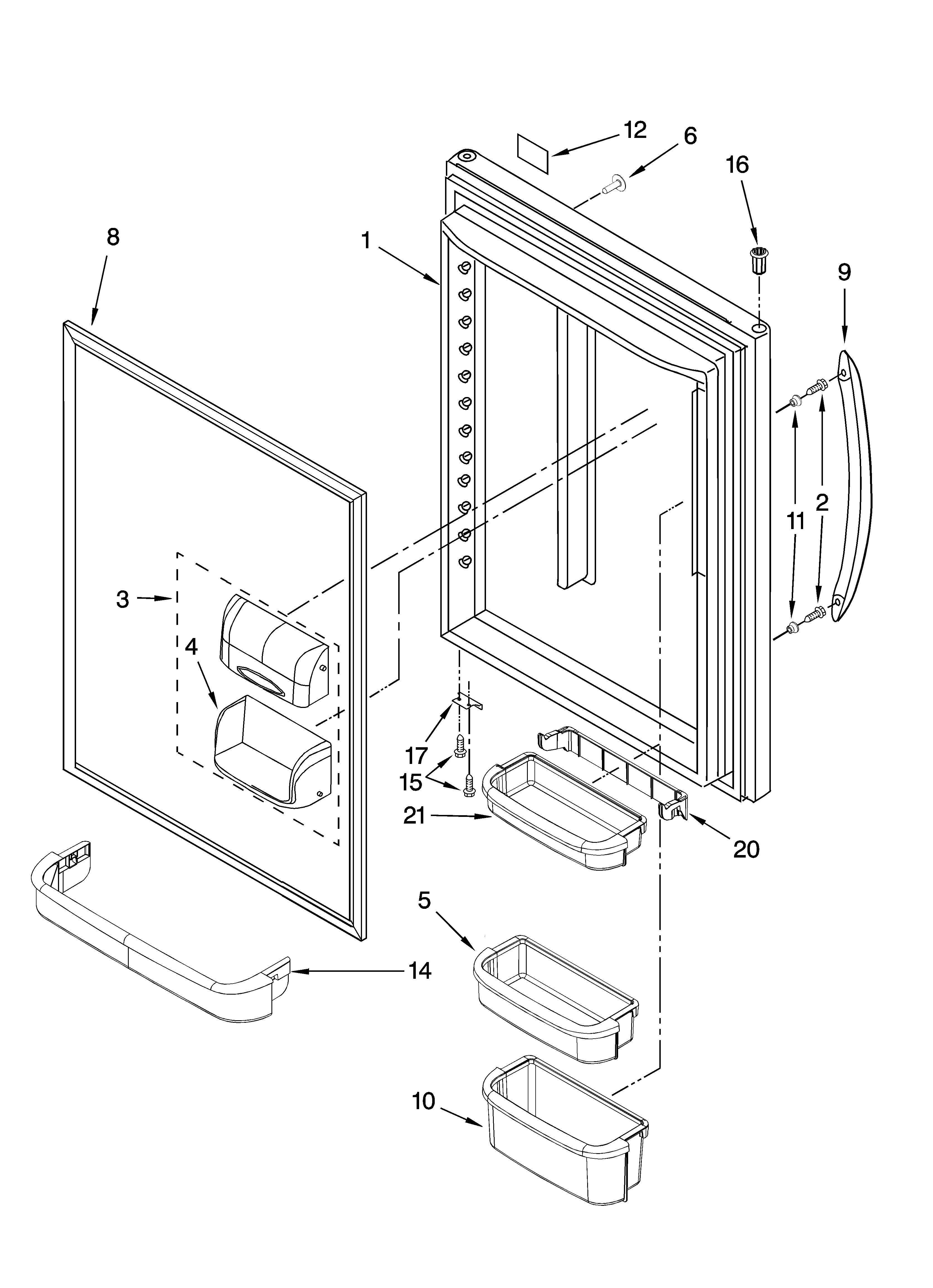

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |
Refrigerator Drier 2317845
#27

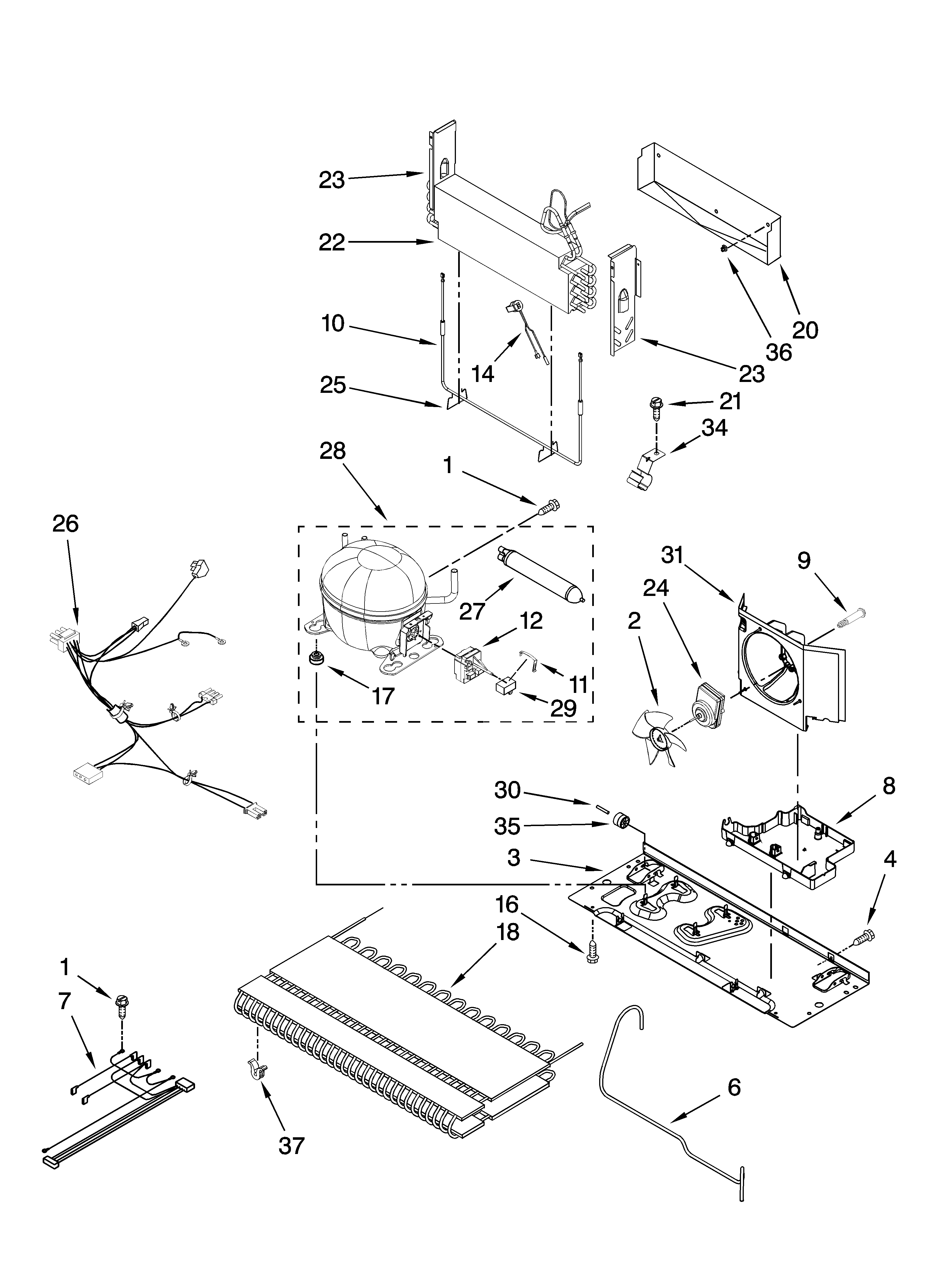

Unit parts diagram

Refrigerator drier

Part #2317845

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 2317845. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Bulb W10194422
Refrigerator light bulb

Part #W10194422

Replaced by #40A15

?
Manufacturer substitution
This part replaces W10194422. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Light Switch C3680310
#6

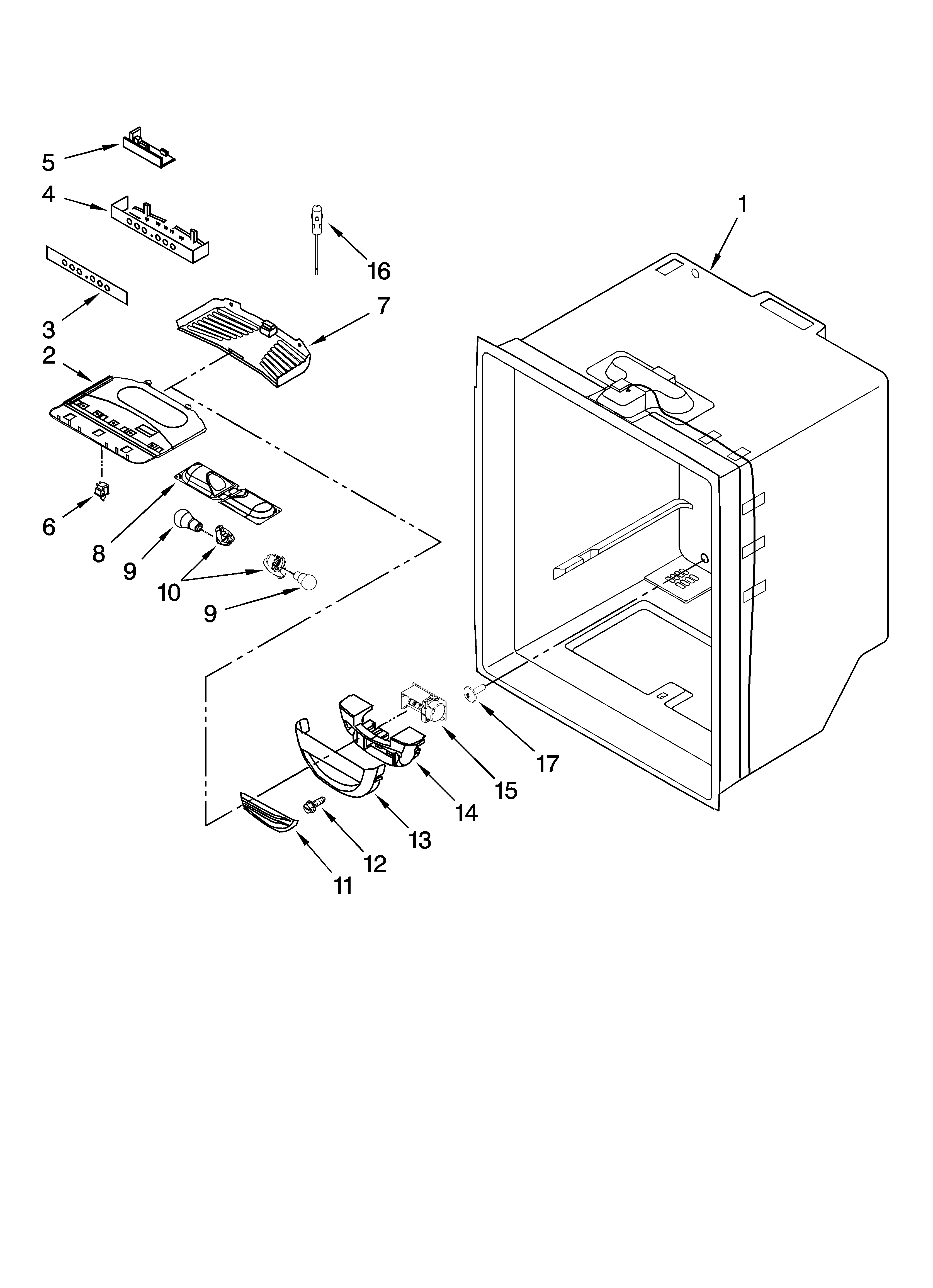

Refrigerator liner parts diagram

Refrigerator light switch

Part #C3680310

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Crisper Drawer Support Rail, Center 67001057
#12

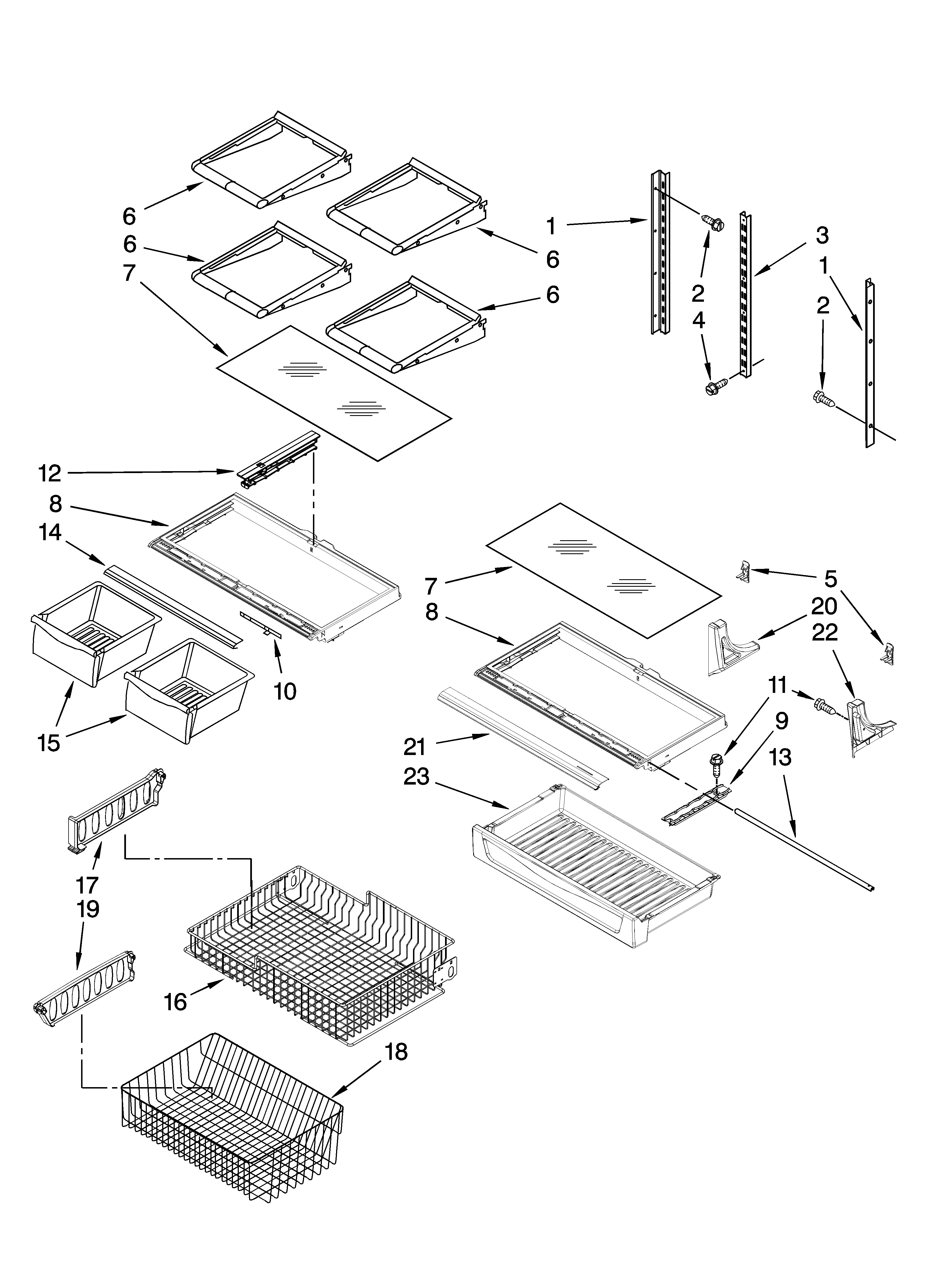

Shelf parts diagram

Refrigerator crisper drawer support rail, center

Part #67001057

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces 67001057. Substitute parts can look different from the original.
BEST SELLER
$45.01 |
12% OFF Phone Price : $51.01
In Stock
Refrigerator Light Switch 67005653
#11

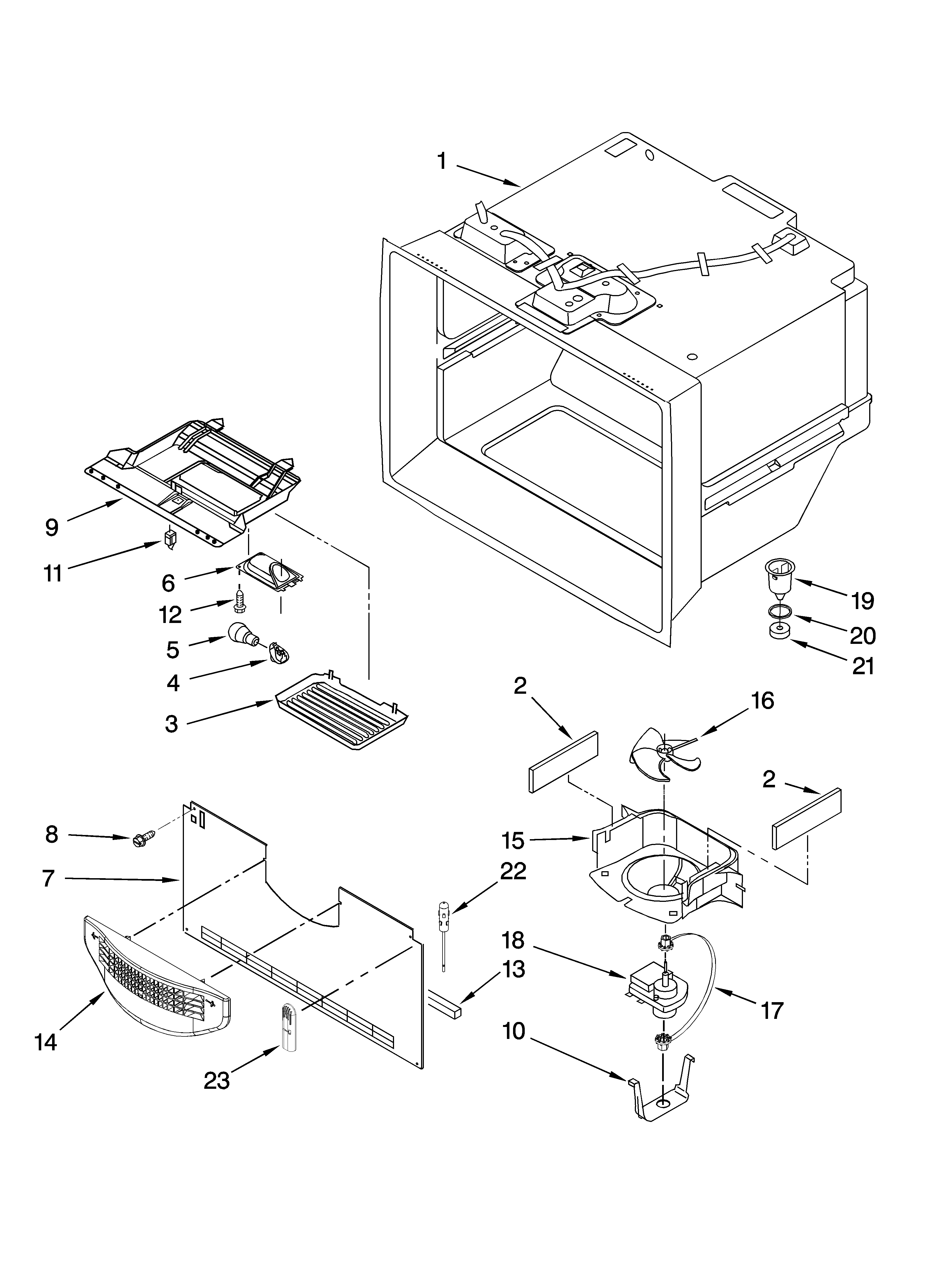

Freezer liner parts diagram

Refrigerator light switch

Part #67005653

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 67005653. Substitute parts can look different from the original.
BEST SELLER
$21.08 |
22% OFF Phone Price : $27.08
In Stock
Refrigerator Defrost Bi-metal Thermostat W10165425
#14

Unit parts diagram

Refrigerator defrost bi-metal thermostat

Part #W10165425

Replaced by #WPW10165425

?
Manufacturer substitution
This part replaces W10165425. Substitute parts can look different from the original.
BEST SELLER
$42.21 |
12% OFF Phone Price : $48.21
In Stock
Refrigerator Heater 12729127
#10

Unit parts diagram

Refrigerator heater

Part #12729127

Replaced by #WP12729127

?
Manufacturer substitution
This part replaces 12729127. Substitute parts can look different from the original.
BEST SELLER
$70.16 |
8% OFF Phone Price : $76.16
In Stock
Refrigerator Grille W10175909
#14

Freezer liner parts diagram

Refrigerator grille

Part #W10175909

Replaced by #WPW10175909

?
Manufacturer substitution
This part replaces W10175909. Substitute parts can look different from the original.
BEST SELLER
$33.88 |
15% OFF Phone Price : $39.88
In Stock
Refrigerator Gasket Panel W10164032
#3

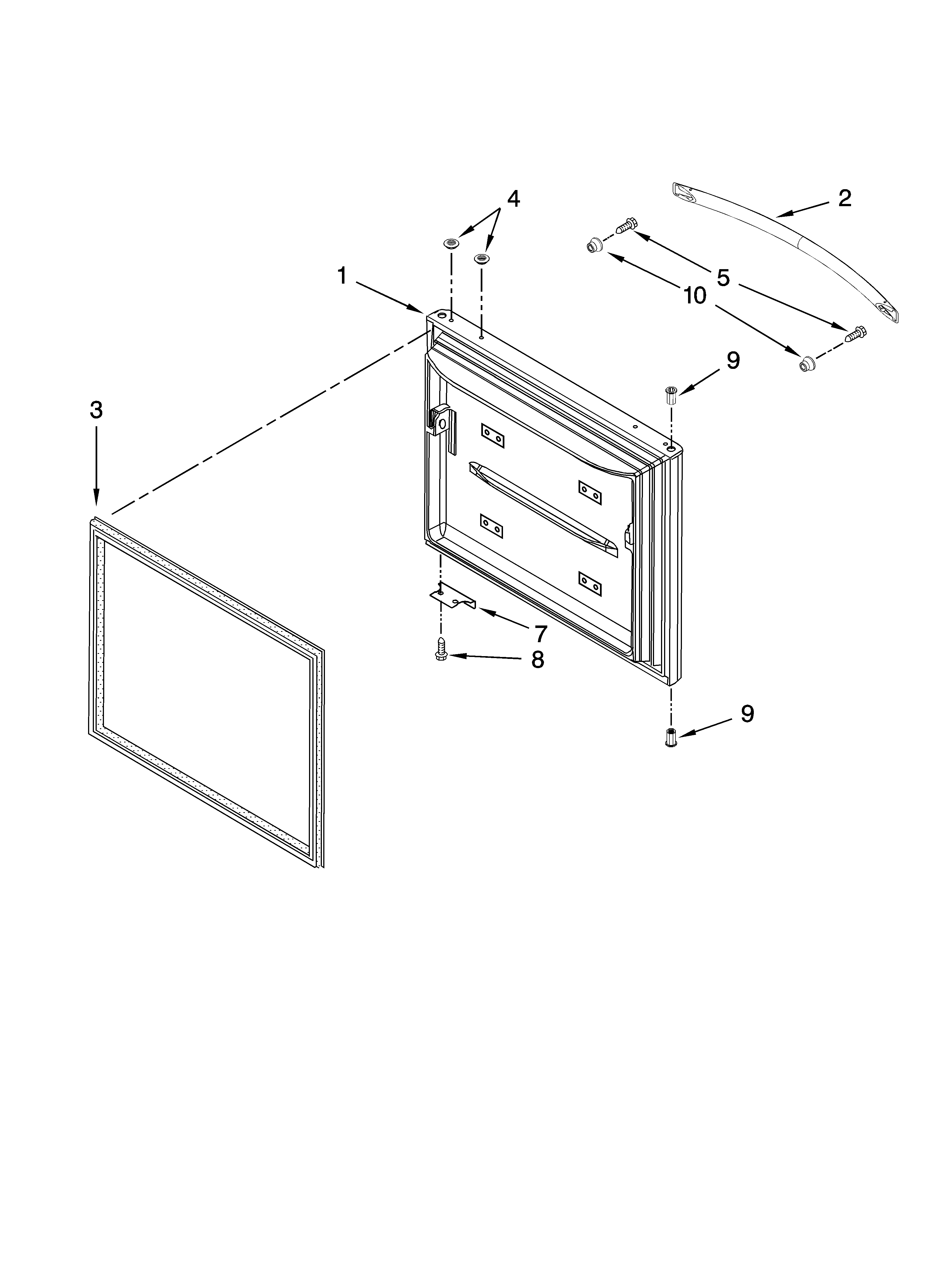

Freezer door parts diagram

Refrigerator gasket panel

Part #W10164032

Replaced by #WPW10443311

?
Manufacturer substitution
This part replaces W10164032. Substitute parts can look different from the original.
BEST SELLER
$166.10 |
7% OFF Phone Price : $178.10
In Stock
Refrigerator Crisper Drawer 67002569
#15

Shelf parts diagram

Refrigerator crisper drawer

Part #67002569

Replaced by #W10833528

?
Manufacturer substitution
This part replaces 67002569. Substitute parts can look different from the original.
$81.68 |
7% OFF Phone Price : $87.68
In Stock
