Heating & Cooling Combined Unit

Model # PAMB36G1 Official ICP central package

Here are the diagrams and repair parts for Official ICP PAMB36G1 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

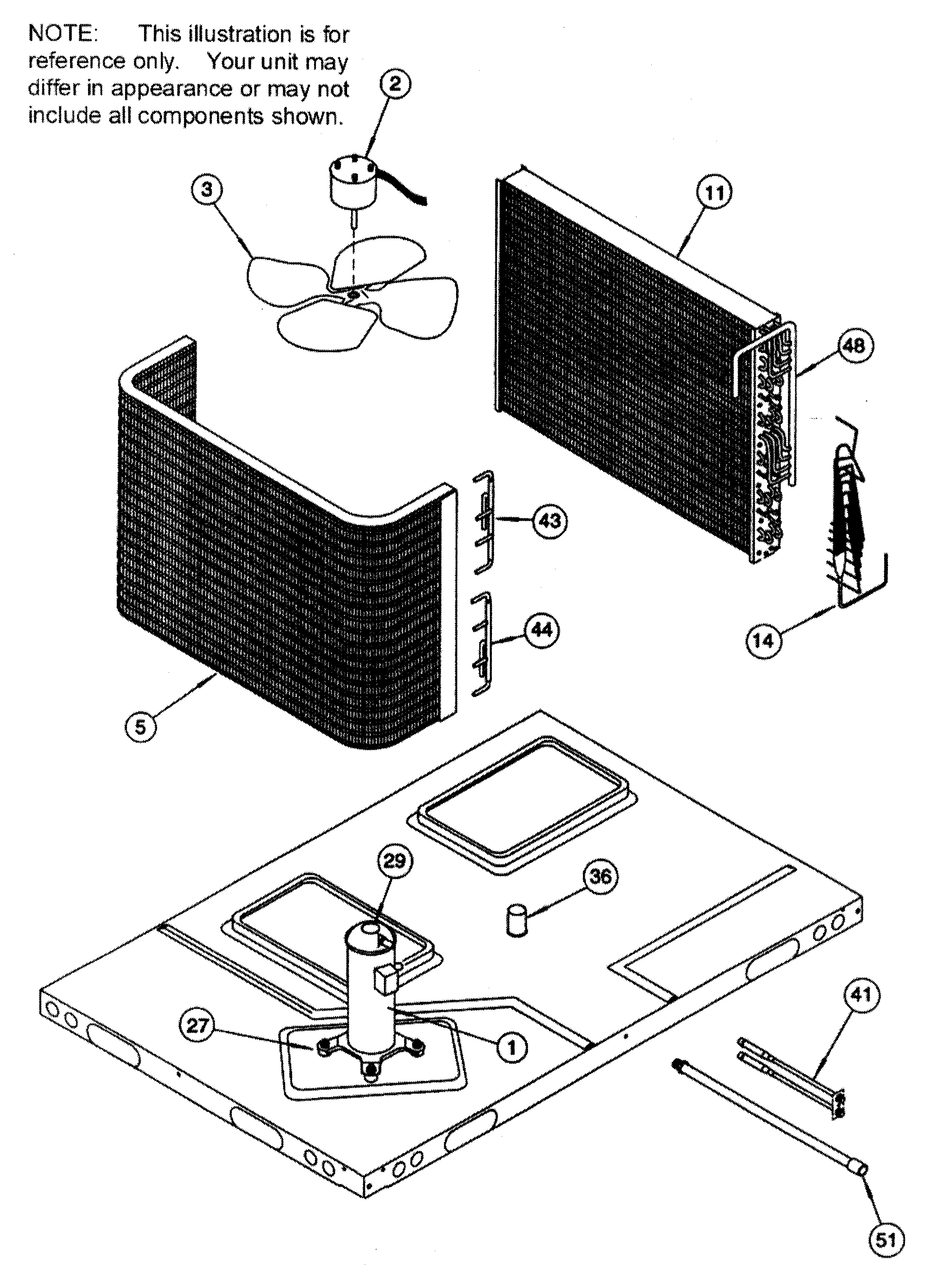

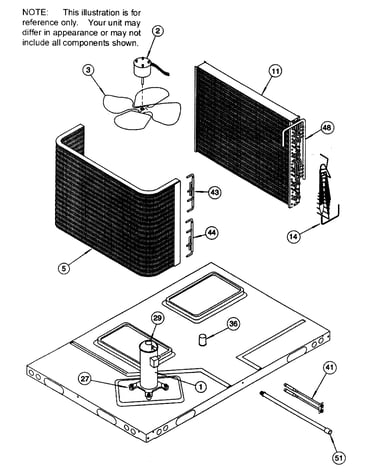

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Capacitor 1053068
#36

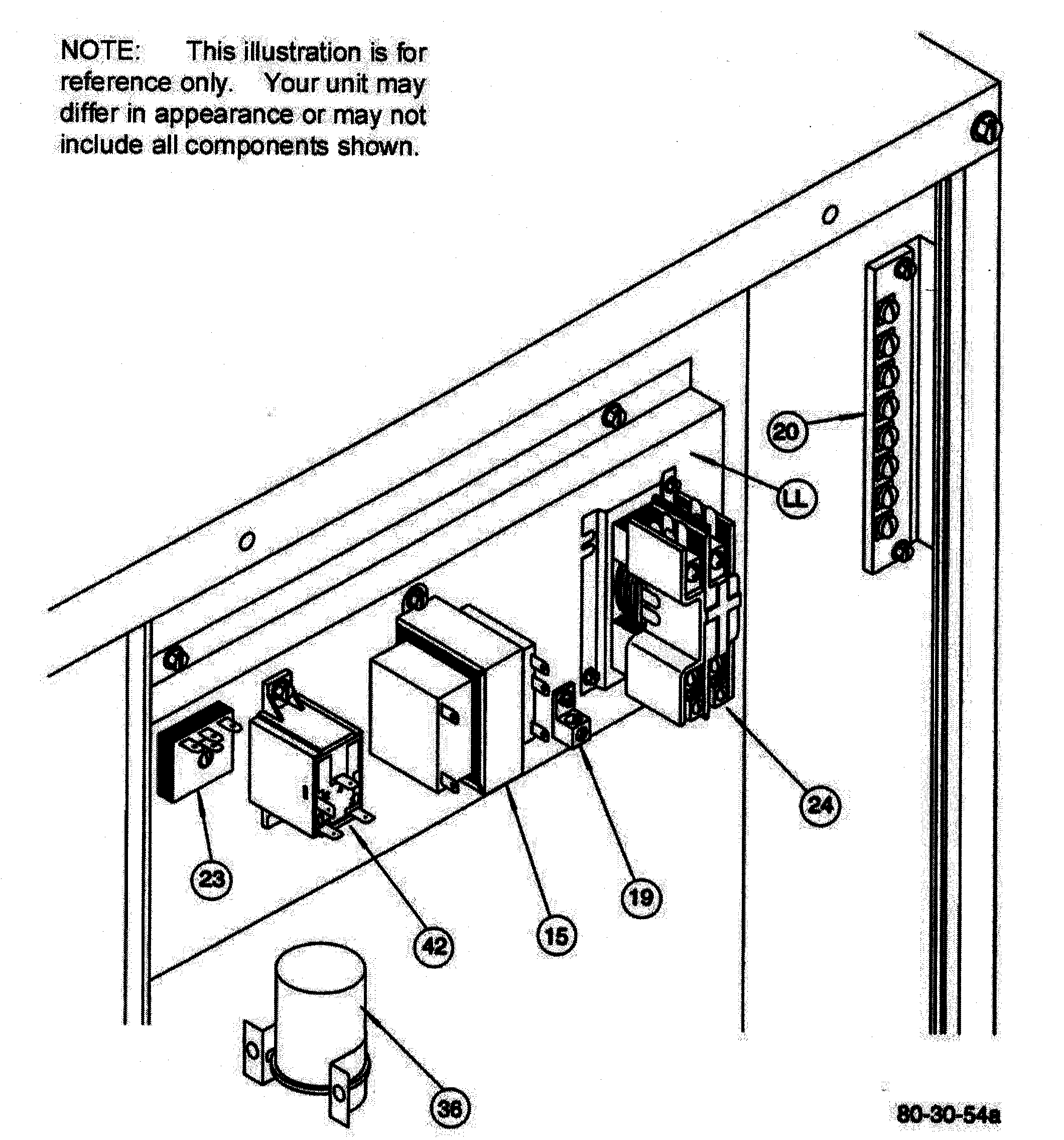

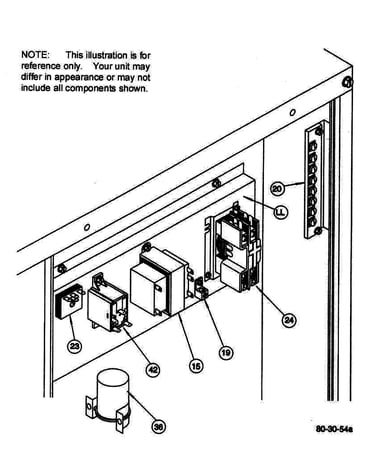

Control panel diagram

Capacitor

Part #1053068

Replaced by #PAKTRCFD355

?
Manufacturer substitution
This part replaces 1053068. Substitute parts can look different from the original.
BEST SELLER
$14.47 |
12% OFF Phone Price : $16.47
In Stock
Relay Spdt 1058148
#42

Control panel diagram

Relay spdt

Part #1058148

Replaced by #WR90-370

?
Manufacturer substitution
This part replaces 1058148. Substitute parts can look different from the original.
$21.63 |
22% OFF Phone Price : $27.63
In Stock
Capacitor 1006176
#6

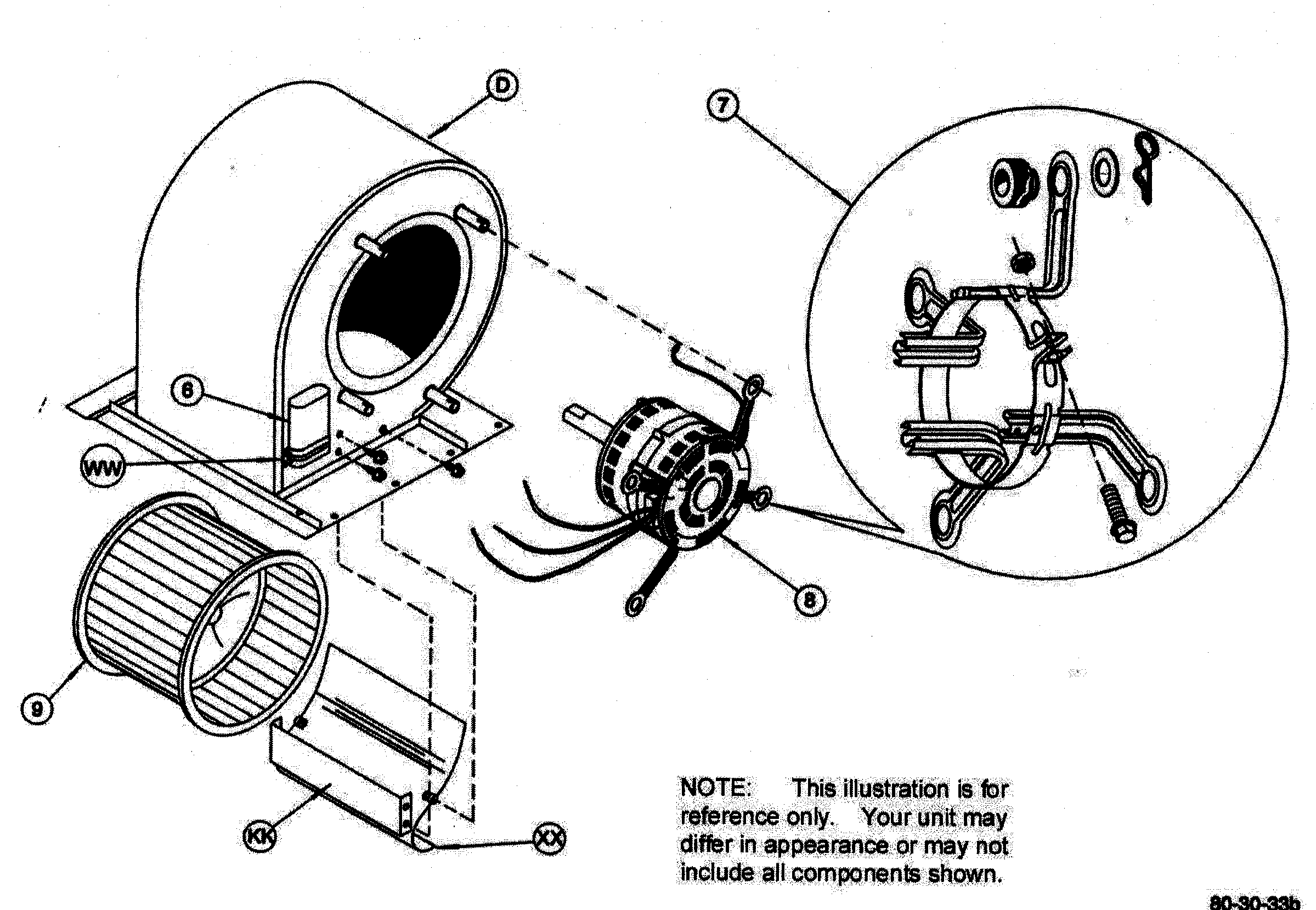

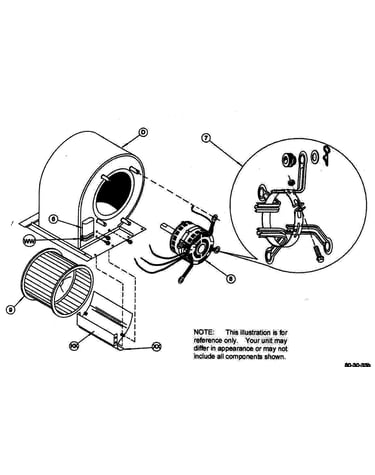

Blower assy diagram

Capacitor

Part #1006176

Replaced by #12910

?
Manufacturer substitution
This part replaces 1006176. Substitute parts can look different from the original.
$8.37 |
11% OFF Phone Price : $9.37
In Stock
Wheel 1054592
#9

Blower assy diagram

Wheel

Part #1054592

$193.76
In Stock
Central Air Conditioner Air Handler Blower Motor 1065279
#8

Blower assy diagram

Central air conditioner air handler blower motor

Part #1065279

$595.13
In Stock
Orifice Fan 1065724
#C

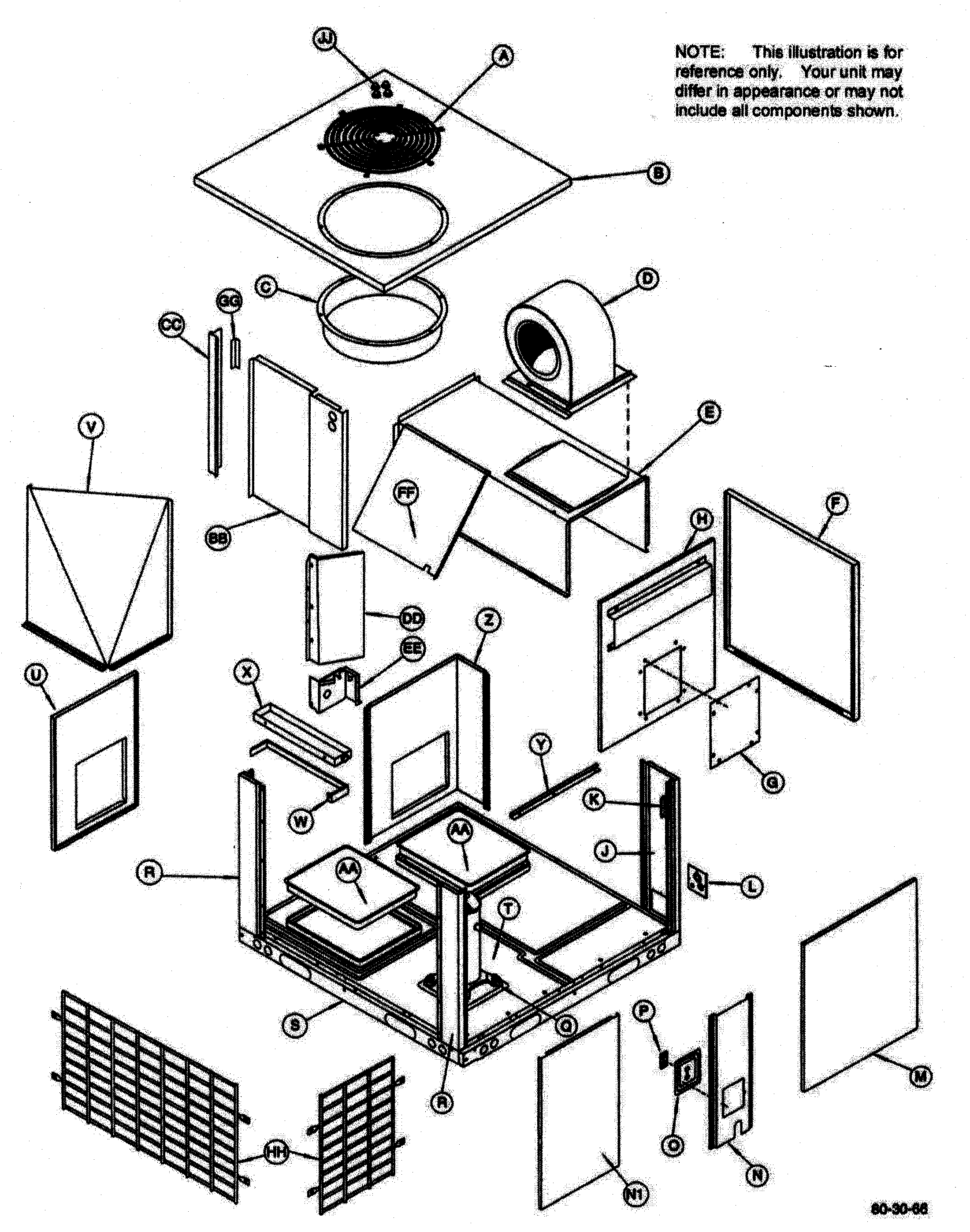

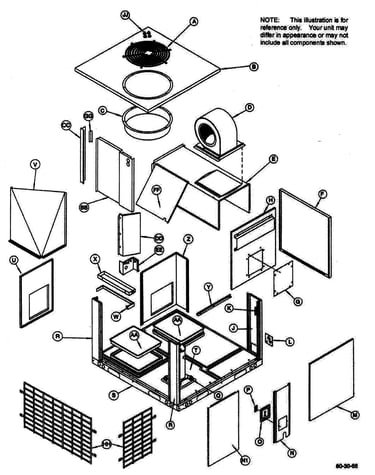

Outside view diagram

Orifice fan

Part #1065724

$47.36
In Stock
Plate Block 1066107
#G

Outside view diagram

Plate block

Part #1066107

$20.49
In Stock
Top Panel 1067557
#B

Outside view diagram

Top panel

Part #1067557

Replaced by #1068191

?
Manufacturer substitution
This part replaces 1067557. Substitute parts can look different from the original.
$184.78
In Stock
Access Panel 1067533
#M

Outside view diagram

Access panel

Part #1067533

Replaced by #1068185

?
Manufacturer substitution
This part replaces 1067533. Substitute parts can look different from the original.
$66.62
In Stock
Access Panel 1067535
#F

Outside view diagram

Access panel

Part #1067535

Replaced by #1068180

?
Manufacturer substitution
This part replaces 1067535. Substitute parts can look different from the original.
$325.64
In Stock
