Model # 917253680 Official Craftsman 38" mower replacement kit

Here are the diagrams and repair parts for Official Craftsman 917253680 38" mower replacement kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

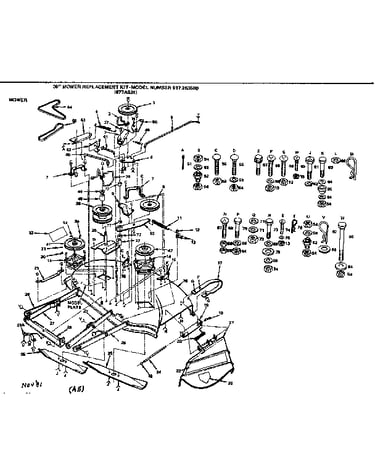

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Hitch Pin, 2-pack 4939M
#76

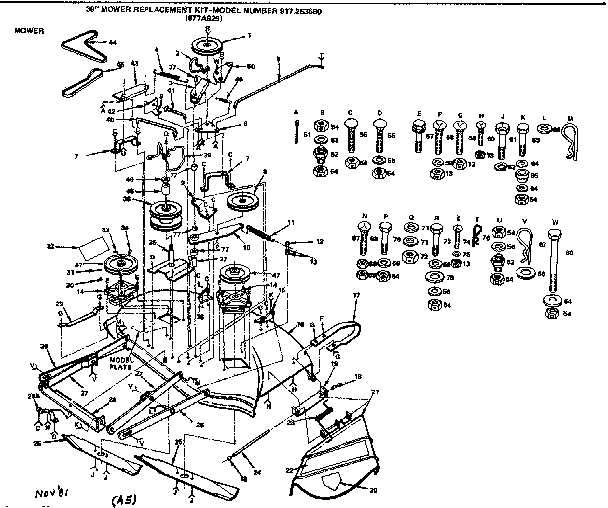

Mower diagram

Hitch pin, 2-pack

Part #4939M

Replaced by #596919601

?
Manufacturer substitution
This part replaces 4939M. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Nut 5846R
#18

Mower diagram

Nut

Part #5846R

Replaced by #532110452

?
Manufacturer substitution
This part replaces 5846R. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
88% OFF Was : $33.51
In Stock
Lock Nut 553P
#13

Mower diagram

Lock nut

Part #553P

The manufacturer no longer makes this part, and there's no substitute part

Wizard Lawn Tractor Grease Fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, Lp-706) 6855M
#30

Mower diagram

Wizard lawn tractor grease fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, lp-706)

Part #6855M

Replaced by #532183226

?
Manufacturer substitution
This part replaces 6855M. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Nut 545P
#54

Mower diagram

Nut

Part #545P

Replaced by #596322601

?
Manufacturer substitution
This part replaces 545P. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Label 3495J
#20

Mower diagram

Label

Part #3495J

Replaced by #539913010

?
Manufacturer substitution
This part replaces 3495J. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Washer 1654P
#59

Mower diagram

Washer

Part #1654P

Replaced by #819111212

?
Manufacturer substitution
This part replaces 1654P. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Screw 5639P
#57

Mower diagram

Screw

Part #5639P

Replaced by #817000612

?
Manufacturer substitution
This part replaces 5639P. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Bearing 697H
#49

Mower diagram

Bearing

Part #697H

Replaced by #532110485

?
Manufacturer substitution
This part replaces 697H. Substitute parts can look different from the original.
$20.54
In Stock
Cotter Pin 2505P
#51

Mower diagram

Cotter pin

Part #2505P

The manufacturer no longer makes this part, and there's no substitute part
