Model # RB632GW3 Official Hotpoint electric range

Here are the diagrams and repair parts for Official Hotpoint RB632GW3 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

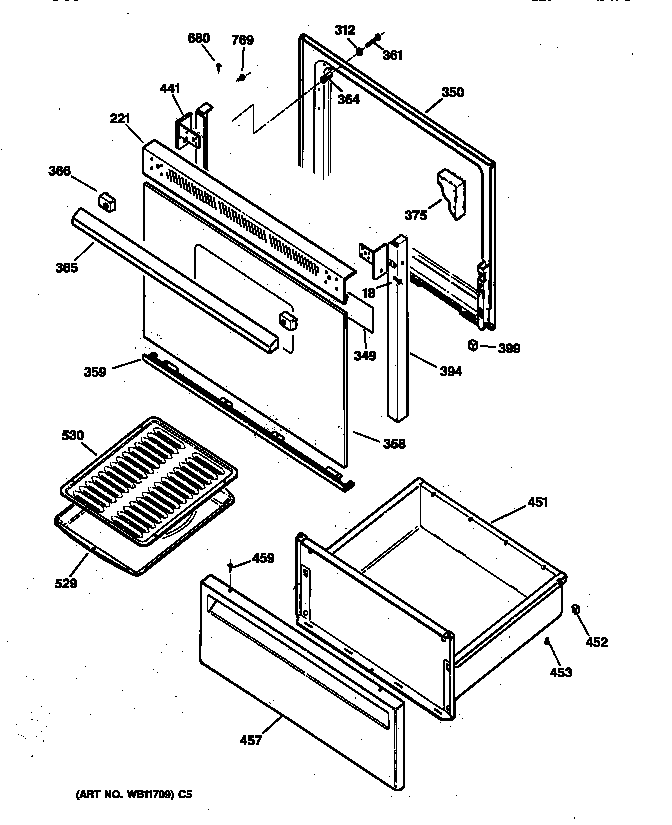

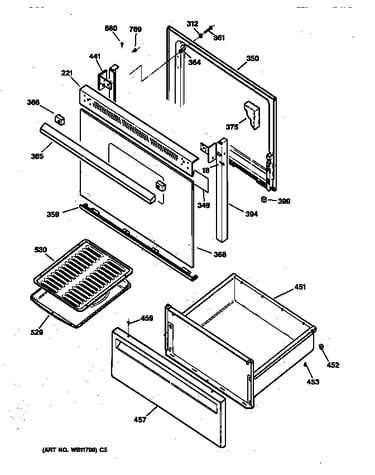

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Range Oven Light Bulb WX12X1510
#1024

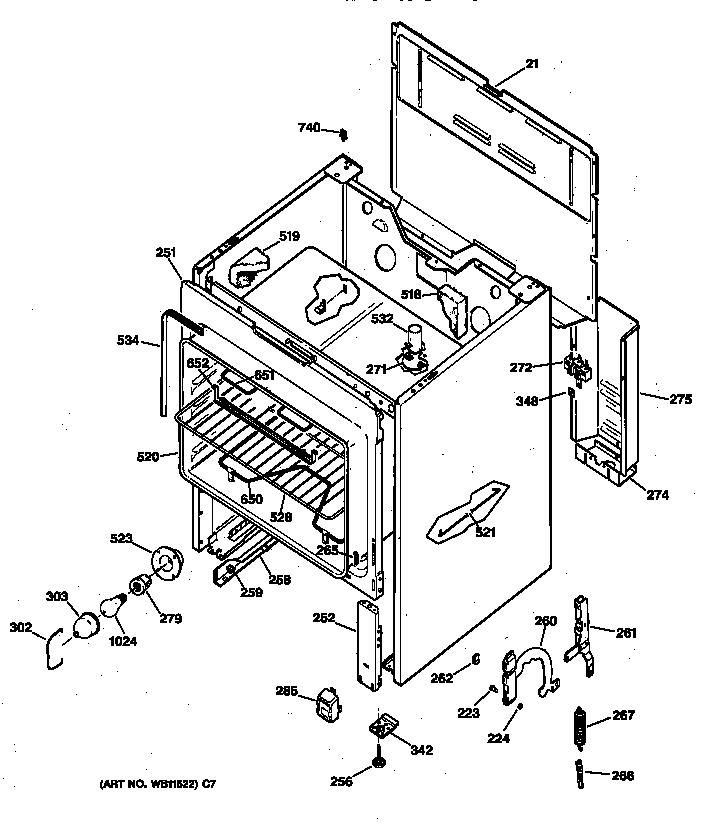

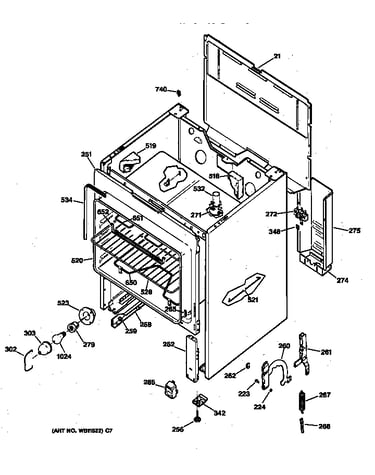

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Infinite Control Switch WB32X5095
#3B

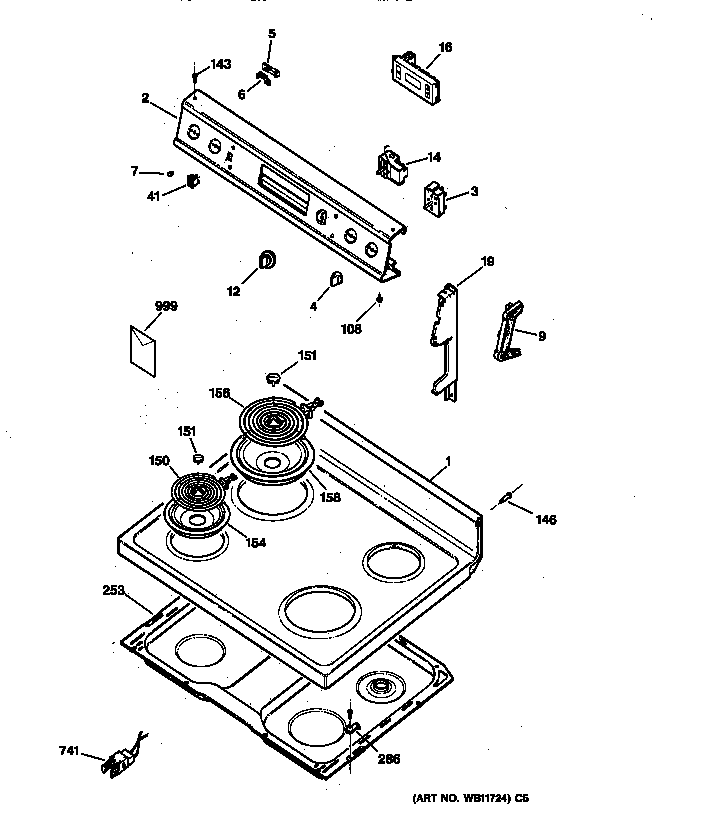

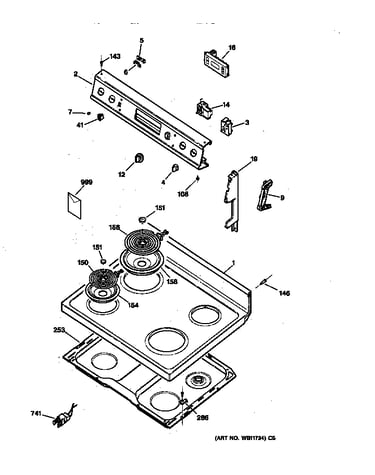

Control panel & cooktop diagram

Infinite control switch

Part #WB32X5095

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces WB32X5095. Substitute parts can look different from the original.
BEST SELLER
$44.00 |
12% OFF Phone Price : $50.00
In Stock
Infinite Control Switch WB23X5092
#3A

Control panel & cooktop diagram

Infinite control switch

Part #WB23X5092

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces WB23X5092. Substitute parts can look different from the original.
BEST SELLER
$44.00 |
12% OFF Phone Price : $50.00
In Stock
"8""p.i. S/u" WB30X5130
#156

Control panel & cooktop diagram

"8""p.i. s/u"

Part #WB30X5130

Replaced by #WB30M2

?
Manufacturer substitution
This part replaces WB30X5130. Substitute parts can look different from the original.
BEST SELLER
$46.48 |
11% OFF Phone Price : $52.48
In Stock
Range Drip Pan WB32X5076
#158

Control panel & cooktop diagram

Range drip pan

Part #WB32X5076

Replaced by #WB31K10266

?
Manufacturer substitution
This part replaces WB32X5076. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Drip Pan WB32X5075
#154

Control panel & cooktop diagram

Range drip pan

Part #WB32X5075

Replaced by #WB31K10265

?
Manufacturer substitution
This part replaces WB32X5075. Substitute parts can look different from the original.
This item is not returnable
$8.72 |
10% OFF Phone Price : $9.72
In Stock
Receptacle WB8X5095
#279

Body parts diagram

Receptacle

Part #WB8X5095

Replaced by #WB08T10026

?
Manufacturer substitution
This part replaces WB8X5095. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
6"p.i. S/u WB30X5129
#150

Control panel & cooktop diagram

6"p.i. s/u

Part #WB30X5129

Replaced by #WB30M1

?
Manufacturer substitution
This part replaces WB30X5129. Substitute parts can look different from the original.
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Range Surface Element Receptacle (replaces Wb02x8228, Wb62x5358, Wb62x5393, Wb62x5394, Wb62x5397, Wb62x5401, Wb62x5405) WB2X8228
#741

Control panel & cooktop diagram

Range surface element receptacle (replaces wb02x8228, wb62x5358, wb62x5393, wb62x5394, wb62x5397, wb62x5401, wb62x5405)

Part #WB2X8228

This item is not returnable
$30.23 |
17% OFF Phone Price : $36.23
In Stock
Lamp Cover WB36X389
#303

Body parts diagram

Lamp cover

Part #WB36X389

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X389. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
