Kenmore
Countertop Microwave

Model # 1039877812 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 1039877812 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

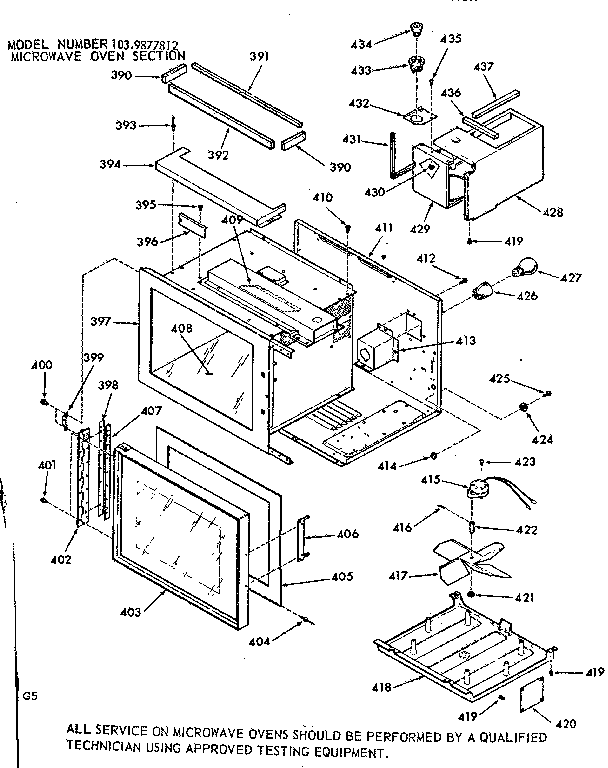

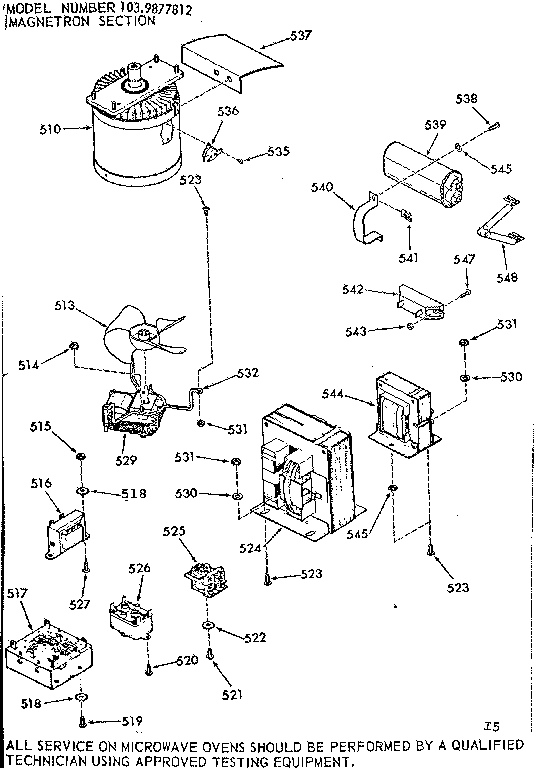

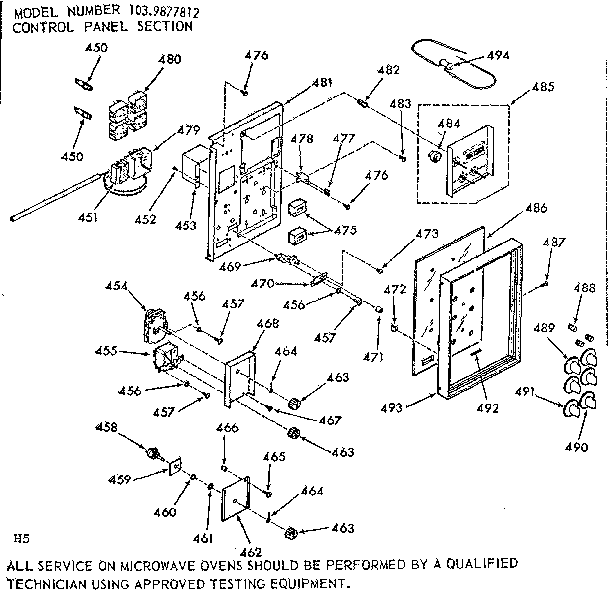

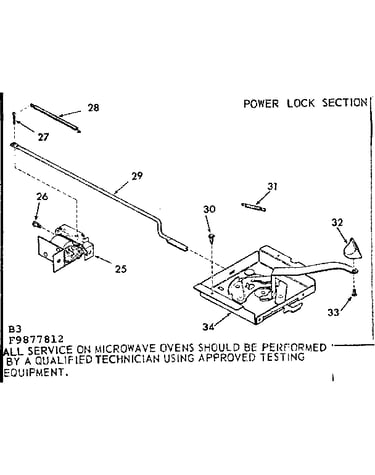

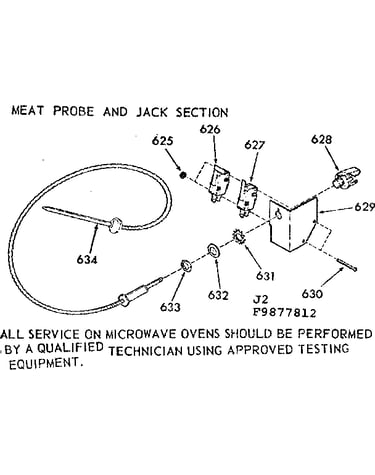

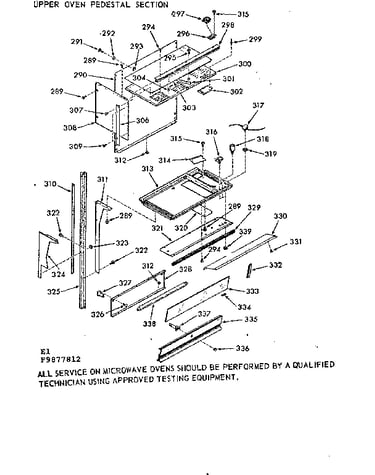

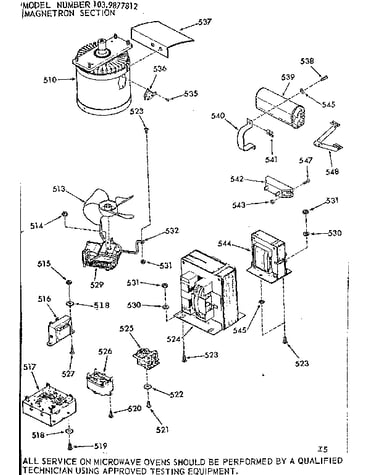

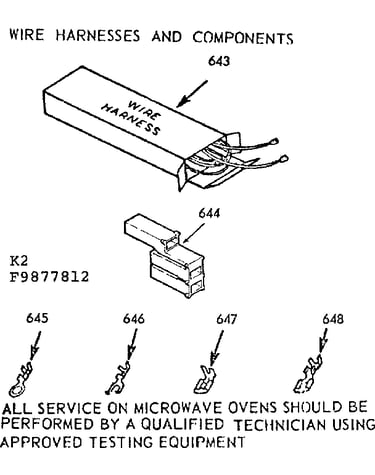

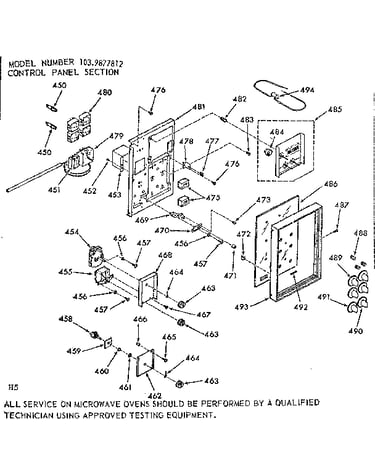

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 394 parts  |
Lamp Bulb STD372401
Lamp bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Terminal Block 304645
#17

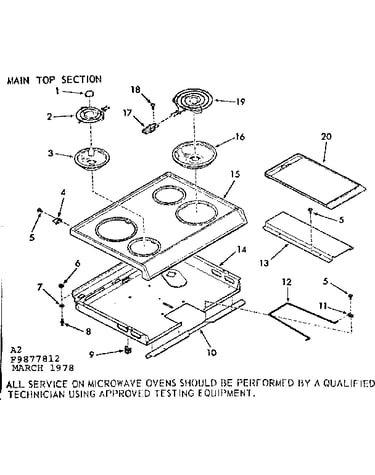

Main top section diagram

Terminal block

Part #304645

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces 304645. Substitute parts can look different from the original.
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Bowl 304969
#16

Main top section diagram

Bowl

Part #304969

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 304969. Substitute parts can look different from the original.
BEST SELLER
$15.00 |
12% OFF Phone Price : $17.00
In Stock
Screw 105771
Screw

Part #105771

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces 105771. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Broil Element 293105
#126A

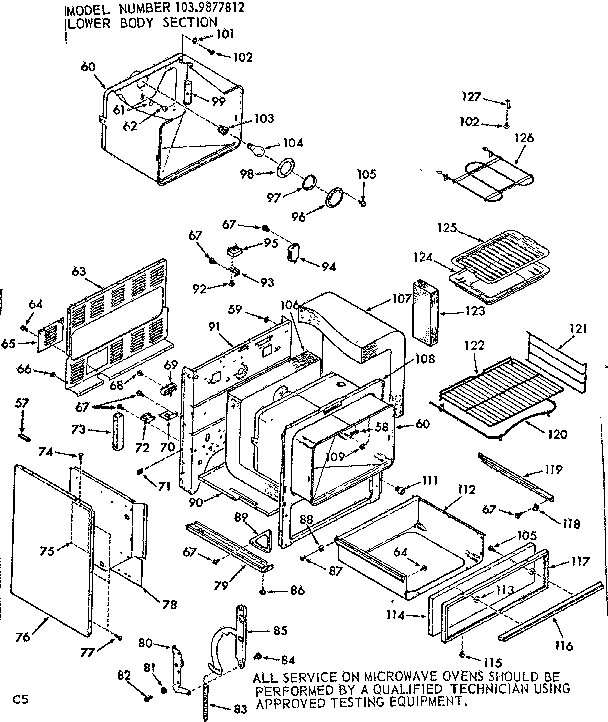

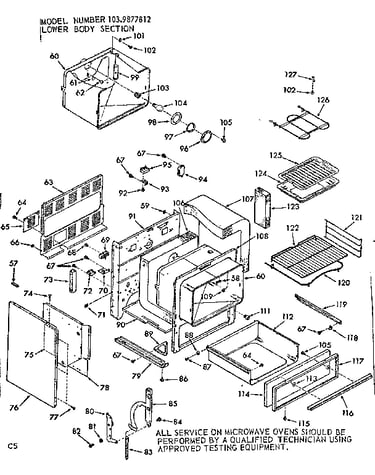

Lower body section diagram

Broil element

Part #293105

Replaced by #WB44M5

?
Manufacturer substitution
This part replaces 293105. Substitute parts can look different from the original.
$68.07 |
8% OFF Phone Price : $74.07
In Stock
Bowl 296481
#3

Main top section diagram

Bowl

Part #296481

Replaced by #WB32X107

?
Manufacturer substitution
This part replaces 296481. Substitute parts can look different from the original.
$9.80 |
10% OFF Was : $10.89
In Stock
Gm Hex Nut 453284
#365

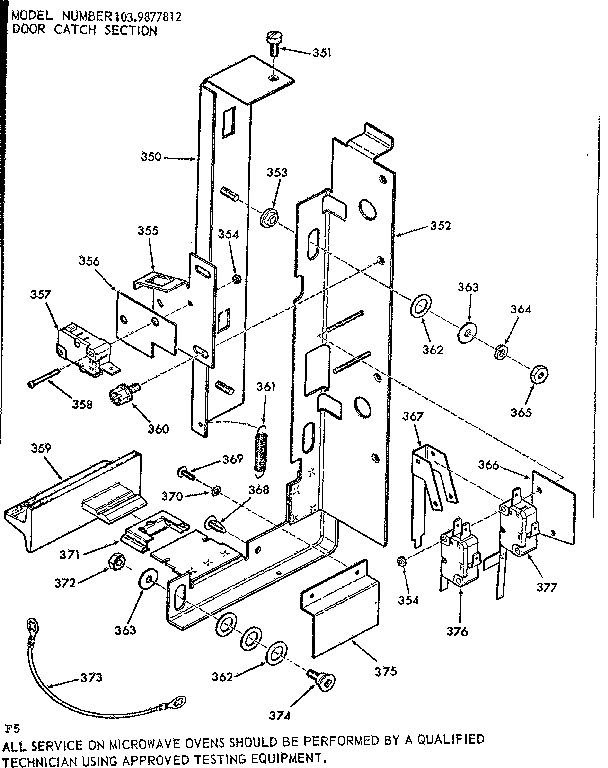

Door catch section diagram

Gm hex nut

Part #453284

Replaced by #WB1X1259

?
Manufacturer substitution
This part replaces 453284. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Gasket 292244
#161

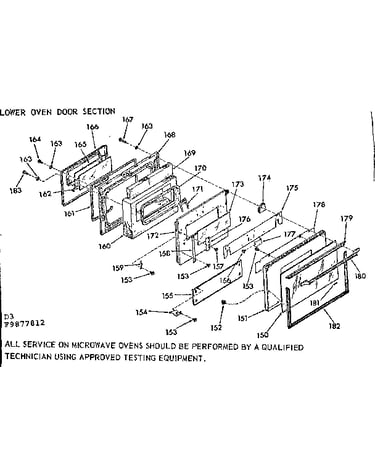

Lower oven door section diagram

Gasket

Part #292244

Replaced by #WB2X9373

?
Manufacturer substitution
This part replaces 292244. Substitute parts can look different from the original.
$79.27 |
7% OFF Phone Price : $85.27
In Stock
Screw 299632
#18

Main top section diagram

Screw

Part #299632

Replaced by #WB1X1425

?
Manufacturer substitution
This part replaces 299632. Substitute parts can look different from the original.
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Unit 112696
#2A

Main top section diagram

Unit

Part #112696

The manufacturer no longer makes this part, and there's no substitute part
