Gibson
Upright Freezer

Model # FV19F5WSFE Official Gibson upright freezer - lg30890140

Here are the diagrams and repair parts for Official Gibson FV19F5WSFE upright freezer - lg30890140, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Filter Drier G152474
#36

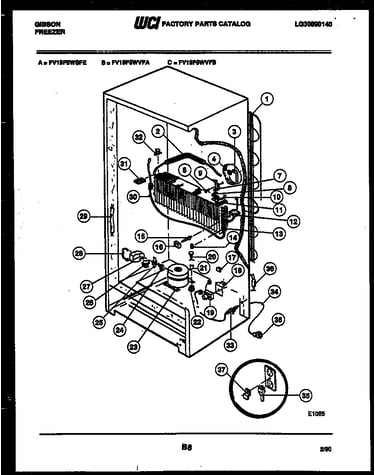

System and automatic defrost parts diagram

Filter drier

Part #G152474

Replaced by #5303305677

?
Manufacturer substitution
This part replaces G152474. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key F115646
#13

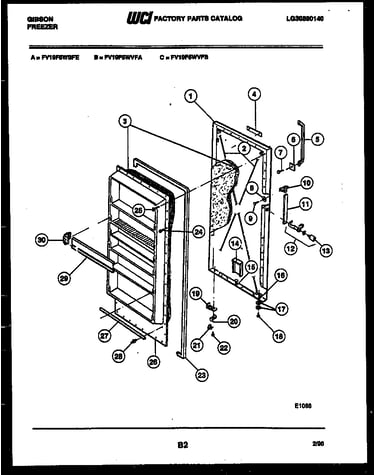

Door parts diagram

Key

Part #F115646

Replaced by #297147700

?
Manufacturer substitution
This part replaces F115646. Substitute parts can look different from the original.
BEST SELLER
$9.07 |
10% OFF Phone Price : $10.07
In Stock
Timer F111695
#19

System and automatic defrost parts diagram

Timer

Part #F111695

Replaced by #215846604

?
Manufacturer substitution
This part replaces F111695. Substitute parts can look different from the original.
BEST SELLER
$27.89 |
18% OFF Phone Price : $33.89
In Stock
Heater Clip F111729
#14

System and automatic defrost parts diagram

Heater clip

Part #F111729

Replaced by #5308000110

?
Manufacturer substitution
This part replaces F111729. Substitute parts can look different from the original.
BEST SELLER
$52.30 |
10% OFF Phone Price : $58.30
In Stock
Bearing F126303
Bearing

Part #F126303

Replaced by #297006800

?
Manufacturer substitution
This part replaces F126303. Substitute parts can look different from the original.
This item is not returnable
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Drain F121290
#14

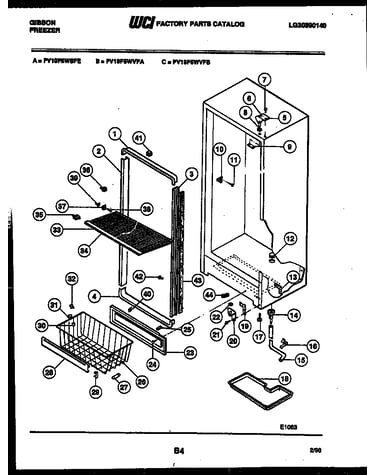

Cabinet parts diagram

Drain

Part #F121290

Replaced by #5304511843

?
Manufacturer substitution
This part replaces F121290. Substitute parts can look different from the original.
This item is not returnable
$13.42 |
13% OFF Phone Price : $15.42
In Stock
Valve Breather F117926
#15

Door parts diagram

Valve breather

Part #F117926

Replaced by #5309950074

?
Manufacturer substitution
This part replaces F117926. Substitute parts can look different from the original.
This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Fan Motor 3205519
#14

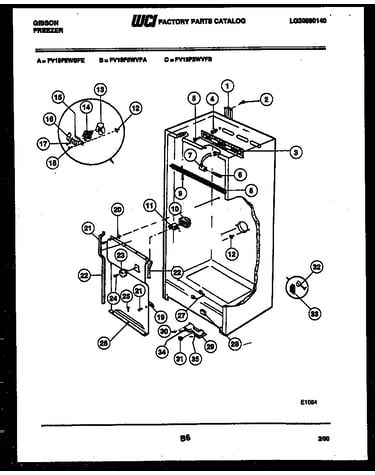

Interior parts diagram

Fan motor

Part #3205519

Replaced by #5304442620

?
Manufacturer substitution
This part replaces 3205519. Substitute parts can look different from the original.
$142.87 |
8% OFF Phone Price : $154.87
In Stock
Thermostat 3016814
#32

System and automatic defrost parts diagram

Thermostat

Part #3016814

Replaced by #5303917954

?
Manufacturer substitution
This part replaces 3016814. Substitute parts can look different from the original.
$24.36 |
20% OFF Phone Price : $30.36
In Stock
Glide Basket F123942
#27

Cabinet parts diagram

Glide basket

Part #F123942

Replaced by #08009560

?
Manufacturer substitution
This part replaces F123942. Substitute parts can look different from the original.
$27.07 |
18% OFF Phone Price : $33.07
In Stock
